Brand - Kingston Technology
BrandPartCode - KVR56S46BD8-48
CAS Latency - CL46
Category - Memory Modules
Category Code - MEB
CL - 46
Description -

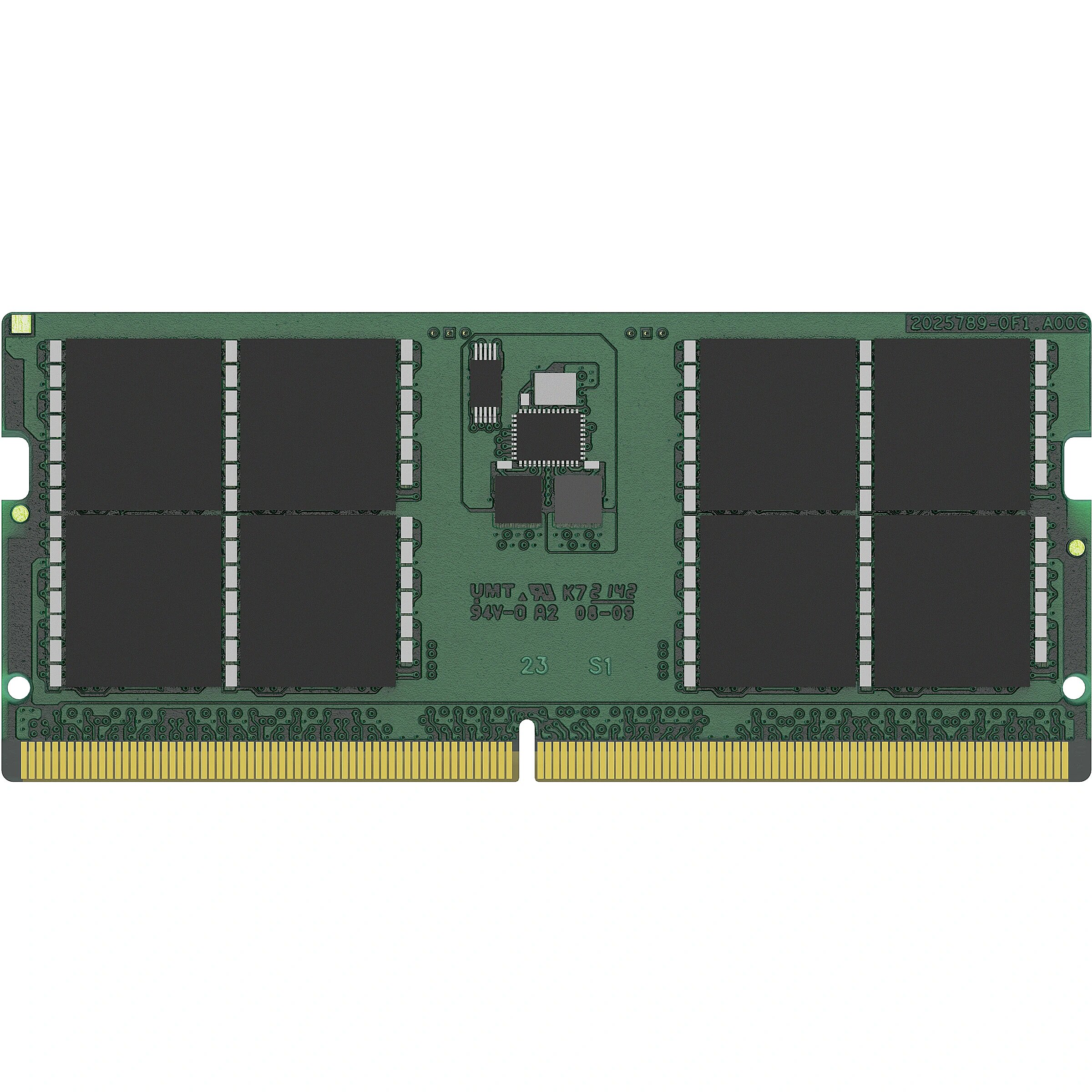

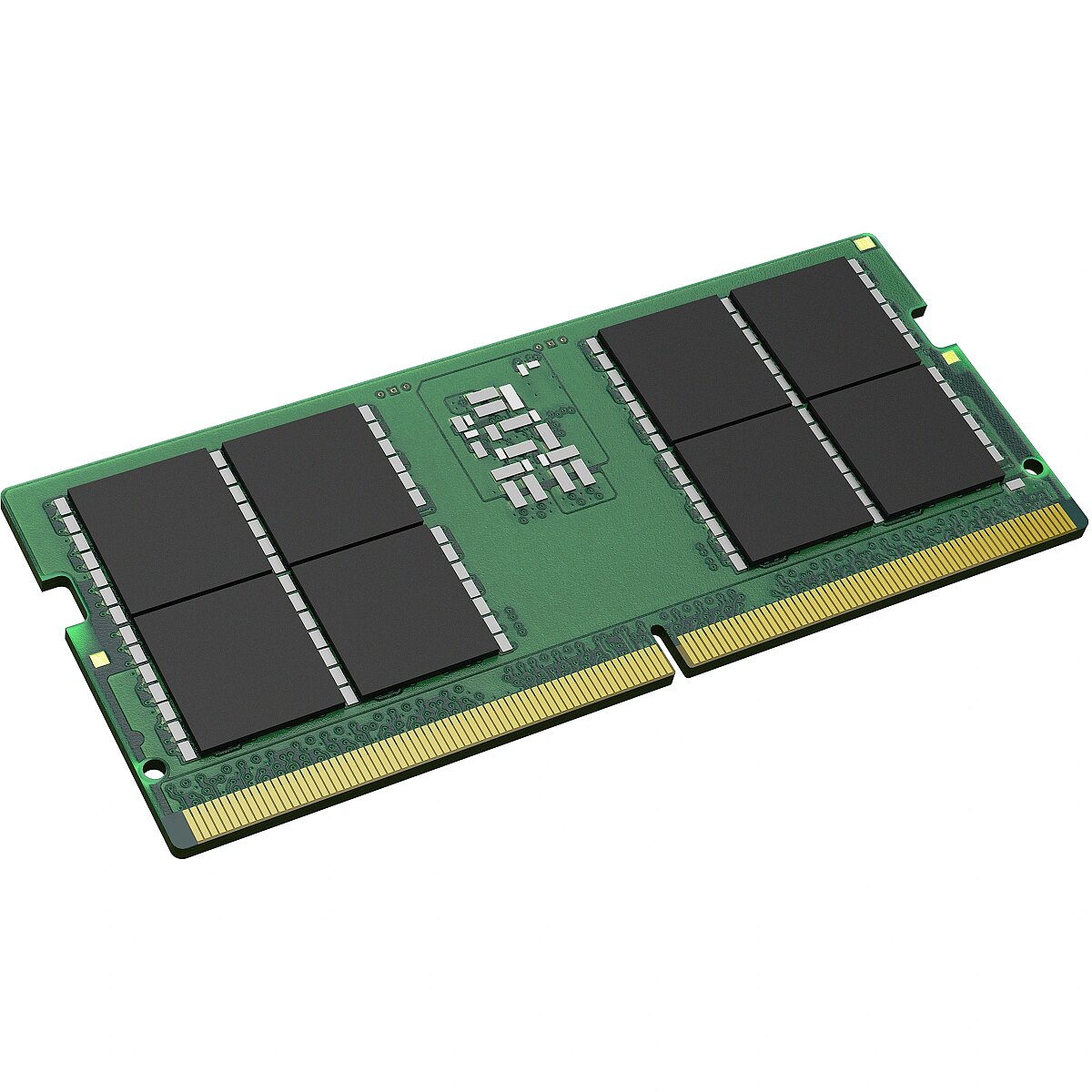

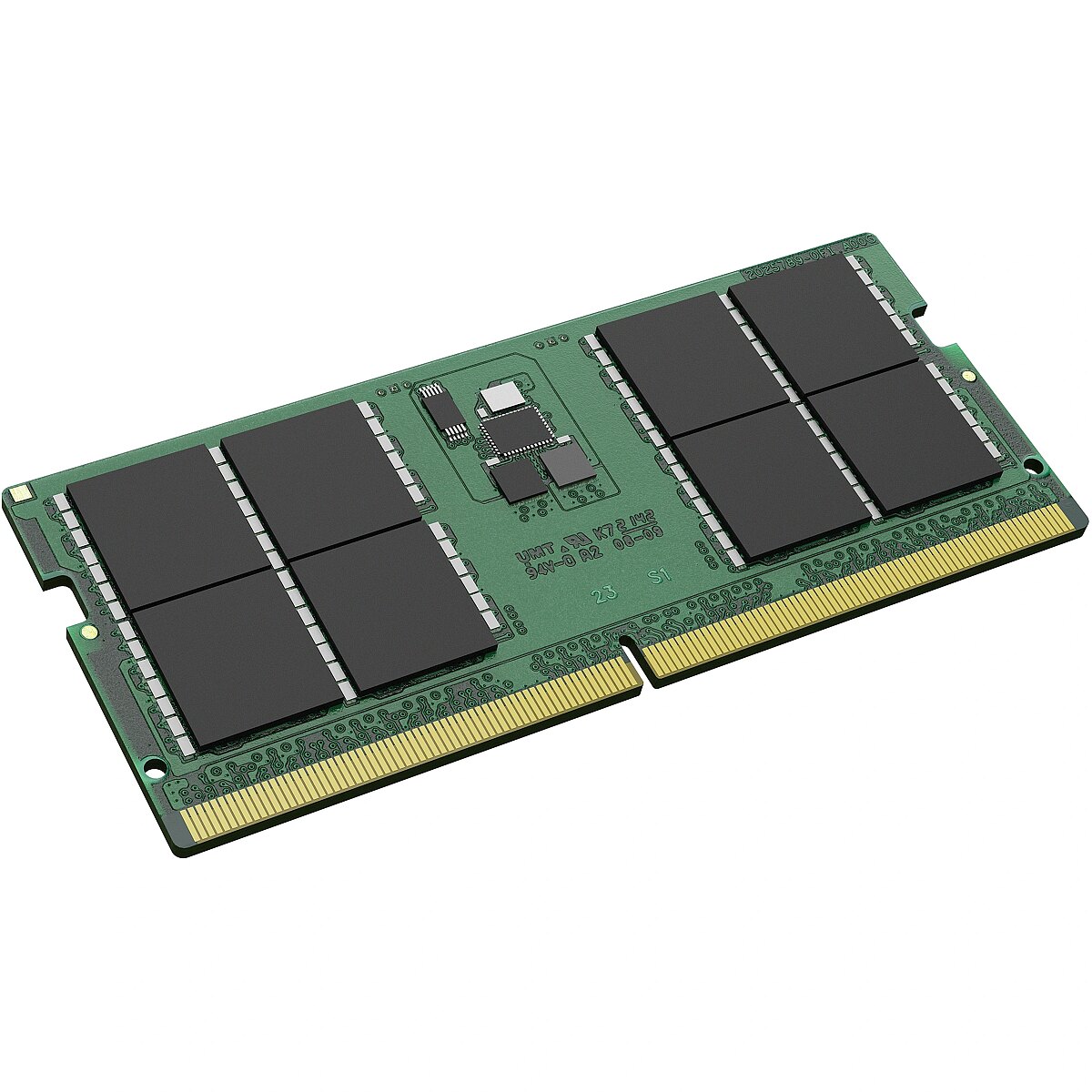

Description - KVR56S46BD8-48 48GB 2Rx8 6G x 64-Bit PC5-5600 CL46 262-Pin SODIMM
Designation - CE+WEEE
dimension depth - 5 mm
dimension height - 95 mm
dimension weight - 10 g
dimension width - 45 mm
ean - 740617336856
ECC support - No
Features - Buffered memory type - Unregistered (unbuffered)
Features - CAS latency - 46
Features - Component for - Laptop
Features - ECC - No
Features - Internal memory - 48 GB
Features - Internal memory type - DDR5
Features - JEDEC standard - Yes
Features - Lead plating - Gold
Features - Memory data transfer rate - 5600 MT/s
Features - Memory form factor - 262-pin SO-DIMM
Features - Memory layout (modules x size) - 1 x 48 GB
Features - Memory ranking - 2
Features - Memory voltage - 1.1 V
Features - Module configuration - 6144M x 64
Features - On-Die ECC - Yes
Features - Programming power voltage (VPP) - 1.8 V
Features - Refresh row cycle time - 295 ns
Features - Row active time - 32 ns
Features - Row cycle time - 48 ns
Features - SPD profile - Yes
Frequency speed - 5600 MHz
Full Description Line - DDR5|48GB|5600 MHz|262-pin SO DIMM|CL 46
GTIN - 740617336856
GTIN - 0740617336856
guarantee - 0
guarantee_type - perpetual
LongDesc - ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.
LongProductName - 48GB, DDR5, 5600MT/s, Non-ECC, Unbuffered, SODIMM, CL46, 2RX8, 1.1V, 262-pin
LongSummaryDescription - Kingston Technology ValueRAM KVR56S46BD8-48. Component for: Laptop, Internal memory: 48 GB, Memory layout (modules x size): 1 x 48 GB, Internal memory type: DDR5, Memory form factor: 262-pin SO-DIMM, CAS latency: 46
Memory bus frequency - 5600 MHz
Memory module capacity - 48GB
Memory type - DDR5
Memory type - SODIMM DDR5
Model - KVR56S46BD8-48
Module form factor - 262-pin SO DIMM
name - Notebook memory DDR5 48GB(1*48GB)/5600 CL46 2Rx8
Number of memory cards in set - 1
Operational conditions - Operating temperature (T-T) - 0 - 85 °C
Operational conditions - Storage temperature (T-T) - -55 - 100 °C
Other features -
producer - Kingston
ProductName - KVR56S46BD8-48
Product Net Weight - 0.017 kg
Radiator - No
Shipping Box Depth Shipping/Package Box Dimensions - 8.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 1 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.02 kg
Shipping Box Width Shipping/Package Box Dimensions - 5 cm
ShortSummaryDescription - Kingston Technology ValueRAM KVR56S46BD8-48, 48 GB, 1 x 48 GB, DDR5, 262-pin SO-DIMM
Sustainability - Doesn't contain - Halogen
Title - Kingston Technology ValueRAM KVR56S46BD8-48 memory module 48 GB 1 x 48 GB DDR5
Total capacity - 48GB
Total memory capacity - 48 GB
Unit Box Height - 0.01
Unit Box Length - 0.085
Unit Box Width - 0.05
Unit Calculated Volume - 4.25e-005 cubm
Unit Calculated Weight - 0.02 kg
Units per Shipping Box - 1
URL - https://www.kingston.com/en/memory/search?partid=KVR56S46BD8-48
Vendor Homepage - www.kingston.com/datasheets/KVR56S46BD8-48.pdf
vendpn - KVR56S46BD8-48
Warranty - 24 months
WarrantyInfo -
Weight & dimensions - Height - 30 mm
Weight & dimensions - Width - 69.6 mm
