Accessories included -
Aspect ratio - 16:9
Auto Pivot - No
Bluetooth - Yes
Brand - Samsung
BrandPartCode - LH24QBCTBGCXEN
Brightness - 250 cd/m²
Category - Signage Displays
Category 1 - Displays
Category 2 - Monitore
Certificates - EMC
Certificates - FCC Class B
Color - Black
Computer system - Built-in processor - Yes
Computer system - Computer system - Yes
Computer system - Computer system type - System on Chip (SoC)
Computer system - Operating system installed - Tizen 7.0
Curved - 0 R
Depth - 34.6 mm
Description - Expand your retail space with a compact display Make the most of any space with the Samsung QB24C-T small digital display. The compact display delivers clear communication with Full HD resolution. Enhanced internals and an intuitive home screen user interface make it easy to use, while also providing reliable performance for any business application. Fast and efficient touch capabilities. 10-point multi-touch The QB24C-T features 10-point multi-touch and a fast response time provides an intuitive interface that enables customer-centric search and action, creating new customer interactions that drive purchases. Connect conveniently. Home UI The QB24C-T offers greater usability with an improved home screen interface. Popular categories such as Features, Sources, and Settings are displayed on the same screen for convenient accessibility. The Favorites folder provides users with quick and easy access to frequently used features with just one click. Convenient and clear display control. IR center With the central infrared, each display receives infrared signals directly to the panel, allowing easy and convenient remote control. Once installed, the display does not require an IR receiver extension cable. Built-in Wi-Fi enables wireless remote management of both content and the display. Safe operation, reliable operation. IP5X / EMC class B The QB24C-T complies with electromagnetic compatibility (EMC) class B, meeting stringent safety and reliability standards. Additionally, the display's IP5x rating highlights its solid durability even in dusty environments. Change the way you manage your Samsung VXT display Samsung VXT is a cloud-based solution that combines content management and remote device management functions, allowing users to remotely manage hardware settings and troubleshoot issues remotely, while easily creating and deploying content without the need for training.
Design - Panel mounting interface - 100 x 100 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - Screen shape - Flat
Design - VESA mounting - Yes
Designation - CE+WEEE
dimension depth - 620 mm
dimension height - 430 mm
dimension weight - 5200 g
dimension width - 130 mm
Display - Colour gamut - 72%
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness - 250 cd/m²
Display - Display diagonal - 61 cm (24")
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - Dynamic contrast ratio marketing name - Mega Contrast
Display - Haze rate - 25%
Display - HD type - Full HD
Display - Horizontal scan range - 56 - 84.5 kHz
Display - Multi-touch - Yes
Display - Panel type - ADS
Display - Pixel pitch - 0.2745 x 0.2745 mm
Display - Response time - 14 ms
Display - RGB colour space - NTSC
Display - Touchscreen - Yes
Display - Touchscreen technology - Capacitive
Display - Vertical scan range - 48 - 75 Hz
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display surface - Matt
Dynamic contrast - Mega Contrast
ean - 8806095303710
EAN - 8806095303710
Energy class - not applicable
Frequency, horizontal max. - 84.5 kHz
Frequency, horizontal min. - 56 kHz
Frequency, vertical max. - 75 Hz
Frequency, vertical min. - 48 Hz
GTIN - 8806095303710
guarantee - 36
guarantee_type - external
Height - 334.4 mm
Height adjustment - No

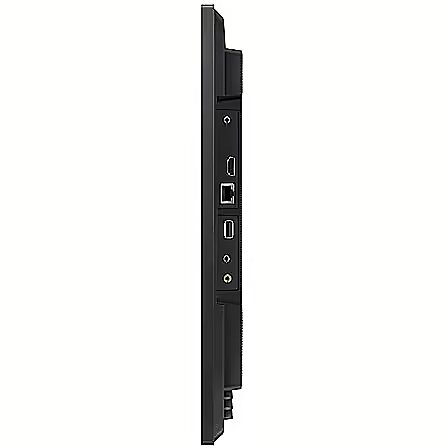

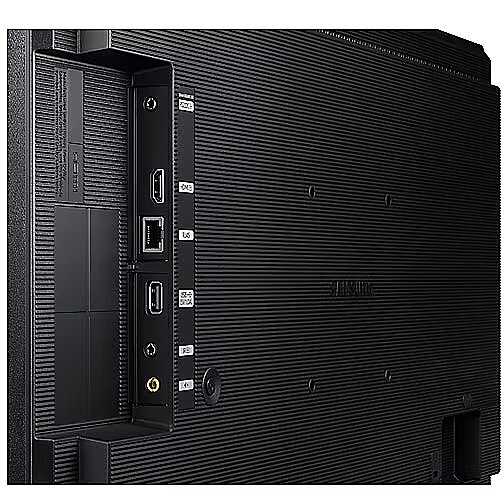

I/O connectors - 1 x 3,5 mm minijack
I/O connectors - 1 x HDMI
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
LongDesc - Expand commercial space with compact displayGet the most out of every space with Samsung QB24C-T small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.Fast, effective touch capabilities10 point multi-touchThe QB24C-T provides 10-point multi-touch, while fast response time powers an intuitive interface that allows customer-driven search and action, creating new customer interactions that drive purchases.Connect with convenienceHome UIQB24C-T boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.Convenient, clean display controlCenter IRWith center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.Safe operation, reliable performanceIP5X / EMC Class BQB24C-T is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.Change the way to manage your displaySamsung VXTSamsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.
LongProductName - 23.8", ADS, FHD (1920 x 1080), Touch, 250 nit, 1000:1, 178/178, 14 ms, WiFi, Bluetooth, RJ-45, HDCP, HDMI, RS232, AC 100-240V, 50/60Hz, 547.9 x 334.4 x 34.6 mm, 4 kg
LongSummaryDescription - Samsung QB24C-T. Product design: Digital signage flat panel. Display diagonal: 61 cm (24"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 7.0. Product colour: Black
Manufacturer - SAMSUNG
Matrix type - ADS-IPS
Model - QB24C-T
MPN - LH24QBCTBGCXEN
Name - 60,45cm/23,8" (1920x1080) Samsung QB24C-T 16:9 FHD ADS Touch 14ms 16/7 DigitalSignage USB HDMI Ethernet Speaker Tizen Black
name - Professional monitor QB24C-T 24 inches Matte, Touch 16h/7 250(cd/m2) 1920x1080(FHD) S10 Player(Tizen7, VXT Ready) WiFi/BT 3 years d2d (LH24QBRBBGCXEN)
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Optional accessory -
Other features -
Other features - Bluetooth - Yes
Other features - Flash memory - 8000 MB
Other features - RJ-45 input ports - 1
Other features - RS-232 input ports - 1
Packaging content - Cables included - Power
Packaging data - Package depth - 122 mm
Packaging data - Package height - 419 mm
Packaging data - Package volume - 5200 cm³
Packaging data - Package width - 620 mm
Performance - HDCP - Yes
Performance - HDCP version - 2.2
Performance - Operating hours (hours/days) - 16/7
Performance - Purpose - Universal
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI input ports quantity - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Infrared data port - Yes
Ports & interfaces - Remote (IR) input - 1
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - Wi-Fi - Yes
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (sleep) - 0.5 W
Power - Power consumption (typical) - 38.5 W
Power consumption - 38.5 W
producer - Samsung
ProductName - QB24C-T
Refresh rate - 148.5 MHz
Resolution - 1920 x 1080 (FHD 1080)
Response time - 14 ms
Screen size (diag.) - 23.8''
ShortSummaryDescription - Samsung QB24C-T, Digital signage flat panel, 61 cm (24"), LED, 1920 x 1080 pixels, Wi-Fi, 16/7
Speakers built-in - No
Static contrast - 1 000:1
Technical details - Audio out (mini jack) - 1
Technical details - Compliance certificates - CE, China Compulsory Certification (CCC), Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), KCC, RoHS, VCCI
Technical details - Sustainability certificates - EPEAT Bronze
Technical details - Sustainability compliance - Yes
Title - Samsung QB24C-T Digital signage flat panel 61 cm (24") LED Wi-Fi 250 cd/m² Full HD Black Touchscreen Built-in processor Tizen 7.0 16/7
Touch screen - Yes
Transreflective technology - LED
TV tuner built-in - No
URL - https://www.samsung.com/uk/business/smart-signage/interactive-display/qb24c-t-small-digital-signage-lh24qbctbgcxen/
vendpn - LH24QBCTBGCXEN
VESA - 100 x 100
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Warranty - 3 years door-to-door
WarrantyInfo -
Web camera - None
Weight - 4 kg
Weight & dimensions - Display depth - 34.6 mm
Weight & dimensions - Display height - 334.4 mm
Weight & dimensions - Display weight - 4 kg
Weight & dimensions - Display width - 547.9 mm
Width - 547.9 mm
WiFi - Yes
