ID: 1108892
Код товара: ZPU-500S
Можно заказать 146 шт. Доступность: 14 дней после утверждения заказа
Гарантия: 2 лет
Chieftec ZPU-500S, 500W, EON Series, 80PLUS
Изображение может отличаться от реального товара, могут быть аксессуары и детали, не поставляемые с реальным товаром.
-
Почтомат OmnivaВ течение 1-2 рабочих дней1,99 € -
Почтомат ItellaВ течение 1-2 рабочих дней1,99 € -
Доставка курьером по адресуВ течение 1-2 рабочих дней5,99 €
Основные параметры продукции Все параметры
- Производитель: Chieftec
- Пиковая мощность: 500W
- 80 PLUS certification: 80 PLUS (White)
- Размер вентилятора: 120 mm
- Модульные кабели: Nav
- Подключаемый процессор: 2 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Описание
Этот блок питания марки Chieftec имеет сертификат энергоэффективности 80 PLUS (White) и выходную мощность 500W.

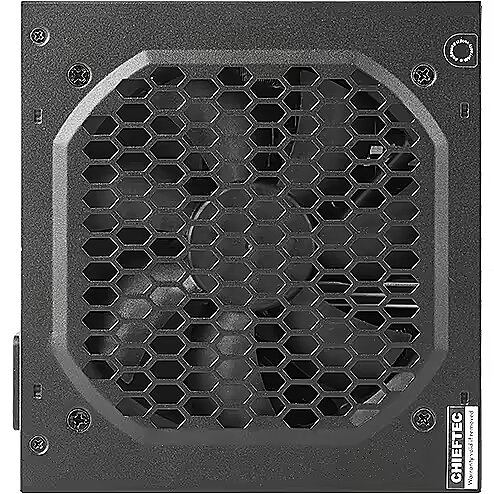

Этот блок питания оснащен 120 mm вентилятором, который является отраслевым стандартом для обеспечения тихой работы в средних компьютерах. Если вам нужен особенно тихий блок, ищите один с диаметром вентилятора 135 мм или 140 мм.
Блок питания был награжден сертификатом энергоэффективности 80 PLUS (White), что обеспечивает эффективность как минимум 80%. Это означает, что из 100 Вт мощности, получаемой блоком питания от сети, как минимум 80 Вт доставляется компонентам компьютера, а оставшиеся 20 Вт теряются в виде тепла.
Цвет блока Melna. У блока плоские кабели, цвет которых Melna.
Это блок питания, который соответствует требованиям ATX 2.0. Блок питания имеет только 6-контактные и 8-контактные разъемы, которые могут передавать только 75 Вт и 150 Вт мощности соответственно. Высокие потребности современных видеокарт в мощности превышают возможности разъемов ATX 2.0. При сборке системы с очень мощным GPU, таким как
Этот блок питания не имеет модульных кабелей – все его кабели прикреплены к блоку и не отсоединяются. Несмотря на простой дизайн, он будет выполнять свои функции так же хорошо, как и блок питания с модульными кабелями.
Основная информация
Сертификация уровня шума Cybenetics
: Nav
Сертификация эффективности Cybenetics
: Nav
Тип блока питания
: ATX
Пиковая мощность
500W
Мощность блока в ватах. Большая мощность означает лучшую стабильность работы компьютера. В современном компьютере желательная мощность блока 500W или больше. Если используете несколько жестких дисков, мощную видеокарту и процессор, то желательно приобрести блок питания с мощностью 600W или больше.
80 PLUS certification
: 80 PLUS (White)
Общая сила тока (+12 В)
: 37A
Размер вентилятора
: 120 mm
Функциональность
Цвет кабеля
: Черный
Освещение
: Nav
Цвет
: Черный
Модульные кабели
: Nav
Места подключения и оснащение
PCI-E 5.0
: Nav
Подключаемый процессор
: 2 x 8-pin(4+4) EPS
Штепсель системной платы
: 20+4pin
PCI-E
: 2 X 6+2pin
Штепсели SATA
: 4
Штепсель Molex PATA
: 2
Дело
Более подробная спецификация
8-pin 12V power connectors - 0
Accessories included -
Brand - Chieftec
BrandPartCode - ZPU-500S
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Certificates - Compliance certificates - CB, CE, EAC, RoHS
Certificates 80+ - 80 PLUS
Description - Power supply ZPU-500S 500W EON Series 80 PLUS The EON series offers high quality and performance 80 PLUS 230 V EU at a high level of competitive prices, equipped with quiet 120 mm fans. The power supplies are entirely made of steel, covered with an elegant black coating, equipped with extra-long native cables. The EON series operates quietly and delivers its power with all the necessary protection and safety features.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 100 mm
dimension height - 250 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 1619 g
dimension width - 180 mm
ean - 753263078612
EAN - 0753263078612
Eans - 753263078612
Fan - 12 cm
Floppy power connectors - 0
GTIN - 0753263078612
GTIN - 753263078612
guarantee - 24
guarantee_type - normal
Logistics data - Warranty period - 2 year(s)
LongDesc - The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly competitive pricing, equipped with silent 120mm fans.The power supplies are fully built from steel, coated in elegant black, and equipped with extra-long native cables. The EON Series runs quietly and provides its power with all essential protection and safety features.
LongProductName - 500 W, ATX 12 V 2.3, PS II, 120 mm, 200 - 240 V, 50 Hz
LongSummaryDescription - Chieftec EON ZPU-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,600,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, RoHS
Manufacturer - Chieftec
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 2
MPN - ZPU-500S
Name - 500W Chieftec EON Series ZPU-500S
Name - Chieftec ZPU-500S
name - Power supply ZPU-500S 500W EON Series 80 PLUS
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features - AFC (automatic fan speed control) OPP (overload protection) OVP (overvoltage protection) SCP (Short Circuit Protection) SIP (surge and surge protection) UVP (undervoltage protection)
Packaging data - Package type - Box
Packaging data - Package weight - 1.45 kg
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 150,450 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 450,600,750 mm
Power - AC input frequency - 50 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 444 W
Power - Combined power (-12V) - 4.8 W
Power - Input current - 3.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 37 A
Power - Max output current (-12V) - 0.4 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Short circuit, Surge and inrush, Surge protection
Power - Total power - 500 W
Power supply - 500 W
producer - Chieftec
Producer - Chieftec
ProducerCode - ZPU-500S
ProductName - ZPU-500S
SATA power connectors - 4
ShortDescription - 500 | ATX | 120 mm | 20 + 4 pin | 150mm x 85mm x 140mm | 80 PLUS |
ShortSummaryDescription - Chieftec EON ZPU-500S, 500 W, 200 - 240 V, 50 Hz, 3.5 A, Active, 100 W
Technical details - Sustainability certificates - ErP
Title - Chieftec EON ZPU-500S power supply unit 500 W 20+4 pin ATX ATX Black
URL - https://www.chieftec.eu/products-detail/566/EON_Series/573/ZPU-500S
vendpn - ZPU-500S
WarrantyInfo - 24 Months
Weight - 1.62
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.2 kg
Weight & dimensions - Width - 150 mm
