Cudy WE3000S

Accessories included -
Antenna - Detachable external
Antenna gain - 5 dBi
Category - Root/Electronics/Networks and communication/Network interface cards
Category 1 - Netzwerk
Category 2 - Netzwerkkarten
Chipset type - INTEL AX210

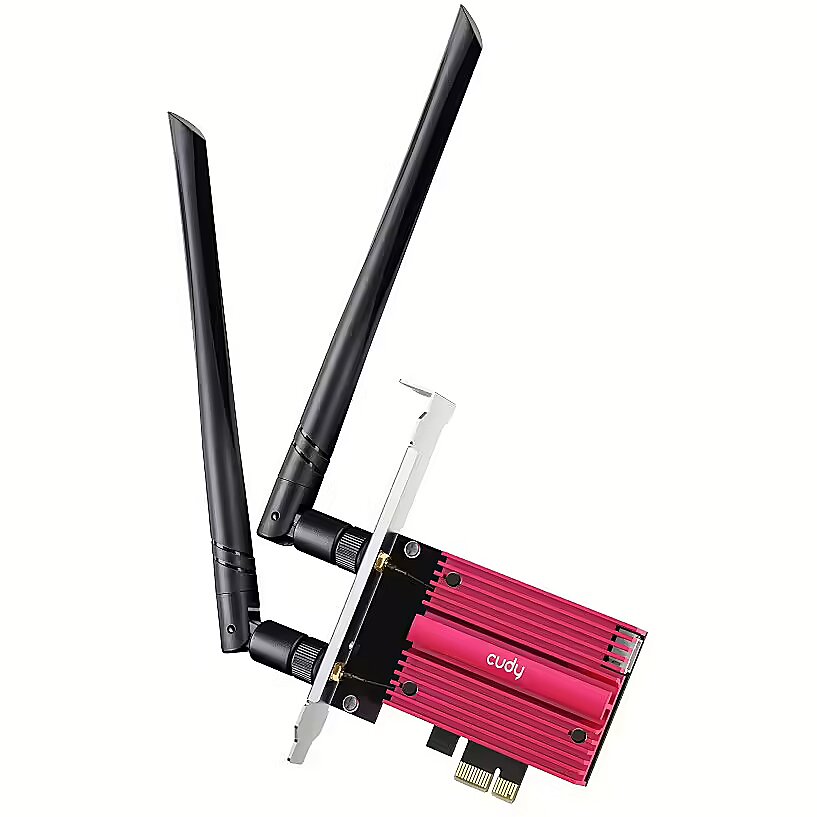

Description - WE3000S AX5400 Tri-Band Wi-Fi 6 PCI Express Network Adapter Tri-Band 2402Mbps + 2402Mbps + 574Mbps Speed Bluetooth 5.2 Technology Intel WiFi 6/WiFi 6E module Compatible with 802.11ax/ac/a/b/g/n
Design - Antenna - Yes
Design - Antenna design - External
Design - Antenna direction type - Omni-directional
Design - Antenna gain level (max) - 5 dBi
Design - Component for - PC
Design - Internal - Yes
Designation - CE+WEEE
dimensionalWeight - 301
dimension depth - 42 mm
dimension height - 234 mm
Dimensions - 70 x 45 x 2 mm
dimension weight - 228 g
dimension width - 137 mm
ean - 6971690791322
EAN - 6971690791322
Eans - 6971690791322
Environment requirements - Working temperature: 0°C-70°C Relative humidity: 10%-90% (non-condensing) Storage temperature: -10°C-80°C Relative humidity: 5%-90% (non-condensing)
guarantee - 24
guarantee_type - normal
I/O ports - None
Interface - PCIe
Manufacturer - Cudy
MPN - WE3000S
Name - Cudy AX5400 Wi-Fi 6E PCI Express Adapter
Name - Cudy WE3000S
name - Network adapter WE3000S WiFi AX5400 PCI-E
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - LAN controller - Intel AX210
Network - Maximum data transfer rate - 2400 Mbit/s
Network - Networking standards - IEEE 802.11a
Network - Networking standards - IEEE 802.11ac
Network - Networking standards - IEEE 802.11ax
Network - Networking standards - IEEE 802.11b
Network - Networking standards - IEEE 802.11g
Network - Networking standards - IEEE 802.11n
Network - Security algorithms - WPA3
Network - Spread spectrum method - OFDMA
Network - Wi-Fi - Yes
Network - Wi-Fi band - Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - WLAN data transfer rates supported - 574
Network - WLAN data transfer rates supported - 2402 Mbit/s
Number of antennas - 2
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operating frequency - 6 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -10 - 80 °C
Other features - Bluetooth standard: 5.2 Data transfer rate: 2.4G: 574Mps, 5G: 2400Mbps, 6G: 2400Mbps
Other features - Bracket height - Low-Profile (LP) / Full-Height (FH)

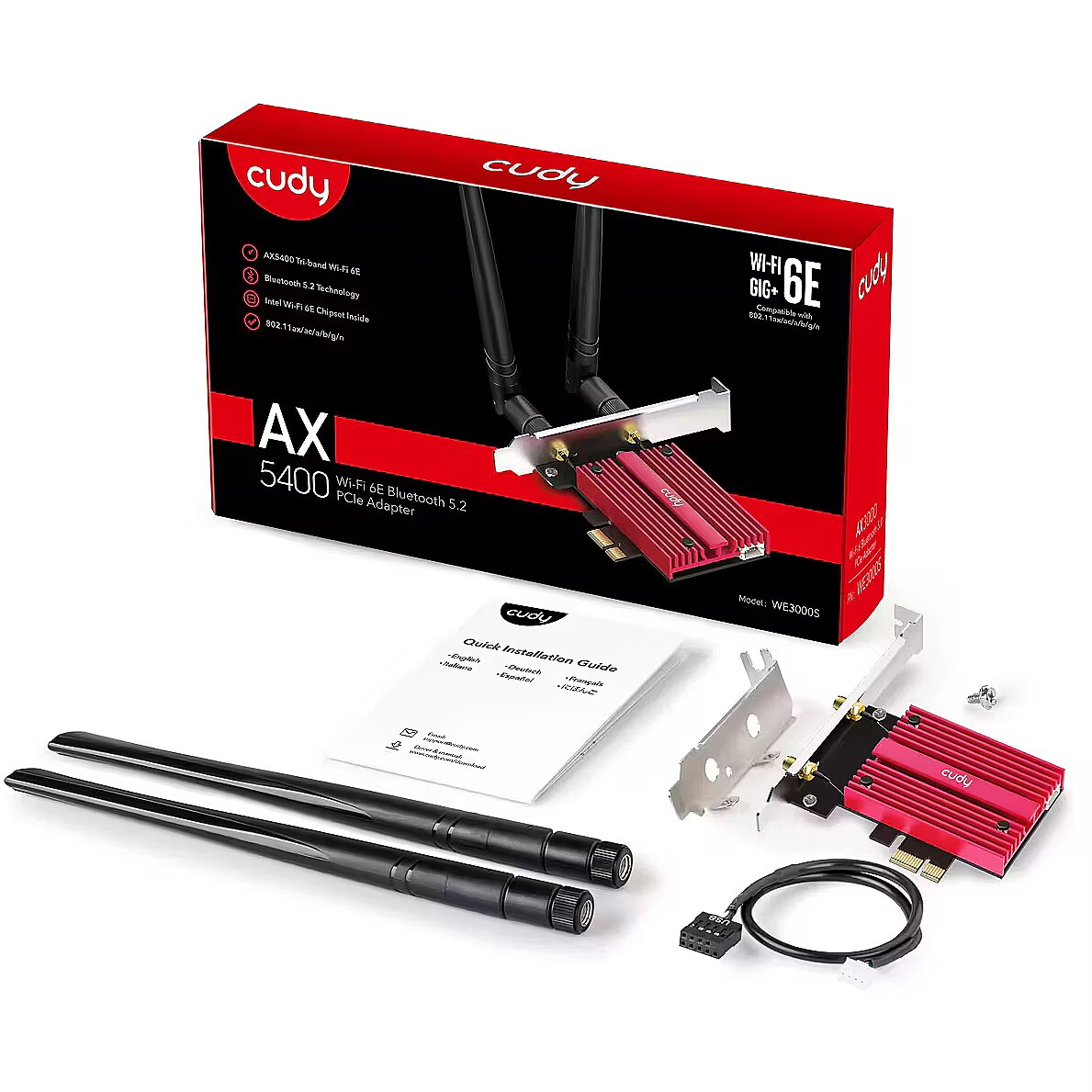

Packaging content - Bluetooth header cable - Yes
Packaging content - Mounting brackets included - Yes
Packaging content - Quick installation guide - Yes
Packaging content - Resource CD - Yes
Ports & interfaces - Connectivity technology - Wireless
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - WLAN / Bluetooth
Ports & interfaces - PCI Card form factor - Full-height (low-profile)
producer - Cudy
Producer - Cudy
producerCode - WE3000S
ProducerCode - WE3000S
productName - Cudy WE3000S network card Internal WLAN / Bluetooth 2400 Mbit/s
productSize - Normal
Security - WPA3
ShortDescription -
sizeX - 140
sizeY - 234
sizeZ - 46
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Supported operating systems - Windows 10
Supported operating systems - Windows 11
System Requirements -
System requirements - Windows operating systems supported - Windows 10
System requirements - Windows operating systems supported - Windows 11
Type - WiFi
vendpn - WE3000S
warrantyLength - 24
warrantyType - G
Weight - 0.26
weight - 255
Weight & dimensions - Depth - 44.5 mm
Weight & dimensions - Height - 1.6 mm
Weight & dimensions - Width - 65 mm
