Accessories included -
Antenna - Built-in
Brand - ASUS
BrandPartCode - 90IG0750-MO3B20
Category - Mesh Wi-Fi Systems
category - Peripherals|Networking & WLAN|Wireless LAN|Mesh
Category - Root/Electronics/Networks and communication/Routers
Category_1 - Network and Servers
Category_2 - Network - Routers
code - 90IG0750-MO3B20
Code - 90IG0750-MO3B20
Color - White

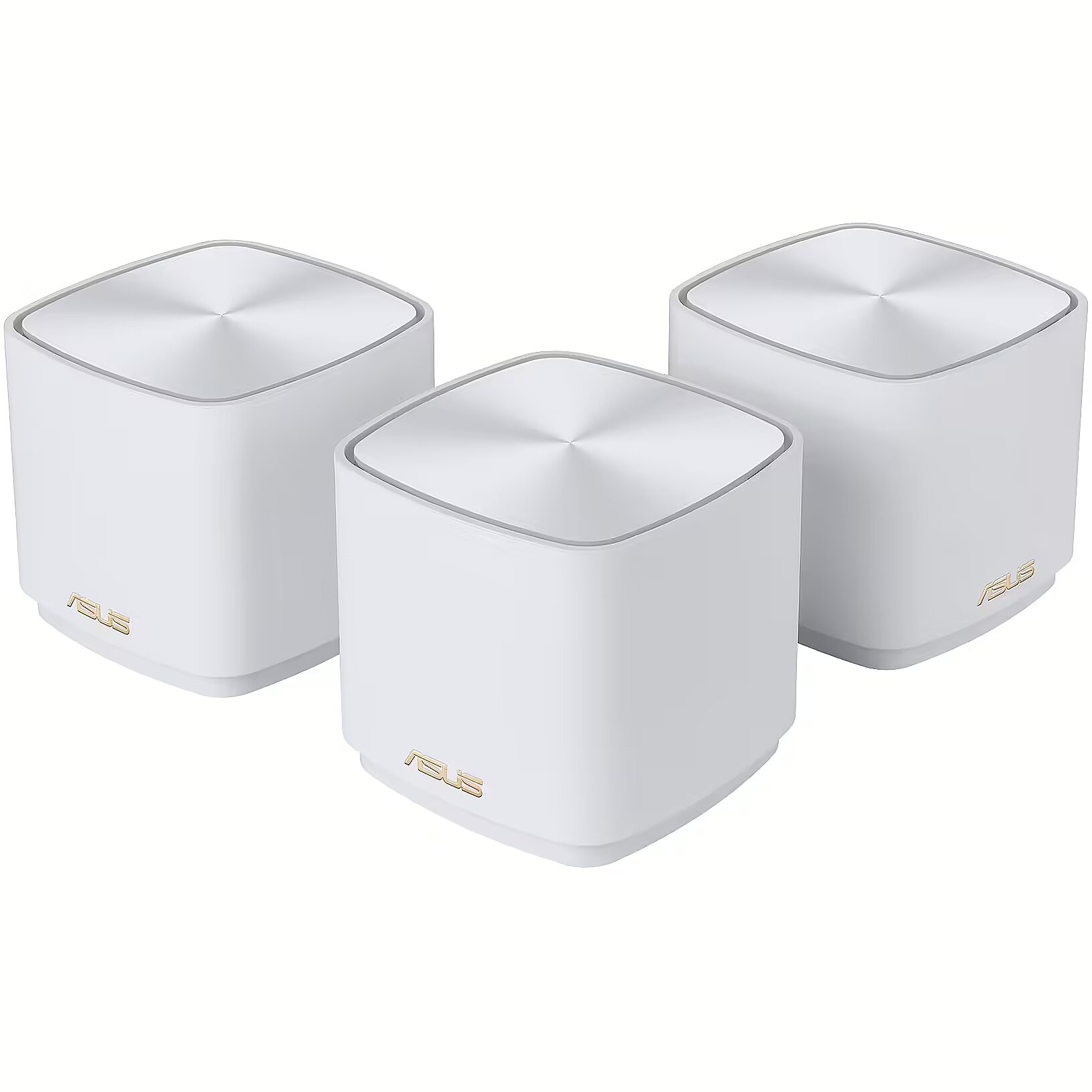

Description - ZenWiFi XD5 Whole-home Coverage
The ZenWiFi XD5 system consists of three ASUS AX3000 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections - inside or outside your home! WiFi 6 - True 8K Streaming
ZenWiFi XD5 puts your WiFi into top gear! With a total bandwidth of up to of 3000 Mbps, it's up to 3X faster than WiFi 5 routers. Explore ultimate WiFi 6 performance
The ASUS ZenWiFi XD5 supports high-speed 160MHz bandwidth. It dramatically increases network capacity while reducing congestion, delivering higher performance for every WiFi 6 device. Flexible Network Naming
Uniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours! Make the Internet a Safer Place for Everyone
AiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app. Smart Looks for Smart Homes
ZenWiFi XD5 works perfectly with smart-home services - including Alexa skills - and is available in charcoal or white to suit your décor. Space-saving and Great Design
Comes with mounting holes and a screw pack. Hang it on the wall or place it anywhere, the choice is yours! AiMesh Technology - Easy setup. Flexible management.
Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
Design - Antennas quantity - 2
Design - Antenna type - Internal
Design - LED indicators - Power
Design - Maximum coverage - 646.5 m²
Design - Product colour - White
Design - Product type - Mesh router
Design - Reset button - Yes
Design > Colour of product - White
dimension depth - 110 mm
dimension height - 352 mm
Dimensions -
dimension weight - 1830 g
dimension width - 210 mm
EAN - 4711081281177
ean - 4711081281177
Eans - 4711081281177
EAN_code - 4711081281177
Features - DHCP server - Yes
Features - MIMO - Yes
Features - Parental control - Yes
Features - Quality of Service (QoS) support - Yes
Features - SSID Broadcast - Yes
Features > Mesh Support - Yes
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - Yes
GTIN - 4711081281177
guarantee - 36
guarantee_type - normal
I/O ports - 2 x 10/100/1000 Mbit/s
Link - https://www.asus.com/uk/networking-iot-servers/whole-home-mesh-wifi-system/zenwifi-wifi-systems/asus-zenwifi-xd5/
LongDesc - WiFi Coverage Everywhere. Always Secure.Whole-home CoveragePeople enjoy family time together with good WiFi performance provided by ZenWiFiThe ZenWiFi XD5 system consists of three ASUS AX3000 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!WiFi 6True 8K StreamingZenWiFi XD5 puts your WiFi into top gear! With a total bandwidth of up to of 3000 Mbps, it's up to 3X faster* than WiFi 5 routers **.* Compatible WiFi 6 device required.** The data compares speed of 2X2 11ax on 5GHz 160 MHz bandwidth with 1024QAM modulation to speed of 2x2 11ac on 5GHz 80MHz with 256QAM modulation. Explore ultimate WiFi 6 performanceThe ASUS ZenWiFi XD5 supports high-speed 160MHz bandwidth*. It dramatically increases network capacity while reducing congestion, delivering higher performance for every WiFi 6 device.*160MHz bandwidth may be unavailable in the 5GHz band in some regions/countries, due to regulatory restrictions. And to benefit from WiFi 6 router features, compatible WiFi 6 devices are required.Flexible Network NamingUniquely, ZenWiFi lets you choose how you name your WiFi networks: a single name for everything, or separate names for each frequency band. The choice is yours!Easier-than-ever Setup3-step setup with the ASUS Router appMake the Internet a Safer Place for EveryoneAiProtection Classic with Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.Smart Looks for Smart HomesZenWiFi XD5 works perfectly with smart-home services — including Alexa skills — and is available in charcoal or white to suit your décor.Space-saving and Great DesignComes with mounting holes and a screw pack. Hang it on the wall or place it anywhere, the choice is yours!AiMesh TechnologyEasy setup. Flexible management.Even non-experts can quickly set up AiMesh technology, while more experienced users will appreciate the comprehensive advanced networking features.
LongProductName - AX3000, 2.4GHz/5GHz, 574+2402 Mbps, 2x RJ-45, Wi-Fi 6
LongSummaryDescription - ASUS ZenWiFi XD5 (W-3-PK). Product colour: White, Antenna type: Internal, Product type: Mesh router. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). AC input voltage: 110 - 240 V, AC input frequency: 50 - 60 Hz, AC adapter output voltage: 12 V. Number of products included: 3 pc(s)
Management, monitoring, configuration - Traffic Control: Bandwidth Monitor Bandwidth limiter Traditional QoS Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor WAN: Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Android tethering Port forwarding Port triggering DMZ DDNS NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP Let's Encrypt LAN: DHCP Server IGMP snooping IPTV Manually assign IP address VPN: VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Server IPSec VPN Server OVPN VPN Server PPTP Administration: Operating system : ASUSWRT Free OS upgrade Firewall Maximum Firewall keyword filter : 64 Maximum Firewall network service filter : 32 Maximum Firewall URL filter : 64 Wake on LAN (WOL) SSH Configuration backup and restore Diagnosis tools Feedback system System log
Manufacturer - Asus
Manufacturer_code - 90IG0750-MO3B20
Model - ZenWiFi XD5 (W-3-PK)
Name - ASUS ZenWiFi AX Mini XD5 (3 pack) biały
Name - ASUS ZenWiFi XD5 3-pack, router (white, 3 devices)
name - ASUS ZenWiFi XD5 AX3000 3er Pack Mesh WiFi System - weiß
name - System ZenWiFi XD5 WiFi 6 AX3000 3-pack white
Name - XD5 EU+UK 3PK Router | ZenWiFi XD5 | 802.11ax | 574+2402 Mbit/s | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 1 | Mesh Support Yes | MU-MiMO Yes | No mobile broadband | 36 month(s)
Network architecture - GigabitEthernet
Number of antennas - 2
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features - Top performance of the AX3000: 2402 Mbps + 574 Mbps WPS button Reset button Data rates: 802.11a: up to 54 Mbps 802.11b: up to 11 Mbps 802.11g: up to 54 Mbps Wi-Fi 6 (802.11ax) (2.4 GHz): up to 574 Mbps Wi-Fi 6 (802.11ax) (5 GHz): up to 2402 Mbps
Other features > Ethernet LAN (RJ-45) ports - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 207.00 mm
Package features > Gross height (mm) - 109.00 mm
Package features > Gross width (mm) - 352.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 218 pc(s)
Package features > Paper/Pasteboard - 788.00 g
Package features > PET - 1 g
Package features > Plastic (No PET) - 197.00 g
Package features > Tare other - 2 g
Package features > Tare weight (kg) - 0.99 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Number of products included - 3 pc(s)
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Frequency band - 2.4 GHz/5 GHz
Performance > Wi-Fi data rate (max) - 574+2402 Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Ethernet WAN - Yes
Power - AC adapter output current - 1.5 A
Power - AC adapter output voltage - 12 V
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 110 - 240 V
Power supply - AC input: 110V~240V(50~60Hz) DC output: 12 V with maximum current 1.5 A
producer - Asus
Producer - Asus
ProducerCode - XD5 3pk-white
Producer product family - XD5 EU+UK 3PK Router
Producer product name - ZenWiFi XD5
ProductName - ZenWiFi XD5 (W-3-PK)
Security - AiProtection Classic Malicious site blocking Infected Device Prevention and Blocking Parental Control Parental Control Customized Internet schedule Wi-Fi Encryption : WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support UTF-8 SSID Guest Network Guest Network Connection time limit
ShortDescription -
ShortSummaryDescription - ASUS ZenWiFi XD5 (W-3-PK), White, Internal, Mesh router, Power, 646.5 m², Dual-band (2.4 GHz / 5 GHz)
Software -
Special functions - AiMesh: Primary AiMesh router / AiMesh node ASUS Router APP Alexa skill AX technology MIMO technology
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
System Requirements -
Technical details > Gross weight - 1.89 kg
Technical details > Net weight - 0.90 kg
Technical details > Producer - Asus
Technical details > Warranty - 36 month(s)
Title - ASUS ZenWiFi XD5 (W-3-PK) Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) White 2 Internal
Type - xDSL
URL - https://www.asus.com/networking-iot-servers/whole-home-mesh-wifi-system/zenwifi-wifi-systems/asus-zenwifi-xd5/
vendpn - ZenWiFi XD5(3pk White)
Warranty - 36
WarrantyInfo -
Weight - 1,84
Wireless LAN features - Dynamic DNS (DDNS) - Yes
Wireless LAN features - IGMP snooping - Yes
Wireless LAN features - Networking standards - IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless LAN features - Point-to-point protocol over Ethernet (PPPoE) - Yes
Wireless LAN features - Security algorithms - WPA, WPA2, WPA2-Enterprise, WPA3, WPS
Wireless LAN features - Static IP - Yes
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Wireless LAN features - VPN support - VPN Client L2PT
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wireless LAN features - WLAN data transfer rate (first band) - 574 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 2402 Mbit/s
Wireless LAN features > Wi-Fi band - 802.11ax
Wireless LAN features > Wi-Fi standards - 802.11 a/b/g/n/ac/ax
