Accessories included -
Antenna - Built-in
Antenna - Antenna gain level (max) - 4.3 dBi
Antenna - Antennas quantity - 2
Antenna - Antenna type - Internal
Antenna > Antennas quantity - 2
Antenna > Antenna type - 2xInternal
Antenna gain - 4.3 dBi
ARTIKEL1 - AX1800 WI-FI 6 POE ACCESS POINT
ARTIKEL2 - DUAL-BAND
Brand - D-Link
BrandPartCode - DAP-X2810
Category - Wireless Access Points
Category_1 - Network and Servers
Category_2 - Network - WiFi Access Points
Code - DAP-X2810
Color - White
Description - Wi-Fi Access Point 6 AX1800 PoE DAP-X2810 Wi-Fi 6 AX1800, up to 1.8Gbps Dual-band, 2x2 MIMO, airtime fairness and bandwidth control functions Free software and Nuclias Connect app Convenient installation with PoE Configurable captive portal D-Link Lifetime Limited warranty Scalable and easy to manage corporate WiFi network 6. The DAP-X2810 with Wi-Fi 6 networking provides businesses of all sizes with fast connections, significantly increased capacity and interference-free coverage, all combined with centralised management via Nuclias Connect. Easy management of your corporate network The DAP-X2810 works with Nuclias Connect, a software-based management platform (with optional hardware controller). This enables you to manage and control your business network from anywhere via the Internet, providing easy access, automation and network scalability. Easy network management with Nuclias Connect Easily automate, monitor, manage and scale your network according to your business needs at no additional cost through the centrally managed Nuclias Connect platform. Next generation - Wi-Fi 6 Greater network performance and lower latency, with almost four times the capacity of previous Wi-Fi standards Secure performance WPA3 encryption provides security with high throughput with dual-band 2x2 MU-MIMO technology, bandwidth control and airtime fairness to intelligently manage users. Flexible deployment with PoE Support for Power over Ethernet (802.3at) simplifies installation with less cable clutter. The design allows easy installation on Ethernet wall sockets. No licence required Work as a standalone access point or as part of a centralised, scalable multi-device deployment according to the needs of the business. More efficient administrative tasks Administrators can work more efficiently and effectively with role-based options for delegated access across the network. Deployment, configuration, upgrading and expansion is possible from multiple locations using an intuitive dashboard. Captive portal Captive Portal, the industry standard for authentication, streamlines access management with the ability to add brand information. Free software and application Quickly configure, manage and monitor access points locally via a free management tool or remotely via the Nucliast Connect app. Next-generation WiFi 6 performance with huge speed improvements Combined Wi-Fi 6 802.11ax connection speeds of up to 1,800 Mbps provide the DAP-X2810 with lightning-fast transfer rates, enabling large amounts of data and efficient video streaming, even in high-density environments Next-generation Wi-Fi 6 connections deliver higher network performance and lower latency, and nearly four times the capacity of previous Wi-Fi standards. Optimised Wi-Fi for convenient connections The DAP-X2810 supports 2x2 MU-MIMO bandwidth control and beamforming functions, which are designed to reduce network congestion. In addition, load-balancing technology and Airtime Fairness manage access point loads to optimise resource utilisation. This ensures that each device connected to the network connects at peak performance without overloading the entire network. Multiple modes of operation The DAP-X2810 can be configured to suit your network needs and optimise network performance. Access point Wireless distribution system (WDS) with access point WDS/bridge (without AP broadcast) Wireless client Easy and hassle-free installation anywhere. The DAP-X2810 can be placed on a desk, ceiling or wall mounted. The PoE function makes installation quicker and easier as there is no need to lay additional power cables. This is ideal for extensive deployments in locations where power sockets are not readily available. Corporate network management with advanced control mechanisms Nuclias Connect enables you to manage and control your network from anywhere. It provides insight into network performance and user activity through traffic analysis and status reports, available in a browser or free app. Detailed data from network traffic analysis, which can be displayed for the entire network down to the single access point level, can be used to create business value. Comprehensive on-site network management Nuclias Connect, compared to traditional hardware-based unified management systems, offers a great deal of flexibility. Easy configuration, remote access and an intuitive dashboard provide administrators with management efficiency and convenience, while functionality and automated network tools such as airtime fairness, throttling location and load balancing improve the user experience. Scale up your WiFi network as your business grows Nuclias Connect enables unlimited scalability, allowing you to adapt the size of your network to suit your business requirements. Expanding or setting up a network in a new location is quick and easy. Management and configuration is done via the cloud, and access points and surveillance cameras are automatically detected and ready for deployment right out of the box. Greater brand awareness with captive portal Guest web visitors are not only able to connect using an email address, Facebook or Google account. Captive portal enables increased brand awareness, the placement of advertisements and promotions, and the collection of user information to gain a better understanding of customer behaviour.
Design - Certification - FCC
Design - LED indicators - Power, Status
Design - Product colour - White
Design - Reset button - Yes
dimension depth - 90 mm
dimension height - 240 mm
Dimensions -
dimension weight - 1089 g
dimension width - 240 mm
EAN - 790069456923
ean - 790069456923
EANCode - 0790069456923
EAN_code - 0790069456923
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - Airtime Fairness (ATF) - Yes
Features - Band steering - Yes
Features - Ethernet LAN data rates - 10,100,1000 Mbit/s
Features - Frequency band - 2.4/5 GHz
Features - Maximum data transfer rate - 1800 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 575 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 1200 Mbit/s
Features - Mean time between failures (MTBF) - 30000 h
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - Yes
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Antenna
GTIN - 0790069456923
GTIN - 790069456923
GTIN - 0790069462207
GTIN - 790069462207
guarantee - 0
guarantee_type - perpetual
HERSTELLER - D-LINK
HSTNUMMER - DAP-X2810

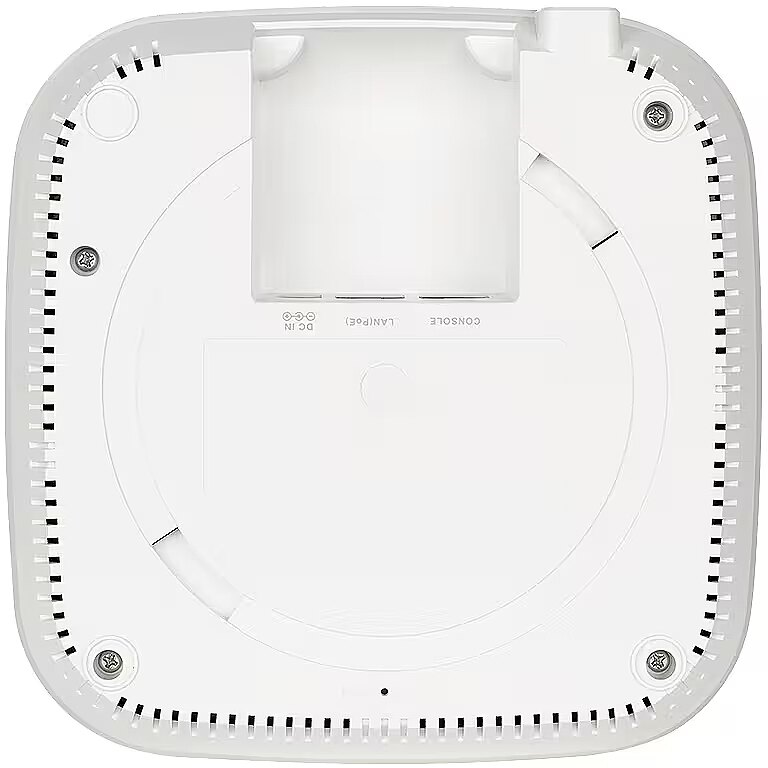

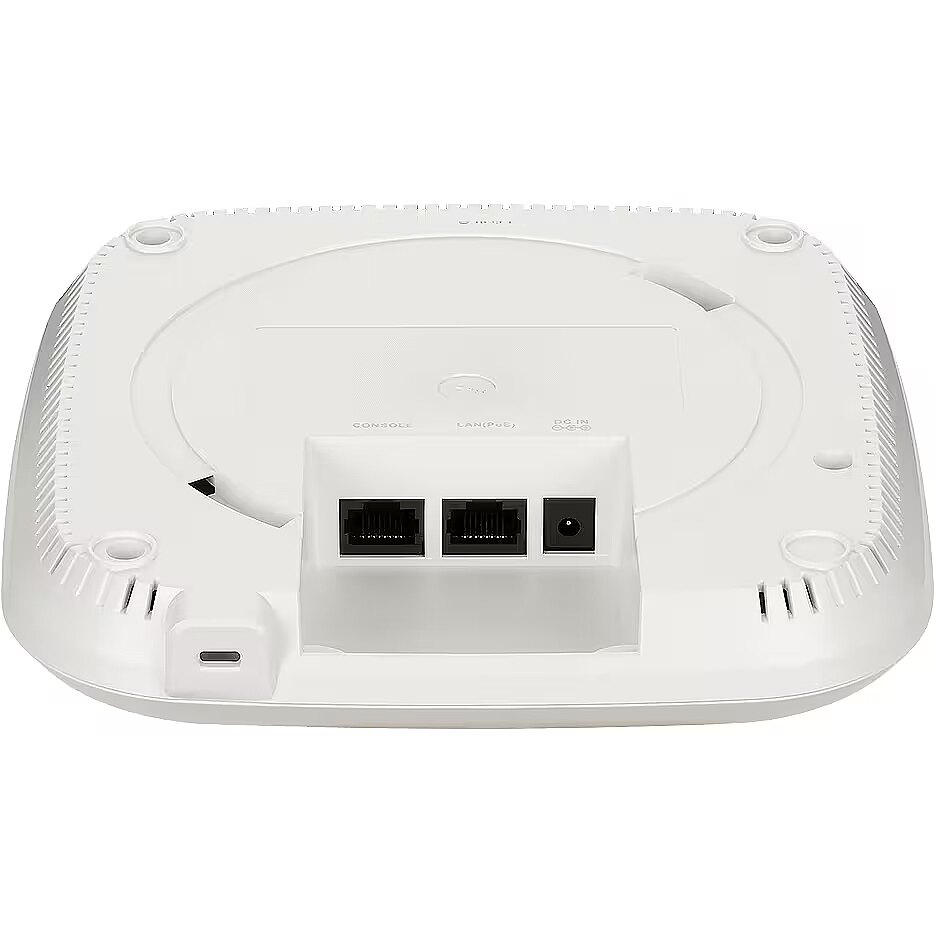

I/O ports - 1 x 10/100/1000 Mbit/s PoE
I/O ports - 1 x Console port (RJ-45)
Link - https://www.dlink.com/en/products/dap-x2810-nuclias-connect-ax1800-wi-fi-6-access-point
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Simple‑to‑manage and easy‑to‑scale Wi‑Fi 6 for your business.The Wi-Fi 6-ready DAP-X2810 provides businesses of all sizes with incredible speeds, significantly increased capacity and interference-free coverage, combined with centralised management by Nuclias Connect.Manage your business network with easeThe DAP-X2810 works with our Nuclias Connect software-based management platform (with optional hardware controller) that enables you to manage and control your business network from anywhere with an internet connection, for easy access, automation, and network scalability.Easily manage your network with Nuclias ConnectAutomate, monitor, manage and scale your network in line with business demand without the complexity or cost, through the centrally managed Nuclias Connect platform.Next-gen Wi-Fi 6Delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standardsIntelligent, secure performanceSuperior security with WPA3™ wireless encryption, and high throughput with dual-band, 2x2 MU-MIMO technology, band steering & airtime fairness that intelligently manages users.Flexible installation with PoESupports Power over Ethernet (802.3at) for a simpler installation with less cable clutter & includes a wall-plate design for installation on Ethernet wall sockets.License-Free Access PointWorks as a standalone AP or as part of a centralised, scalable multi-device deployment in line with business demand.Minimise the hassle of admin tasksEmpower admins to work efficiently & effectively with role-based options that enable delegated access across your network. You can deploy, configure, update and expand rapidly.Branded Captive PortalA branded Captive Portal with industry-standard authentication for enhanced access management.Free-to-download software & appRapidly setup, manage and monitor APs locally via our free network management software, or remotely with the Nuclias Connect appNext‑gen Wi‑Fi 6 performance that turbo boosts your businessWith combined Wi-Fi 6 802.11ax speeds of up to 1,800 Mbps, the DAP-X2810 provides lightning-fast connectivity, enabling large data transfer and superior quality video streaming, even in highly congested environments.As the next-generation of connectivity, Wi-Fi 6 delivers greater network efficiency and lower latency, with nearly four times the capacity of previous Wi-Fi standards.Optimised Wi‑Fi for a superior client experience.The DAP-X2810 supports Band steering, 2x2 MU-MIMO and beamforming - all designed to work together to alleviate congestion.And Load Balancing and Airtime Fairness technology distributes workloads between APs for optimum resource utilisation - allowing every device in your network to seamlessly get the best connectivity possible, without putting a strain on your whole network.Multiple Operation ModesThe DAP-X2810 can be configured to fit the needs of your network and optimise performance.- Access point- Wireless distribution system(WDS) with access point- WDS/bridge (no AP broadcasting)- Wireless client.Simple and clean installation, anywhere.It can be ceiling-mounted, wall-mounted, or placed on a desk. The DAP-X2810’s PoE function allows for an easy installation. No need to run extra power lines and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.Manage your business network with powerful controlsNuclias Connect enables you to manage and control your network from anywhere and provides an extensive understanding of your network and its users through traffic analytics and status reports via a web browser or our free app. Insights derived from this traffic data can be used to create business value, and traffic can be viewed across the entire network and all the way down to the level of a single Access Point.Comprehensive on‑site network managementCompared to traditional hardware-based unified management systems, Nuclias Connect offers tremendous flexibility. Easy setups, remote access, and an intuitive dashboard make life easier for network admins, whilst functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improves overall user experience. Scale your Wi‑Fi alongside your business, from anywhereNuclias Connect is designed with unlimited scalability, allowing you to tailor to the demands of the business. Adding a new site or expanding an existing one is quick and easy as all management and configuration is done through the cloud, with access points and surveillance cameras being ready to deploy straight out of the box and be automatically discovered by the software.Get your guests online through a captive portalNot only can your guests connect using just their email address, Facebook or Google account, our Captive Portal also gives your business the opportunity to increase brand awareness, advertise promotions and collate user insights that enable businesses to better understand their customers.Nuclias hardware controllerThe DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.
LongProductName - DAP‑X2810 AX1800 Wi-Fi 6 Dual-Band PoE Access Point
LongSummaryDescription - D-Link DAP‑X2810 Nuclias Connect AX1800 Wi-Fi 6 Dual-Band PoE Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1800 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, SSID, SSL/TLS, WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 19.44 W
Management, monitoring, configuration - Maximum number of SSIDs: 16 Automatic channel selection WMM-PS/802.11e (U-APSD) WiFi scheduling AP traffic balancing L2 roaming WEP 64/128 bit DHCP server IGMP snooping Management platform: Nuclias Connect WEB SNMP (v1, v2c, v3) CLI Telnet SSH Syslog
Management features - Web-based management - Yes
Manufacturer - D-Link
Manufacturer_code - DAP-X2810
name - Access Point DAP-X2810 WiFi 6 AX1800
Name - D-Link DAP-X2810 PoE / Wi-Fi 6 / AX1800
Name - D-Link | Nuclias Connect AX1800 Wi-Fi 6 Access Point | DAP-X2810 | 802.11ac | Mesh Support No | 1200+574 Mbit/s | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 1 | No mobile broadband | MU-MiMO Yes | PoE in | Antenna type 2xInternal
Network architecture - GigabitEthernet
Number of antennas - 2
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 65 °C
Other features -
Other features > Ethernet LAN (RJ-45) ports - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 245.00 mm
Package features > Gross height (mm) - 92.00 mm
Package features > Gross width (mm) - 247.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 310 pc(s)
Package features > Paper/Pasteboard - 990.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 1.00 kg
Package features > TI weight (kg) - 0 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Wi-Fi data rate (max) - 1200+574 Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces > POE - PoE in
Power - AC input voltage - 12 V
Power - Input current - 2.5 A
Power - Power consumption (max) - 19.44 W
Power - Power over Ethernet (PoE) - Yes
Power supply - External power supply PoE
producer - D-Link
Producer product family - Nuclias Connect AX1800 Wi-Fi 6 Access Point
Producer product name - DAP-X2810
ProductName - DAP‑X2810 Nuclias Connect AX1800 Wi-Fi 6 Dual-Band PoE Access Point
Security - WPA/WPA2-Personal/Enterprise WPA3-Personal/Enterprise TKIP-AES encryption WPA/WPA2-PSK via WDS WLAN separation Option to disable SSID broadcasting Station isolation MAC address filtering 802_1X authentication
Security - Security algorithms - 64-bit WEP, 128-bit WEP, SSID, SSL/TLS, WPA, WPA2, WPA3
ShortSummaryDescription - D-Link DAP‑X2810 Nuclias Connect AX1800 Wi-Fi 6 Dual-Band PoE Access Point, 2.4 GHz, 5 GHz, 1800 Mbit/s, 64-bit WEP, 128-bit WEP, SSID, SSL/TLS, WPA, WPA2, WPA3, 10,100,1000 Mbit/s
Software - Nuclias Connect
Special functions - MU-MIMO Roaming SmartBeam Operating mode: Access Point (AP) Wireless Client WDS Bridge WDS with AP
Standards - 802.3at
Standards - 802.11ax
Standards - 802.11e
Standards - IPv6
Stck_Kart - 10
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability compliance - Yes
System Requirements -
Technical details - Compliance certificates - CE
Technical details > Gross weight - 1.76 kg
Technical details > Net weight - 0.76 kg
Technical details > Producer - D-Link
Title - D-Link DAP‑X2810 Nuclias Connect AX1800 Wi-Fi 6 Dual-Band PoE Access Point
URL - https://www.dlink.com/en/products/dap-x2810-nuclias-connect-ax1800-wi-fi-6-access-point
vendpn - DAP-X2810
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo - Limited Lifetime
Weight - 1,07
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Height - 28 mm
Weight & dimensions - Weight - 477.4 g
Weight & dimensions - Width - 170 mm
Wireless LAN features > Wi-Fi band - 802.11ac
