10/100/1000M LAN Ports - 2
Antenna - Antenna design - External
Antenna - Antenna gain level (max) - 5 dBi
Antenna - Antennas quantity - 4
Antenna - Antenna type - 2x2
Available bandwidth - 1500 Mbps
Brand - Dahua Technology
BrandPartCode - DH-AX15M
Category - Wireless Routers
Category Code - WRO
Colour - Black
Description - AX1500 Wireless Router > 6th Gen Wireless Technology. > 1.5 Gbps Wireless speed (300 Mbps@2.4 GHz, 1201Mbps@5 GHz). > Backward compatible (IEEE 802.11 b/g/n/ac/ax standard). > Beamforming for better Coverage. > OFDMA and 1024-QAM. > Bi-directional MU-MIMO. > WiFi protected Access(WPA/WPA2/WPA3). > Guest Wi-Fi. > Parental Control.
Design - Indication light - Yes
Design - Product colour - Black
Design - Product type - Tabletop router
Dimensions - 215 x 119 x 173mm
Features - Firmware upgradeable - Yes
Features - Flash memory - 128 MB
Features - Internal memory - 128 MB
Features - Number of simultaneously connected devices (max) - 32
Full Description Line - AX15M|Wireless Router|Available bandwidth 1500 Mbps|IEEE 802.11a|IEEE 802.11 b/g|IEEE 802.11n|IEEE 802.11ac|IEEE 802.11ax|2x10/100/1000M|Number of antennas 4|Wireless Frequency Range 5.150 5.850 GHz|Colour Black|Dimensions 215 x 119 x 173mm
GTIN - 6923172562425
IEEE 802.11 b/g Network standard - Yes
IEEE 802.11ac Network standard - Yes
IEEE 802.11a Network standard - Yes
IEEE 802.11ax Network standard - Yes
IEEE 802.11n Network standard - Yes
LAN \ WAN ports - 1
LongDesc - DH-AX15M Gigabit Wireless Router provides wireless access through dual concurrent wireless networks. It provides access to a large number of users, and has wide signal coverage and fast wireless speed. It complies with the IEEE 802.11ax standard, and its wireless speed reaches up to 1,500 Mbps allowing smooth internet access. Using MU-MIMO technology, it supports concurrent connections, greatly reducing network latency. It has a built-in 1 GHz high performance processor, enabling it to have high processing capabilities and fast data transmission speed. It provides excellent wireless networks, and is the good choice for new generation network activities.
LongProductName - 1.5 Gbps, IEEE 802.11b/g/n/ac/ax, 2.4-5 Ghz, 3x RJ-45, 128 MB RAM, 128 MB Flash, 12 VDC, 1 A, 0.26 kg
LongSummaryDescription - Dahua Technology AX15M AX1500 Wireless Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1500 Mbit/s. Ethernet LAN interface type: Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA-PSK, WPA2-PSK, WPA3. Product type: Tabletop router, Product colour: Black
Management features - MIMO - Yes
Management features - MU-MIMO technology - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Reset button - Yes
Management features - Web-based management - Yes
Management features - WPS push button - Yes
Model name - AX15M
Network - Automatic channel selection - Yes
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Ethernet LAN interface type - Ethernet
Network - Receiver sensitivity - 2.4 GHz
11n HT20_MCS0: -95 dbm
11n HT20_MCS7: -75 dbm
11n HT40_MCS0: -92 dbm
11n HT40_MCS7: -72 dbm
5 GHz
11ac VHT80_MCS0: -89 dbm
11ac VHT80_MCS9: -62 dbm
11ax HE80_MCS0: -89 dbm
11ax HE80_MCS11: -59 dbm
Network Device Type - Wireless Router
Number of antennas - 4
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features - Bandwidth (first) - 2.484 GHz
Other features - Bandwidth (second) - 5.85 GHz
Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Manual - Yes
Packaging data - Number of products included - 1 pc(s)
Packaging data - Package depth - 295 mm
Packaging data - Package height - 70 mm
Packaging data - Package weight - 560 g
Packaging data - Package width - 285 mm
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Ports & interfaces - USB port - No
Power - External power adapter - Yes
Power - Output current - 1 A
Power - Output voltage - 12 V
Power - Power consumption (typical) - 10 W
Power - Power source type - DC
ProductName - AX15M AX1500 Wireless Router
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Security - Guest access - Yes
Security - Network address translation (NAT) - Yes
Security - Parental control - Yes
Security - Security algorithms - WPA-PSK, WPA2-PSK, WPA3
Security - System event log - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 54 cm
Shipping Box Height Shipping/Package Box Dimensions - 35 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 8 kg
Shipping Box Width Shipping/Package Box Dimensions - 40 cm
ShortSummaryDescription - Dahua Technology AX15M AX1500 Wireless Router, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, Black, Tabletop router

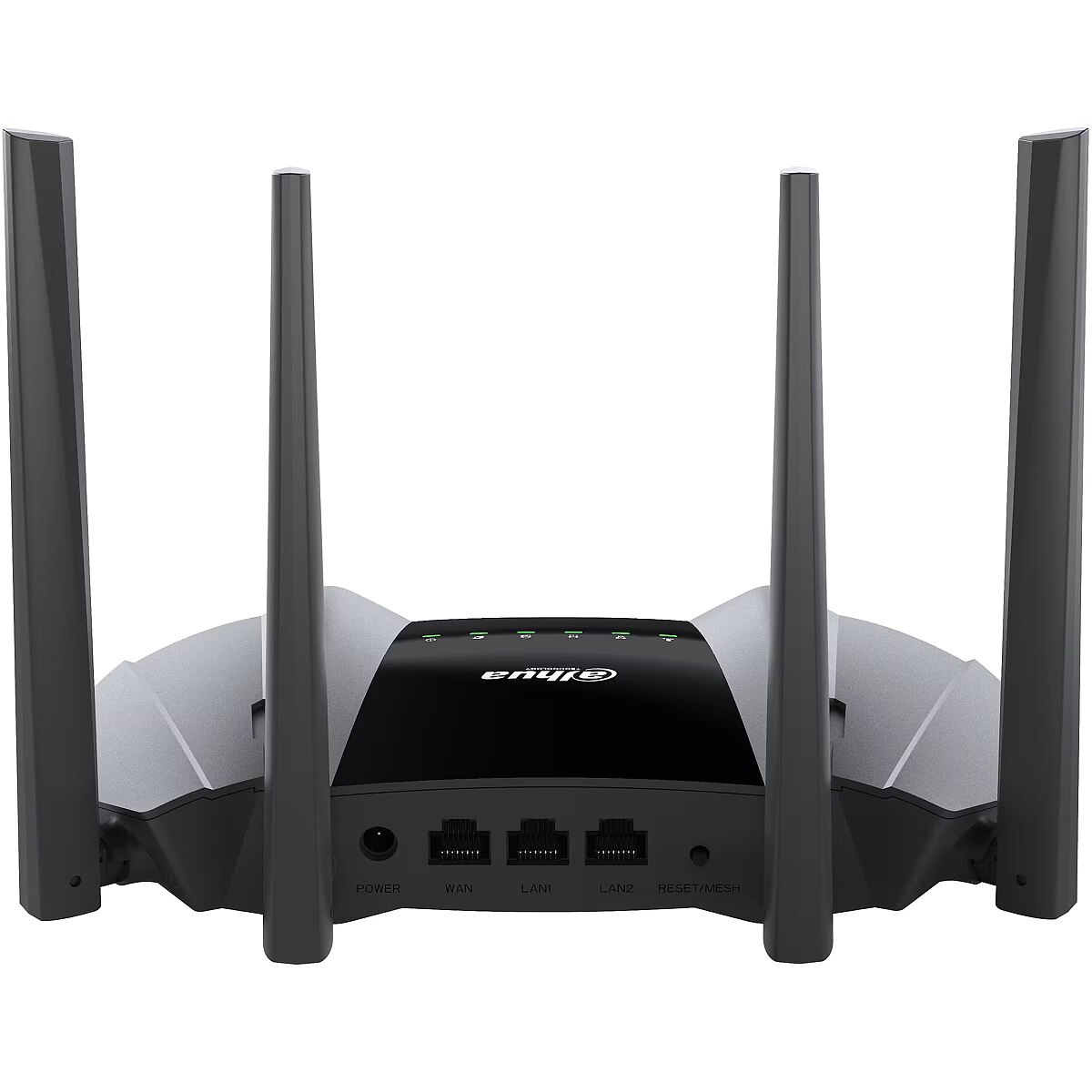

Title - Dahua Technology AX15M AX1500 Wireless Router
Unit Box Height - 0.255
Unit Box Length - 0.32
Unit Box Width - 0.075
Unit Brutto Volume - 0.00756 cubm
Unit Gross Weight - 0.8 kg
Unit Net Weight - 0.26 kg
URL - https://www.dahuasecurity.com/products/All-Products/Transmission/IT-Channel-Products/Wireless-Router/AX15M
Vendor Homepage - transmission.dahuasecurity.com/en/product-list/Home/Routers/WirelessRouter/AX15M
WAN connection - 3G/4G USB modem compatibility - No
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
WAN connection - WAN connection type - RJ-45
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 215 mm
Weight & dimensions - Height - 173 mm
Weight & dimensions - Weight - 260 g
Weight & dimensions - Width - 119 mm
Wireless Frequency Range - 5.150 5.850 GHz
Wireless LAN features - Channel bandwidth - 80 MHz
Wireless LAN features - Channels quantity - 165 channels
Wireless LAN features - Modulation - 1024-QAM
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wireless LAN features - WLAN data transfer rate (first band) - 300 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 1500 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 1201 Mbit/s
