Audio port Input/Output connectors - 5
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1ET0-M0EAY0
BrandPartCode - 90MB1HE0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel B760 Express
CnCode CnCode - 84733020
code - 90MB1ET0-M1EAY0
Description - TUF GAMING B760M-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
DisplayPort Input/Output connectors - 1
ean - 4711387121337
Eans - 4711387461365
EAN_code - 4711387121337
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x4 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel B760
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 10, Windows 11
Form Factor - Micro-ATX
Frequency speed - 4800/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Full Description Line - Intel B760 Express|LGA1700|Micro-ATX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/4800 MHz|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387121337
GTIN - 4711387461365
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - TUF GAMING B760M-PLUS WIFI II takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.INTELLIGENT CONTROLThe TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.All-Around Energy EfficiencyThe Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.Armoury CrateThe ASUS-exclusive Armoury Crate software centralizes control of all supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from, and enables control of, a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING B760M-PLUS WIFI II is the perfect foundation for your next Intel battle rig.Premium Power Delivery12+1+1 power stages are each rated to handle up to 50 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.Six-Layer PCB DesignThe multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.8+8 PIN ProCool Power ConnectorsCompared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.TUF ComponentsTUF ChokesCertified military-grade TUF chokes deliver rock-solid power to the CPU, improving system stability.TUF CapacitorsThe TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.Digi+ VRMThe integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.Unleash DDR5 With AEMP IIASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.PCIe 4.0 SupportThe three PCIe 4.0 M.2 slots support up to three 2280 devices, two of which are capable of the data-transfer speeds are up to 64 Gbps via PCIe® 4.0, enabling quicker boot-up and app load times with OS or application drives.Cooler By Design1. Enlarged VRM HeatsinkThe extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.2. Optimized M.2 Heatsink DesignTwo M.2 slots have dedicated heatsinks, keeping M.2 SSDs at optimal operating temperatures to ensure consistent performance and reliability.Comprehensive Fan ControlsTUF GAMING B760M motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 2+ utility in Armoury Crate or via the award-winning ASUS UEFI BIOS.ConnectivityThe TUF-GAMING B760M-PLUS WIFI II reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes two Type-C connections, and Thunderbolt 4 expands compatibility and bandwidth even further.EASY PC DIYThe TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.Build With ConfidenceTUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.SafeSlot Core+ & SafeDIMMSafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot―all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.ESD GuardsESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge — greatly surpassing the respective industry standards of +/- 6 kV and +/- 4 kV. Surface-mounted TVS diodes in a dual in-line package help protect your PC from voltage spikes.TUF LANGuardTUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.Stainless Steel Back I/O PanelTUF GAMING motherboards have a corrosion-resistant stainless steel back I/O panel bonded with chromium oxide to provide a lifespan that’s three times longer than traditional panels. With this protective feature, TUF GAMING motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.PCIe Q-ReleaseA physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.Q-AntennaWith Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.M.2 Q-LatchThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.Removable Captive ScrewsSpecialized M.2 slot screws reduce the risk of dropping or losing a screw somewhere in your case during M.2 heatsink removal.Q-LEDThe on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup.IMMERSIVE GAMINGTUF GAMING B760M motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.Two-Way AI Noise CancelationThis powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are muffled so you can hear and be heard with excellent clarity while gaming or during calls.*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.Realtek 7.1 Surround SoundThe unique audio codec designed in close collaboration with Realtek for TUF GAMING B760M motherboards feature an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.DTS Audio ProcessingDTS® Audio Processing enhances gaming headset and speaker audio experiences by reducing distortion and by providing deeper bass, so games, movies and music sound better. It also allows you to customize audio settings.Addressable Gen 2 RGB HeaderThree addressable Gen 2 RGB headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The new headers also offer full backward compatibility with existing Aura Sync gear.
LongDesc - TUF GAMING B760M-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.INTELLIGENT CONTROLThe TUF GAMING B760 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.All-Around Energy EfficiencyThe Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING B760M-PLUS WIFI is the perfect foundation for your next Intel battle rig.EASY PC DIYThe TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.Build With ConfidenceTUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.IMMERSIVE GAMINGTUF GAMING B760 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
LongProductName - Intel B760, LGA1700, 4 x DIMM, Max. 128GB, DDR5, Realtek 2.5Gb Ethernet, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 128 Mb Flash ROM, UEFI AMI BIOS, mATX
LongProductName - TUF GAMING B760M-PLUS WIFI II motherboard socket Intel LGA 1700 (Intel B760, mATX, DDR5 memory, PCIe 5.0, 3x M.2, WiFi 6e, Thunderbolt 4, Aura Sync)
LongSummaryDescription - ASUS TUF Gaming B760M-Plus WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
LongSummaryDescription - ASUS TUF GAMING B760M-PLUS WIFI II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 2
Manufacturer - Asus
Manufacturer_code - 90MB1ET0-M1EAY0
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5

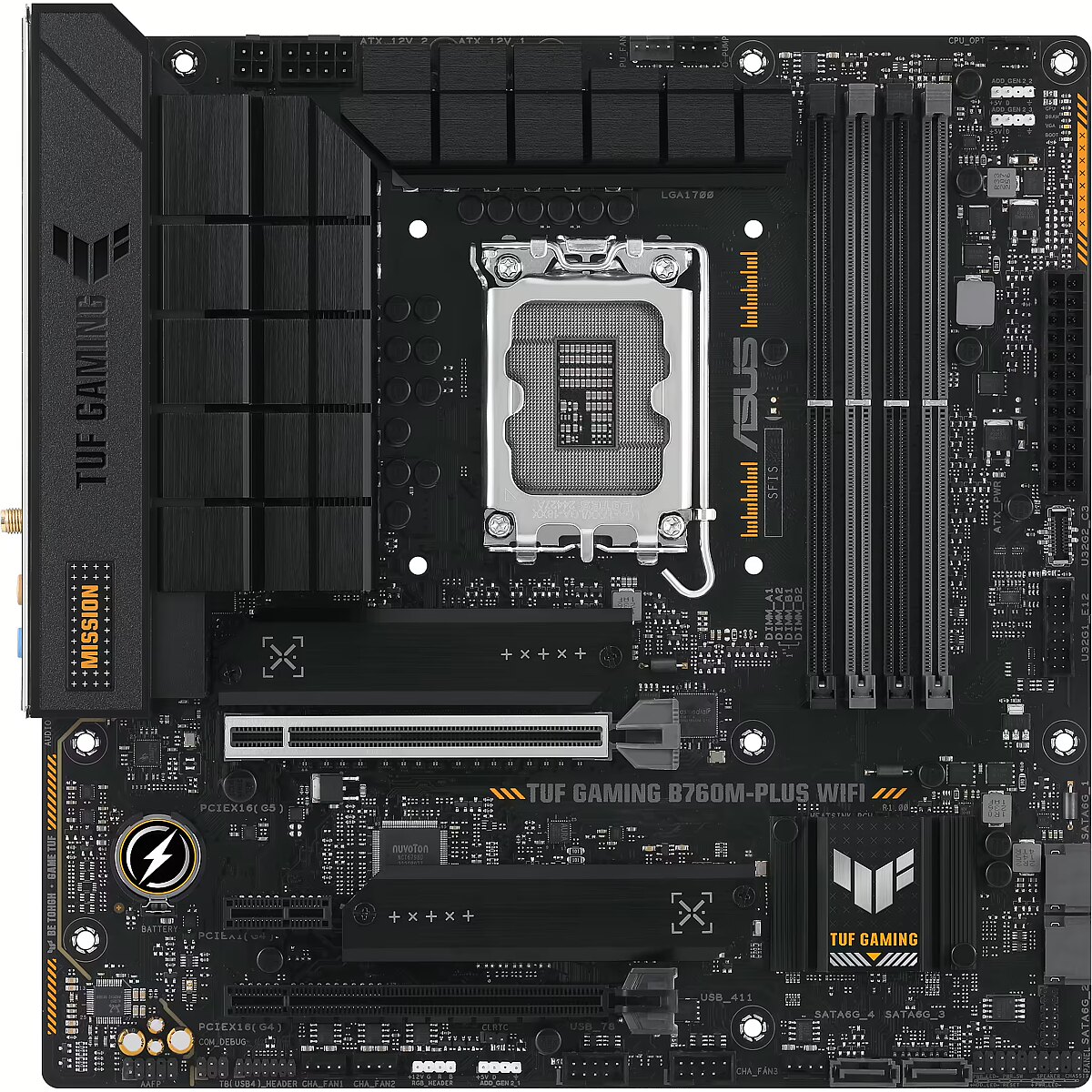

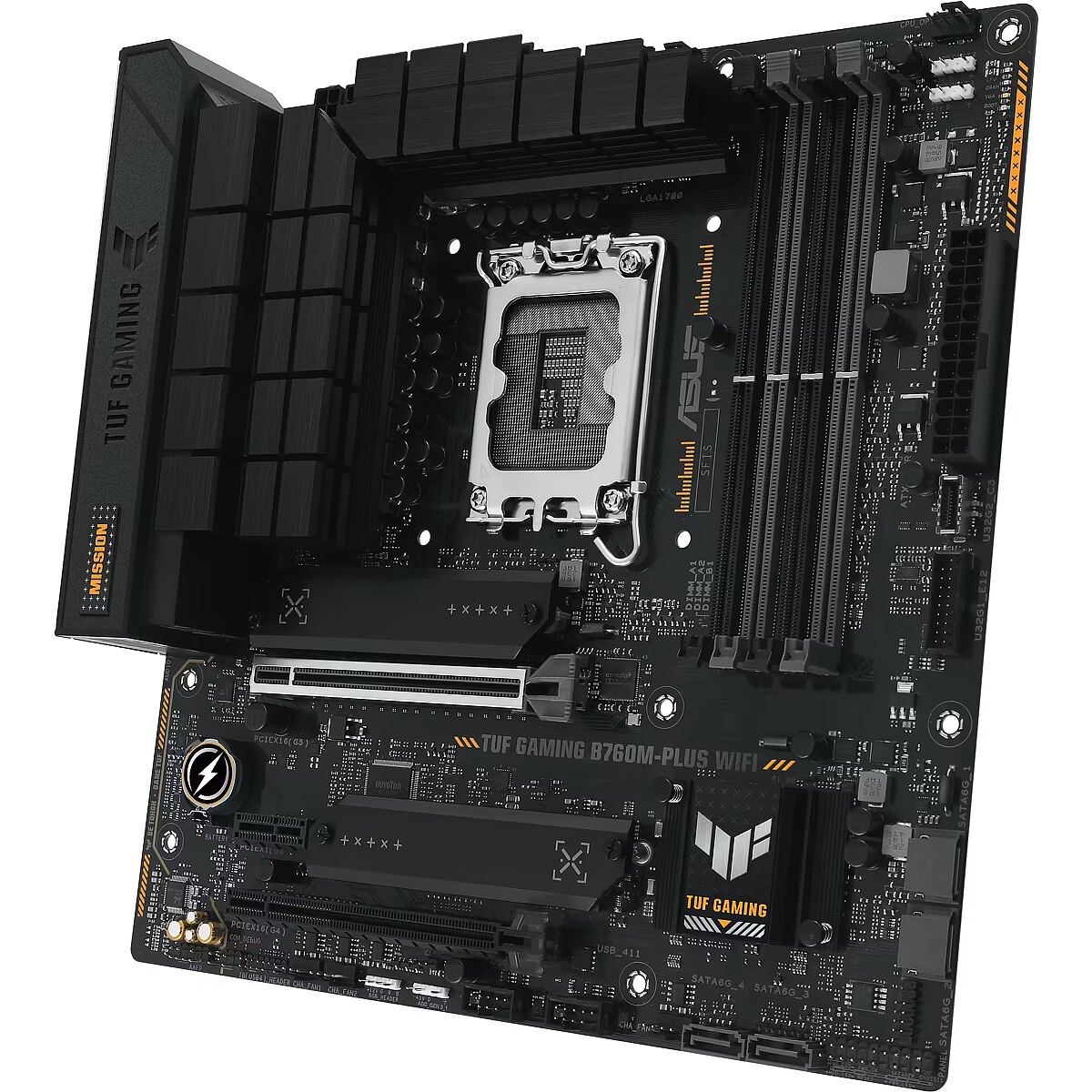

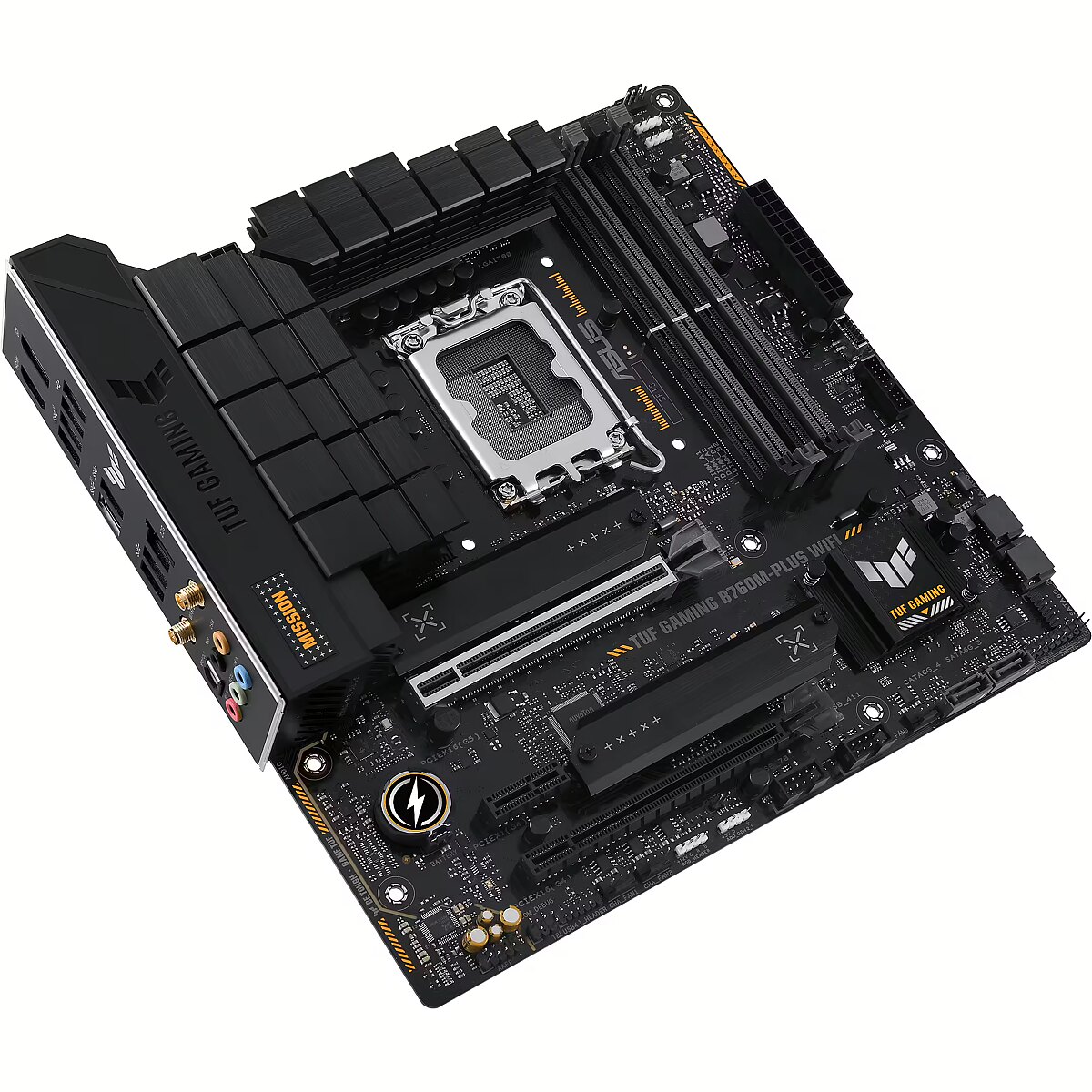

Model - TUF GAMING B760M-PLUS WIFI
Name - ASUS TUF GAMING B760M-PLUS WIFI
name - ASUS TUF Gaming B760M-Plus WIFI, Intel B760 Mainboard, Sockel 1700, DDR5
Name - ASUS TUF GAMING B760M-PLUS WIFI, motherboard - 1700
Network - Bluetooth - Yes
Network - Bluetooth version - 5.2
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 982 g
Packaging content - Cables included - SATA
Packaging content - User guide - Yes
Packaging data - Package depth - 275 mm
Packaging data - Package height - 67.5 mm
Packaging data - Package weight - 1.65 kg
Packaging data - Package width - 275 mm
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Producer - Asus
ProducerCode - TUF GAMING B760M-PLUS WIFI
ProductName - TUF Gaming B760M-Plus WIFI
ProductName - TUF GAMING B760M-PLUS WIFI II
RAID - SATA 0, 1, 5, 10

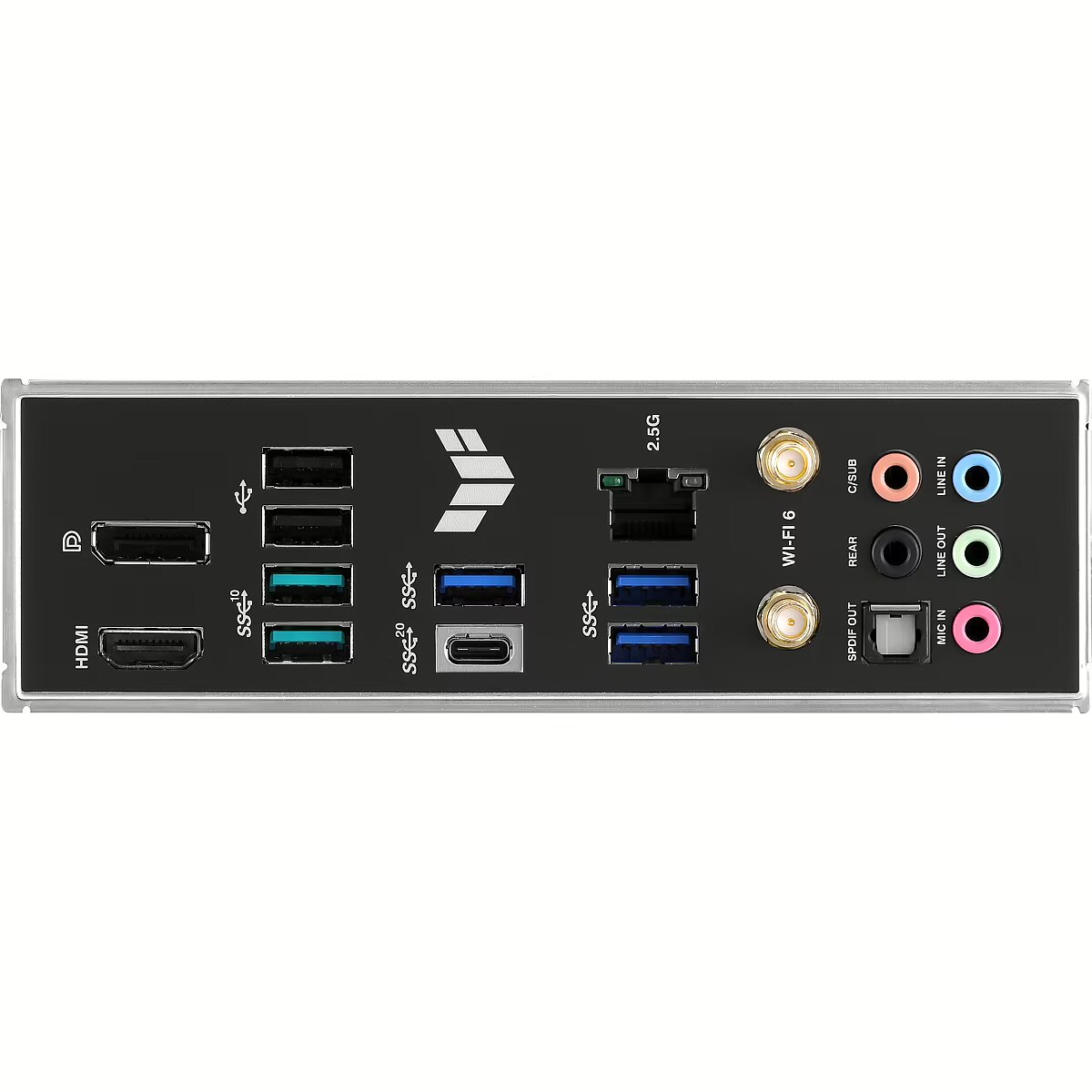

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 57 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 17 kg
Shipping Box Width Shipping/Package Box Dimensions - 36.5 cm
ShortDescription - Socket 1700| Chipset Intel B760 | DDR5 |
ShortSummaryDescription - ASUS TUF Gaming B760M-Plus WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, LGA 1700, DDR5-SDRAM, 128 GB
ShortSummaryDescription - ASUS TUF GAMING B760M-PLUS WIFI II, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 192 GB
Socket - LGA1700
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX
Title - ASUS TUF Gaming B760M-Plus WIFI Intel B760 LGA 1700 micro ATX
Unit Box Height - 0.07
Unit Box Length - 0.28
Unit Box Width - 0.275
Unit Brutto Volume - 0.006241 cubm
Unit Gross Weight - 1.7 kg
Unit Net Weight - 1.2 kg
URL - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-wifi-ii/
URL - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-wifi/
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 5
USB 3.2 Interface - Yes
Vendor Homepage - www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus-wifi/
Warranty - 36 months
WarrantyInfo -
Weight - 1,10
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
WiFi Interface - Yes
