Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
EAN_code - 4712960685574
Manufacturer - Biostar
Manufacturer_code - Z690GTA
Name - Biostar Z690GTA DDR4 Z690 - Socket 1700

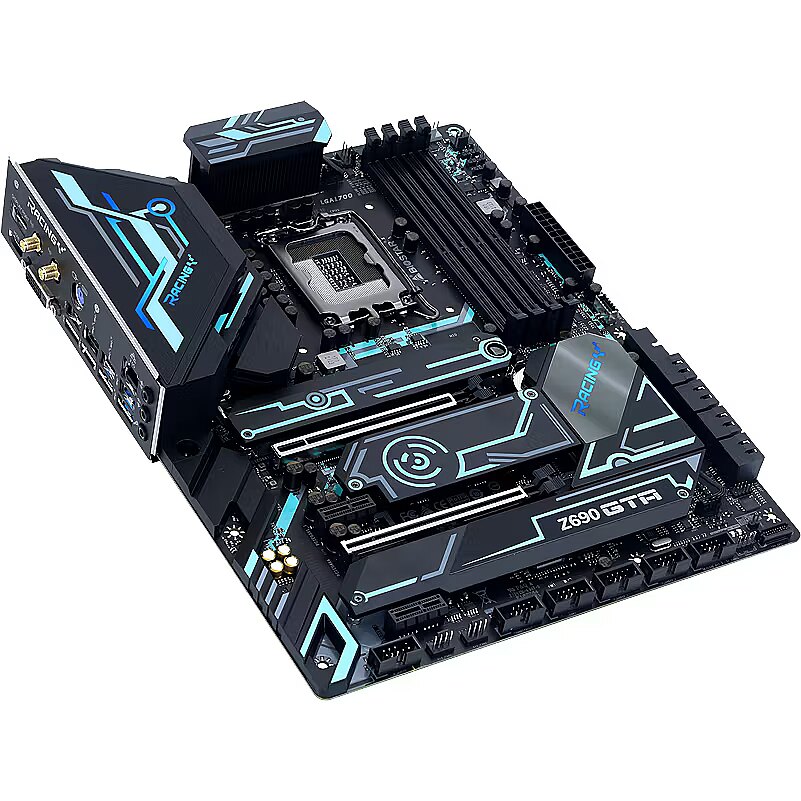

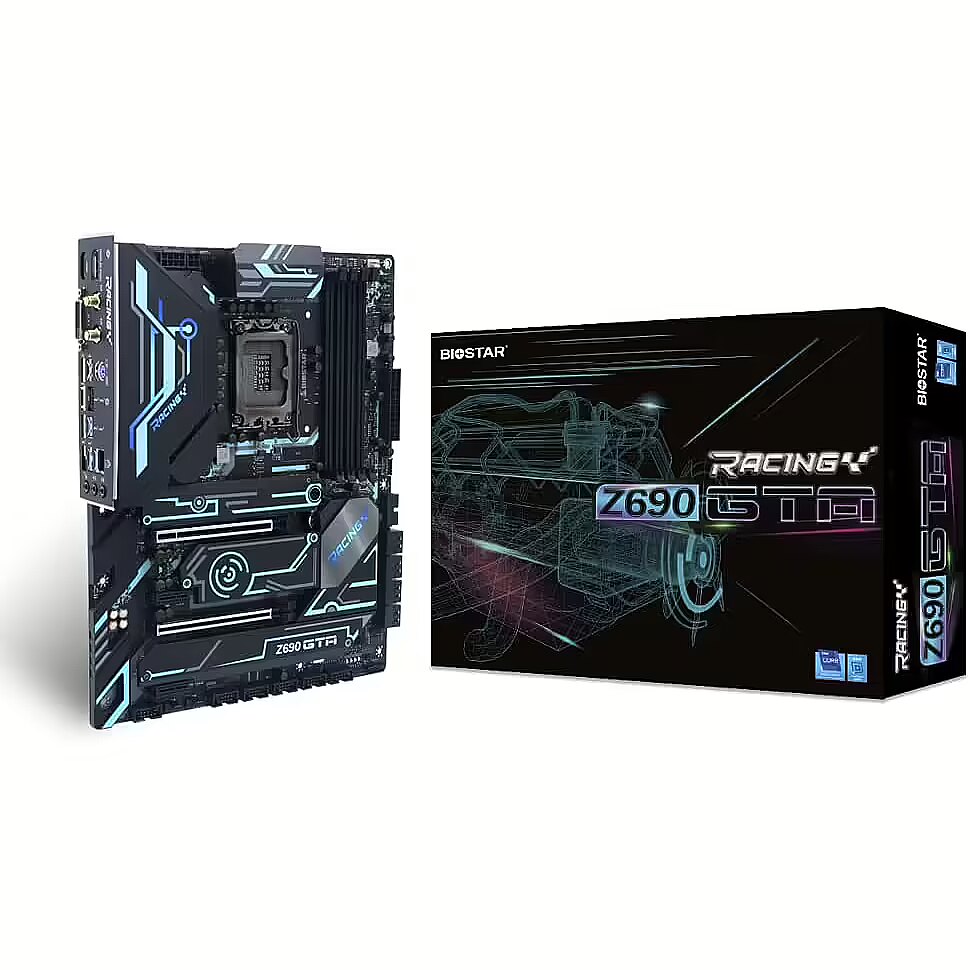

Technical_details - Z690GTA, motherboard The Biostar Z690GTA DDR4 motherboard is based on the Intel® Z690 chipset and supports Intel® processors for socket 1700 of the 12th generation. It has four DDR4 DIMM slots in dual-channel operation for up to 128 GB of RAM. Other features of the Biostar Z690GTA DDR4 include a PCIe 5.0 x16 slot, a PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots. In addition, the Biostar Z690GTA DDR4 has 8-channel sound, a 2.5 Gigabit LAN interface, eight SATA3 ports, three M.2 ports and a range of USB ports. Type: motherboard EAN code: 4712960685574 Manufacturer part number: Z690GTA Socket: 1700 Max CPUs supported: 1 OS: support | Windows 10 ready, Windows 11 ready Processor: Supported Models | Core i3 12xxx (Alder Lake), Core i3 12xxxT (Alder Lake), Core i3 12xxxF (Alder Lake), Core i5 12xxx (Alder Lake), Core i5 12xxxK (Alder Lake), Core i5 12xxxKF (Alder Lake), Core i5 12xxxT (Alder Lake), Core i5 12xxxF (Alder Lake), Core i7 12xxx (Alder Lake), Core i7 12xxxK (Alder Lake), Core i7 12xxxKF (Alder Lake), Core i7 12xxxT (Alder Lake), Core i7 12xxxF ( Alder Lake), Core i9 12xxx (Alder Lake), Core i9 12xxxK (Alder Lake), Core i9 12xxxKF (Alder Lake), Core i9 12xxxT (Alder Lake), Core i9 12xxxF (Alder Lake), Pentium Gold Gxxxx (Alder Lake ), Celeron Gxxxx (Alder Lake) Chipset: Intel® Z690 Slots: PCIe x16 | 2x (of which: 1x PCIe x16, 1x PCIe x4) Slots: PCIe x1 | 2 BIOS: 256Mbit UEFI AMI BIOS BIOS: EFI BIOS | Yes BIOS: BIOS Flashback | Yes Form factor: ATX Use: personal computer Power supply: ATX12V (24pin + 8pin + 4pin) Memory: maximum | 128GB Storage: Number of Sockets | 4x DDR4 Storage: supported storage type | SDRAM DDR4 Storage: supported standards | DDR4-5000+(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866( OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133MHz Storage: Channels | 2 Memory: Maximum memory ranks | 8th Memory: memory controller in CPU | Yes Storage: Maximum Data Density | 8192 Mbit Memory: Intel® Optane™ Memory Ready | Yes Connections (external): mouse/keyboard combo (PS/2) | 1 Connections (external): USB-C 3.2 Gen 2 (10 Gbit/s) | 1 Connections (external): USB-A 3.2 Gen 2 (10 Gbit/s) | 5 Connections (external): USB-A 3.2 Gen 1 (5 Gbit/s) | The designation USB 3.2 Gen 1 corresponds to the earlier designations USB 3.1 Gen 1 or USB 3.0. Connections (external): The designation USB 3.2 Gen 2 corresponds to the earlier designations USB 3.1 Gen 2 or USB 3.1. Connections (external): USB-A 2.0 | 2 Connections (external): DVI-D | 1 Connections (external): HDMI | 1 Connections (external): DisplayPort-Out | 1 Connections (external): Microphone | 1 Connections (external): Line-In | 1 Connections (external): line out | 1 Connections (external): RJ-45 | 1 Connections (internal): SATA | 8th Connections (internal): M.2 | 3 Connections (internal): M.2 module Key | M Connections (internal): M.2 interface | SATA, PCIe Connectors (internal): M.2 length | 42 - 80mm Connections (internal): RGB LED header | 1 Connections (internal): addressable RGB LED header | 3 Connections (internal): 4-pin PWM fan | 8th Connections (optional): USB 3.2 Gen 1 (5 GbIt/s) | 2 Connections (optional): USB-C 3.2 Gen 1 (5 Gbit/s | 1 Connections (optional): USB 2.0 | 2 Connections (optional): TPM | Yes
SATA Controller: Intel® Z690
directly usable RAID levels: 0, 1, 10, 5
USB Controller: Intel® Z690

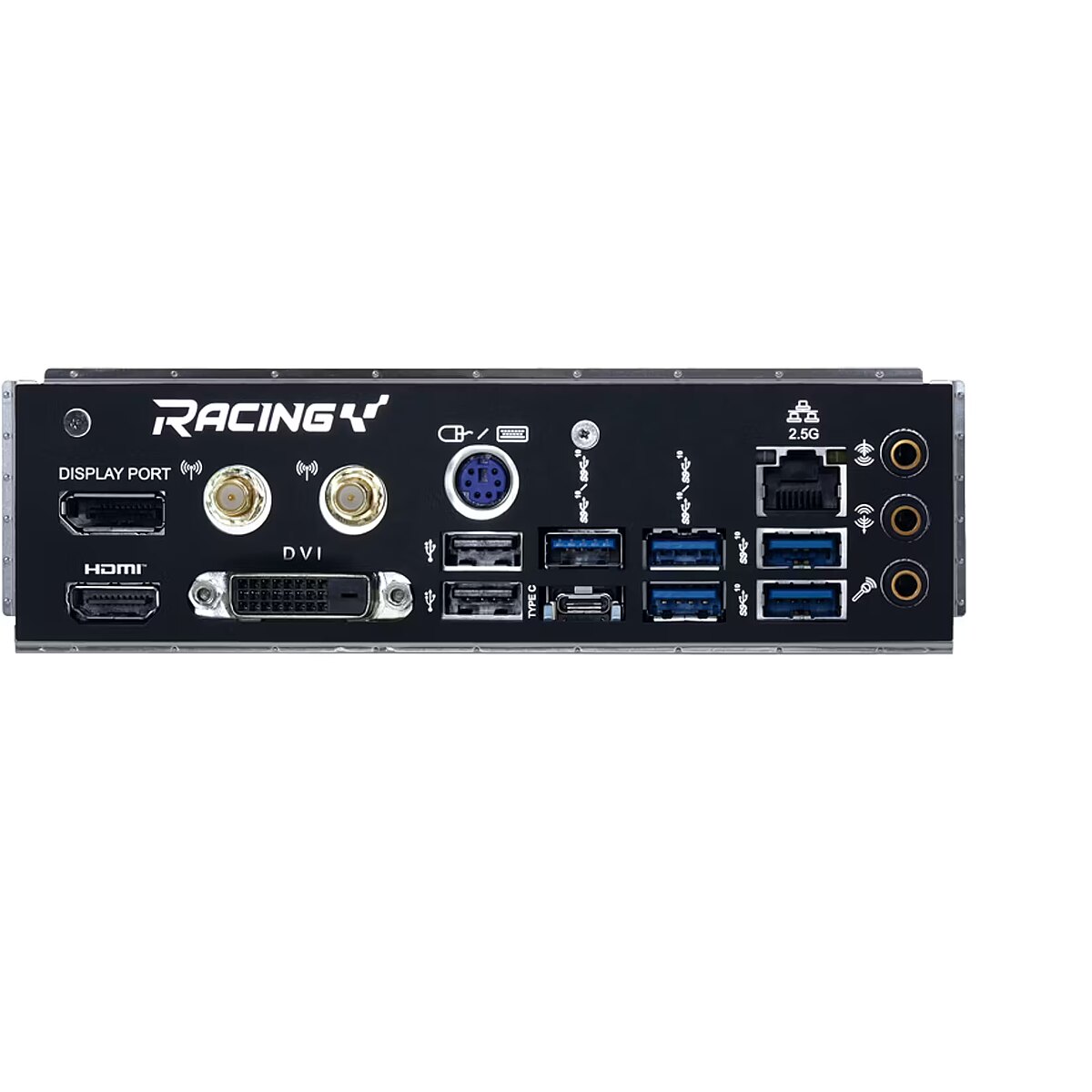

Onboard graphics: The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip.
Audio: ALC1220
LAN: Realtek RTL8125B 2.5GbE
Additional information: A BIOS update may be required to support the latest processor cores. Bluetooth 5.2 are supported from Windows 10 version 21H1.
Accessories: available | 4 x SATA 6Gb/s cables, 1 x Support DVD, 1 x User guide, 1x Smart connector
Dimensions: Width: 244mm x Height: 305mm
Weight - 1,98
