BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1JI0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
code - 90MB1JI0-M0EAY0
dimensionalWeight - 1366
ean - 4711387788424
EAN - 4711387788424
Eans - 4711387788424
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Features - Audio chip - Realtek ALC1220P
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Product colour - White
Features - Windows operating systems supported - Windows 11
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387788424
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - ROG STRIX B860-A gaming wifiWith NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.
LongProductName - Intel B860, 4 x DIMM slots, max. 256GB, DDR5, M.2/SATA III, 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), Bluetooth 5.4, 256 Mb Flash ROM, UEFI AMI BIOS, ATX
LongSummaryDescription - ASUS ROG STRIX B860-A GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Manufacturer - ASUS
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
MPN - 90MB1JI0-M0EAY0

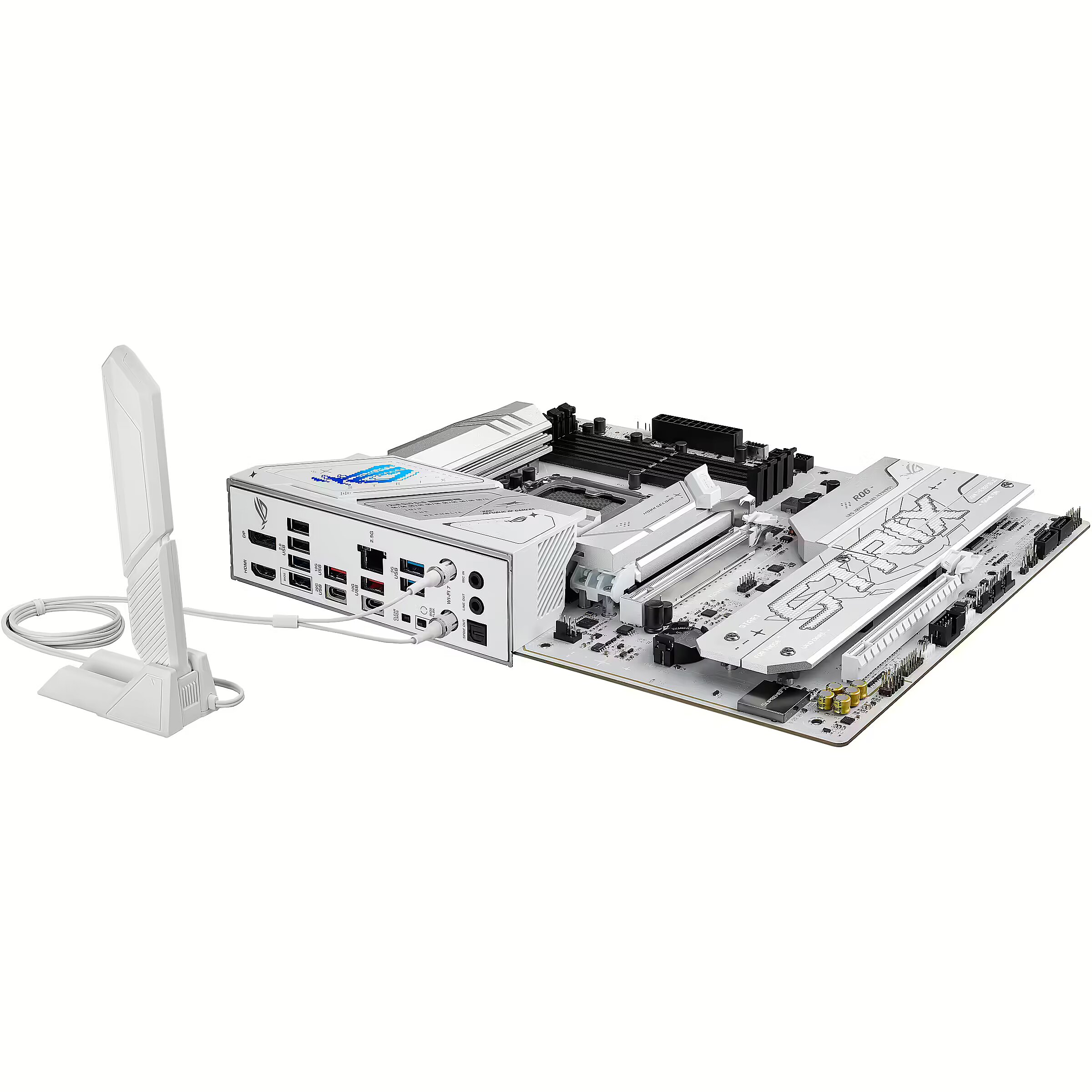

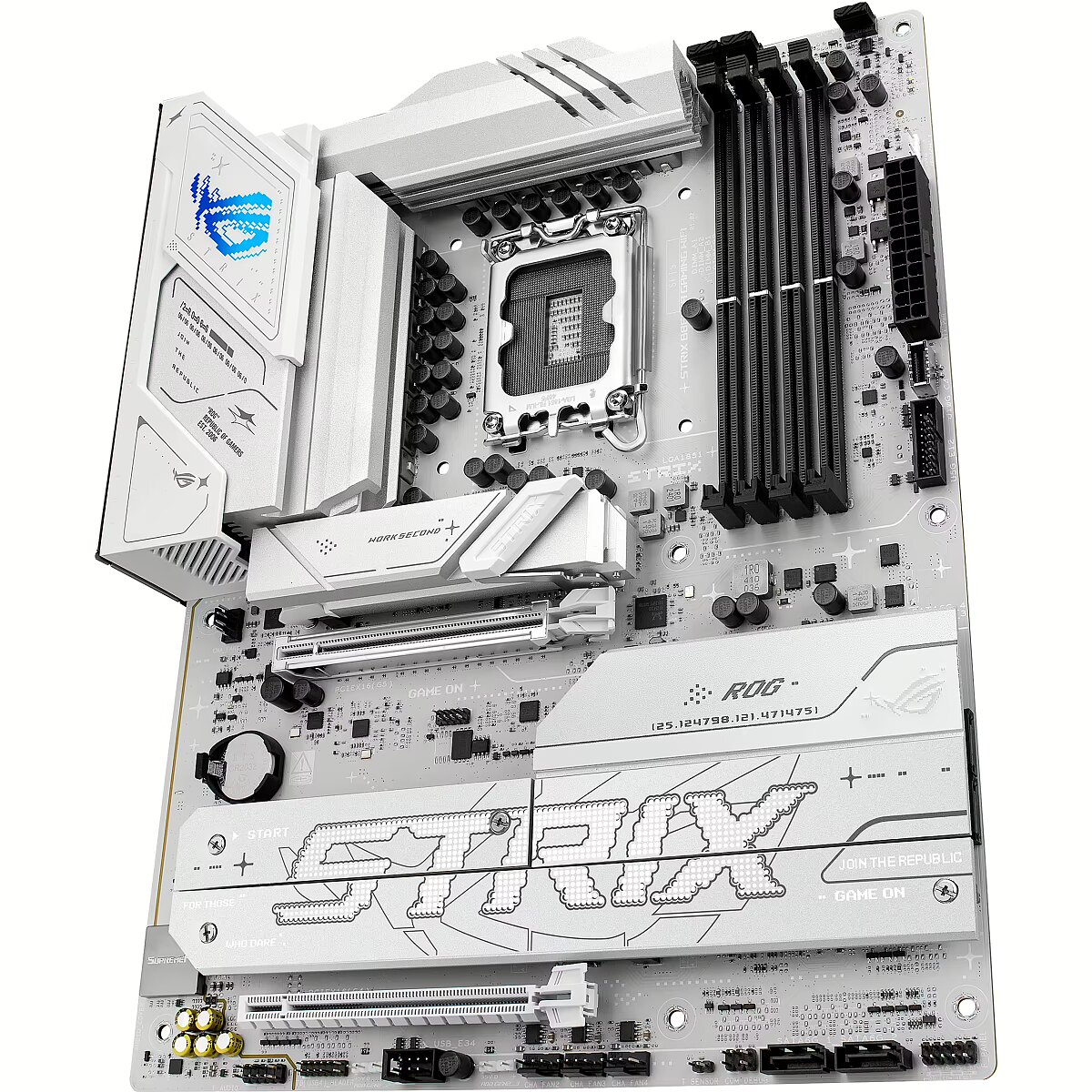

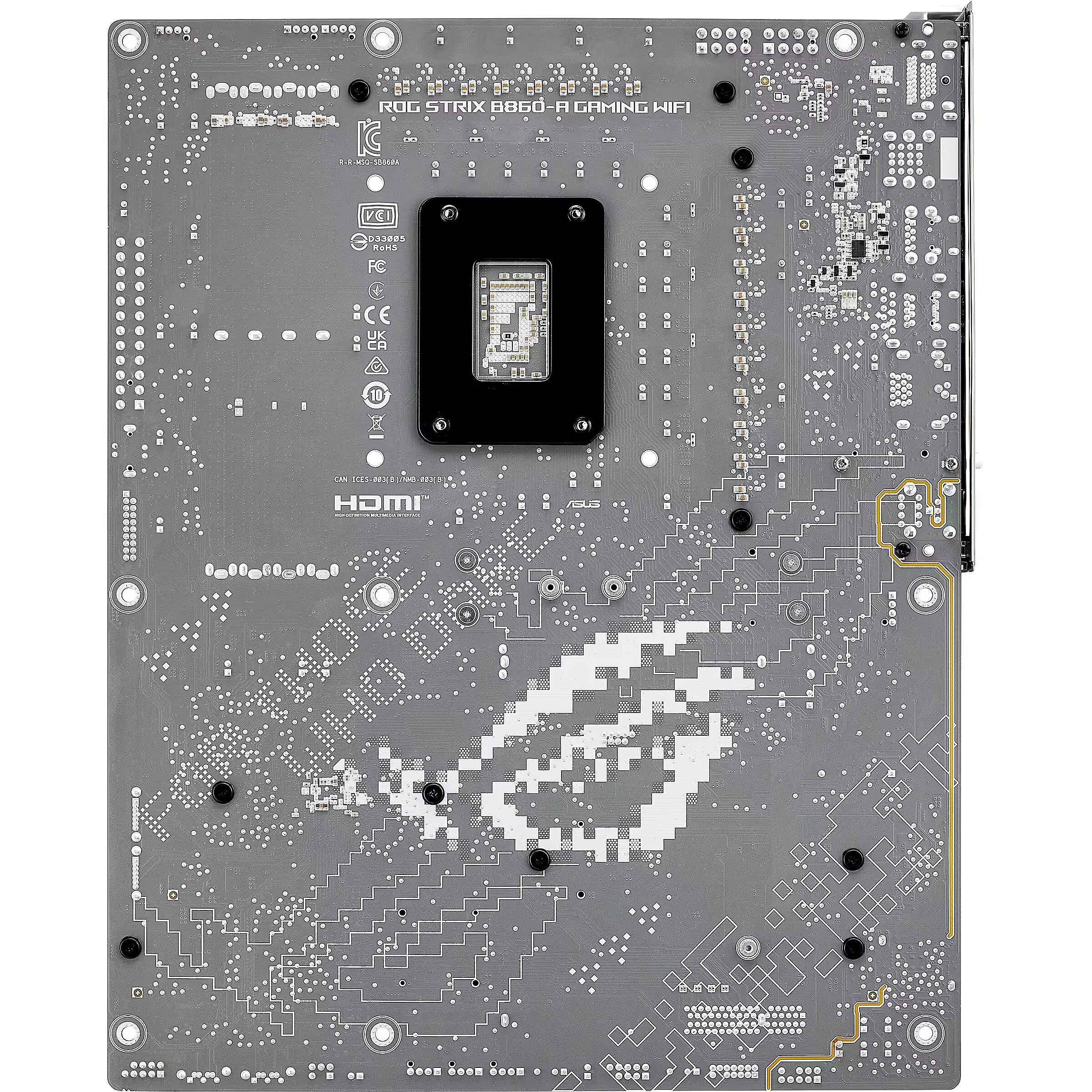

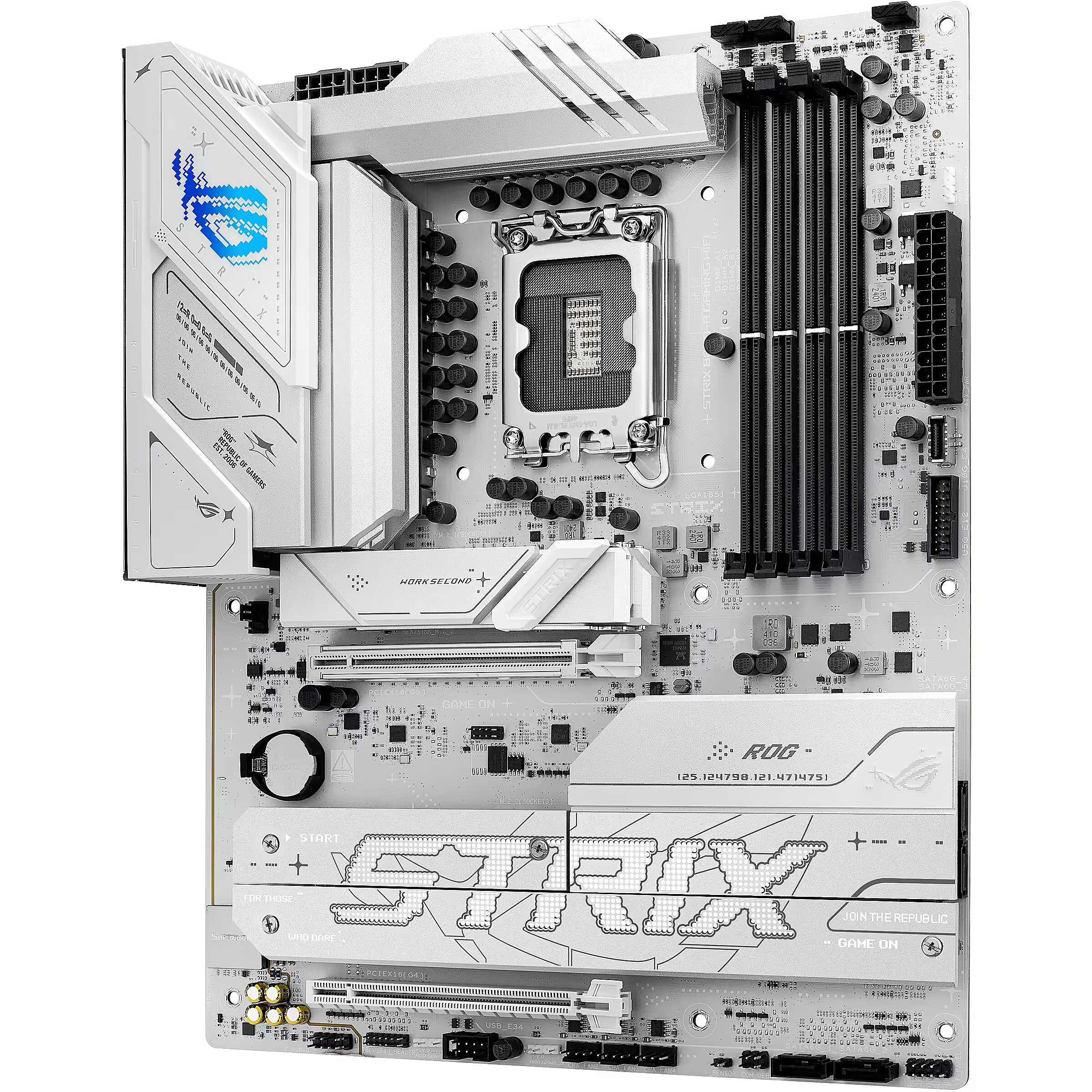

Name - ASUS ROG STRIX B860-A GAMING WIFI
name - ASUS ROG Strix B860-A Gaming WiFi Mainboard, LGA 1851, Intel B860, ATX, DDR5
Name - LGA1851 ASUS ROG STRIX B860-A GAMING WIFI
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Other features - Weight - 1.4 kg
Packaging data - Package depth - 273 mm
Packaging data - Package height - 70 mm
Packaging data - Package weight - 1.68 kg
Packaging data - Package width - 355 mm
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Producer - Asus
producerCode - 90MB1JI0-M0EAY0
ProducerCode - ROG STRIX B860-A GAMING WIFI
productName - ASUS ROG STRIX B860-A GAMING WIFI Intel B860 LGA 1851 (Socket V1) ATX
ProductName - ROG STRIX B860-A GAMING WIFI
productSize - Normal

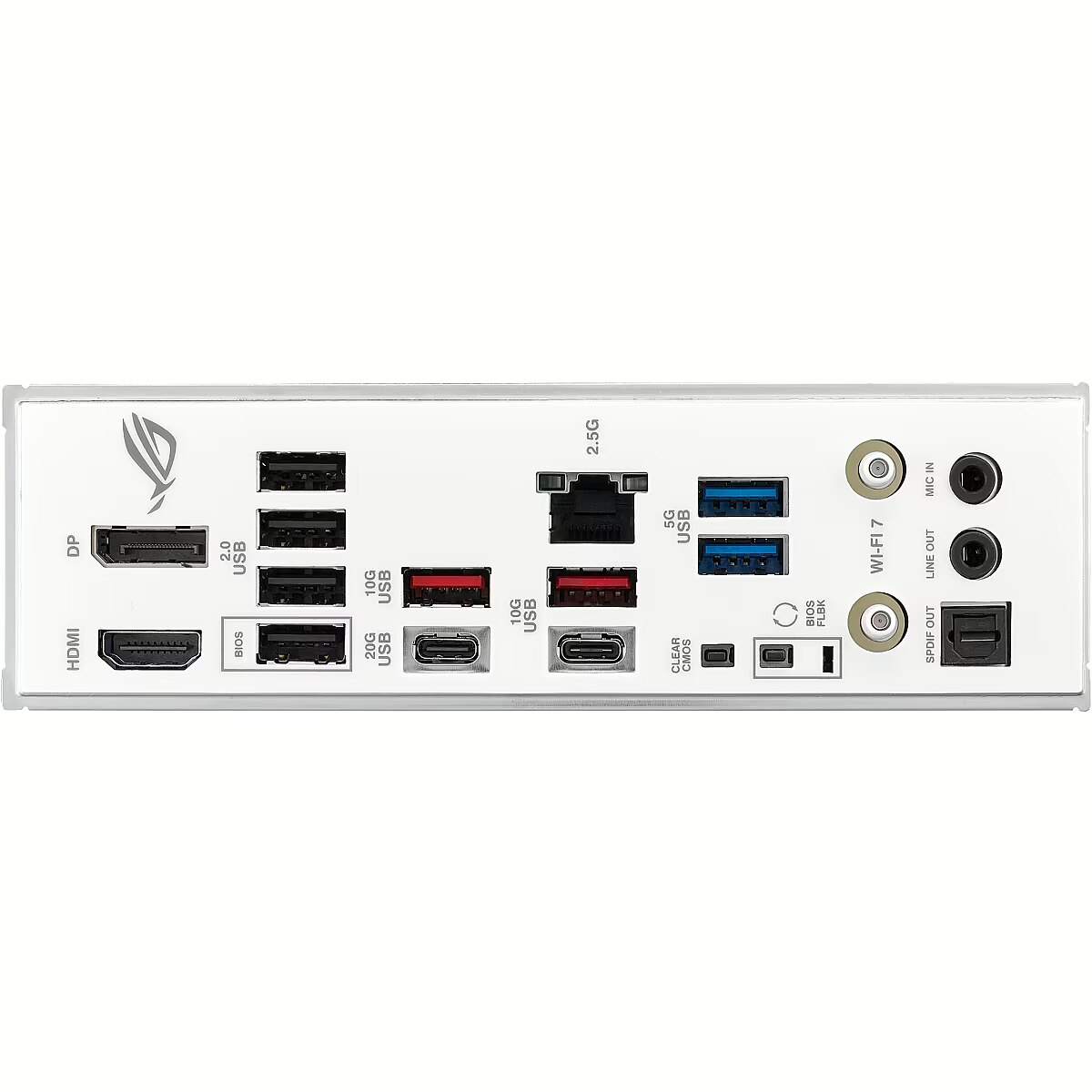

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 1
ShortDescription - Socket 1851| Chipset Intel B860| DDR5 |
ShortSummaryDescription - ASUS ROG STRIX B860-A GAMING WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), DDR5-SDRAM, 256 GB, DIMM
sizeX - 355
sizeY - 275
sizeZ - 70
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS ROG STRIX B860-A GAMING WIFI Intel B860 LGA 1851 (Socket V1) ATX
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-b860-a-gaming-wifi/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2.18
weight - 2200
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Width - 305 mm
