BIOS - ACPI version - 6.5
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.7
Brand - MSI
BrandPartCode - PRO B860M-A WIFI
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Code - PRO B860M-A WIFI
dimensionalWeight - 1097
EAN - 4711377286565
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 11 x64
Graphics - On-board graphics card - No
GTIN - 4711377286565
Internal I/O - CPU fan connector - Yes
Internal I/O - Number of CPU fan connectors - 1
Internal I/O - Number of RGB LED pin headers - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/PRO-B860M-A-WIFI
LongDesc - PRO B860M-A WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
LongProductName - LGA 1851, Intel B860, 4 DIMMs, DDR5 - 8800+ MT/s (OC), 4 x SATA, Wi-Fi 7, Bluetooth 5.4, 5G LAN
LongSummaryDescription - MSI PRO B860M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Manufacturer - MSI
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8800 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,6400,8800 MHz
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 8800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
MPN - 7E42-002R
Name - LGA1851 MSI PRO B860M-A WIFI
Name - MSI PRO B860M-A WIFI | Processor family Intel | Processor socket LGA1851 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 280.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 272.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 324 pc(s)
Package features > Paper/Pasteboard - 359.00 g
Package features > Plastic (No PET) - 90.00 g
Package features > Tare weight (kg) - 0.45 kg
Package features > TI weight (kg) - 0.02 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor > Processor family - Intel
Processor > Processor socket - LGA1851
producerCode - PRO B860M-A WIFI

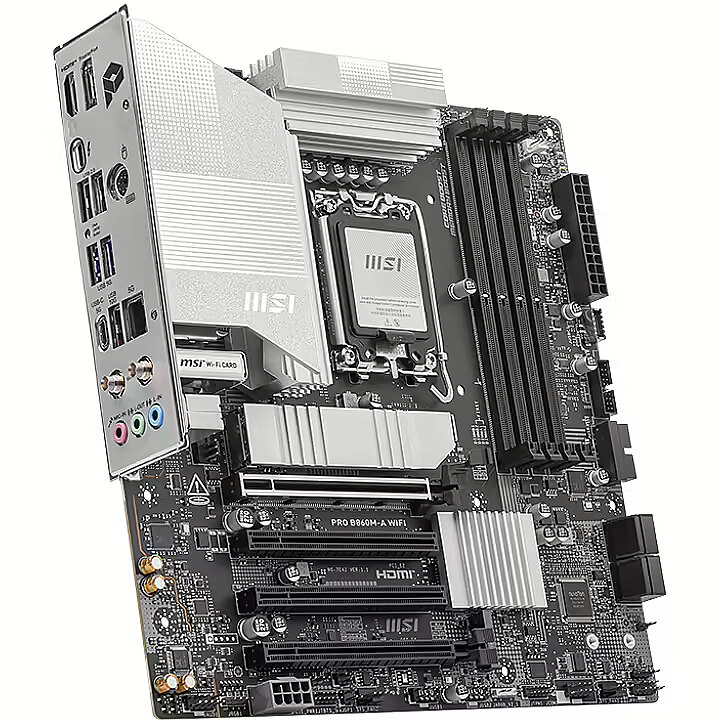

productName - MSI PRO B860M-A WIFI motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
ProductName - PRO B860M-A WIFI
productSize - Normal
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
ShortSummaryDescription - MSI PRO B860M-A WIFI, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM
sizeX - 285
sizeY - 275
sizeZ - 70
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, Micro SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 2.12 kg
Technical details > Net weight - 1.67 kg
Technical details > Producer - MSI
Technical details > Producer product name - PRO B860M-A WIFI
Title - MSI PRO B860M-A WIFI motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
URL - https://www.msi.com/Motherboard/PRO-B860M-A-WIFI
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.4
weight - 1410
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 243.8 mm
