Accessories included -
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Użycie licencjonowanego BIOS-u AMI UEFI PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - Z890M GAMING X
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Chipset manufacturer - Intel
Chipset type - Intel Z890 Express
code - Z890M GAMING X
COM connector / port - Yes
CPU socket - LGA1851
Description - Z890M GAMING X Obsługuje procesory Intel Core Ultra (seria 2) Cyfrowe rozwiązanie VRM 8+1+2 fazy D5 Bionic Corsa dla nieskończonej wydajności pamięci AORUS AI SNATCH: Oprogramowanie do automatycznego przetaktowywania według modelu AI AI PerfDrive: Zapewnia użytkownikom optymalny i dostosowany wstępnie profil BIOS-u Kompatybilność Premium: 4*DDR5 z obsługą modułów pamięci XMP PCIe EZ-Latch: Gniazda PCIe z szybkozłączką i konstrukcją bezśrubową Przyjazny interfejs użytkownika: Multi-Theme, AIO Fan Control i Q-Flash Auto Scan w BIOS-ie i oprogramowaniu Nowy monitor zasilania w HWinfo do monitorowania faz zasilania procesora w czasie rzeczywistym Ultraszybka pamięć masowa: 3 gniazda M.2, w tym 1 PCIe 5.0 x4 Wydajne chłodzenie: VRM Thermal Armor Advanced i M.2 Thermal Guard Szybka sieć: 2,5 GbE LAN Rozszerzona łączność: HDMI, DisplayPort
Detailed data on disk/drive interfaces - CPU: 1 x złącze M.2 (Socket 3, M key, obsługuje 2580/2280 PCIe 5.0 x4/x2 SSD) (M2A_CPU) Chipset: 1 x złącze M.2 (Socket 3, M key, obsługuje 2280 PCIe 4.0 x4/x2 SSD) (M2Q_SB) 1 x złącze M.2 (Socket 3, M key, obsługuje 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD) (M2N_SB) 4 x złącze SATA 6Gb/s Obsługa RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej NVMe SSD
Obsługa RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej SATA
dimensionalWeight - 1164
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 24.4 x 17.4 cm
dimension weight - 1130 g
dimension width - 270 mm
ean - 4719331865160
EAN - 4719331865160
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 slots - 1
Expansion slots - PCI Express x16 slots - 2
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x DisplayPort
External connectors - 2 x USB 2.0
External connectors - 3 x USB 3.2 Gen 1 Type-A
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z890
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Fan, Temperature, Voltage
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Graphics - Zintegrowany procesor graficzny - obsługa Intel HD Graphics 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz. - Obsługa wersji HDMI 2.1 i HDCP 2.3. Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS. 2 x DisplayPort, obsługujący maksymalną rozdzielczość 4096x2304@60 Hz. - Obsługa wersji DisplayPort 2.1.
Graphics - DirectX version - 12.0
GTIN - 4719331865160
guarantee - 36
guarantee_type - normal
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Total number of SATA connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - Z890M GAMING X Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 8+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, 2.5GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE Z890M GAMING X Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 8+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
LPT connector / port - No
Manufacturer - Gigabyte
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8800 MHz
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory clock speeds - 7800
Memory - Supported memory clock speeds - 8000 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8266 MHz
Memory bus frequency - 8400 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 8800 MHz
Memory type - DDR5
Model - Z890M GAMING X
MPN - Z890M GAMING X
Name - 1851 Gigabyte Z890M Gaming X
name - GIGABYTE Z890M Gaming X, Intel Z890 Mainboard - Sockel 1851, DDR5
name - Motherboard Z890M GAMING X
Network - Bluetooth - Yes
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - No
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x Thunderbolt
Onboard connectors - 2 x USB 3.2 Gen 1 Type-A
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other features - Weight - 1.1 kg
Other information -
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging data - Package depth - 268 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.22 kg
Packaging data - Package width - 270 mm
Processor - Compatible processor series - Intel Core Ultra (Series 2)
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
producer - Gigabyte
producerCode - Z890M GAMING X
productName - Gigabyte Z890M GAMING X motherboard
ProductName - Z890M GAMING X Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 8+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, 2.5GbE LAN, USB 3.2 Gen 1
productSize - Normal
RAID - Yes

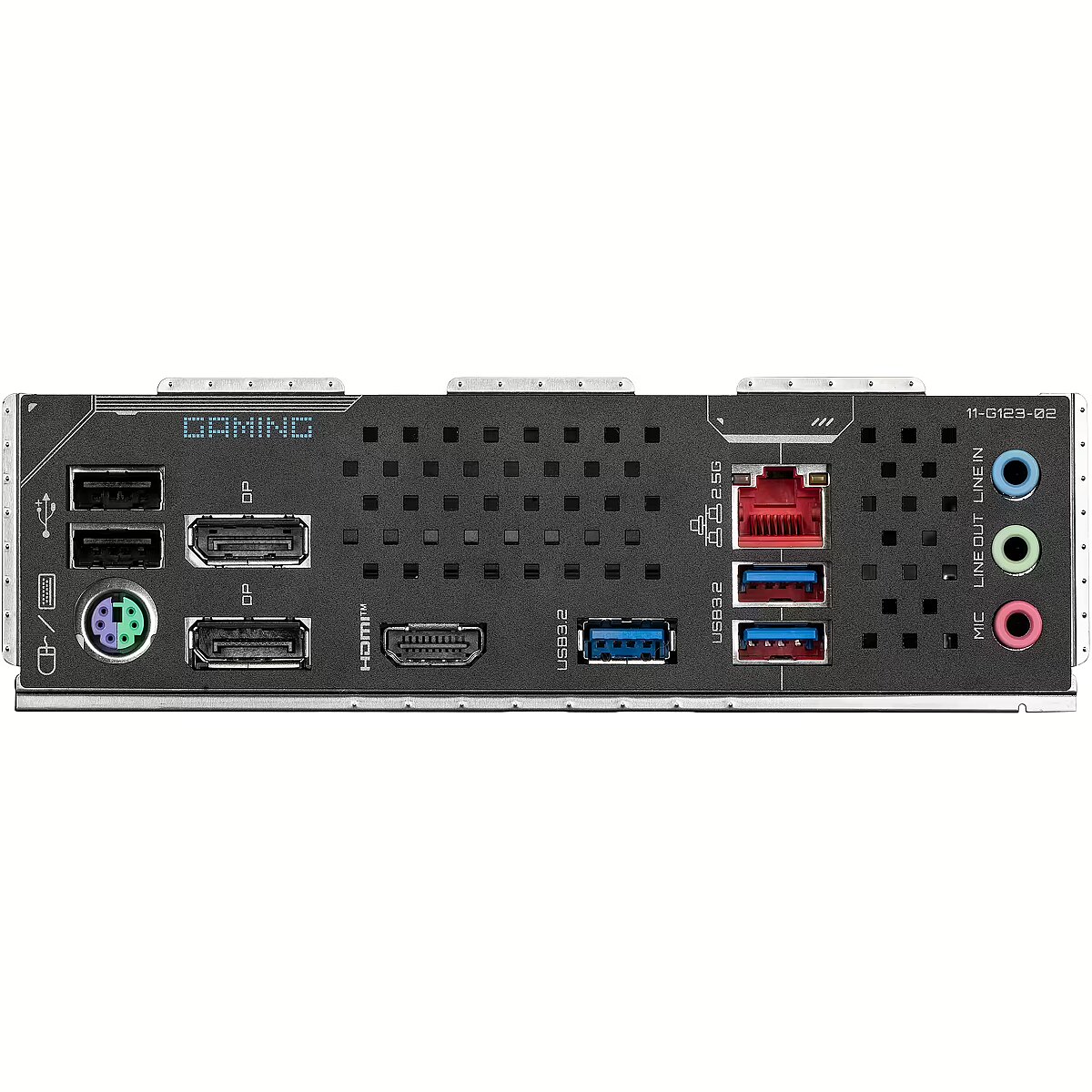

Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
ShortSummaryDescription - GIGABYTE Z890M GAMING X Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 8+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, 2.5GbE LAN, USB 3.2 Gen 1, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM
sizeX - 280
sizeY - 260
sizeZ - 80
Software - Norton Internet Security (wersja OEM) Oprogramowanie do zarządzania przepustowością sieci LAN
Sound card - Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1
Special functions - Obsługa GIGABYTE Control Center (GCC) Obsługa Q-Flash Obsługa Smart Backup
Storage controllers - Number of HDDs supported - 7
Storage controllers - Number of storage drives supported - 4
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE Z890M GAMING X Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 8+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, 2.5GbE LAN, USB 3.2 Gen 1
URL - https://www.gigabyte.com/
USB ports at back panel - 5
USB ports on motherboard - 7
vendpn - Z890M GAMING X
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 1.12
weight - 1020
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
