Accessories included - 2 SATA 6 Gb/s cables 1 x Thermal Pad for M.2 1 x ASUS Wi-Fi Q Antenna 1 x Cable Tie Pack 1 x Q-Latch Pack with M.2 Backplate 1 x M.2 Q-Latch Pack 1 x ROG Keychain 1 x ROG Strix stickers 2 M.2 rubber packs 1 x M.2 Backplate Rubber Pack 1 x Quick Start Guide
Audio port Input/Output connectors - 2
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1FN0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790
code - 90MB1FN0-M0EAY0
COM connector / port - No
CPU socket - LGA1700
Description - ROG Strix Z790-A Gaming Wi-Fi II ROG Strix Z790-A Gaming WIFI II features a solid VRM topped with a solid silver heatsink that comfortably delivers power to the latest 14th Gen Intel Core processors, while PCIe 5.0, Wi-Fi 7 and high-speed USB are integral to the motherboard's proficiency in various disciplines. Q-Antenna Thanks to Q-Antenna, connecting a WiFi antenna to your computer is now easy and quick. Instead of slowly turning the two fasteners until they finally lock, they simply click into place. Less hassle and more consistent performance. PCIE SLOT Q-RELEASE A physical button unlocks the first PCIe slot's security latch with a single press, greatly simplifying the process of disconnecting a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device. M.2 Q-LATCH The innovative Q-Latch makes it easy to install and remove the SSD from the M.2 slot. The design uses a simple locking mechanism to secure the drive, eliminating the need for a traditional screw. CLEAR CMOS & BIOS FlashBack The Clear CMOS button quickly resets BIOS settings to factory defaults. It can also be used to restart your computer if incorrect BIOS settings have been selected. BIOS FlashBack is a safe and simple way to update your BIOS. Simply drop the BIOS (UEFI) file onto a FAT32 formatted USB stick, plug it into the BIOS FlashBack USB port and press the button. Updates can be performed without even having to install memory or processor. Q-LED Built-in Q-LED troubleshooting lights give computer manufacturers a quick indicator to confirm that key components of the processor, RAM, graphics card, storage devices are functioning normally during startup. Builders can use the Q-LED feature to correct motherboard power issues, and it can also alert them when memory modules have not been installed properly even before attempting to boot their newly built PC.
Description - The ROG Strix Z790-A Gaming WIFI II comes with a robust VRM topped with a stout silver heatsink that comfortably articulates power for the latest Intel® 14th Gen Core processors, while PCIe 5.0, WiFi 7, and high-speed USB flesh out the board's fluency across a variety of disciplines.
Detailed data on disk/drive interfaces - Supports 5 M.2 slots and 4 SATA 6 Gb/s ports* Intel Core processors (14th, 13th and 12th generation) M.2_1 slot (M Key), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 chipset M.2_2 slot (M Key), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (M Key), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (M Key), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 and SATA modes) 4x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
dimensionalWeight - 1341
dimension depth - 70 mm
dimension height - 275 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2272 g
dimension width - 355 mm
DisplayPort Input/Output connectors - 1
ean - 4711387340660
Eans - 4711387340660
EAN_code - 4711387340660
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB BIOS Flashback button
External connectors - 2 x USB 3.1
External connectors - 2 x USB 3.1 Type-C
External connectors - 4 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10
Graphics - 1 DisplayPort** 1 x HDMI port*** *Graphics specifications may vary depending on processor type. Please visit www.intel.com for any updates. ** Supports max. 8K at 60 Hz as per DisplayPort 1.4 specification. ***Supports 4K at 60Hz as per HDMI 2.1 specification. ****VGA resolution support depends on the resolution of the processors or graphics cards.
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387340660
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1

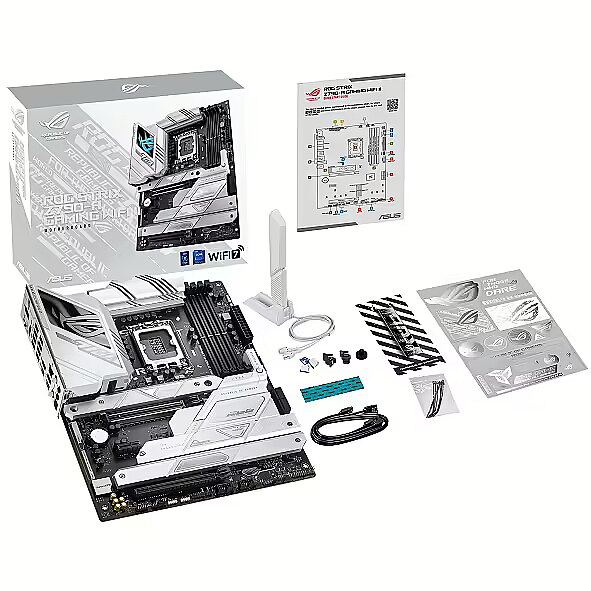

Included Accessories - Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi Q-Antenna
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
2 x M.2 rubber packages
1 x M.2 backplate Rubber package
Documentation
1 x Quick start guide
Integrated audio - Realtek ALC4080
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - ROG STRIX Z790-A GAMING WIFI IIThe ROG Strix Z790-A Gaming WIFI II comes with a robust VRM topped with a stout silver heatsink that comfortably articulates power for the latest Intel® 14th Gen Core processors, while PCIe 5.0, WiFi 7, and high-speed USB flesh out the board's fluency across a variety of disciplines.PCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.ALL-ROUND PERFORMANCERobust power delivery, breakneck DDR5 memory, speedy storage, and comprehensive cooling elevate any build with the ROG Strix Z790-A II at its center.AI OVERCLOCKINGTuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.LEADING CONNECTIVITYNext-gen connectivity and low-latency networking are hallmarks of the ROG ecosystem, and the Strix Z790-A II delivers both of them in full. Joining them is an advanced audio solution for immersive sound so you can pick out the slightest cues and nuances.WIFI 7With Multi-Link Operation (MLO)*, WiFi 7** can outperform WiFi 6E to deliver faster speeds, higher reliability and increased data transfer efficiency.Intel 2.5G EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.PLAY IN STYLEBold aesthetics and Aura Sync RGB controls let the ROG Strix Z790-A II shine in every build.UNDENIABLY ROG STRIXThe ROG Strix Z790-A II boldly embraces the light, for an alternate take on build themes to its dark and brooding brother, the Strix Z790-F. Silver metallic heatsinks pop against a dark PCB backdrop and call attention to the board's high capacity for thermal management. A transparent layer on the I/O shield adds a unique touch and emphasizes the customizable RGB logo below. The whole design is tied together with ROG-centric detailing on the board, heatsinks, and I/O shield for a vibrant and futuristic outlook. Pair the Strix Z790-A II with other products from the diverse ROG ecosystem to create a fully-customized gaming setup that reflects your personal style.SOFTWARE UTILITIESA myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertipsAI COOLING IIBalance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.DARE TO BE GREENWe at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.For those who dare, join us on our journey as we make the world a better place.INTEL® UNISON™Our latest ROG and ROG Strix Z790 WiFi 7 motherboards help you unify your tech life with a free 9-month subscription to Intel Unison.Intel Unison lets you use a compatible tablet as a second display, wirelessly transfer content between your phone, computer and tablet, and to do thing like accessing your smartphone’s picture photos while you’re working from on your PC. You can also keep an eye on your text messages and notifications while you’re working on your PC to stay connected without losing your flow, and you can even make phone calls without touching your phone.
LongProductName - Intel LGA1700 ATX, DDR4, 4x M.2, PCIe 5.0, WiFI 6E, AI Cooling II, Aura Sync
LongSummaryDescription - ASUS ROG STRIX Z790-A GAMING WIFI II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - Asus
Manufacturer_code - 90MB1FN0-M0EAY0
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7800 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400 MHz
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200 MHz
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory clock speeds - 7800 MHz
Memory - Supported memory clock speeds - 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ROG STRIX Z790-A GAMING WIFI II
Name - ASUS ROG STRIX Z790-A GAMING WIFI II
name - ASUS ROG Strix Z790-A Gaming WiFi II, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - Asus ROG STRIX Z790-A GAMING WIFI II - Socket 1700 - motherboard
name - Motherboard ROG STRIX Z790-A GAMING WIFI II 4DDR5 HDMI ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Intel Wi-Fi 7* Wi-Fi 2x2 7 (802.11be)** Supports 2.4/5/6 GHz frequency band*** Supports Wi-Fi 7 160 MHz band, transfer rate up to 2.4 Gb/s. Bluetooth v5.4**** * Compatible with Windows 11 or later. **Full support for Wi-Fi 7 MLO (Multi-link Operation) will be available on Windows 11 2024 (Windows 11 24H2) or later. ***Regulations regarding the Wi-Fi 6 GHz frequency band and bandwidth may vary by country. ****Bluetooth version may vary. The latest specifications can be found on the Wi-Fi module manufacturer's website.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x 4pin Chassis fan
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other information -
Packaging content - Cables included - SATA
Packaging data - Package depth - 275 mm
Packaging data - Package height - 70 mm
Packaging data - Package weight - 9.51 kg
Packaging data - Package width - 355 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Asus
Producer - Asus
producerCode - 90MB1FN0-M0EAY0
ProducerCode - ROG STRIX Z790-A GAMING WIFI II
productName - ASUS ROG STRIX Z790-A GAMING WIFI II Intel Z790 LGA 1700 ATX
ProductName - ROG STRIX Z790-A GAMING WIFI II
productSize - Normal
RAID - SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 38 cm
Shipping Box Height Shipping/Package Box Dimensions - 30.5 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 9.77 kg
Shipping Box Width Shipping/Package Box Dimensions - 30.5 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - ASUS ROG STRIX Z790-A GAMING WIFI II, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 128 GB
sizeX - 355
sizeY - 270
sizeZ - 70
Socket - LGA1700
Software - Exclusive ROG software - ROG CPU-Z - DTS sound without limits ASUS exclusive software Armory Chest - AIDA64 Extreme (60-day free trial) - Aura creator - Aura synchronization - Fan Xpert 4 (with AI Cooling II) - First game - Energy saving -Sonic Studio - Bi-directional AI noise reduction AI Pack 3 - Easy optimization with AI overclocking - TPU - DIGI+ VRM - Turbo application - Computer cleaner MyASUS USB power monitor Intel Unison Adobe Creative Cloud (free trial) Norton 360 for gamers (60-day free trial) WinRAR (40-day free trial) UEFI BIOS AI Overclocking Guide DIY ASUS EZ - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ mode - ASUS MyHotkey FlexKey MemTest86
Sound card - ROG SupremeFX 5.1 Surround Sound High Resolution Audio CODEC ALC4080* - Impedance detection for front and rear headphone outputs - Supports: jack detection, multi-streaming, front and rear microphone jack reassignment - High-quality 120 dB SNR stereo output and 110 dB SNR recording input - Supports playback up to 32-Bit/384 kHz on the front panel Audio features - SupremeFX shielding technology -Savitech SV3H712 amplifier - Audio jacks - Rear optical S/PDIF output port - High-quality audio capacitors - Audio cover ****The Lime port (line out) on the rear panel does not support surround sound. If you want to use surround sound, be sure to connect your audio output device to the audio jack on the front panel of the case
Special functions - Extreme Digi+ engine - 5K metallic capacitors in black ASUS Q-Design - M.2 Q latch Release Q PCIe slot - Q antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], boot device [yellow green]) with DRAM detection - Q slot ASUS thermal solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design DIY ASUS EZ - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - CPU socket lever cover - ProCool II - Pre-installed I/O cover - Safe place - Secure DIMM Aura synchronization - Aura RGB header - Gen 2 addressable headers 20Gb/s front panel USB with PD fast charging support - Support: charging up to 30W - Support: USB power supply notification with output power display - Output: max. 5V/9V. 3A, 12V max. 2.5A - Compatible with PD3.0
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11

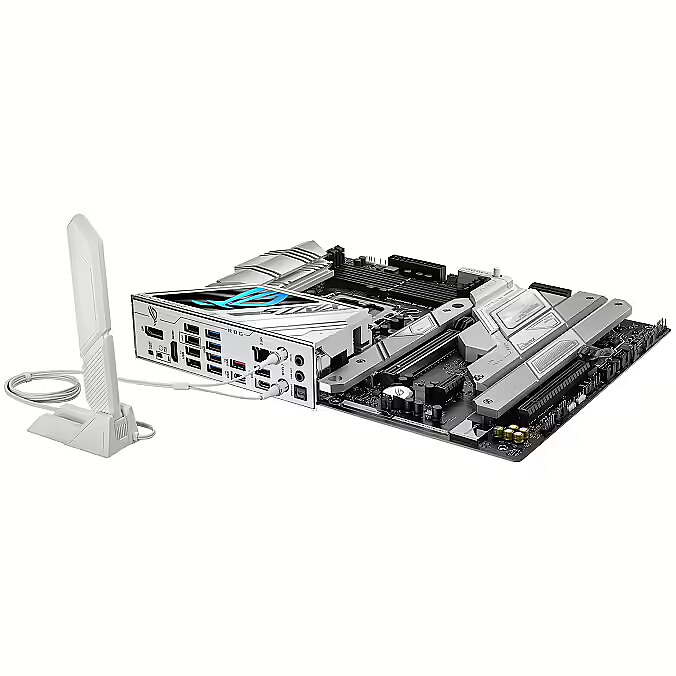

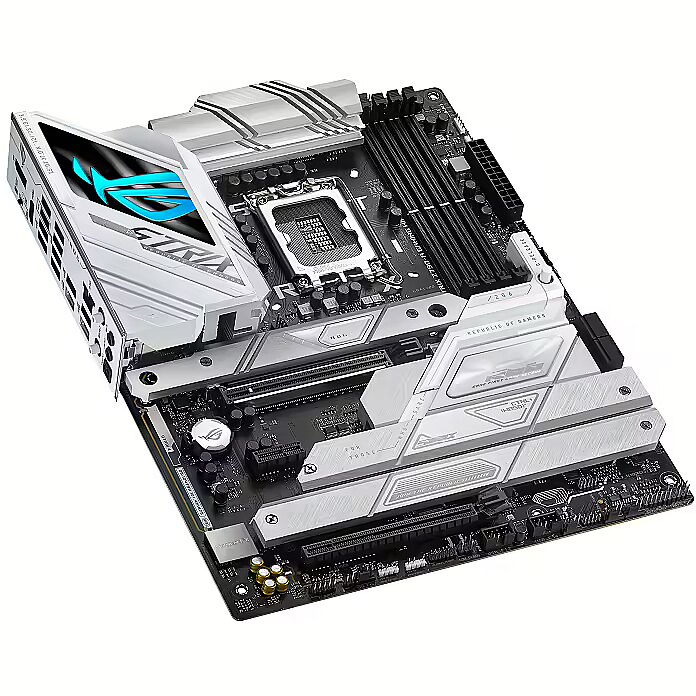

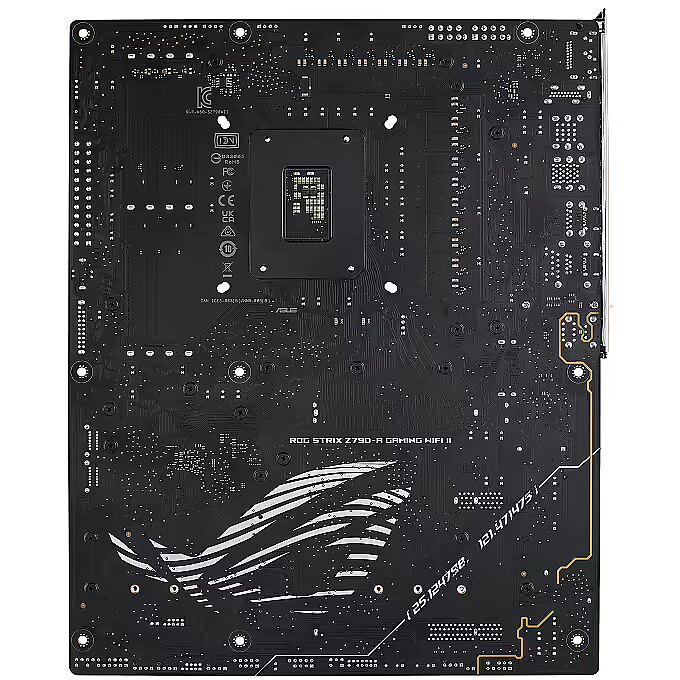

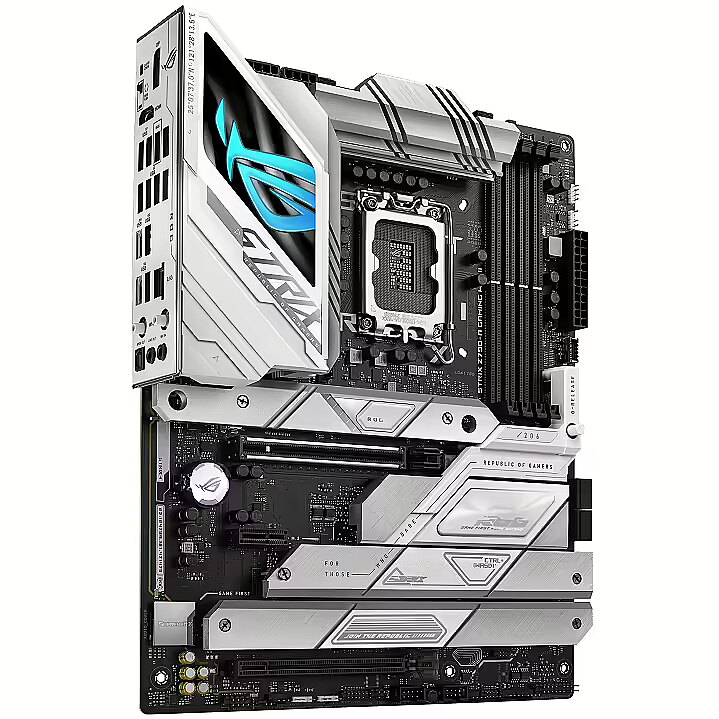

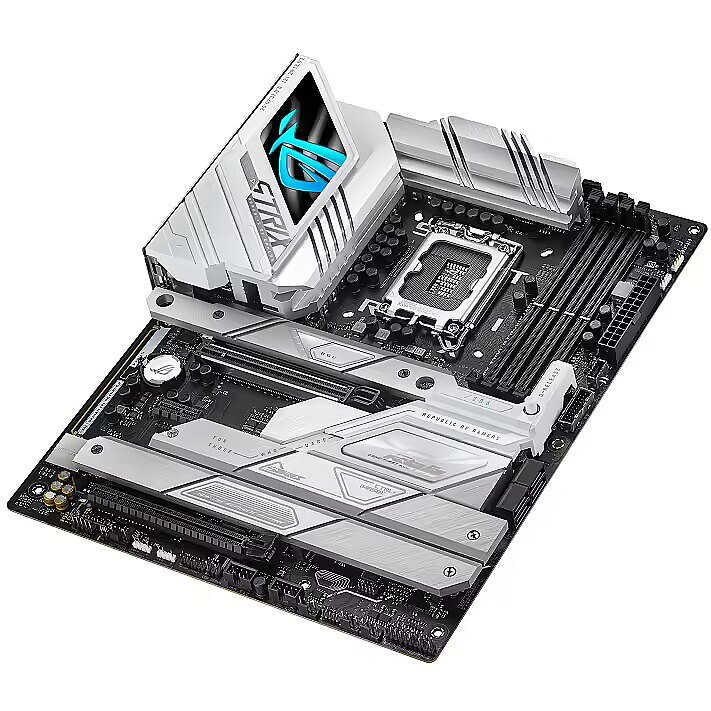

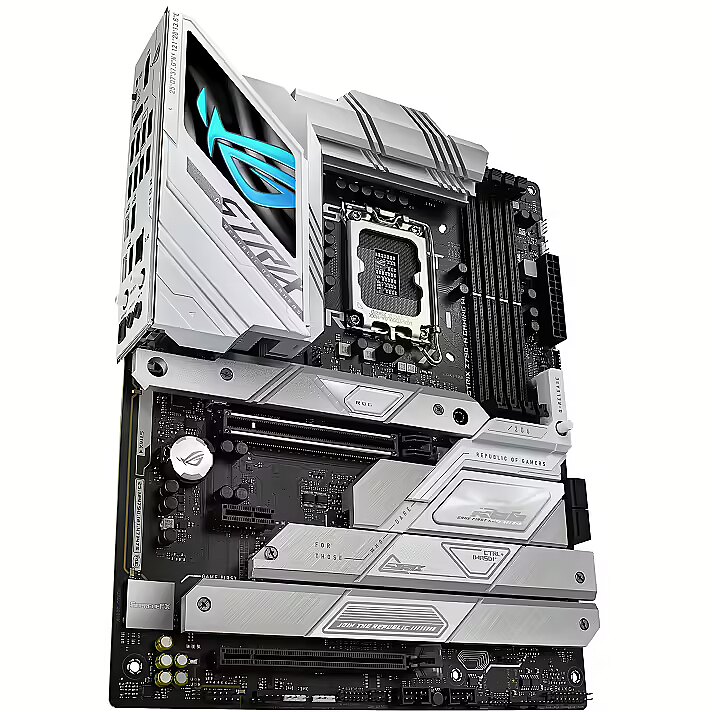

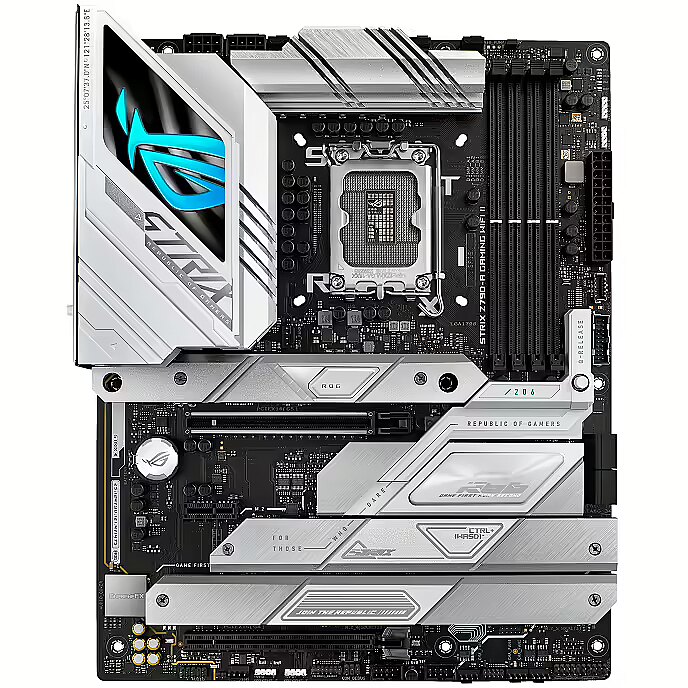

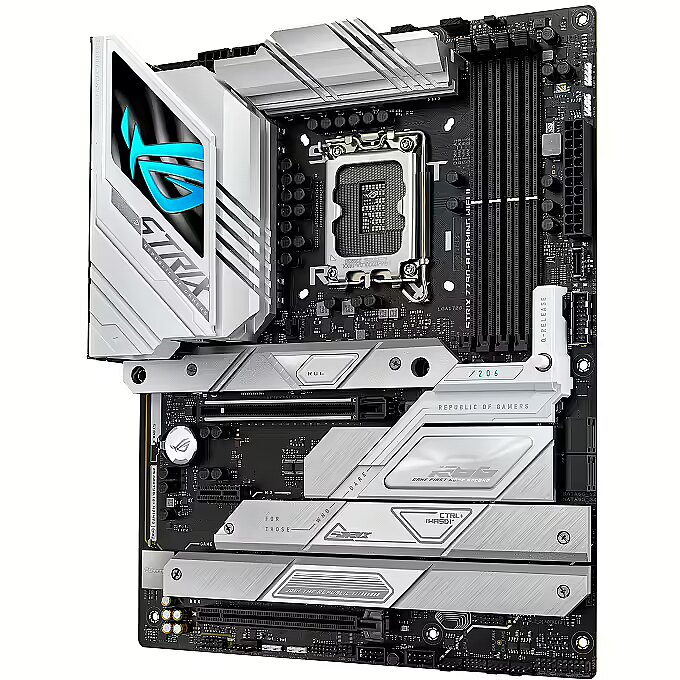

Title - ASUS ROG STRIX Z790-A GAMING WIFI II Intel Z790 LGA 1700 ATX
Unit Box Height - 0.07
Unit Box Length - 0.36
Unit Box Width - 0.275
Unit Brutto Volume - 0.008837 cubm
Unit Gross Weight - 2.44 kg
Unit Net Weight - 1.7 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-a-gaming-wifi-ii/
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 12
USB ports on motherboard - 7
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-z790-a-gaming-wifi-ii/
vendpn - ROG STRIX Z790-A GAMING WIFI II
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2,28
weight - 2260
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
