Audio port Input/Output connectors - 2
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1FM0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
code - 90MB1FM0-M0EAY0
Code - 90MB1FM0-M0EAY0

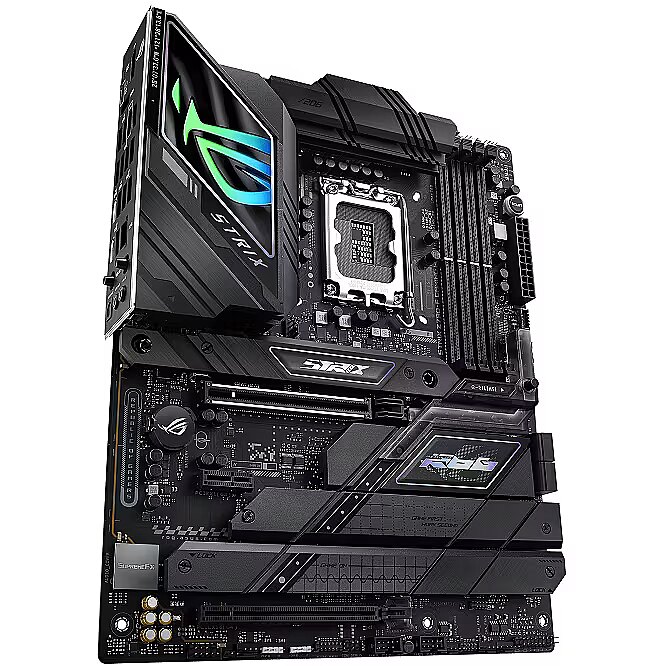

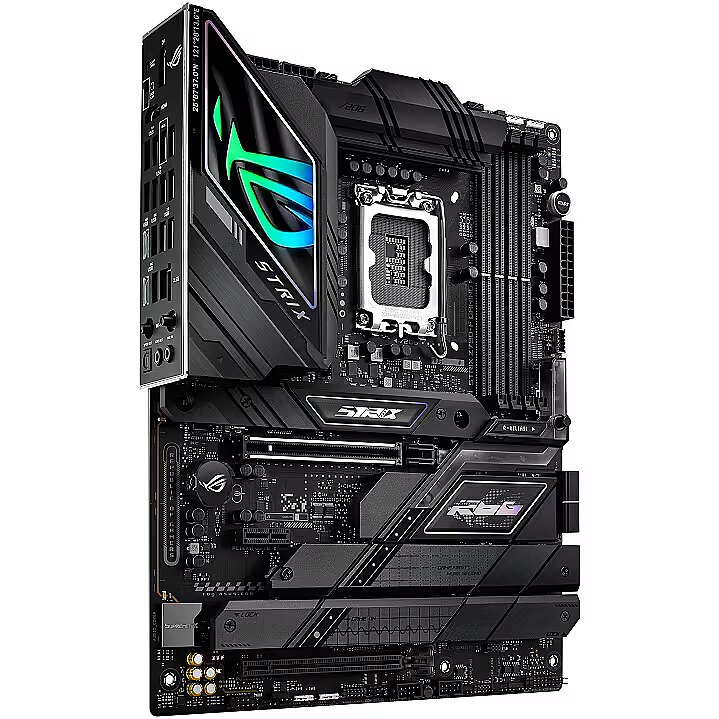

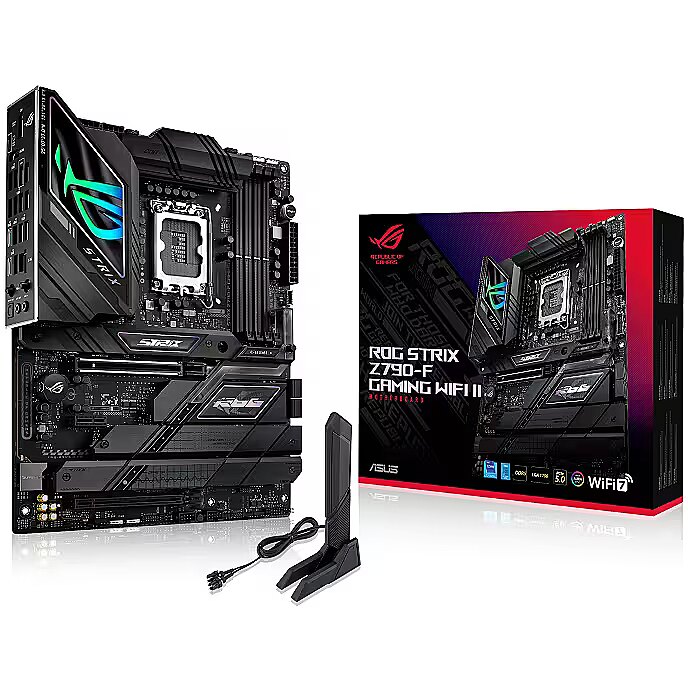

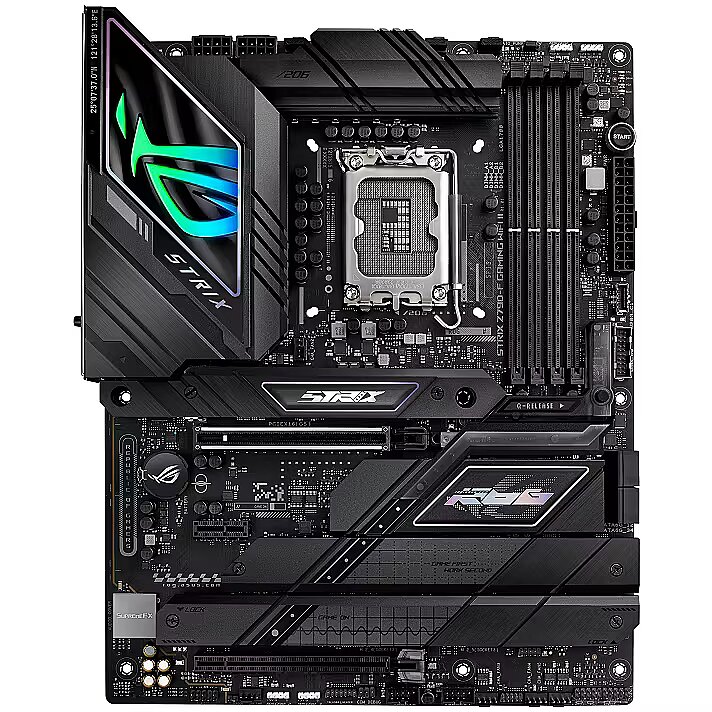

Description - ROG STRIX Z790-F GAMING WIFI II The ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intel® processors, graphics cards, storage and wireless networking to the next level. Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions.
dimensionalWeight - 1360
DisplayPort Input/Output connectors - 1
EAN - 4711387356548
ean - 4711387356548
Eans - 4711387356548
EAN_code - 4711387356548
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 5.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
Form Factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|8000/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|1xDisplayPort|6xUSB 2.0|6xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|2xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387356548
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-ii/
LongDesc - ROG STRIX Z790-F GAMING WIFI IIThe ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intel® processors, graphics cards, storage and wireless networking to the next level. Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions.PCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.ALL-ROUND PERFORMANCERobust power delivery, breakneck DDR5 memory, speedy storage, and comprehensive cooling elevate any build with the ROG Strix Z790-A II at its center.AI OVERCLOCKINGTuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.LEADING CONNECTIVITYNext-gen connectivity and low-latency networking are hallmarks of the ROG ecosystem, and the Strix Z790-F II delivers both of them in full. Joining them is an advanced audio solution for immersive sound so you can pick out the slightest cues and nuances.WIFI 7With Multi-Link Operation (MLO)*, WiFi 7** can outperform WiFi 6E to deliver faster speeds, higher reliability and increased data transfer efficiency.Intel 2.5G EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.PLAY IN STYLEBold aesthetics and Aura Sync RGB controls let the ROG Strix Z790-F II shine in every build.SOFTWARE UTILITIESA myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertipsAI COOLING IIBalance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.DARE TO BE GREENWe at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.For those who dare, join us on our journey as we make the world a better place.INTEL® UNISON™Our latest ROG and ROG Strix Z790 WiFi 7 motherboards help you unify your tech life with a free 9-month subscription to Intel Unison.Intel Unison lets you use a compatible tablet as a second display, wirelessly transfer content between your phone, computer and tablet, and to do thing like accessing your smartphone’s picture photos while you’re working from on your PC. You can also keep an eye on your text messages and notifications while you’re working on your PC to stay connected without losing your flow, and you can even make phone calls without touching your phone.
LongProductName - Intel LGA1700 ATX, DDR5, 5x M.2, PCIe 5.0, WiFi 7, AI Cooling II, Aura Sync
LongSummaryDescription - ASUS ROG STRIX Z790-F GAMING WIFI II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
M.2 Expansion slots - 5
Manufacturer - Asus
Manufacturer_code - 90MB1FM0-M0EAY0
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7400
Memory - Supported memory clock speeds - 7600
Memory - Supported memory clock speeds - 7800
Memory - Supported memory clock speeds - 8000 MHz
Memory - Supported memory clock speeds - 8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory slots - 4
Memory type - DDR5

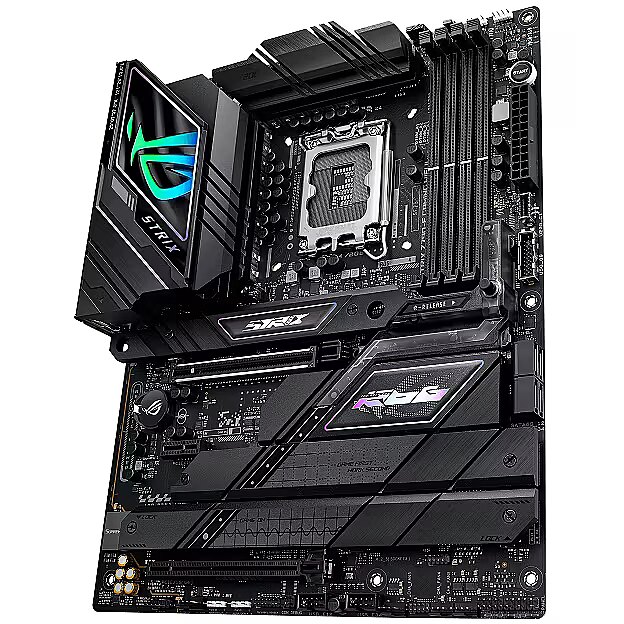

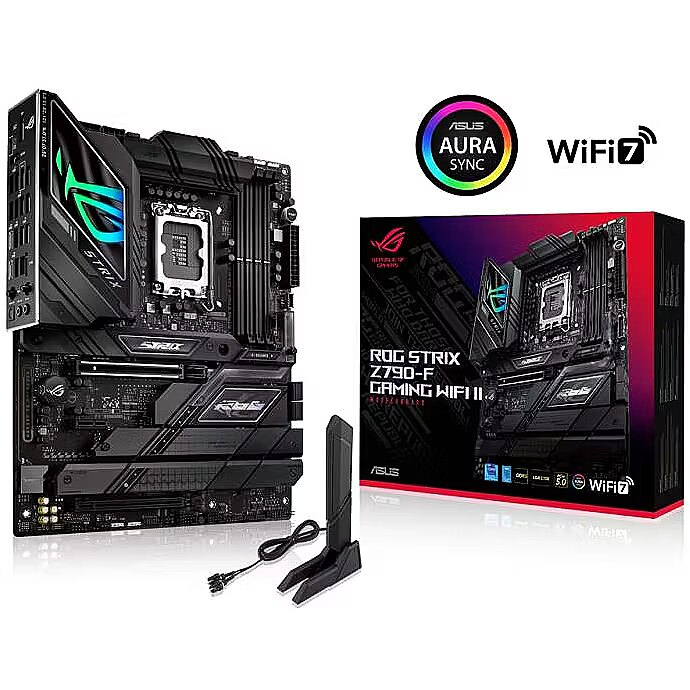

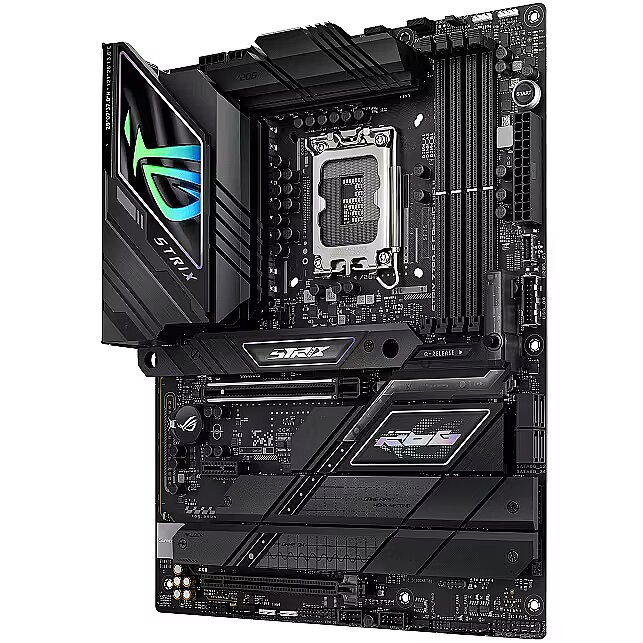

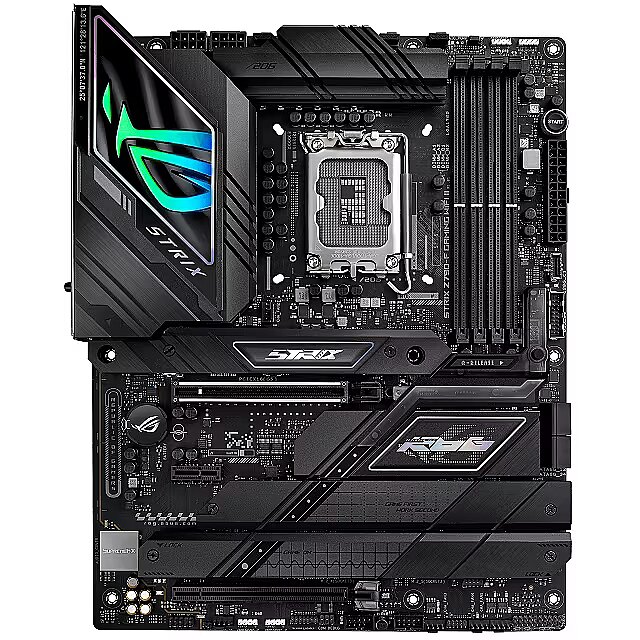

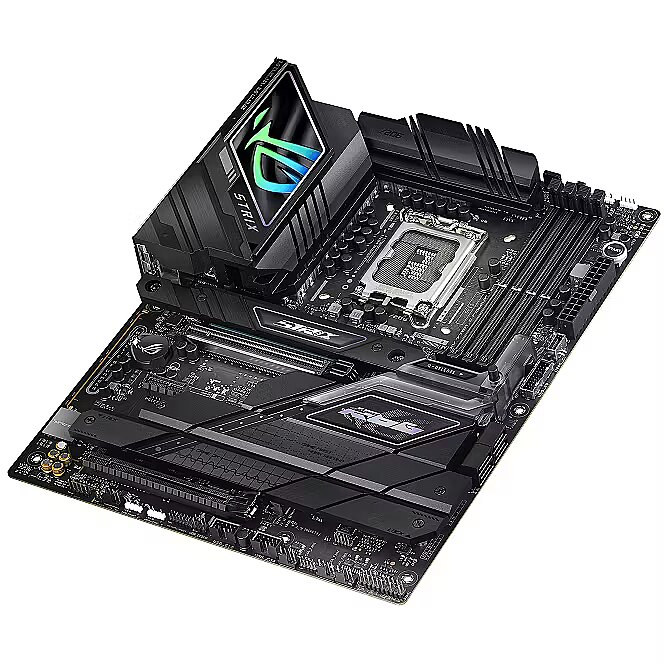

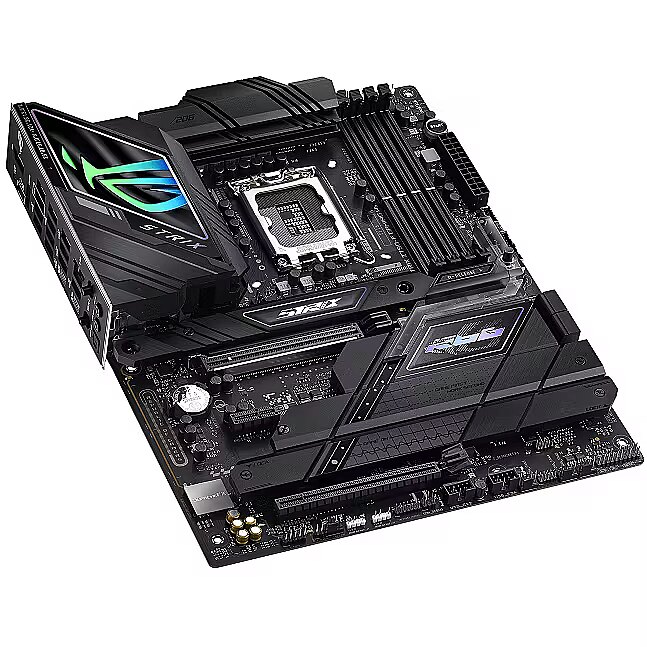

Model - ROG STRIX Z790-F GAMING WIFI II
Name - ASUS ROG STRIX Z790-F GAMING WIFI II
name - ASUS ROG Strix Z790-F Gaming WiFi II, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - ASUS ROG STRIX Z790-F GAMING WIFI II - Socket 1700 - motherboard
Name - Asus | ROG STRIX Z790-F GAMING WIFI II | Processor family Intel | Processor socket LGA1700 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Optical S/PDIF Input/Output connectors - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 300.00 mm
Package features > Gross height (mm) - 160.00 mm
Package features > Gross width (mm) - 300.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 60 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.23 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes

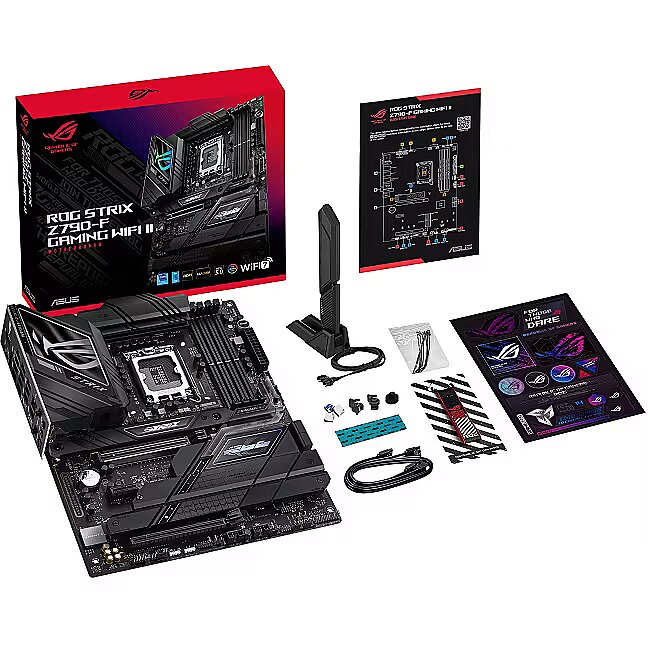

Packaging content - Cables included - SATA
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Producer - Asus
producerCode - 90MB1FM0-M0EAY0
ProducerCode - ROG STRIX Z790-F GAMING WIFI II
productName - ASUS ROG STRIX Z790-F GAMING WIFI II Intel Z790 LGA 1700 ATX
ProductName - ROG STRIX Z790-F GAMING WIFI II
productSize - Normal
RAID - SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10

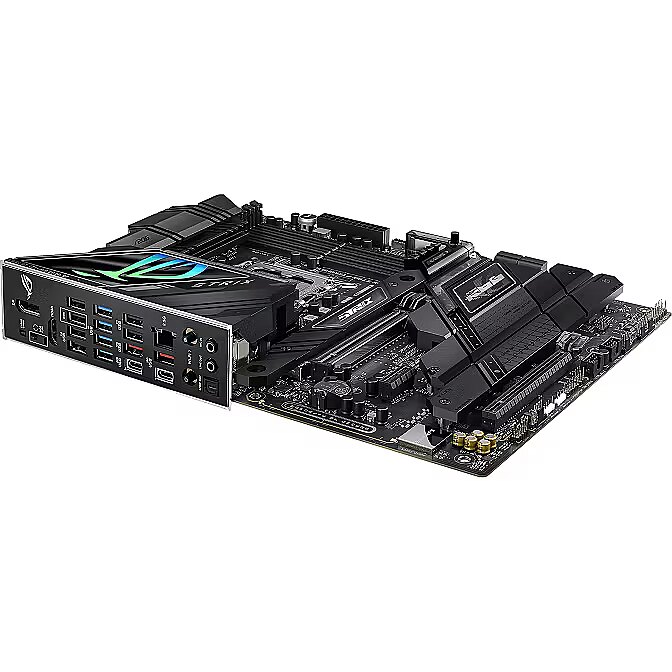

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1

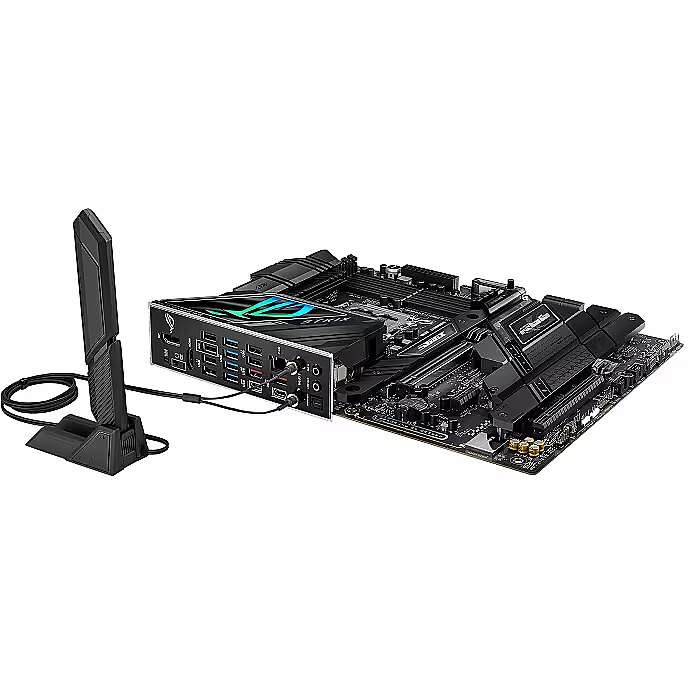

Rear panel I/O ports - WiFi-AP antenna jack - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 9.75 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - ASUS ROG STRIX Z790-F GAMING WIFI II, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 192 GB
sizeX - 360
sizeY - 270
sizeZ - 70
Socket - LGA1700
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details > Gross weight - 2.05 kg
Technical details > Net weight - 1.82 kg
Technical details > Producer - Asus
Technical details > Producer product name - ROG STRIX Z790-F GAMING WIFI II
Technical details > Warranty - 36 month(s)
Title - ASUS ROG STRIX Z790-F GAMING WIFI II Intel Z790 LGA 1700 ATX
Unit Box Height - 0.07
Unit Box Length - 0.355
Unit Box Width - 0.275
Unit Brutto Volume - 0.008438 cubm
Unit Gross Weight - 2.44 kg
Unit Net Weight - 1.7 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-ii/
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 6
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-z790-f-gaming-wifi-ii/spec/
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2,26
weight - 2250
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
