Accessories included - 2 SATA 6 Gb/s cables 1 x Thermal Pad for M.2 1 x ASUS Wi-Fi Q Antenna 1 x Cable Tie Pack 1 x Q-Latch Pack with M.2 Backplate 1 x M.2 Q-Latch Pack 1 x ROG Keychain 1 x ROG Strix stickers 2 M.2 rubber packs 1 x M.2 backplate rubber pack 1 x Quick Start Guide
Audio port Input/Output connectors - 5
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1FC0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790
CnCode CnCode - 84733020
code - 90MB1FC0-M0EAY0
Code - 90MB1FC0-M0EAY0
COM connector / port - No
CPU socket - LGA1700
Description - ROG Strix Z790-E Gaming Wi-Fi II Style and substance come together like never before in the feature-packed ROG Strix Z790-E II. From the vibrant multi-layer I/O shield to the VRM cooling stacks, it's a talking point that also brings increased DDR5 memory performance, plenty of PCIe 5.0 slots, and a DIY-friendly Q-Design feature set that makes building and upgrading a breeze. easy . Q-Antenna Thanks to Q-Antenna, connecting a WiFi antenna to your computer is now easy and quick. Instead of slowly turning the two fasteners until they finally lock, they simply click into place. Less hassle and more consistent performance. Q-LED Built-in Q-LED troubleshooting lights give computer manufacturers a quick indicator to confirm that key components of the processor, RAM, graphics card, storage devices are functioning normally during startup. Builders can use the Q-LED feature to correct motherboard power issues, and it can also alert them when memory modules have not been installed properly even before attempting to boot their newly built PC. Q-RELEASE PCIE SLOT A physical button unlocks the first PCIe slot's security latch with a single press, greatly simplifying the process of disconnecting a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device. M.2 Q-LATCH The innovative Q-Latch makes it easy to install and remove the SSD from the M.2 slot. The design uses a simple locking mechanism to secure the drive, eliminating the need for a traditional screw. CLEAR CMOS & BIOS FlashBack The Clear CMOS button quickly resets BIOS settings to factory defaults. It can also be used to restart your computer if incorrect BIOS settings have been selected. BIOS FlashBack is a safe and simple way to update your BIOS. Simply drop the BIOS (UEFI) file onto a FAT32 formatted USB stick, plug it into the BIOS FlashBack USB port and press the button. Updates can be performed without even having to install memory or processor. Q-CODE The built-in LED panel displays 2-digit diagnostic codes, providing a valuable resource for troubleshooting common starting and hardware problems. START BUTTON This convenient button eliminates the need to manually jump through hard-to-reach pins when testing and troubleshooting. AI OVERCLOCKING Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles your CPU and cooling to predict the optimal configuration and push your system to its limits. The predicted values can be applied automatically or used as a starting point for further experiments. PCIe 5.0 Taking full advantage of the new standard, Strix Z790-E offers comprehensive PCIe 5.0 support. The top x16 expansion slot is Gen 5 ready and protected by a SafeSlot bracket to withstand the weight of the latest graphics cards. One of the built-in M.2 slots is rated for blazing 16GB/s read and write speeds thanks to the PCIe 5.0 interface, while all the others can deliver a still impressive 8GB/s transfers. Each M.2 slot is covered with large heatsinks that dissipate heat from next-generation drives DDR5 DOMINATION ROG has a long tradition of delivering superior memory performance, and DDR5 is no exception. Thanks to improved signal routing, enthusiast rigs have now achieved speeds well beyond the Strix Z790-E II's 8 GT/s limit, and who knows how far DIMMs could go in the future? Seasoned veterans can test their skills by tinkering with a wide range of UEFI tuning options. LEADING CONNECTIVITY Lightning-fast network connectivity keeps Strix Z790-E II in sync with the outside world, so you can play and create uninterrupted. In addition to breakneck data transfers, connected devices can now be quickly recharged with support for 30W charging. SupremeFX audio ensures clear and powerful audio for a truly immersive experience.
Description - ROG STRIX Z790-E GAMING WIFI II Style and substance come together like never before in the feature-packed ROG Strix Z790-E II. From its vibrant multi-layered I/O shroud to its stacks of VRM cooling, it is a conversation piece that also delivers enhanced DDR5 performance, ample PCIe 5.0 slots and the DIY-friendly Q-Design feature set that makes building and upgrading a breeze.
Detailed data on disk/drive interfaces - Supports 5 M.2 slots and 4 SATA 6 Gb/s ports* Intel CoreTM processors (14th, 13th and 12th generation) M.2_1 slot (M Key), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel Z790 chipset M.2_3 slot (M Key), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (M Key), 2280 type (supports PCIe 4.0 x4 mode) M.2_5 slot (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 and SATA modes) 4x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
dimension depth - 90 mm
dimension height - 285 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2546 g
dimension width - 365 mm
DisplayPort Input/Output connectors - 1
EAN - 4711387357347
ean - 4711387357347
Eans - 4711387357347
EAN_code - 4711387357347
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 (Gen 4.x) slots - 2
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Central Speaker / Subwoofer
External connectors - 1 x DisplayPort
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x Rear Speaker
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB BIOS Flashback button
External connectors - 2 x USB 3.1 Type-C
External connectors - 5 x USB 3.0
External connectors - 5 x USB 3.1
Features - Audio chip - Realtek ALC4080
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64, Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|8000/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|2xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|5xM.2|1xHDMI|1xDisplayPort|10xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC4080|RAID SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10
Graphics - 1 DisplayPort** 1 x HDMI port*** *Graphics specifications may vary depending on processor type. Please visit www.intel.com for any updates. ** Supports max. 8K at 60 Hz as per DisplayPort 1.4 specification. ***Supports 4K@60Hz as specified in HDMI 2.1. ****VGA resolution support depends on the resolution of the processors or graphics cards.
GTIN - 4711387357347
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC4080
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 5
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 3
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LongDesc - ROG Strix Z790-E Gaming WiFi IIStyle and substance come together like never before in the feature-packed ROG Strix Z790-E II. From its vibrant multi-layered I/O shroud to its stacks of VRM cooling, it is a conversation piece that also delivers enhanced DDR5 performance, ample PCIe 5.0 slots and the DIY-friendly Q-Design feature set that makes building and upgrading a breeze.DIY-FRIENDLY FEATURESQ-AntennaWith Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.Q-LEDThe on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components ― CPU, RAM, graphics card, storage devices ― are functioning normally during startup. Builders can use the Q-LED feature to correct power delivery issues affecting their motherboard, and it can also alert them when memory modules have not been properly installed--even before attempting to boot a newly built PC.PCIE® SLOT Q-RELEASEA physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.M.2 Q-LATCHThe innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.CLEAR CMOS & BIOS FlashBack™The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.Q-CODEThe on-board LED panel shows 2-digit diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues.START BUTTONThis convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.ALL-ROUND PERFORMANCERobust power delivery, speedy storage and memory, and comprehensive cooling elevate any build with the ROG Strix Z790-E II at its center.AI OVERCLOCKINGTuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.PCIe 5.0Fully embracing the new standard, the Strix Z790-E offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is Gen 5-ready, and is protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. One of the onboard M.2 slots is geared for blistering 16 GB/s read and write speeds thanks to its PCIe 5.0 interface, while all the rest can deliver still-impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.DDR5 DOMINATIONROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 8 GT/s mark on the Strix Z790-E II, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.DIMM FlexDIMM Flex provides enthusiasts with a powerful new way to overclock their DDR5 memory modules. It employs specialized circuitry that can boost performance or address potential stability issues, depending on temperature readings. When temperatures are nominal, it can use the extra headroom to increase speeds and efficiency. And when temperatures increase, it can adjust memory behavior downward to maintain stability.AEMP IIASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature that allows users to achieve supreme memory performance and compatibility with optimized clock speeds, even when they're using PMIC-restricted memory modules that do not provide an XMP or EXPO profile. Developed through a flexible training method, AEMP II simplifies the process of fine-tuning memory settings beyond the baseline configuration, all while ensuring system stability. This applies whether you are maximizing the potential of an entry-level module or preparing a high-speed kit for ultimate performance.Now, AEMP II offers even more flexibility. With the latest firmware update, AEMP II allows users to optimize the performance of a four-DIMM DDR5 RAM configuration, even with a mixture of different brands and dies. Increasing the memory capacity of your build by adding additional DIMMs has never been easier — with AEMP II, you can get optimized memory performance even when all four memory modules are not an exact match, provided that all four DIMMs have the same capacity.* Results may vary according to the capabilities of your CPU and memory modules.** The testing chart is based on a test with an Intel i9-14900K processor and 4x16 GB SK Hynix DDR5-5600 non-ECC UDIMMs, model HMCG78AGBUA081NM.2 COMBO-SINKThis M.2 heatsink integrates a direct-contact U-shaped heat pipe to achieve optimal operating temperatures, and it has been upgraded with a larger surface area for even more cooling.M.2 BACKPLATEAn integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted.M.2 HEATSINKSHeatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.VRM HEATSINK ARRAYCovering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 14th Gen processors.CPU FAN HEADERSA dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.AIO PUMP FAN HEADERA dedicated PWM/DC header connects self-contained water-cooling setups.4-PIN FAN HEADERSThe Strix Z790-E II features five chassis fan headers, each supporting auto-detection of PWM or DC fans.LEADING CONNECTIVITYLightning-fast networking keeps the Strix Z790-E II in sync with the outside world for uninterrupted gaming and creation. In addition to breakneck data transfers, connected devices can now top-up quickly thanks to 30W charging support. And SupremeFX audio makes sound clear and punchy to shape truly immersive experiences.WIFI 7With Multi-Link Operation (MLO)*, WiFi 7** can outperform WiFi 6E to deliver faster speeds, higher reliability and increased data transfer efficiency.Learn more about Multi-Link Operation (MLO) and WiFi 7 technology. https://www.asus.com/content/wifi7/* MLO (Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.** WiFi 7 features require onboard WiFi chipset, WiFi AP, and WiFi 7-supported operating systems to support the corresponding features.Intel 2.5G EthernetLow-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.ASUS WiFi Q-AntennaDual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.Wireless Signal Reception ImprovementVersus previous-generation antennaFast CheckArmoury Crate’s Fast Check empowers users to rapidly detect WiFi signal strength.Direction FinderArmoury Crate’s Direction Finder* helps users detect the optimal antenna orientation for achieving the best WiFi signal strength.*The Direction Finder is only compatible with connections in the 5GHz and 6GHz bandsUSB 20GbpsThe Strix Z790-E II comes loaded with two USB 20Gbps Type-C® connectors for speedy data transfers up to 20Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.SUPREMEFXROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix Z790-E II implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.PLAY IN STYLEBlack PCB and heatsinks compliment most hardware, and customizable RGB lighting furthers the flexibility. Pair the Strix Z790-E II with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.UNDENIABLY ROG STRIXDiagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix Z790-E II bears all of them with pride. But for this generation, translucent diffusers line the I/O shroud and the Q-Release array, softly contrasting the metallic heatsinks nearby.OUTSHINE THE COMPETITIONROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.COOLER COMPATIBILITYASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new Z790 motherboards, empowering you to build your dream gaming rig.THE ROG STRIX ECOSYSTEM AWAITSLevel up your game with ROG Strix. Enjoy complimentary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.SOFTWARE UTILITIESA myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.AI COOLING IIBalance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.TWO-WAY AI NOISE CANCELATIONThis utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.Game firstGameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streamingcloud gaming sessions. To provide a better user’s experience, GameFirst is now integrated into Armoury Crate.UEFI BIOSThe renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.ADVANCED MODEMy FavoritesQuickly locate tuning options and add preferred tools to your favorites list.EZ Flash 3Flash the latest BIOS via the internet from within the BIOS.S.M.A.R.T.Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability or to identify potential failures.GPU POSTAutomatically detect selected ASUS graphics cards to view detailed information.Secure EraseRestore your SSDs and NVMe storage to factory settings.Last Modified LogTrack the last change and save preferred profiles to a USB drive.SATA Port RenamingRename SATA ports for easy identification.ASUS User ProfilePort configuration settings between different BIOS versions or share them with friends.Q-Fan ControlConfigure the fan's operating speed manually or use pre-configured Standard, Silent, Turbo, or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.Aura On/Off mode (Stealth)Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.EZ MODEIntuitive Graphical Fan ControlsFine-tune individual fans simply by dragging a curve with the mouse.Storage InformationView SATA port details for easy device recognition.Clock AdjustmentClick on the settings icon to quickly change time and date settings.MEMTEST86MEMTEST86 PRE-INSTALLEDFor diagnostic convenience, MemTest86 has been pre-installed into the ROG UEFI. Run the test to pinpoint memory issues without the need to start up the OS or attach a USB drive. Memory test results are stored in the BIOS archives for later reference.AI SUITE 3The AI Suite 3 dashboard contains a set of intuitive controls that boost CPU performance while maintaining system stability.TPU INSIGHTThe TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters.DIGITAL POWER CONTROLThe Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, switching frequency, and power-efficiency settings, allowing you to fine-tune CPU voltage regulation for ultimate stability and performance.TURBO CORE APPModern processors feature per-core tuning, and the ASUS Turbo app makes use of this feature by letting you assign applications to specific processor cores, prioritizing computing power where it's needed most.Sonic StudioSonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.DTS Sound UnboundThrough the pre-loaded DTS® Sound Unbound™ app, the ROG Strix Z790-E II envelops you in rich audio, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Microsoft spatial sound technology, DTS Sound Unbound creates an audial 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep, or other sound in your virtual environment.* DTS Sound Unbound requires in-game support. Check with game publishers for supported titles.AIDA64 ExtremeThe ROG Strix Z790-E II includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.* Support available for ROG Ryujin II and later models.Armoury CrateArmoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.You can use Armoury Crate to download drivers, tools, and user manuals, and to register products. It also taps into a special news feed that connects you to the global ASUS gaming community.* Windows 10 or 11 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.Dare to Be GreenWe at the Republic of Gamers are on a mission to create a sustainable future where all gamers can flourish on the planet we call home.Every step counts, and as part of ROG’s commitment to creating a more sustainable future, ROG has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.For those who dare, join us on our journey as we make the world a better place.Intel® Unison™Our latest ROG and ROG Strix Z790 WiFi 7 motherboards help you unify your tech life with a free 9-month subscription to Intel Unison.Intel Unison lets you use a compatible tablet as a second display, wirelessly transfer content between your phone, computer and tablet, and to do thing like accessing your smartphone’s picture photos while you’re working from on your PC. You can also keep an eye on your text messages and notifications while you’re working on your PC to stay connected without losing your flow, and you can even make phone calls without touching your phone.
LongProductName - Intel Z790, LGA1700, 4 x DIMM DDR5, 2.5Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), 256Mb Flash ROM, UEFI AMI BIOS, ATX
LongSummaryDescription - ASUS ROG STRIX Z790-E GAMING WIFI II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 5
Manufacturer - Asus
Manufacturer_code - 90MB1FC0-M0EAY0
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,8000 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ROG STRIX Z790-E GAMING WIFI II
Name - ASUS ROG STRIX Z790-E GAMING WIFI II
name - ASUS ROG Strix Z790-E Gaming WiFi II, Intel Z790 Mainboard, Sockel 1700, DDR5
Name - ASUS ROG STRIX Z790-E GAMING WIFI II - Socket 1700 - motherboard
Name - Asus | ROG STRIX Z790-E GAMING WIFI II | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - Motherboard ROG STRIX Z790-E GAMING WIFI II s1700 4DDR5 ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Intel Wi-Fi 7* Wi-Fi 2x2 7 (802.11be)** Supports 2.4/5/6 GHz frequency band*** Supports Wi-Fi 7 160 MHz band, transfer rate up to 2.4 Gb/s. Bluetooth v5.4**** * Compatible with Windows 11 or later. **Full support for Wi-Fi 7 MLO (Multi-link Operation) will be available on Windows 11 2024 (Windows 11 24H2) or later. ***Regulations regarding the Wi-Fi 6 GHz frequency band and bandwidth may vary by country. ****Bluetooth version may vary. The latest specifications can be found on the Wi-Fi module manufacturer's website.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 8
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Power button
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x 8pin 12V
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x USB 2.0/1.1 header
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x 4pin Chassis fan
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 310.00 mm
Package features > Gross height (mm) - 120.00 mm
Package features > Gross width (mm) - 250.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 93 pc(s)
Package features > Paper/Pasteboard - 520.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.60 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PCI-Express 4.0 16x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium Gold
producer - Asus
Producer - Asus
ProducerCode - ROG STRIX Z790-E GAMING WIFI II
ProductName - ROG STRIX Z790-E GAMING WIFI II
RAID - SATA 0, 1, 5, 10; PCIe 0, 1, 5, 10
RAID - Yes

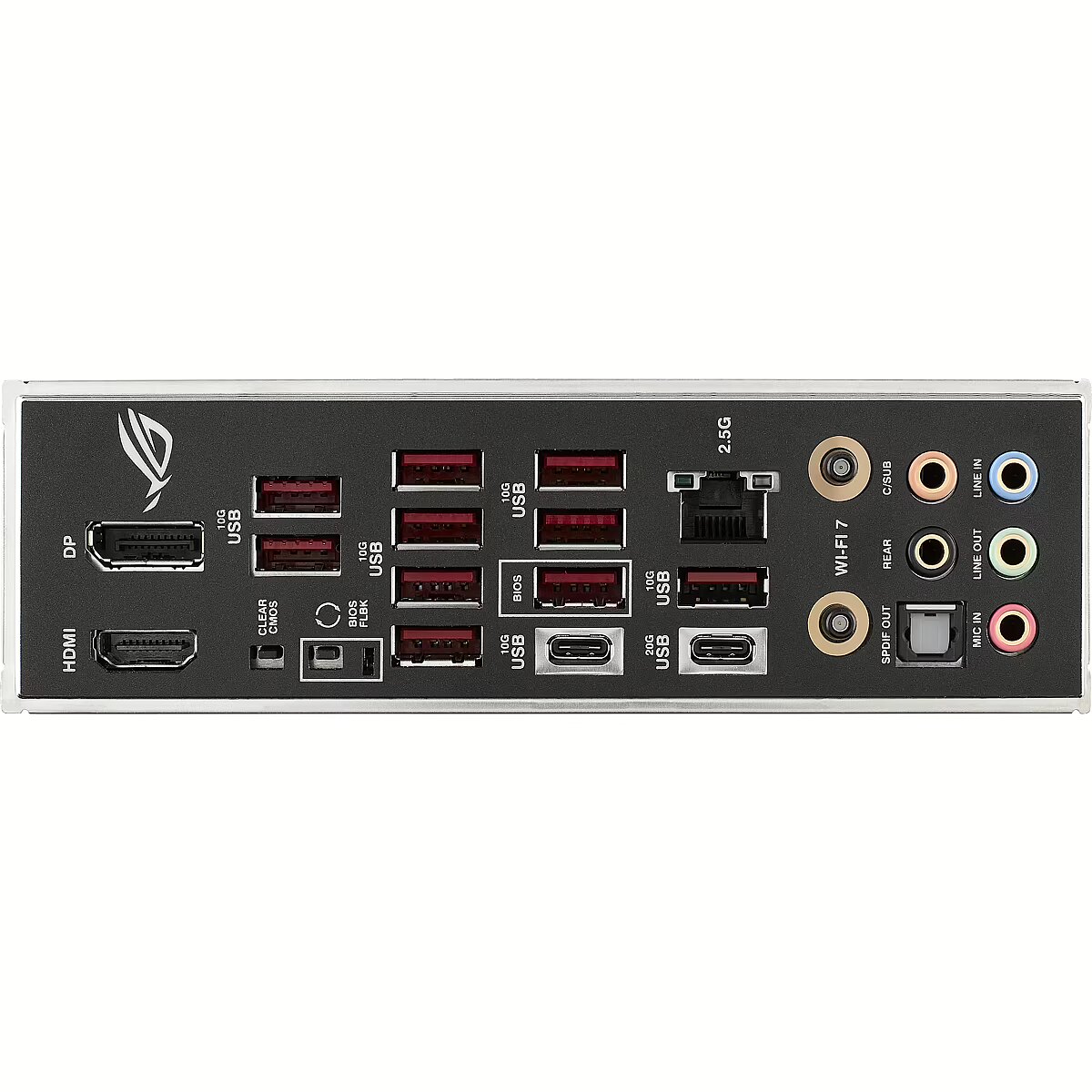

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 10
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 47 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 13.83 kg
Shipping Box Width Shipping/Package Box Dimensions - 38 cm
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - ASUS ROG STRIX Z790-E GAMING WIFI II, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., DDR5-SDRAM, 192 GB, DIMM
Socket - LGA1700
Software - Exclusive ROG software - ROG CPU-Z - DTS sound without limits ASUS exclusive software Armory Chest - AIDA64 Extreme (60-day free trial) - Aura creator - Aura synchronization - Fan Xpert 4 (with AI Cooling II) - First game - Energy saving -Sonic Studio - Bi-directional AI noise reduction AI Pack 3 - Easy optimization with AI overclocking - TPU - DIGI+ VRM - Turbo application - Computer cleaner My Asus USB power monitor Intel Unison Adobe Creative Cloud (free trial) Norton 360 for gamers (60-day free trial) WinRAR (40-day free trial) UEFI BIOS AI Overclocking Guide DIY ASUS EZ - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ mode - ASUS MyHotkey FlexKey MemTest86
Sound card - ROG SupremeFX 7.1 Surround Sound High Resolution Audio CODEC ALC4080* Impedance detection for front and rear headphone outputs Supports: jack detection, multi-streaming, front panel microphone jack reassignment High-quality 120 dB SNR stereo output and 110 dB SNR recording input Supports playback up to 32-Bit/384 kHz on the front panel Audio features SupremeFX shielding technology Savitech SV3H712 amplifier Gold-plated audio jacks Rear optical S/PDIF output port High-quality audio capacitors Audio cover *The Lime port (line out) on the rear panel does not support surround sound. If you want to use surround sound, be sure to connect your audio output device to the audio jack on the front panel of the case.
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 9
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Gross weight - 2.70 kg
Technical details > Net weight - 2.10 kg
Technical details > Producer - Asus
Technical details > Producer product name - ROG STRIX Z790-E GAMING WIFI II
Technical details > Warranty - 36 month(s)
Title - ASUS ROG STRIX Z790-E GAMING WIFI II Intel Z790 LGA 1700 ATX
Unit Box Height - 0.09
Unit Box Length - 0.36
Unit Box Width - 0.285
Unit Brutto Volume - 0.01107 cubm
Unit Gross Weight - 2.77 kg
Unit Net Weight - 2 kg
URL - https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-e-gaming-wifi-ii/
USB-C Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 10
USB 3.2 Interface - Yes
USB ports at back panel - 12
USB ports on motherboard - 11
Vendor Homepage - rog.asus.com/motherboards/rog-strix/rog-strix-z790-e-gaming-wifi-ii/spec/
vendpn - ROG STRIX Z790-E GAMING WIFI II
Warranty - 36
Warranty - 36 months
WarrantyInfo -
Weight - 2,55
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
