15pin D-sub Input/Output connectors - 1
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - A520M K V2
Category - Datortehnika :: Datoru komponentes :: Pamatplates
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Chipset - AMD A520
Code - A520MKV2
code - A520M K V2
Code - A520M K V2
Desc - Mikroshēmu tips | chipset: AMD A520, Plates formfaktors: Micro ATX, Procesora ražotājs: AMD, Ligzda: AM4, DDR tips: DDR4, Atmiņas sloti: 2, Max atmiņas apjoms: 128 GB, WiFi: Nav, M.2 Pieslēgumi: 1, Garantija: 2 gadi

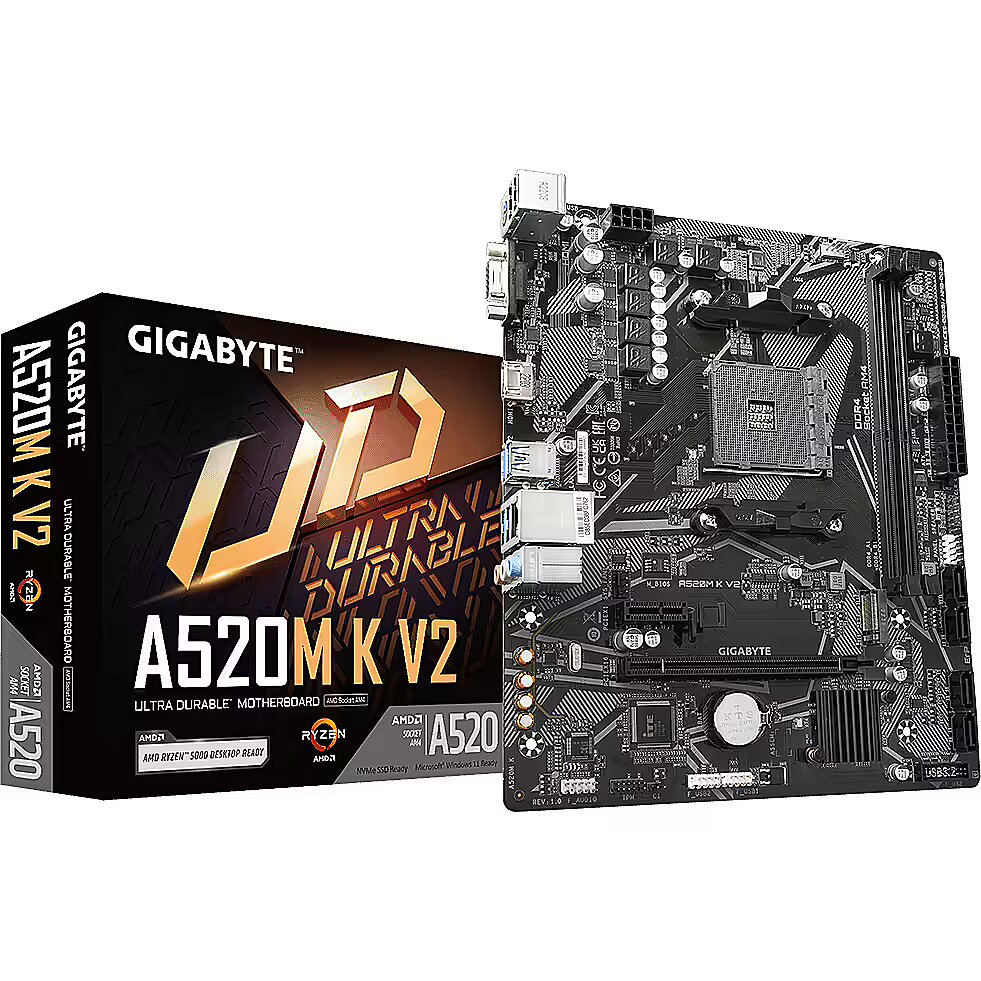

Description - GIGABYTE A520M K V2 (rev. 1.1) Motherboard with GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5, Anti-Sulfur Resistors Design + Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors? + Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs? + PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support? + GbE LAN with Bandwidth Management? + 8-Channel HD Audio with High Quality Audio Capacitors? + Rear HDMI and D-sub for Multi-display Support + Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP? + GIGABYTE APP Center, Simple and Easy Use?? NVMe PCIe Gen 3 x4 2280 M.2 Connector GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. GbE LAN with Bandwidth Management GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. AUDIO High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
dimensionalWeight - 622
EAN - 4719331852771
ean - 4719331852771
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD A520
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, Temperature, Voltage
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Form Factor - Micro-ATX
Frequency speed - 3200/4800/4600/4400/2666/4266/5100/3733/2133/3400/2400/3866/2933/3600/3466/4133/4000 MHz
Full Description Line - AMD A520|SAM4|Micro-ATX|DDR4|5100/4800/4600/4400/4266/4133/4000/3866/3733/3600/3466/3400/3200/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross weight - 1.00 kg
GTIN - 4719331852771
HDMI Input/Output connectors - 1
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_102748_1.jpeg
Integrated audio - Yes
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
LargeDescHTML -
Link - https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-10#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1
LongSummaryDescription - GIGABYTE A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
M.2 Expansion slots - 1
Manufacturer - Gigabyte
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 5100 MHz
Memory - Supported memory clock speeds - 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory > Memory slots - 2
Memory > Supported memory types - DDR4 DIMM
Memory slots - 2
Memory type - DDR4
Model - A520M K V2 (rev. 1.1)
MPN - A520M K V2
Name - AM4 Gigabyte A520M K V2 mATX D4
name - GIGABYTE A520M K V2, AMD A520 Mainboard, Sockel AM4, DDR4
Name - Gigabyte | A520M K V2 1.0 M/B | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 2 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4 | Chipset AMD A520 | Micro ATX
Name - Pamatplate Gigabyte A520 MKV2
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 260.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 200.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 237 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
Packaging content - Cables included - SATA
Packaging data - Package depth - 235 mm
Packaging data - Package height - 52 mm
Packaging data - Package weight - 675 g
Packaging data - Package width - 265 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 1
Performance > Chipset - AMD A520
Performance > Motherboard form factor - Micro ATX
Processor - Compatible processor series - AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor - Supported processor sockets - Socket AM4
Processor > Compatible processor series - Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Processor > Processor family - AMD
Processor > Processor socket - AM4
producerCode - A520M K V2
Producer product name - A520M K V2 1.0 M/B
ProductName - A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1
productName - Gigabyte A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10

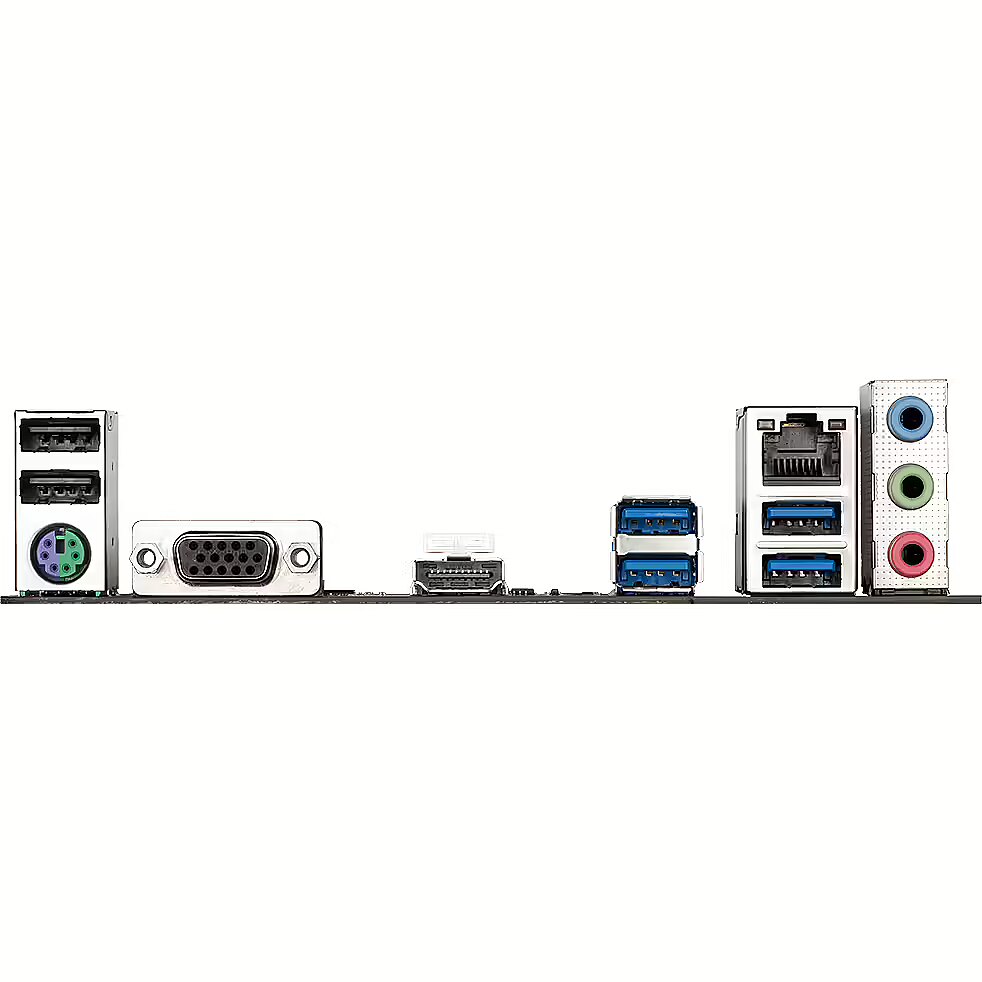

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB connector type - USB Type-A
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 56.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 26.5 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 7.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 28.5 cm
ShortSummaryDescription - GIGABYTE A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1, AMD, Socket AM4, AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, Socket AM4, DDR4-SDRAM, 64 GB
sizeX - 265
sizeY - 50
sizeZ - 235
Socket - SAM4
Storage controllers - Number of storage drives supported - 5
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Net weight - 0.80 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1
TPM - Header
Unit Box Height - 0.05
Unit Box Length - 0.27
Unit Box Width - 0.23
Unit Brutto Volume - 0.004267 cubm
Unit Gross Weight - 0.75 kg
Unit Net Weight - 0.5 kg
URL - https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-10
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
Vendor Homepage - www.gigabyte.com/Motherboard/A520M-K-V2-rev-11#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 24
warrantyType - G
Weight - 0.662
weight - 650
Weight & dimensions - Depth - 198 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 233 mm
