Audio port Input/Output connectors - 5
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Brand - ASUS
BrandPartCode - 90MB1C40-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM3+
Chipset - AMD B650
code - 90MB1C40-M0EAY0
Description - ProArt B650-Creator is an advanced motherboard designed for intensive content-creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of AMD Ryzen™ 7000 Series processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.
DisplayPort Input/Output connectors - 1
ean - 4711081988090
Eans - 4711081988090
EAN_code - 4711081988090
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x4 (Gen 1.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10, Windows 11 x64
Form Factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400 MHz
Full Description Line - AMD B650|SAM5|ATX|DDR5|6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 4.0 1x|3xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|2xUSB-C|1xOptical S/PDIF|2xRJ45|5xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10
Graphics - Parallel processing technology support - Not supported
GTIN - 4711081988090
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - ProArt B650-Creator is an advanced motherboard designed for intensive content-creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of AMD Ryzen™ 7000 Series processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.Comprehensive ConnectivityUSB-C DisplayPort (DP Alt Mode)This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display*.*This functionality requires the bundled DP-to-DP cable to be connected from an installed graphics card to the DP IN port located on the rear I/O panel of the motherboard.USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.USB4® SupportProArt B650-Creator features USB4® support via a Thunderbolt™ (USB4®) header. With an ASUS add-on card*, ProArt motherboards can enable bi-directional speeds of up to 40 Gbps on a single cable, while providing power to fast-charge device. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.*ASUS add-on card is sold separately.Multi-card supportThe ProArt B650-Creator supports multi-card configurations for expandability and flexibility in various professional workload scenarios such as 3D animation, video editing, audio production and SSD storage capacity upgrades.NetworkingDual Ethernet2.5 Gb and 1 Gb Ethernet provide fast data transfers simultaneously for internet and for local network-attached storage (NAS), allowing for improved data organization and security.M.2 Slot (Key E)ProArt B650-Creator features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth modules*.*WiFi/BT modules are sold separately.PCIe 5.0 M.2 StorageThe ProArt B650-Creator features three onboard M.2 slots, one of which is PCIe 5.0-ready to offer blistering 16 GB/s speed, while the remaining pair can still deliver massive 8 GB/s transfers through their PCIe 4.0 interfaces.The core of your powerful workstationRobust power design12+2 teamed power stagesRated for 60 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the latest AMD Ryzen 7000 series processors.Digi+ power controlThe ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.ProCool power connectorsBuilt to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.Chokes & capacitorsSuperior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.Performance boostAMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD’s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.MemoryThe ProArt B650-Creator enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you’re dealing with high-speed or entry-level memory modules.DDR5 StrengthFor those who want to fly past stock DDR5 speeds, the ProArt B650-Creator is ready for enthusiast-grade kits, courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.AEMPASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.Flexible Air- and Liquid-Cooling ControlsASUS Fan Xpert 4 software provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AIO coolers can also be controlled via the UEFI BIOS.Everything you need to optimize workflowTwo-Way AI Noise CancelationAs working from home becomes the new normal, clear online communication is more critical than ever. Two-Way AI Noise Cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back so your calls and video conferences with partners and clients are crystal clear.Customize your personal settingsProArt Creator Hub is your personal portal to monitor your PC status, personalize settings or optimize your workflow. It features an intuitive overview dashboard, quickly switching fan profiles and makes short work of switching between different performance modes.Security control and remote managementAdvanced security management functions from ASUS Control Center Express protects the systems and confidential data in your creative studio.USB port managementEnable or disable the USB port or set it to Read-Only to prevent data leaks.Software blacklistFor added security, a software blacklist is available to help prevent the use of high-risk applications.Registry Editor on/offRemotely disable the Registry Editor on client devices to prevent unauthorized changes to system configurations.Trusted stabilityProArt B650-Creator is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.THIS CHANGES EVERYTHING.FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTUREBuild your next rig with an AMD Ryzen™ 7000 Series processor and ProArt B650-Creator to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1You’ll also gain access to new features for creators with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
LongProductName - PROART B650-CREATOR
LongSummaryDescription - ASUS PROART B650-CREATOR. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
M.2 Expansion slots - 3
Manufacturer - Asus
Manufacturer_code - 90MB1C40-M0EAY0
Memory - ECC - Yes
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 6400 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Model - ProArt B650-CREATOR
Name - ASUS ProArt B650 Creator, motherboard - AM5
Name - ASUS ProArt B650-CREATOR
name - ASUS ProArt B650-Creator, AMD B650 Mainboard - Sockel AM5, DDR5
Network - Ethernet interface type - 2.5 Gigabit Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Optical S/PDIF Input/Output connectors - 1
Other features - Back-to-BIOS button - Yes
Other features - Number of M.2 (E) slots - 1
Packaging content - Cables included - SATA
Packaging content - User guide - Yes
PCI-Express 4.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 3
Processor - Compatible processor series - AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Producer - Asus
ProducerCode - ProArt B650-CREATOR
ProductName - PROART B650-CREATOR
RAID - SATA 0, 1, 10; NVMe 0, 1, 10

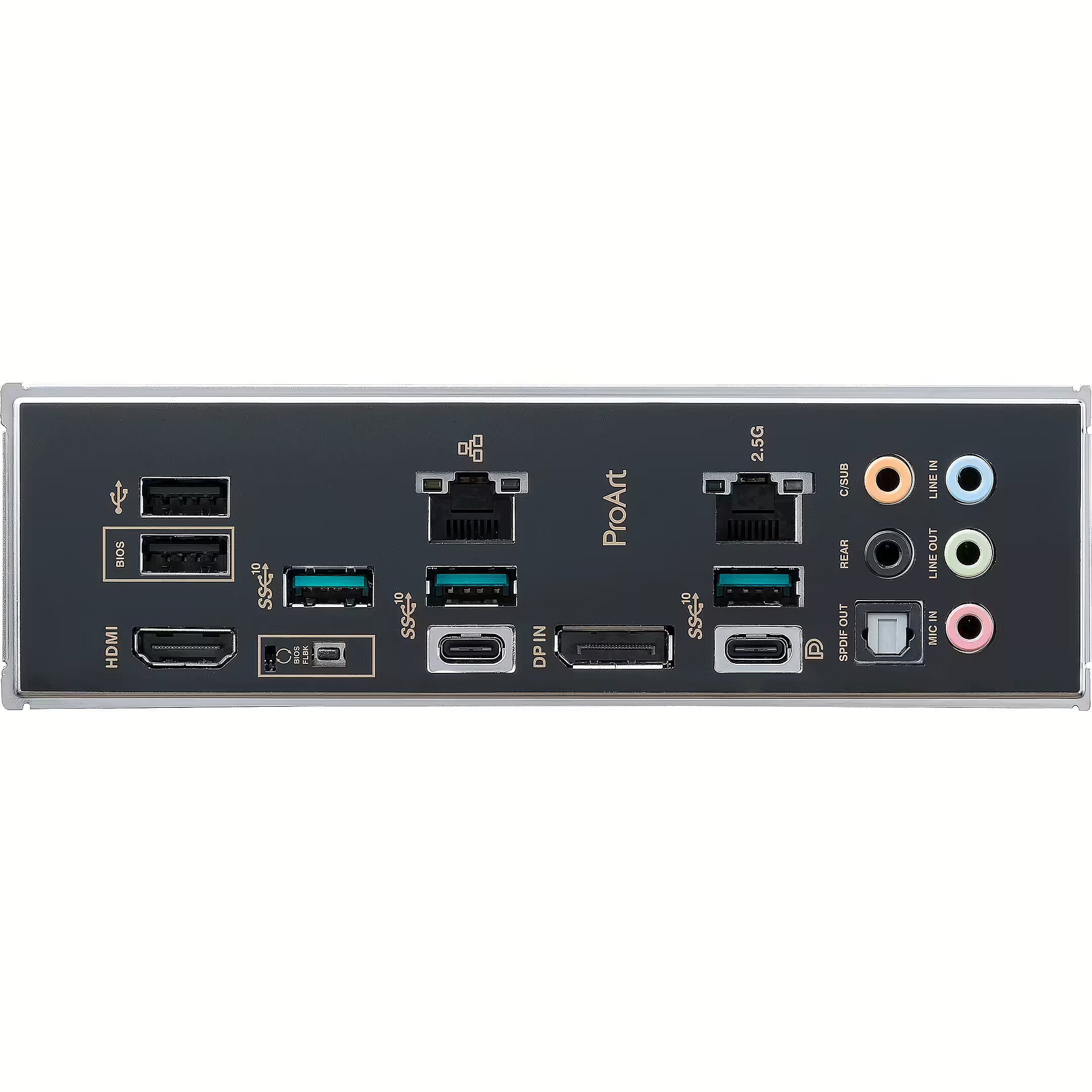

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
RJ45 Input/Output connectors - 2
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.936 kg
Shipping Box Width Shipping/Package Box Dimensions - 27.5 cm
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - ASUS PROART B650-CREATOR, AMD, Socket AM5, AMD Ryzen™ 3, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen, Socket AM5, DDR5-SDRAM, 128 GB
Socket - SAM5
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS PROART B650-CREATOR AMD B650 Socket AM5 ATX
Unit Box Height - 0.07
Unit Box Length - 0.34
Unit Box Width - 0.275
Unit Brutto Volume - 0.006545 cubm
Unit Gross Weight - 1.94 kg
Unit Net Weight - 1 kg
URL - https://www.asus.com/motherboards-components/motherboards/proart/proart-b650-creator/
USB-C Input/Output connectors - 2
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
Vendor Homepage - www.asus.com/motherboards-components/motherboards/proart/proart-b650-creator/
Warranty - 36 months
WarrantyInfo -
Weight - 1,94
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
