Accessories included - User Manual 2 x SATA Data Cables 3 x Screws for M.2 Sockets
Audio port Input/Output connectors - 3
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
BIOS - BIOS type - UEFI AMI
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM3+
Chipset - AMD B650
Chipset manufacturer - AMD
Chipset type - AMD B650
code - 90-MXBL10-A0UAYZ
COM connector / port - No
CPU socket - Socket AM5
Description - - Supports AMD Ryzen™ 7000 Series Processors - 14+2+1 Phase Power Design, SPS - 4 x DDR5 DIMMs, supports up to 6200+(OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi - Graphics Output Options: 1 HDMI, 1 DisplayPort - 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio - 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3), 4 SATA3 -1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type A+C (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 9 USB 2.0 (6 Rear, 3 Front) -Realtek 2.5G LAN
Description - Built for the Most Advanced PCs AM5 Changes Everything AMD EXPO Technology Optimised VRM design Dr. MOS incorporates the latest SPS (Smart Power Stage) technology. It monitors the voltage and temperature of each phase ensuring the right amount of power is delivered to the processor for enhanced performance and overclocking capabilities. Robust components and smooth power transfer to the CPU translate into enhanced performance for gamers. 8-Layer PCB Design The 8-layer PCB provides stable signal paths and power shapes for lower temperatures and higher power efficiency, ensuring reliable operation and top performance without compromise. Extreme Overclocking Performance DDR5 EXPO and XMP support Starting from the concept of designing build for stability and reliability, ASRock does not compromise on any details. All B650 motherboards are built with an 8-layer PCB design, so enthusiasts can enjoy enhanced DDR5 memory overclocking performance of up to 6400 MHz and beyond by using pre-tested profiles. Ensure memory modules support AMD EXPO/Intel XMP and overclocking can be affordable, rewarding and effortless. Blazing OC Tuner The Blazing OC Tuner allows the AM5 processor to switch between OC mode and PBO (Precision Boost Overdrive) mode when the CPU voltage reaches the required threshold. Anything above the current threshold will trigger manual OC mode; if it is below the current threshold, Precision Boost Overdrive mode will be activated. The idea is to combine overclocking on all cores and automatically boosting power on one core to get the best CPU performance. There is no need for configuration from the BIOS, all settings can be modified in the operating system in real time. DDR5 memory with protection circuitry Due to the unique electrical architecture of the DDR5 DIMM, there is a high risk of damaging the memory module if the AC power is not properly disconnected during removal or installation. To prevent this, ASRock has implemented a seamless protection circuit on each DDR5 motherboard, reducing the risk of memory module damage. Nahimic Audio Audio That Matters Whether you use headphones, speakerphone, external or internal speakers via USB, Wi-Fi, analogue output or HDMI, Nahimic Audio offers the best audio experience, vivid and full of detail. Improved Communication Quality Powerful algorithms for the best noise-free conversation, ensuring consistent voice levels regardless of the distance from the microphone. The Nahimic audio engine dynamically cleans the sound, removes noise and reduces voice variability. The result is better understanding and less fatigue. - Static suppression - Echo cancellation - Side sound reduction - Voice stabilisation Best Gaming Experience -Sound Tracker Sound Tracker is a visual indicator that shows the directions from which the dominant sounds are coming. Each sound is appropriately positioned on a 360° radar to ensure full immersion into the game. -Works on all devices! Enjoy vivid and high quality surround sound on all your favourite audio devices: jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all your favourite audio tools and delivers the best sound with each of them. Nahimic measures and improves to optimise our technology and provide the best experience. POLYCHROMATIC RGB In addition to the built-in RGB backlighting, the board also features integrated, regular and addressable RGB headers that allow the connection of compatible LED devices such as LED strips, CPU fans, fans, cases, etc. Users can synchronise RGB LED devices with the certified Polychrome RGB Sync accessories to create their own unique backlighting style. High Speed M.2 Solution PCIe Gen5 Blazing M.2 This motherboard is ready to accept a host of M.2 devices, including support for PCI Express 4.0 M.2 SSDs, ready to operate at twice the speed of the previous 3rd generation, delivering lightning fast data transfer rates. XXL M.2 heatsink An extra-large aluminium alloy M.2 heatsink effectively improves heat dissipation to keep high-speed M.2 SSDs as cool as possible. Provides better stability while maintaining top performance. USB3.2 Gen2 Gen2 Type-C The latest USB 3.2 Gen2x2 Type-C enables data transfer speeds of up to 20 Gbps, 2x faster than the previous generation. The lightning-fast interface also features a reversible USB Type-C design, so you can connect your device either side. EZ Settings Automatic Driver Installation No need to worry about missing drivers! The ASRock board comes with the LAN driver pre-installed, offering you a convenient option to install the rest of the drivers. Step1: Install Auto Driver Installer Step2: Update your drivers Step3: Done! BIOS Flashback Update the BIOS with a simple click. Users can easily upload the latest BIOS with a USB stick and power supply. No processor, RAM or other components are needed for this. Flexible integrated I/O port bezel Unlike most pre-installed bezels, which are merely decorated with a colour scheme, our port cover can be adjusted during installation, guaranteeing a perfect fit to the case without any technical problems.
Detailed data on disk/drive interfaces - PROCESSOR: 1 x Blazing M.2 slot (M2_1, Key M), supports 2280 PCIe Gen5x4 mode (128 Gbps)*. Chipset: 1 x M.2 slot (M2_2, Key M), supports 2242/2260/2280 SATA3 6.0 Gbps and PCIe Gen3x2 (16 Gbps)* modes. 1 x Hyper M.2 slot (M2_3, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gb/s)* mode 2 x SATA3 6.0 Gb/s connectors ASMedia ASM1061: 2 x SATA3 6.0 Gb/s connectors *Supports loading with NVMe SSD Supports ASRock U.2 kit
dimensionalWeight - 2340
dimension depth - 95 mm
dimension height - 320 mm
Dimensions - 30.5 x 24.4 cm
dimension weight - 2095 g
dimension width - 385 mm
DisplayPort Input/Output connectors - 1
ean - 4710483940750
EAN - 4710483940750
Eans - 4710483940750
EAN_code - 4710483940750
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.0
External connectors - 6 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 Pro x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 6200 MHz
Full Description Line - AMD B650|SAM5|ATX|DDR5|6200 MHz|Memory slots 4|1xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|6xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1; NVMe 0, 1, 10|TPM Header
Graphics - AMD RDNA 2 integrated graphics card (Support may vary by CPU) 1 x HDMI TMDS/FRL 1 and 2 with 8G, supports HDR, HDCP 2.3 max. Resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (Compressed), supports HDCP 2.3 and max. Resolution up to 4K 120Hz
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of SATA III connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LPT connector / port - No
M.2 Expansion slots - 3
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBL10-A0UAYZ
Max. number of SATA devices - 2
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 6200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5

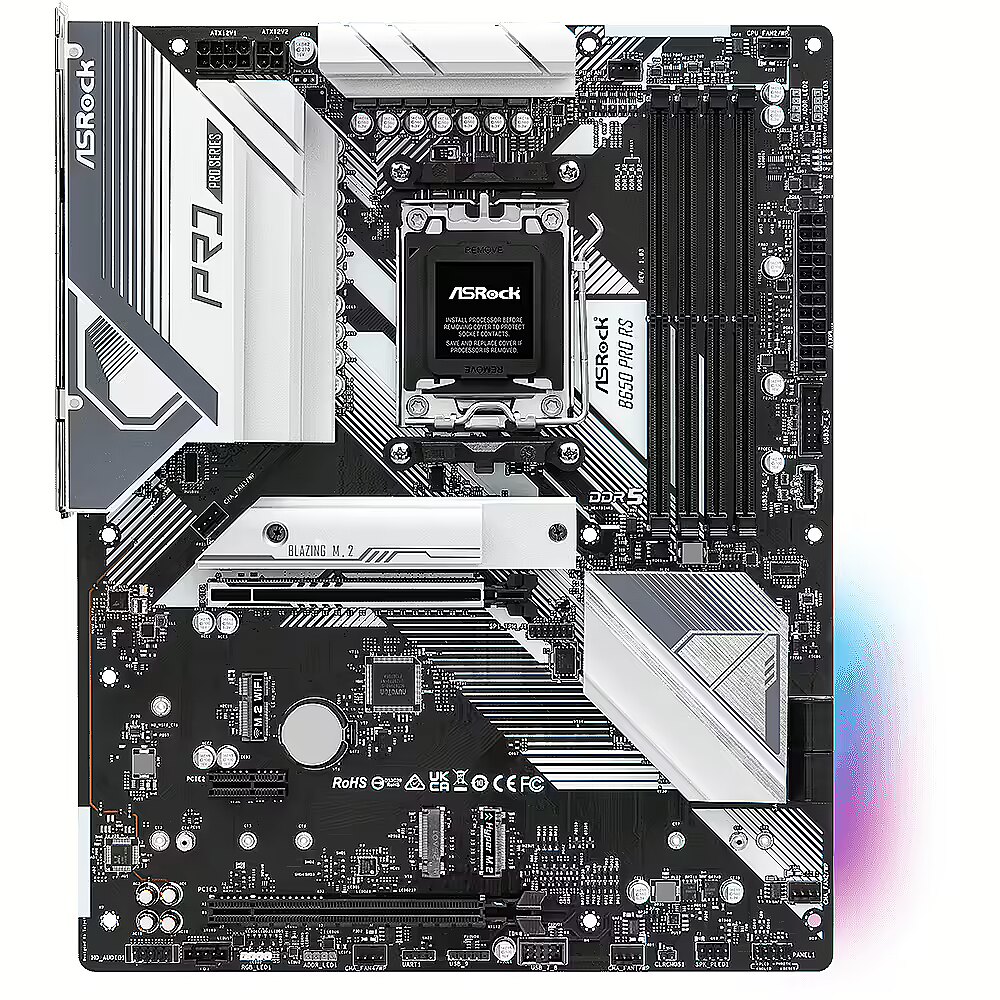

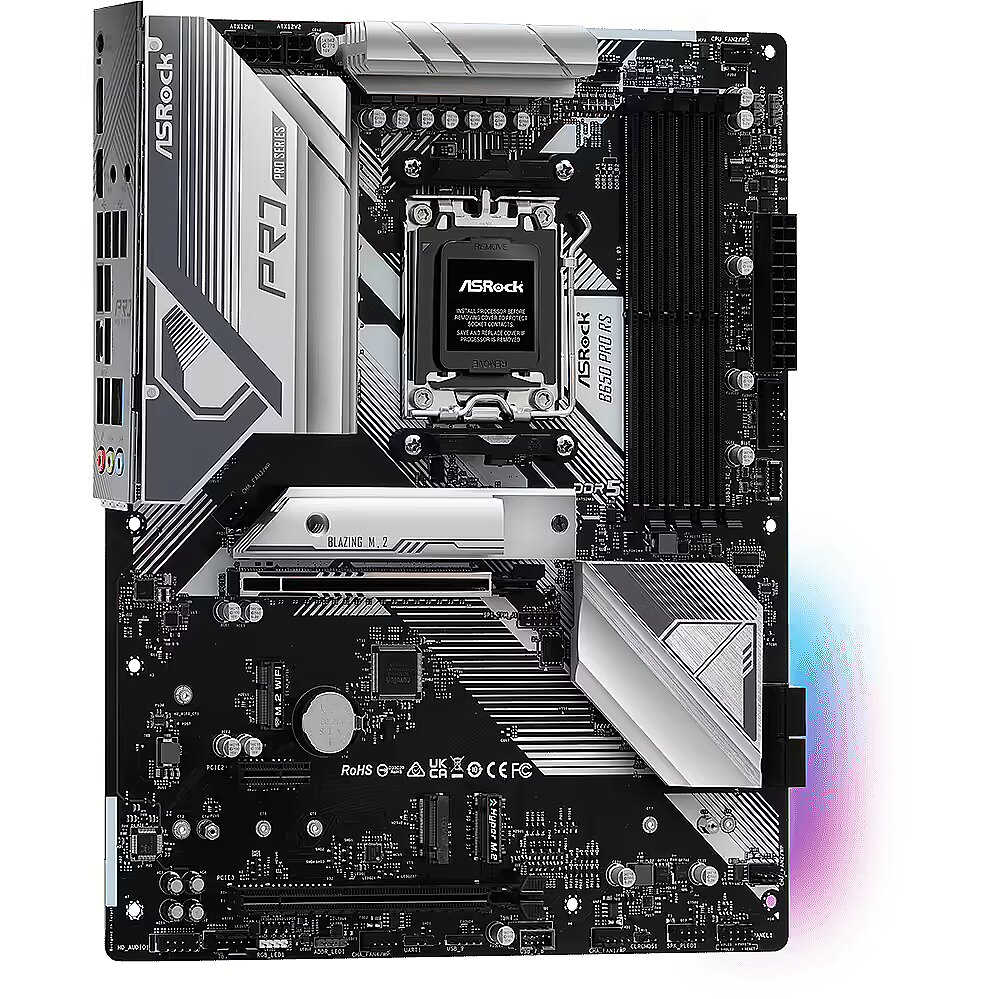

Model - B650 PRO RS
Model - B650 PRO RS
MPN - 90-MXBL10-A0UAYZ
Name - AM5 ASRock B650 Pro RS DDR5
Name - ASRock B650 Pro RS
name - ASRock B650 Pro RS, AMD B650 Mainboard - Sockel AM5, DDR5
Name - ASRock B650 PRO RS, motherboard - AM5
name - B650 PRO RS AM5 4DDR5 HDMI M.2 DP USB3.2 ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Dragon RTL8125BG
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 2.5 Gigabit LAN 10/100/1000/2500 Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN Software Intelligent automatic bandwidth adjustment Visual user-friendly interface Visual network usage statistics Optimised default settings for game, browser and streaming modes User customisable priority control
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 4 x 4pin Chassis fan
Other information - Certifications: FCC, CE ErP/EuP compliant (ErP/EuP compliant power supply required)
PCI-Express 3.0 16x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 9 7th Gen
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor family - AMD Ryzen
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - ASRock
Producer - ASRock
producerCode - B650 PRO RS
ProducerCode - B650 Pro RS
productName - Asrock B650 Pro RS AMD B650 Socket AM5 ATX
productSize - Normal
RAID - SATA 0, 1; NVMe 0, 1, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 38.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 9.7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.09 kg
Shipping Box Width Shipping/Package Box Dimensions - 32.5 cm
ShortDescription - Socket AM5 | Chipset B650 | DDR5
sizeX - 385
sizeY - 95
sizeZ - 320
Socket - SAM5
Software - ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* *Te narzędzia można pobrać z Live Update & APP Shop.
Sound card - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
TPM - Header
Unit Box Height - 0.097
Unit Box Length - 0.385
Unit Box Width - 0.325
Unit Brutto Volume - 0.01214 cubm
Unit Gross Weight - 2.09 kg
Unit Net Weight - 2 kg
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 6
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 6
Vendor Homepage - www.asrock.com/mb/AMD/B650%20Pro%20RS/index.asp
vendpn - B650 PRO RS
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 2,10
Weight - 2.08
weight - 2040
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
