15pin D-sub Input/Output connectors - 1
Accessories included -
Audio port Input/Output connectors - 3
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
category - PC Components|Mainboards|AMD Mainboards|Socket AM4
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
Chipset - AMD B550
Chipset manufacturer - AMD
Chipset type - AMD B550
code - 90-MXBDJ0-A0UAYZ
Code - B550M-HDV
COM connector / port - Yes
CPU socket - Socket AM4

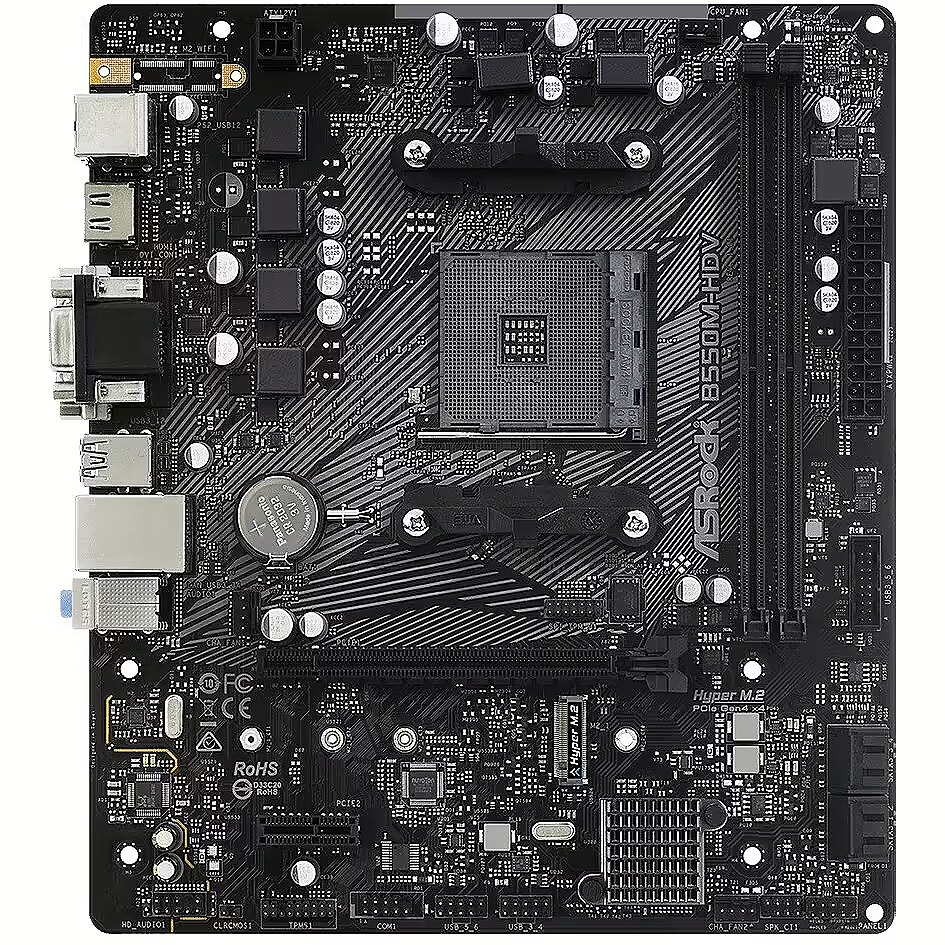

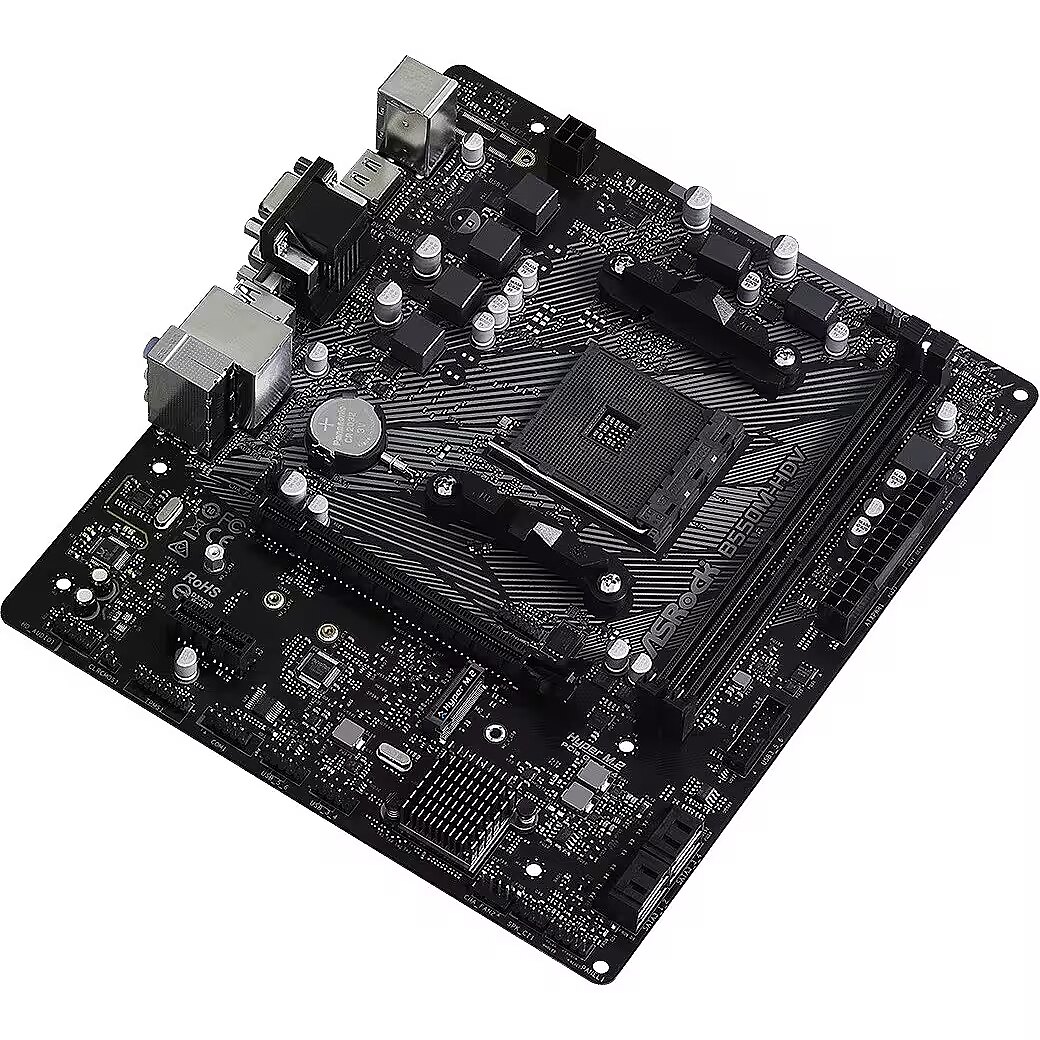

Description - - Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors - 6 Power Phase Design - Supports DDR4 4733+ (OC) - 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 - Graphics Output Options: HDMI, DVI-D, D-Sub - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 6 USB 3.2 Gen1 (2 Front, 4 Rear) - Gigabit LAN
Description - Płyta główna B550M-HDV ASRock.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - RAID 0, RAID 1 and RAID 10
dimension depth - 240 mm
dimension height - 60 mm
Dimensions - 23.0 cm x 20.1 cm
dimension weight - 840 g
dimension width - 275 mm
DVI-D Input/Output connectors - 1
EAN - 4710483931635
ean - 4710483931635
Eans - 4710483931635
EAN_code - 4710483931635
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16

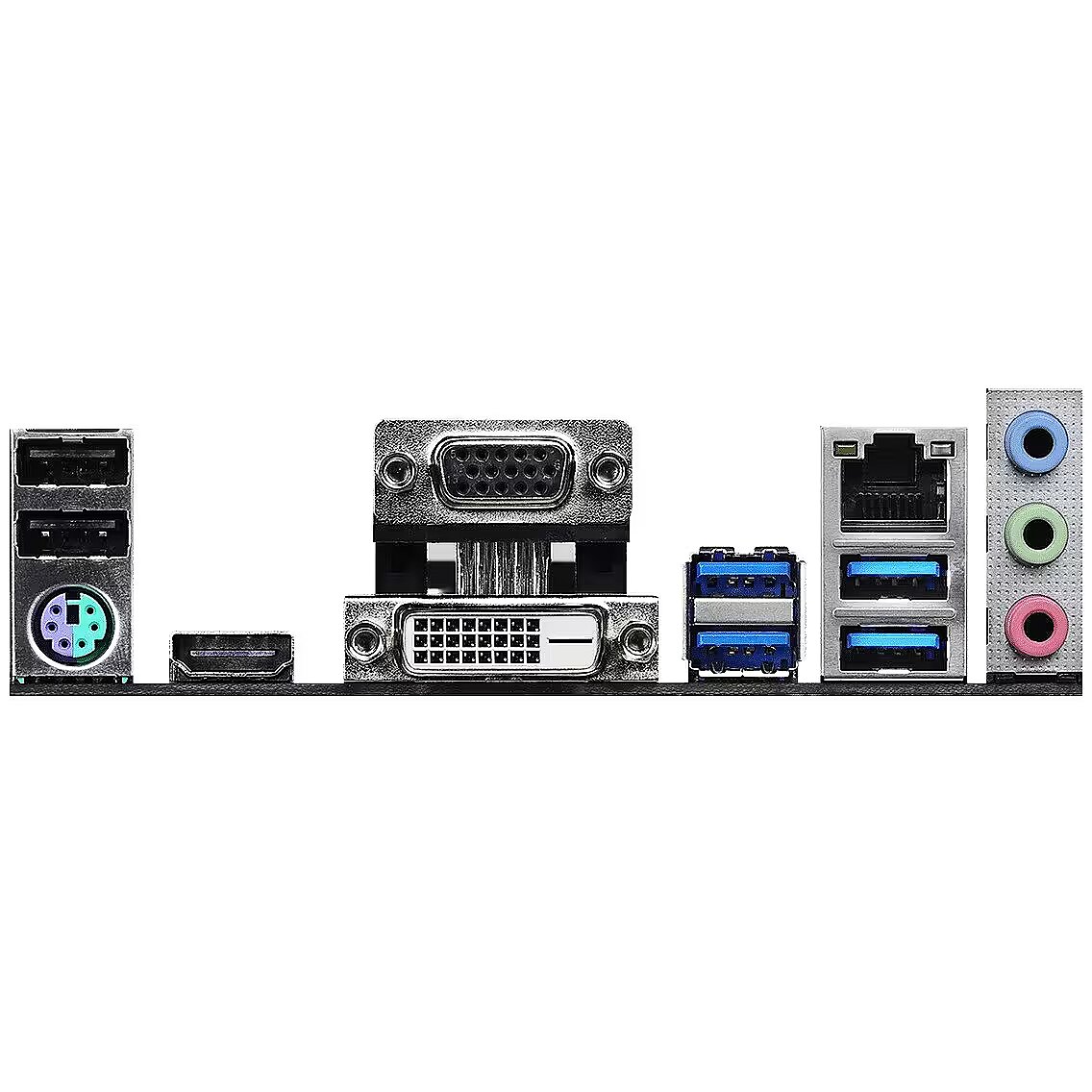

External connectors - 1 x D-Sub
External connectors - 1 x DVI-D
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 4400/4533/4333/4733/4133/4466/4600/3733/3200/2933/4266/4666/2400/4000/3600/2666/4200/3800/2133/3466/3866 MHz
Full Description Line - AMD B550|SAM4|Micro-ATX|DDR4|4733/4666/4600/4533/4466/4400/4333/4266/4200/4133/4000/3866/3800/3733/3600/3466/3200/2933/2666/2400/2133 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xDVI-D|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|USB 2.0|USB 3.2|Serial|SATA 3.0|Video Depending on CPU|Audio Realtek ALC887|LAN Gigabit|RAID SATA 0, 1, 10
Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB.** Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) Supports HDR (High Dynamic Range) with HDMI 2.1 Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port Supports Microsoft PlayReady
Gross weight - 2.30 kg
guarantee - 24
guarantee_type - normal
HDMI Input/Output connectors - 1

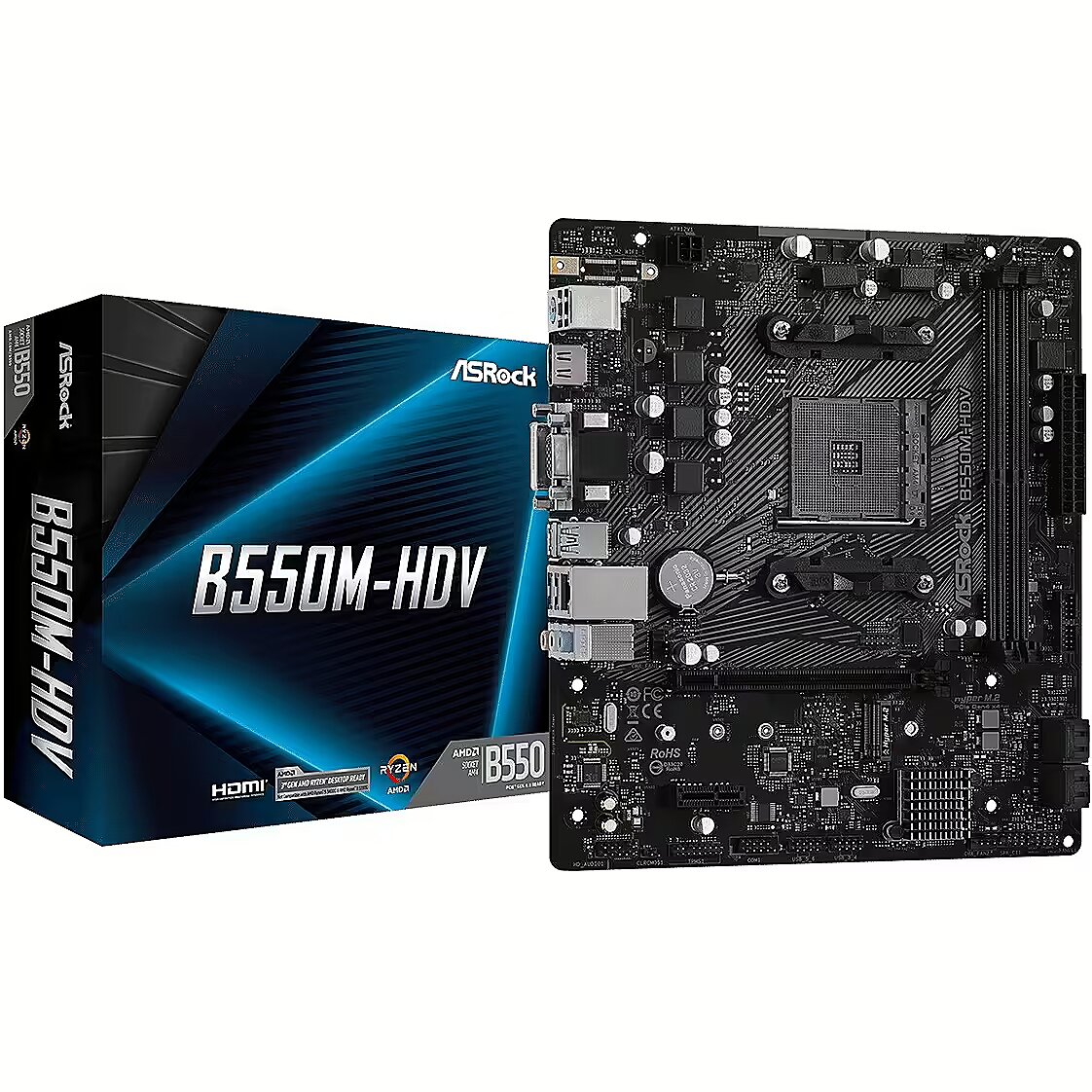

Included Accessories - - Quick Installation Guide, Support CD, I/O Shield;
- 2 x SATA Data Cables;
- 1 x Screw for M.2 Socket
Integrated audio - Realtek ALC887
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA3, M.2
Link - https://www.asrock.com/mb/AMD/B550M-HDV/index.asp#Specification
M.2 Expansion slots - 1
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBDJ0-A0UAYZ
Max. number of SATA devices - 4
Max memory size - 64 GB
Memory > Memory slots - 2
Memory > Supported memory types - AMD AM4
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3800 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4133 MHz
Memory bus frequency - 4200 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4333 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4600 MHz
Memory slots - 2
Memory type - DDR4
Memory type - DDR4
Model - B550M-HDV
MPN - 90-MXBDJ0-A0UAYZ
Name - AM4 ASRock B550M-HDV mATX
Name - ASRock B550M-HDV
name - ASRock B550M-HDV, AMD B550 Mainboard - Sockel AM4
Name - Asrock B550M-HDV - Socket AM4 - mainboard
Name - ASRock | B550M-HDV | Processor family AMD | Processor socket AMD AM4 | AMD AM4 | Memory slots 2 | Supported hard disk drive interfaces SATA3, M.2 | Number of SATA connectors 4 | Chipset AMD B550 | Micro ATX
name - Motherboard B550M-HDV AM4 2DDR4 HDMI/DVI/D-SUB M.2 mATX
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Number of DDR4 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x M.2
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.1
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 70.00 mm
Package features > Gross height (mm) - 295.00 mm
Package features > Gross width (mm) - 360.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 232 pc(s)
Package features > Paper/Pasteboard - 490.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Performance > Chipset - AMD B550
Performance > Motherboard form factor - Micro ATX
Processor > Compatible processor series - Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Processor > Processor family - AMD
Processor > Processor socket - AMD AM4
Processor family - AMD Ryzen
producer - ASRock
Producer - ASRock
ProducerCode - B550M-HDV
Producer product name - B550M-HDV
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 10
RAID - Yes
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Serial Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 62 cm
Shipping Box Height Shipping/Package Box Dimensions - 45 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 18.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 29 cm
ShortDescription - Socket AM4 | Chipset AMD B550
Socket - SAM4
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock XFast LAN UEFI: ASRock Full HD UEFI ASRock Instant Flash
Sound card - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection
Special functions - ASRock Super Alloy Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 1.80 kg
Technical details > Producer - ASRock
Unit Box Height - 0.21
Unit Box Length - 0.06
Unit Box Width - 0.27
Unit Brutto Volume - 0.004045 cubm
Unit Gross Weight - 0.92 kg
Unit Net Weight - 0.8 kg
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.asrock.com/mb/AMD/B550M-HDV/index.asp
vendpn - B550M-HDV
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
Weight - 0,83
Weight - 0.82
