Accessories included -
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
Bluetooth Interface - Yes
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Chipset - AMD B850
Chipset manufacturer - AMD
Chipset type - AMD B850
CnCode CnCode - 84733020
code - B850 EAGLE WIFI6E
Code - B850 EAGLE WIFI6E
COM connector / port - No
CPU socket - Socket AM5
Description - B850 EAGLE WIFI6E - X3D Turbo Mode : Unleash new era gaming performance - DDR5 OC up to 8200MT/s - AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors - Digital twin 8+2+2 phases VRM solution - Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support - WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation - EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design - EZ-Latch Click : M.2 heatsinks with screwless design - Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. - Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4 - Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard - Fast Networking : GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna - Extended Connectivity : HDMI, Displayport - PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Description - Tryb 3D Turbo
Uwolnij wydajność gier nowej ery dzięki aktywacji jednym kliknięciem.
Unikalne parametry optymalizacji trybu X3D Turbo pozwalają nawet procesorom Ryzen 9000 X3D na zwiększenie wydajności gier i procesorom Ryzen 9000 bez X3D osiągnąć podobny poziom wydajności gier, jak ich odpowiedniki Ryzen X3D. Ciesz się płynniejszą rozgrywką, wyższą liczbą klatek na sekundę i mniejszym opóźnieniem dzięki innowacji BIOS-u GIGABYTE - trybowi X3D Turbo. Tryb X3D Turbo: uwolnij wydajność gier nowej ery DDR5 OC do 8200MT/s AMD Socket AM5: obsługuje procesory AMD Ryzen serii 9000 / 8000 / 7000 Rozwiązanie VRM Digital Twin 8+2+2 phases Dual Channel DDR5: 4*DIMM z obsługą modułu pamięci AMD EXPO WIFI EZ-Plug: szybka i łatwa konstrukcja do instalacji anteny Wi-Fi EZ-Latch Plus: gniazda PCIe i M.2 z szybkim zwalnianiem i konstrukcją bezśrubową EZ-Latch Click: radiatory M.2 z konstrukcją bezśrubową Przyjazny interfejs użytkownika: Multi-Theme, sterowanie wentylatorem AIO i automatyczne skanowanie Q-Flash w BIOS-ie i oprogramowaniu. Ultraszybkie przechowywanie: 3 gniazda M.2, w tym PCIe 5.0 x4 Wydajne chłodzenie: VRM Thermal Armor Advanced i M.2 Thermal Guard Szybka sieć: GbE LAN i Wi-Fi 6E z kierunkową anteną o bardzo wysokim wzmocnieniu Rozszerzona łączność: HDMI, Displayport Gniazdo PCIe UD: gniazda PCIe 5.0 x16 o 10-krotnie większej wytrzymałości dla karty graficznej i lepszym rozpraszaniu ciepła
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3)
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
dimensionalWeight - 1706
dimension depth - 80 mm
dimension height - 335 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1685 g
dimension width - 275 mm
DisplayPort Input/Output connectors - 1
EAN - 4719331866587
ean - 4719331866587
Eans - 4719331866587
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 4.0 x 8
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 3 x M.2
Expansion slots - 3 x PCIe 3.0 x 1
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 25110
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 22110
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 22110
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 (Gen 3.x) slots - 3
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x Q-Flash Plus button
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 1 Type-C
External connectors - 2 x SMA
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 4 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B850
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - PC health monitoring - Water cooling
Features - Power source type - ATX
Features - Product colour - Bronze
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 7400/5800/7600/8000/8200/5200/7000/4400/6800/7200/7950/6400/7900/6000/4800/6600/5600/6200/7800 MHz
Full Description Line - AMD B850|SAM5|ATX|DDR5|8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MHz|Memory slots 4|3xPCI-Express 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|4xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN Gigabit|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
Graphics - Zintegrowany procesor graficzny z obsługą grafiki AMD Radeon: 1 x DisplayPort, obsługujący maksymalną rozdzielczość 3840x2160@144 Hz
* Obsługa wersji DisplayPort 1.4 i HDR. 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz
* Obsługa wersji HDMI 2.1, HDCP 2.3 i HDR.
** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS.
(Specyfikacja grafiki może się różnić w zależności od obsługi procesora.)
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 2,53
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 2
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.gigabyte.com/Motherboard/B850-EAGLE-WIFI6E#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LPT connector / port - No
M.2 Expansion slots - 3
Manufacturer - Gigabyte
Manufacturer Code - B850 EAGLE WIFI6E
Manufacturer Name - Gigabyte
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8200 MHz
Memory - Supported memory clock speeds - 4400 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 5200 MHz
Memory - Supported memory clock speeds - 8200 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 4400 MHz
Memory bus frequency - 4800 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - B850 EAGLE WIFI6E
MPN - B850 EAGLE WIFI6E

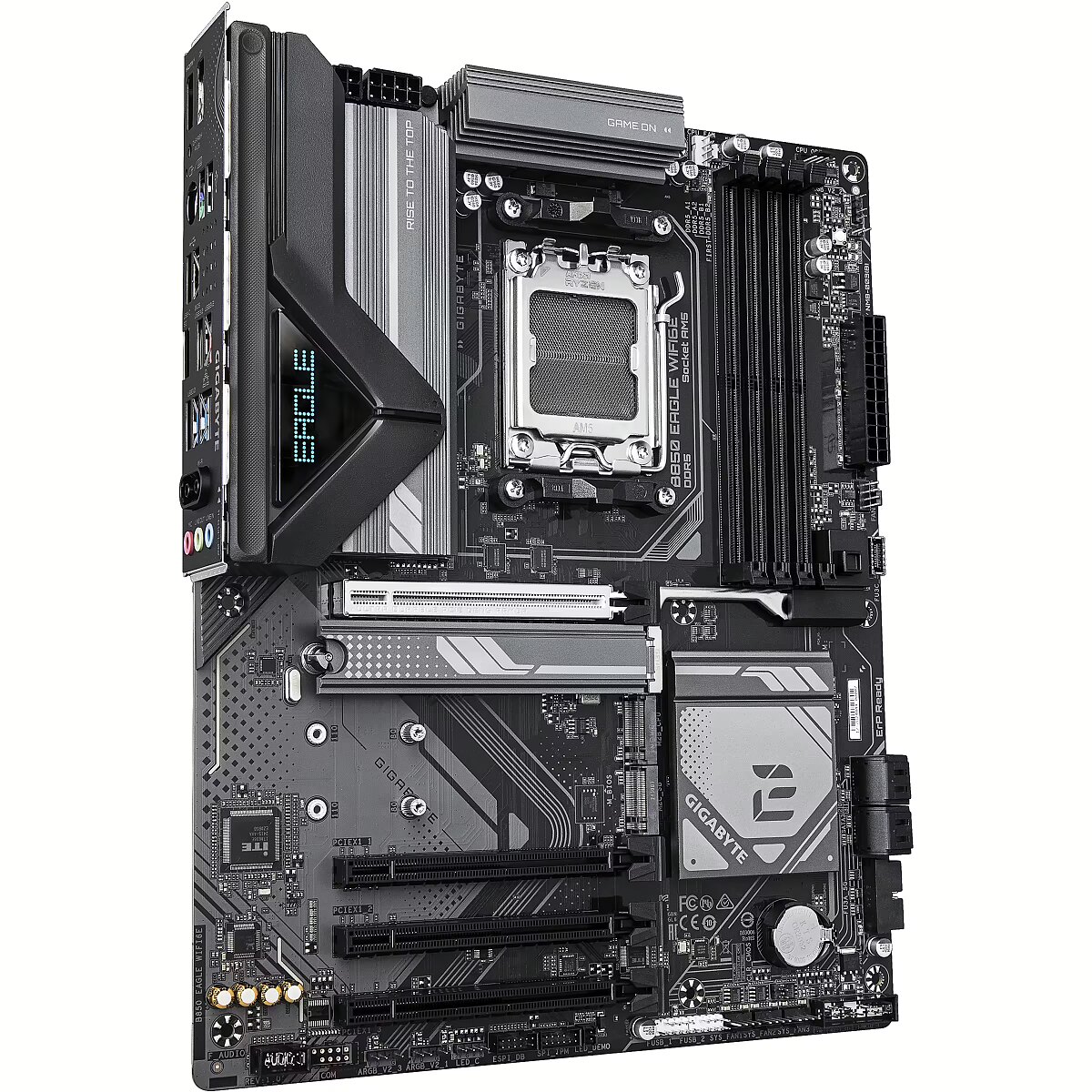

Name - AM5 Gigabyte B850 EAGLE WIFI6E
Name - Gigabyte B850 EAGLE WIFI6E
name - GIGABYTE B850 Eagle WiFi6E, AMD B850 Mainboard - Sockel AM5, DDR5
Name - Gigabyte B850 EAGLE WIFI6E | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - Motherboard B850 EAGLE WIFI6E
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - WLAN controller model - Realtek RTL8111H
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - Bluetooth
Network interface - LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Moduł komunikacji bezprzewodowej Intel Wi-Fi 6E AX210 (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, obsługujący pasma częstotliwości nośnej 2,4/5/6 GHz BLUETOOTH 5.3 Obsługa standardu bezprzewodowego 11ax 160MHz Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, obsługujący pasma częstotliwości nośnej 2,4/5/6 GHz BLUETOOTH 5.3 Obsługa standardu bezprzewodowego 11ax 160MHz
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 2
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Reset button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 1.68 kg
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 327.00 mm
Package features > Gross height (mm) - 70.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 290 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Screws included - Yes
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 1.93 kg
Packaging data - Package width - 335 mm
PCI-Express 16x Expansion slots - 3
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Gigabyte
Producer - Gigabyte
producerCode - B850 EAGLE WIFI6E
ProducerCode - B850 EAGLE WIFI6E
productName - GIGABYTE B850 EAGLE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2
productSize - Normal
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34 cm
Shipping Box Height Shipping/Package Box Dimensions - 27 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 8 cm
Short description - GIGA B850 EAGLE WIFI6E AM5/DDR5/3xM.2/WIFI/Type-C/ATX
ShortDescription - Socket AM5 | Chipset AMD B850 | DDR5
sizeX - 278
sizeY - 341
sizeZ - 90
Socket - SAM5
Software - Norton Internet Security (OEM version) LAN bandwidth management software
Sound card - Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.30 kg
Technical details > Net weight - 1.00 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - B850 EAGLE WIFI6E
Unit Box Height - 0.27
Unit Box Length - 0.34
Unit Box Width - 0.08
Unit Brutto Volume - 0.007344 cubm
Unit Gross Weight - 1.6 kg
Unit Net Weight - 1 kg
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 9
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/B850-EAGLE-WIFI6E#kf
vendpn - B850 EAGLE WIFI6E
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Weight - 1.66
weight - 1670
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
