Accessories included -
Audio port Input/Output connectors - 5
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1GT0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD B650
Chipset manufacturer - AMD
Chipset type - AMD B650
code - 90MB1GT0-M0EAY0
COM connector / port - Yes
CPU socket - Socket AM5
Description - ASUS TUF GAMING B650-E WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Description - TUF GAMING B650-E WIFI
ASUS TUF GAMING B650-E WIFI wykorzystuje wszystkie niezbędne elementy najnowszego gniazda AM5 dla procesorów stacjonarnych AMD Ryzen i łączy je z funkcjami gotowymi do gry i sprawdzoną trwałością. Zaprojektowana z komponentów klasy wojskowej, ulepszonym rozwiązaniem zasilania i kompleksowym systemem chłodzenia, ta płyta główna przekracza oczekiwania dzięki solidnej i stabilnej wydajności podczas maratonów gier. Płyty główne TUF GAMING przechodzą również rygorystyczne testy wytrzymałościowe, aby upewnić się, że poradzą sobie w warunkach, w których inne mogą zawieść. Pod względem estetycznym ten model zawiera wytrzymałe, czarne i geometryczne elementy konstrukcyjne, aby odzwierciedlić niezawodność i stabilność, które definiują serię TUF GAMING. Ta platforma zapewnia moc i łączność, których wymagają zaawansowane aplikacje komputerowe AI.
Detailed data on disk/drive interfaces - Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both
PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.
dimensionalWeight - 1366
dimension depth - 70 mm
dimension height - 355 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 1740 g
dimension width - 275 mm
DisplayPort Input/Output connectors - 1
ean - 4711387423073
Eans - 4711387423073
EAN_code - 4711387423073
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 3 x M.2
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 1 x USB BIOS Flashback button
External connectors - 1 x Wi-Fi Module
External connectors - 3 x USB 2.0
External connectors - 3 x USB 3.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000 MHz
Full Description Line - AMD B650|SAM4|ATX|DDR5|8000/7800/7600/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|2xPCI-Express 3.0 16x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|3xUSB 2.0|4xUSB 3.2|1xUSB-C|1xRJ45|5xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Serial|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; PCIe 0, 1, 10
Graphics - 1 x DisplayPort*
1 x port HDMI**
* Obsługuje maks. 8K@60Hz zgodnie ze specyfikacją DisplayPort 1.4.
** Obsługuje 4K@60Hz zgodnie ze specyfikacją HDMI 2.1.
*** Obsługa rozdzielczości VGA zależy od rozdzielczości procesora lub karty graficznej.
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387423073
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
LongDesc - B650-E WIFIASUS TUF GAMING B650-E WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.INTELLIGENT CONTROLComprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.CPU Performance BoostAMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING B650 motherboards are the perfect foundation for your next high-core-count AMD battle rig.Teamed Power Stages8(60A)+2(60A) power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.
LongProductName - AM5 Socket, AMD B650, 4 x DIMM, Max. 192GB, DDR5 8000+
LongSummaryDescription - ASUS TUF GAMING B650-E WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 3
Manufacturer - Asus
Manufacturer_code - 90MB1GT0-M0EAY0
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4800 MHz
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory clock speeds - 7600
Memory - Supported memory clock speeds - 7800
Memory - Supported memory clock speeds - 8000
Memory - Supported memory clock speeds - 8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - TUF GAMING B650-E WIFI

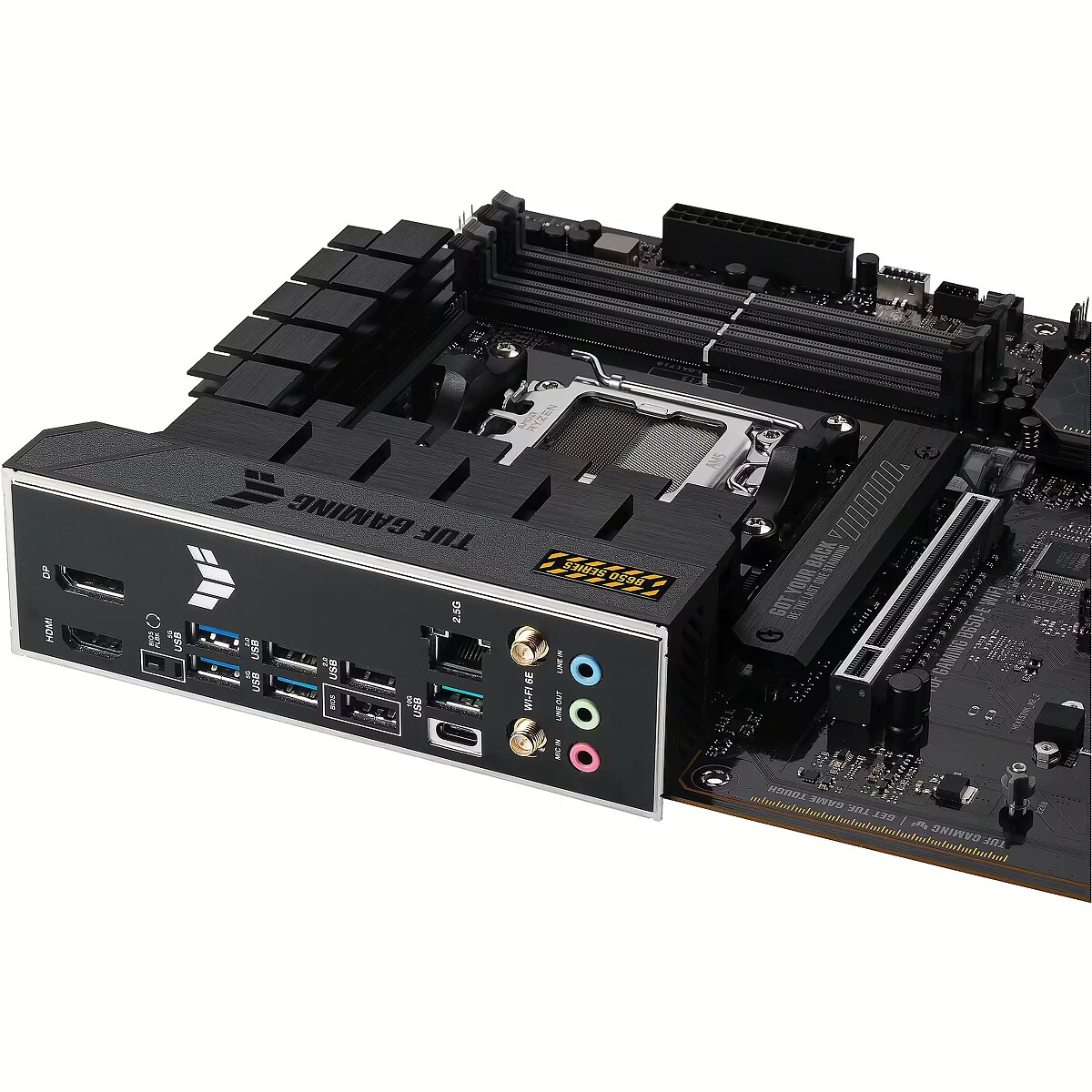

Name - ASUS TUF GAMING B650-E WIFI
name - ASUS TUF Gaming B650-E WiFi, AMD B650 Mainboard - Sockel AM5, DDR5
Name - ASUS TUF GAMING B650-E WIFI - Socket AM5 - motherboard (black/light orange)
name - Motherboard TUF GAMING B650-E WIFI AM5 4DDR5 ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Obsługuje pasmo częstotliwości 2,4/5/6 GHz* Bluetooth v5.3** * Przepisy WiFi 6E 6 GHz mogą się różnić w zależności od kraju.
** Wersja Bluetooth może się różnić, zapoznaj się ze stroną internetową producenta modułu Wi-Fi, aby uzyskać najnowsze specyfikacje.
Network interface - Bluetooth
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 3 x M.2
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 4 x SATA III 6Gb/s
Other information -
Packaging data - Package depth - 273 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.36 kg
Packaging data - Package width - 338 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 3.0 16x Expansion slots - 2
PCI-Express 4.0 16x Expansion slots - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Asus
Producer - Asus
producerCode - 90MB1GT0-M0EAY0
ProducerCode - TUF GAMING B650-E WIFI
productName - ASUS TUF GAMING B650-E WIFI AMD B650 Socket AM5 ATX
ProductName - TUF GAMING B650-E WIFI
productSize - Normal
RAID - SATA 0, 1, 10; PCIe 0, 1, 10
RAID - Yes

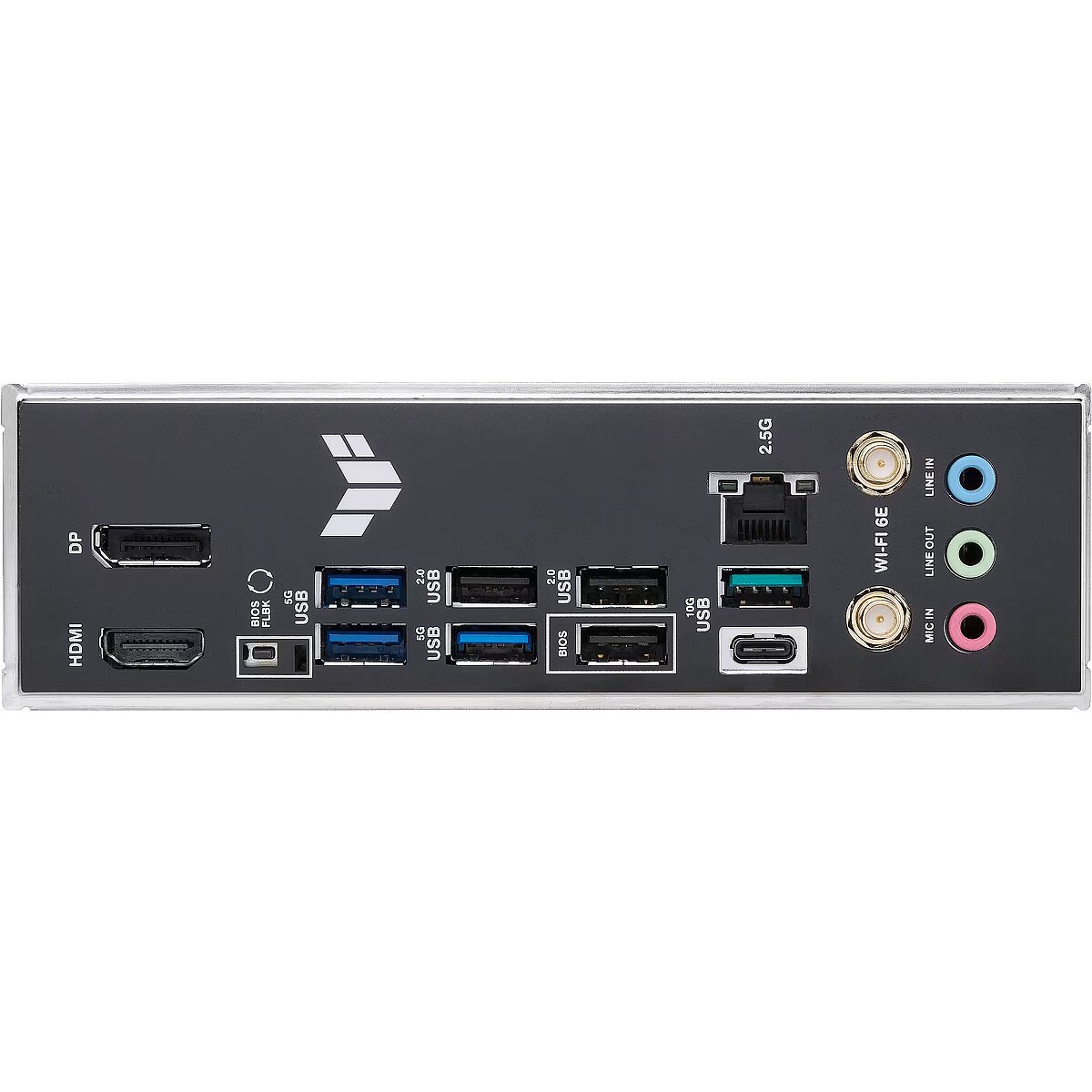

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Serial Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 9.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 36.5 cm
ShortDescription - Socket AM5 | Chipset AMD B650 | DDR5
ShortSummaryDescription - ASUS TUF GAMING B650-E WIFI, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 192 GB, DIMM
sizeX - 355
sizeY - 70
sizeZ - 275
Socket - SAM4
Software -
Sound card - Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Obsługuje: wykrywanie gniazda, przesyłanie strumieniowe, zmianę przeznaczenia gniazda na przednim panelu
- Obsługuje odtwarzanie do 24 bitów/192 kHz
Funkcje audio
- Ekranowanie audio
- Kondensatory audio klasy premium
- Dedykowane warstwy audio PCB
- Pokrywa audio
* Ze względu na ograniczenia przepustowości HDA, 32 bity/192 kHz nie są obsługiwane dla dźwięku 7.1 Surround Sound.
** Do obsługi wyjścia audio 7.1 Surround Sound wymagana jest obudowa z modułem audio HD na przednim panelu.
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11

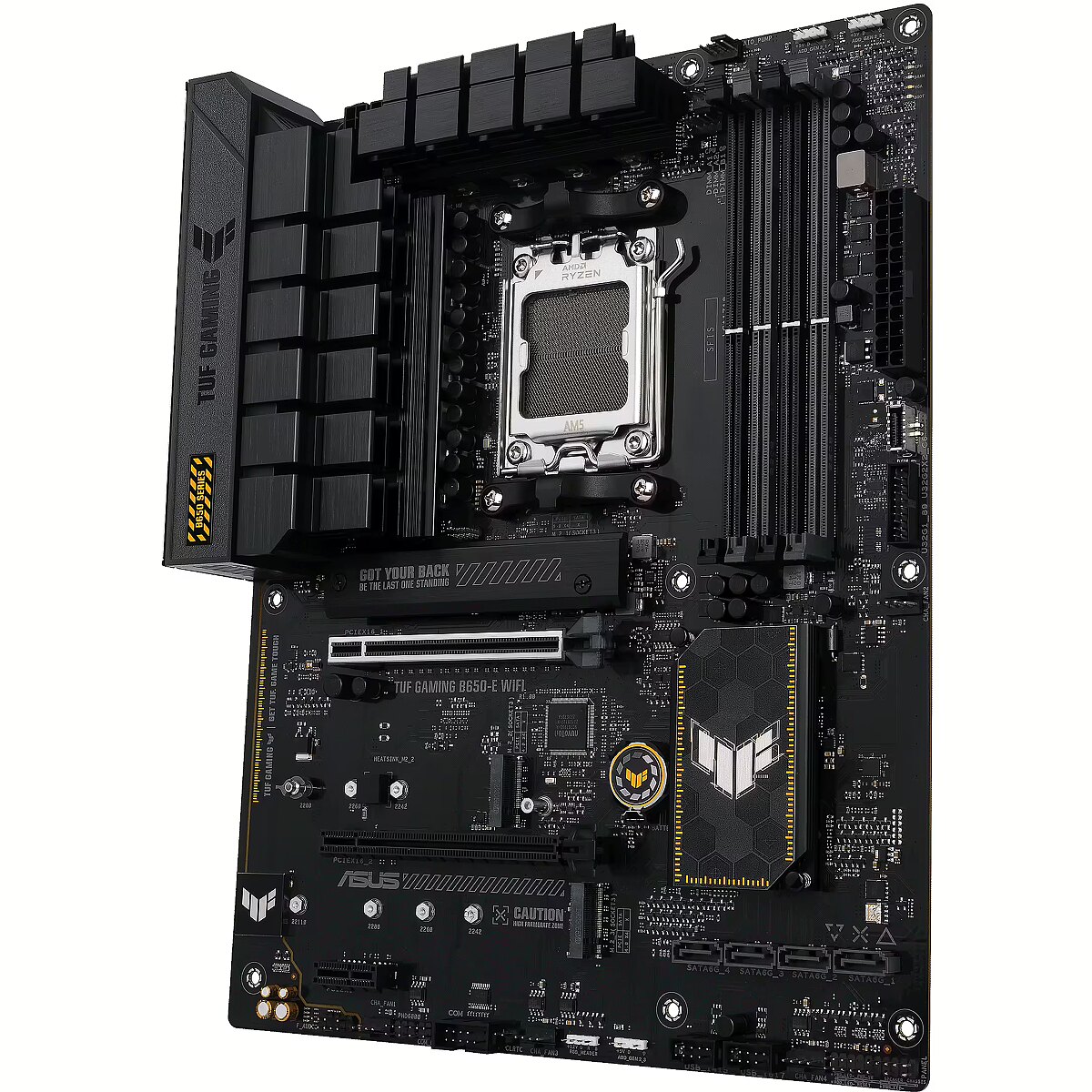

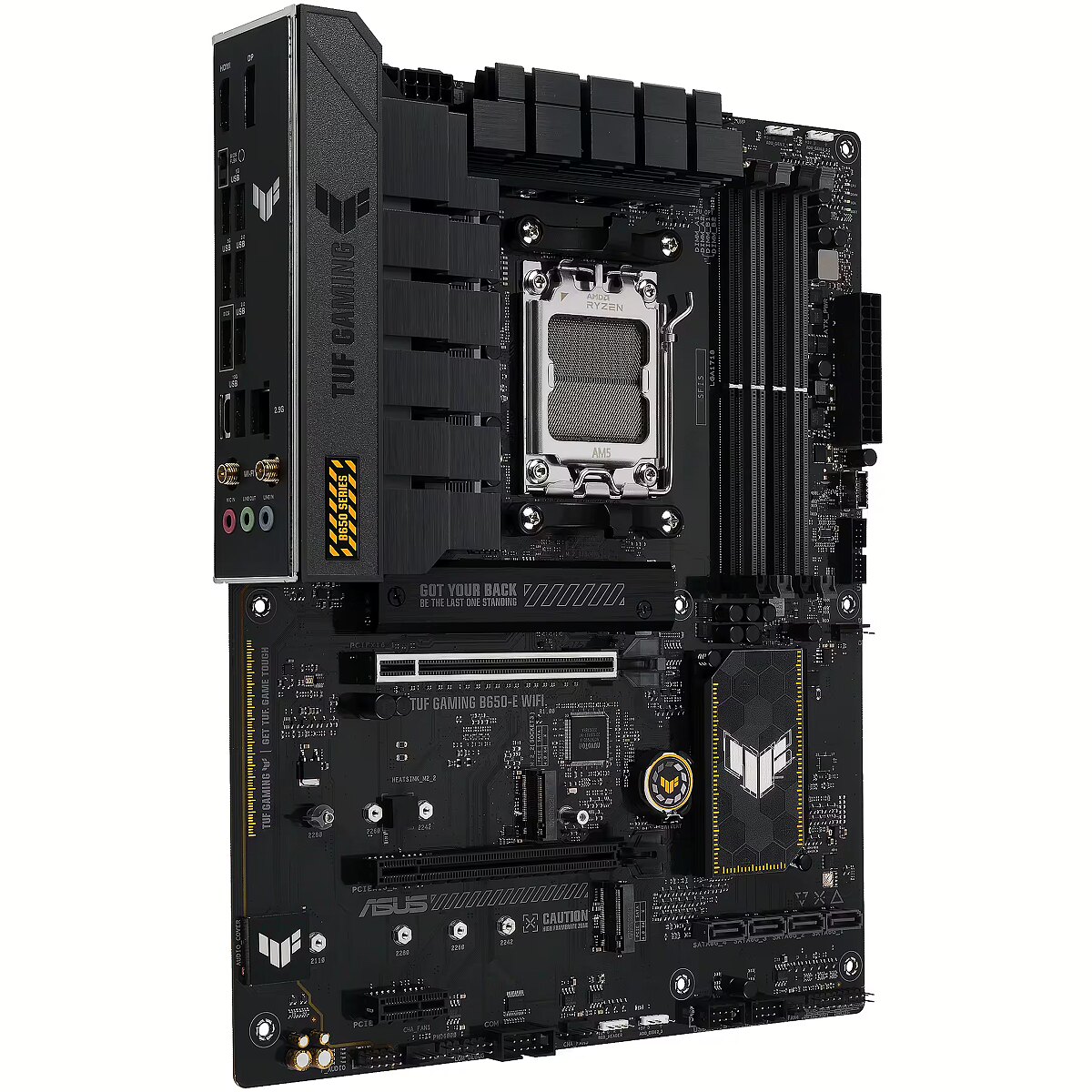

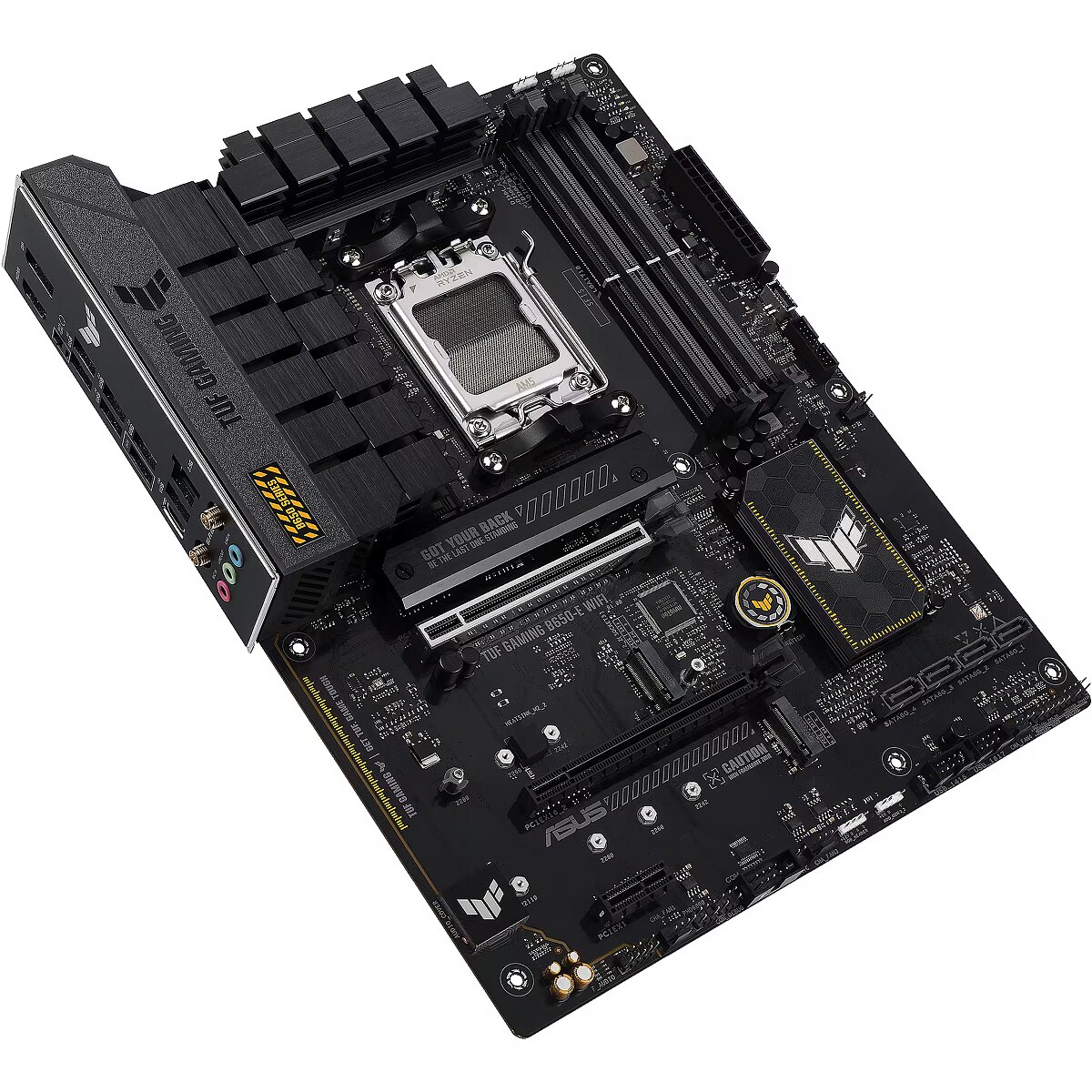

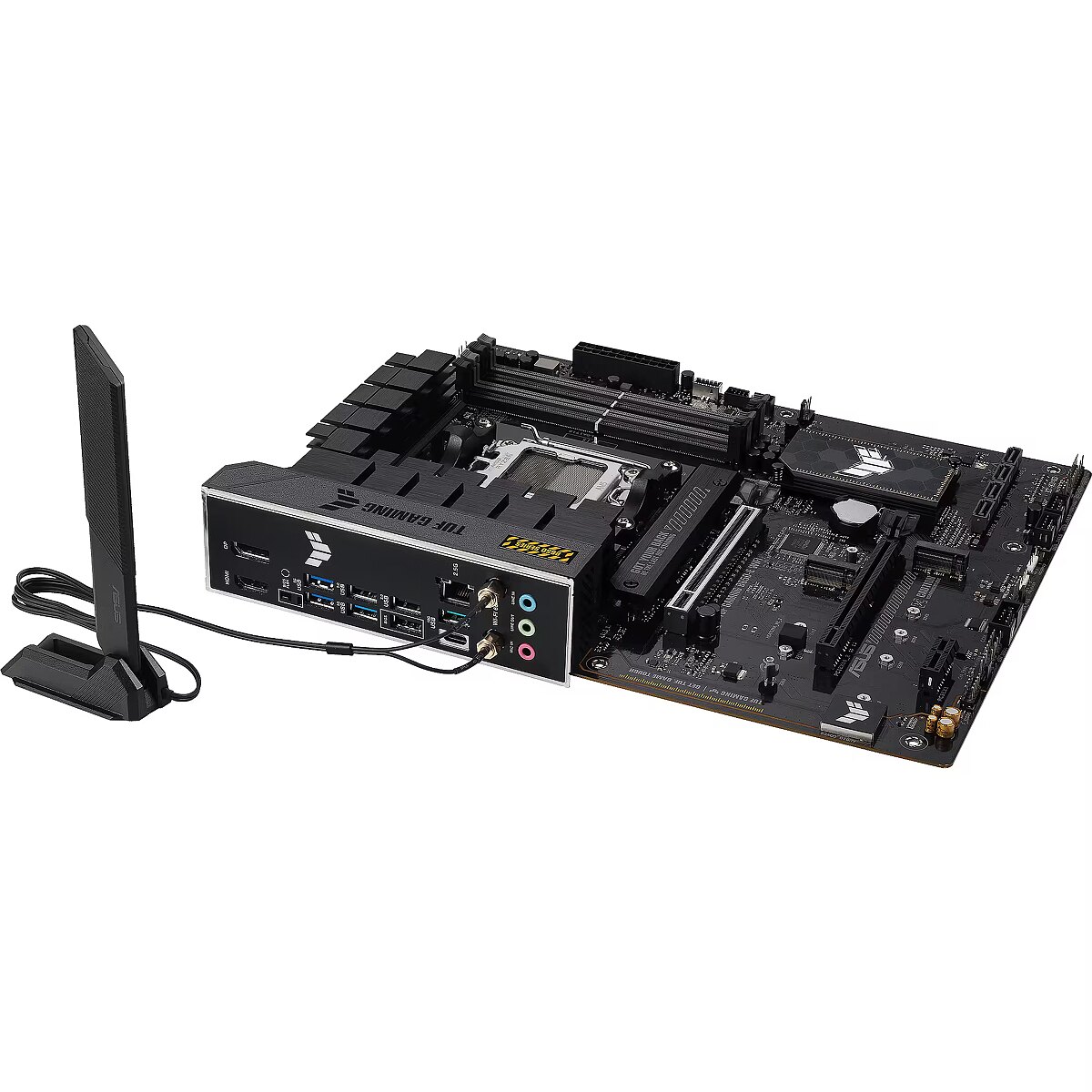

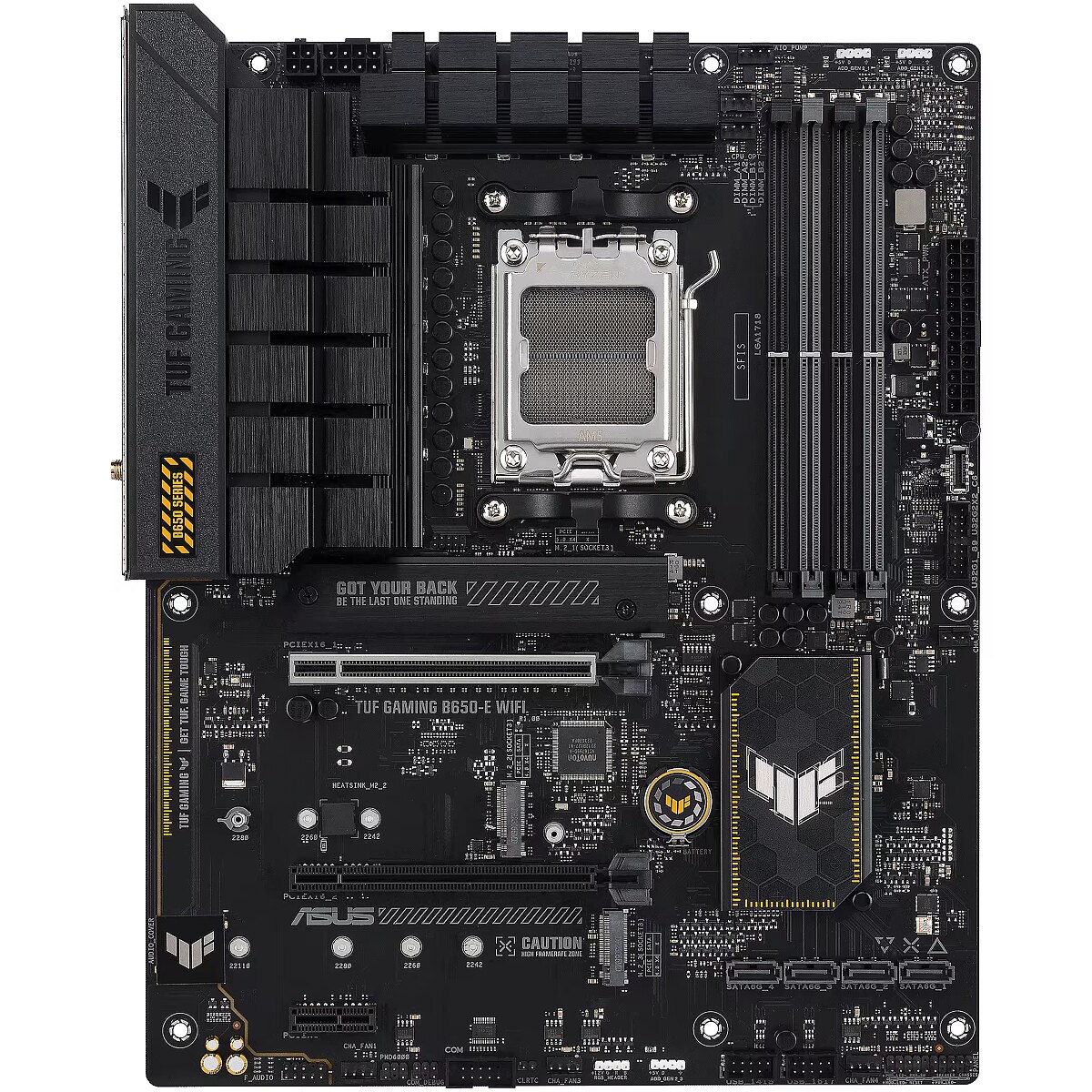

Technical_details - The TUF GAMING B650-E WIFI motherboard from ASUS is based on the AMD B650 chipset and supports AMD processors for socket AM5. It has four DDR5 DIMM slots in dual-channel operation for up to 192 GB of RAM. The TUF GAMING B650-E WIFI's additional features include a PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots. The TUF GAMING B650-E WIFI also has 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, two M.2 ports, WLAN and a range of USB interfaces.Art.- No.: 100033866 Mainboard type Color black/light orange EAN 4711387423073 Manufacturer no. 90MB1GT0-M0EAY0 Socket AM5 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael ), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael) Chipset AMD B650 Slots PCIe x16 1x (of which: 1x PCIe x16) Wi-Fi 6, Bluetooth 5.2 BIOS 256Mb Flash ROM, UEFI AMI BIOS Form factor ATX Use PC Power supply ATX12V (24-pin + 8-pin + 4-pin) Memory maximum 192 GB Connections (external) Mouse/Keyboard Combo (PS/2) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 RGB Standard AURA Sync SATA controller AMD B650 Directly usable RAID levels 0, 1, 10 USB controller AMD B650 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek 7.1 Surround Sound High Definition Audio LAN Realtek 2.5Gb Ethernet Further information 2 M.2 slots: 1x with support for M.2 PCIe 5.0 x4 and 1x with support for M.2 PCIe 4.0 x4. Accessories available: SATA cable, WLAN antennas, TUF Gaming sticker, M.2 mounting material, instructions Dimensions Width: 244mm x Height: 305mm
Title - ASUS TUF GAMING B650-E WIFI AMD B650 Socket AM5 ATX
Unit Box Height - 0.07
Unit Box Length - 0.355
Unit Box Width - 0.275
Unit Brutto Volume - 0.008103 cubm
Unit Gross Weight - 1.94 kg
Unit Net Weight - 0.8 kg
URL - https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650-e-wifi/
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 3
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 7
Vendor Homepage - www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650-e-wifi/
vendpn - TUF GAMING B650-E WIFI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,75
weight - 1765
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
