Accessories included -
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS -
BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.5
Brand - MSI
BrandPartCode - X670E GAMING PLUS WIFI
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
category_en - Computers & Components > Computer components > Motherboards > AMD motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
Chipset - AMD X670
Chipset manufacturer - AMD
Chipset type - AMD X670
code - 7E16-003R
Code - X670E GAMING PLUS WIFI
COM connector / port - No
CPU socket - Socket AM5
Description - X670E GAMING PLUS WIFI
Description - X670E GAMING PLUS WIFI Obsługuje procesory stacjonarne AMD Ryzen serii 9000 / 8000 / 7000 Obsługuje pamięć DDR5, do 7800+(OC) MHz Ulepszona konstrukcja zasilania: 14+2+1 Duet Rail Power System, dwa 8-pinowe złącza zasilania procesora, Core Boost, Memory Boost Błyskawiczne wrażenia z gry: gniazdo PCIe 5.0, Lightning Gen5 M.2, USB 3.2 Gen 2x2 Rozwiązanie termiczne klasy premium: rozszerzona konstrukcja radiatora i M.2 Shield Frozr są zbudowane z myślą o wysokiej wydajności systemu i nieprzerwanej pracy Wysokiej jakości płytka drukowana: 6-warstwowa płytka drukowana wykonana z 2-uncjowej pogrubionej miedzi i materiału klasy serwerowej WZMOCNIENIE DŹWIĘKU: Nagradzaj swoje uszy dźwiękiem klasy studyjnej, aby uzyskać najbardziej wciągające wrażenia z gry
description_en - Motherboard Form Factor: ATX
Motherboard Chipset: AMD X670
Component for: PC
Audio Output Channels: 7.1
Windows Operating Systems Supported:
Windows 11 x64, Windows 10 x64
Motherboard Chipset Family: AMD
Processor:
Processor Manufacturer: AMD
Processor Socket: Socket AM5
Memory:
Number of Memory Slots: 4
Maximum Internal Memory: 192 GB
Supported Memory Types: DDR5-SDRAM
Memory Channels: Dual-channel
Memory Slots Type: DIMM
Expansion Slots:
Number of M.2 (M) Slots: 4
PCI Express x16 (Gen 4.x) Slots: 1
PCI Express x16 (Gen 5.x) Slots: 2
Network:
Bluetooth Version: 5.3
Ethernet LAN: Yes
Bluetooth: Yes
LAN Controller: Realtek RTL8125-BG
Wi-Fi: Yes
Ethernet Interface Type: 2.5 Gigabit Ethernet
Top Wi-Fi Standard: Wi-Fi 6E (802.11ax)
description_lv - Mātesplates formas koeficients: ATX
Mātesplates mikroshēmojums: AMD X670
Komponents: PC
Audio izvades kanāli: 7.1
Atbalstītās Windows operētājsistēmas:
Windows 11 x64, Windows 10 x64
Mātesplates mikroshēmojumu saime: AMD
Procesors:
Procesora ražotājs: AMD
Procesora ligzda: Socket AM5
Atmiņa:
Atmiņas slotu skaits: 4
Maksimālā iekšējā atmiņa: 192 GB
Atbalstītie atmiņas veidi: DDR5-SDRAM
Atmiņas kanāli: divkanālu
Atmiņas slota tips: DIMM
Paplašināšanas sloti:
M.2 (M) slotu skaits: 4
PCI Express x16 (Gen 4.x) sloti: 1
PCI Express x16 (Gen 5.x) sloti: 2
Tīkls:
Bluetooth versija: 5.3
Ethernet LAN: Jā
Bluetooth: Jā
LAN kontrolieris: Realtek RTL8125-BG
Wi-Fi: Jā
Ethernet interfeisa tips: 2,5 gigabitu Ethernet
Labākais Wi-Fi standarts: Wi-Fi 6E (802.11ax)
description_ru - Форм-фактор материнской платы: ATX
Чипсет материнской платы: AMD X670
Компонент для: ПК
Выходные аудиоканалы: 7.1
Поддерживаемые операционные системы Windows:
Windows 11 х64, Windows 10 х64.
Семейство чипсетов материнской платы: AMD
Процессор:
Производитель процессора: AMD
Разъем процессора: Разъем AM5
Объем памяти:
Количество слотов памяти: 4
Максимальная внутренняя память: 192 ГБ
Поддерживаемые типы памяти: DDR5-SDRAM.
Каналы памяти: двухканальный
Тип слотов памяти: DIMM
Слоты расширения:
Количество слотов M.2 (M): 4
Слоты PCI Express x16 (поколение 4.x): 1
Слоты PCI Express x16 (поколение 5.x): 2
Сеть:
Версия Bluetooth: 5,3
Локальная сеть Ethernet: Да
Bluetooth: Да
Контроллер локальной сети: Realtek RTL8125-BG
Wi-Fi: Да
Тип интерфейса Ethernet: 2,5-гигабитный Ethernet
Лучший стандарт Wi-Fi: Wi-Fi 6E (802.11ax).
Detailed data on disk/drive interfaces - 3x PCI-E x16 slot
Supports x16/x1/x4
Supports x16/x1/x4 (For Ryzen 9000 and 7000 Series processors)
Supports x8/x1/x4 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
Supports x4/x1/x4 (For Ryzen 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
dimensionalWeight - 1397
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 243.84 x 304.8 mm
dimension weight - 1797 g
dimension width - 350 mm
DisplayPort Input/Output connectors - 1
EAN - 4711377170345
ean - 4711377170345
Eans - 4711377170345
EAN_code - 4711377170345
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x PCIe 3.0 x 1
Expansion slots - 3 x PCIe x 16
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2

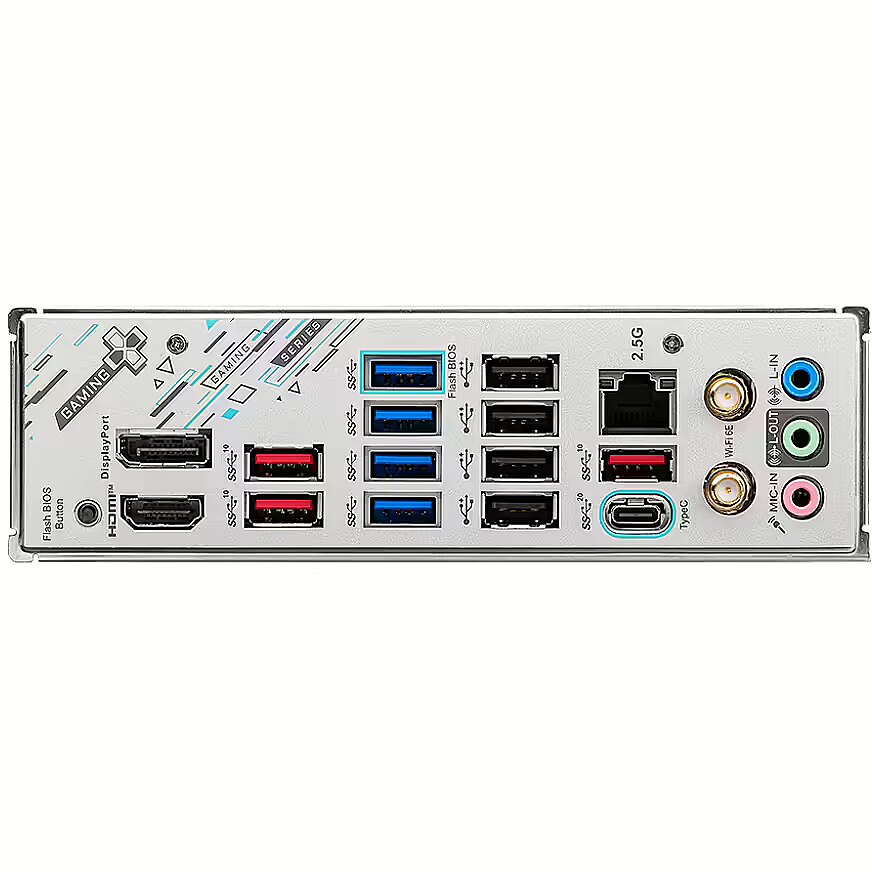

External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1 Type-C
External connectors - 3 x USB 3.1
External connectors - 4 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X670
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Product colour - Aluminium
Features - Product colour - Aluminium, Black
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800 MHz
Full Description Line - AMD X670|SAM5|ATX|DDR5|7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|6xUSB 3.2|1xUSB-C|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|SATA 3.0|Video|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1|TPM Header
Graphics - 1x HDMI Obsługa HDMI 2.1, maksymalna rozdzielczość 4K 60Hz* 1x DisplayPort Obsługa DP 1.4, maksymalna rozdzielczość 4K 60Hz* *Dostępne tylko na procesorach ze zintegrowaną grafiką. Specyfikacje graficzne mogą się różnić w zależności od zainstalowanego procesora.
Graphics - On-board graphics card - No
gross_weight - 0.2 kg
GTIN - 0824142345986
GTIN - 824142345986
GTIN - 4711377162913
GTIN - 4711377170345
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.msi.com/Motherboard/X670E-GAMING-PLUS-WIFI
LongDesc - Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.M.2 Shield FrozrStrengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.LIGHTNING GEN 5 PCI-EDoubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.SMT PCIE 5.0 SLOTThe advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.REINFORCED,HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.
LongProductName - 4x DDR5, 1x HDMI, 1x DisplayPort, 4x M.2, X670E, Wifi, AM5, ATX
LongSummaryDescription - MSI X670E GAMING PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - MSI
Manufacturer_code - 7E16-003R
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - 7E16-003R
Model - X670E GAMING PLUS WIFI
name - Motherboard X670E GAMING PLUS WIFI AM5 4DDR5 HDMI ATX
Name - MSI MAG X670E GAMING PLUS WIFI - Socket AM5 - motherboard
Name - MSI X670E Gaming Plus WiFi
name - MSI X670E Gaming Plus WiFI, AMD X670E Mainboard - Sockel AM5
Name - MSI | X670E GAMING PLUS WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125-BG
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - Realtek RTL8125BG 2.5Gbps LAN AMD Wi-Fi 6E Moduł bezprzewodowy jest wstępnie zainstalowany w gnieździe M.2 (Key-E) Obsługuje MU-MIMO TX/RX Obsługuje pasmo 20 MHz, 40 MHz, 80 MHz, 160 MHz w pasmach 2,4 GHz/ 5 GHz lub 6 GHz* Obsługuje 802.11 a/ b/ g/ n/ ac/ ax Obsługuje Bluetooth 5.3** * Wi-Fi 6E 6GHz może zależeć od przepisów każdego kraju i będzie gotowe w systemie Windows 11.
** Bluetooth 5.3 będzie gotowe w systemie Windows 10 build 21H1 i Windows 11.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 5
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 2 x System panel header
Onboard connectors - 4 x EZ Debug LED
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 4 x USB 3.0
Onboard connectors - 6 x 4pin wentylator obudowy
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 130.00 mm
Package features > Gross height (mm) - 380.00 mm
Package features > Gross width (mm) - 310.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 56 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 300.00 g
Package features > Tare weight (kg) - 0.90 kg
Package features > TI weight (kg) - 0.05 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.02 m³
Package features > WEEE tax - No
PCI-Express 1x Expansion slots - 1
PCI-Express 16x Expansion slots - 3
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - MSI
Producer - MSI
producerCode - 7E16-003R
ProducerCode - X670E Gaming Plus WiFi
Producer product name - X670E GAMING PLUS WIFI

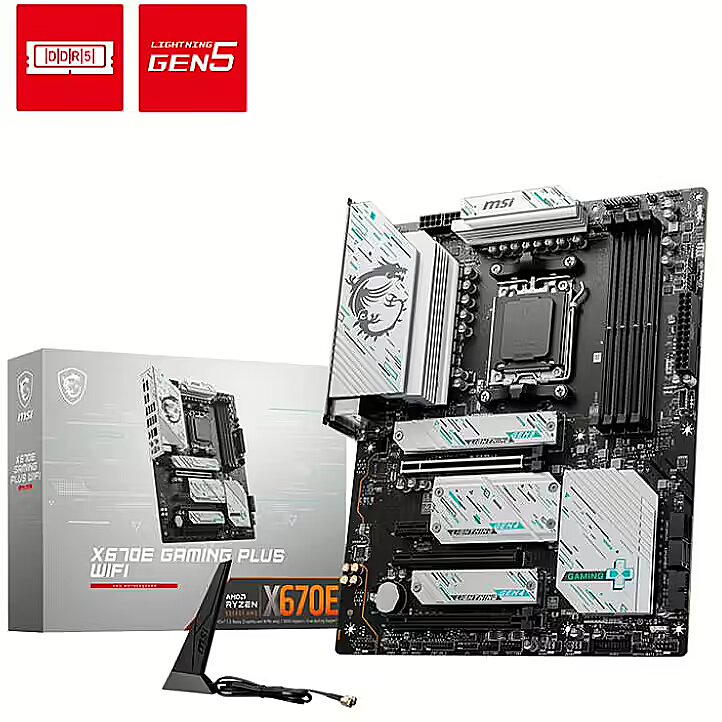

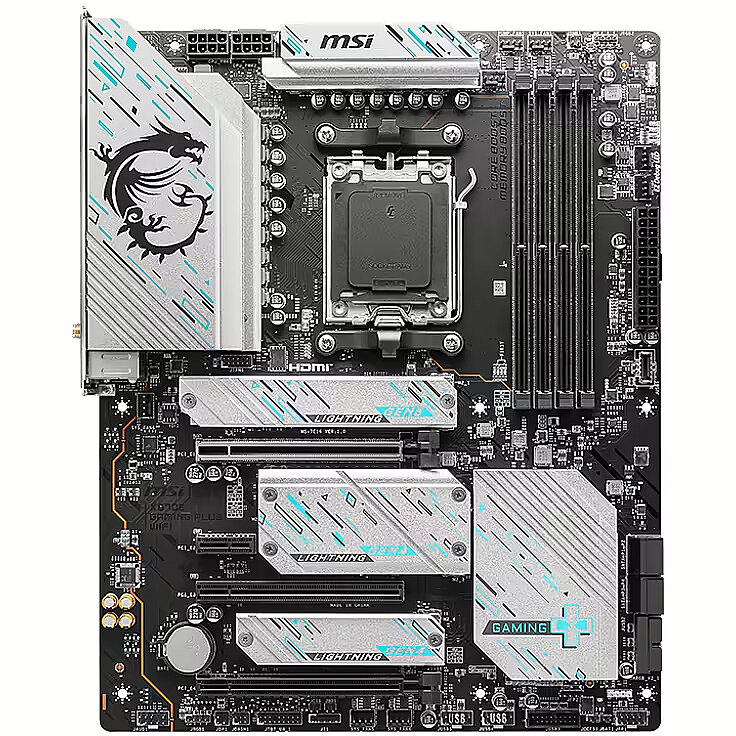

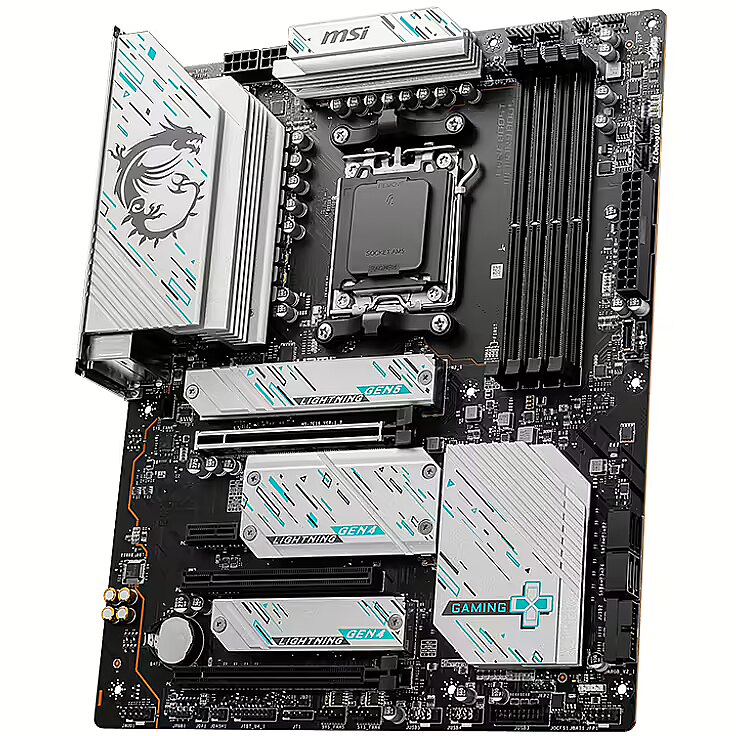

productName - MSI X670E GAMING PLUS WIFI motherboard AMD X670 Socket AM5 ATX
ProductName - X670E GAMING PLUS WIFI
productSize - Normal
RAID - SATA 0, 1, 10; NVMe 0, 1
RAID - Yes

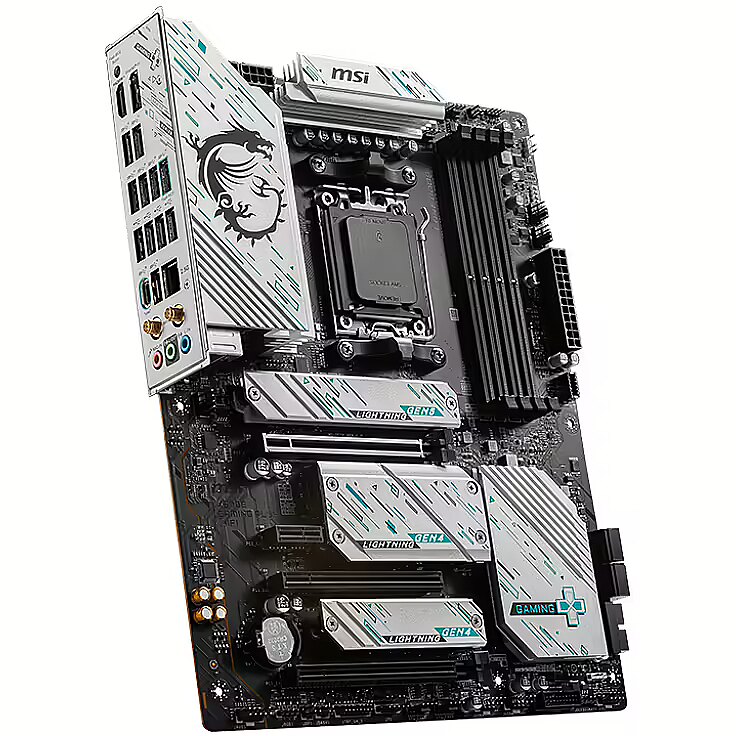

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 37 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 9.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 28.5 cm
ShortDescription - Socket AM5 | Chipset AMD X670E | DDR5
ShortSummaryDescription - MSI X670E GAMING PLUS WIFI, AMD, Socket AM5, DDR5-SDRAM, 192 GB, DIMM, Dual-channel
sizeX - 345
sizeY - 270
sizeZ - 75
Socket - SAM5
Software -
Sound card - Realtek ALC897 Codec
7.1-Channel High Definition Audio
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Gross weight - 2.92 kg
Technical details > Net weight - 2.02 kg
Technical details > Producer - MSI
Technical_details - The MSI X670E GAMING PLUS WIFI is based on the AMD X670 chipset and supports AMD processors for socket AM5. It has four DDR5 slots for up to 256 GB of memory. The MSI The MSI .-No.: 100025087 Mainboard type Color black/silver EAN 4711377170345 Manufacturer no. 7E16-003R Socket AM5 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael ), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael) Chipset AMD X670 Slots PCIe x16 3x (of which: 1x PCIe x16, 1x PCIe x4, 1x PCIe x1) AMD Wi-Fi 6E Form factor ATX Use PC Power supply ATX12V (24-pin + 2x 8-pin) Memory maximum 256 GB Ports (external) USB-C 3.2 Gen 2x2 (20 Gbit/s) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5Gbps) 4 SATA controller AMD X670 Directly usable RAID levels 0, 1, 10 USB controller AMD X670 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek ALC897 Codec LAN Realtek RTL8125BG 2.5Gbps LAN Further information In order to support the latest processor cores, a BIOS update may be required. Accessories available: 2 SATA cables, Wi-Fi antennas, quick start guide Dimensions Width: 243.8mm x Height: 304.8mm
Title - MSI X670E GAMING PLUS WIFI motherboard AMD X670 Socket AM5 ATX
title_en - MSI X670E GAMING PLUS WIFI Motherboard
title_lv - MSI X670E GAMING PLUS WIFI Mātesplate
title_ru - MSI X670E GAMING PLUS WIFI Материнская плата
TPM - Header
Unit Box Height - 0.075
Unit Box Length - 0.345
Unit Box Width - 0.27
Unit Brutto Volume - 0.007909 cubm
Unit Gross Weight - 1.94 kg
Unit Net Weight - 1.55 kg
URL - https://www.msi.com/Motherboard/X670E-GAMING-PLUS-WIFI
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 6
USB 3.2 Interface - Yes
USB ports at back panel - 12
USB ports on motherboard - 10
Vendor Homepage - www.msi.com/Motherboard/X670E-GAMING-PLUS-WIFI
vendpn - X670E GAMING PLUS WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 0.15 kg
Weight - 1,77
weight - 1790
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
