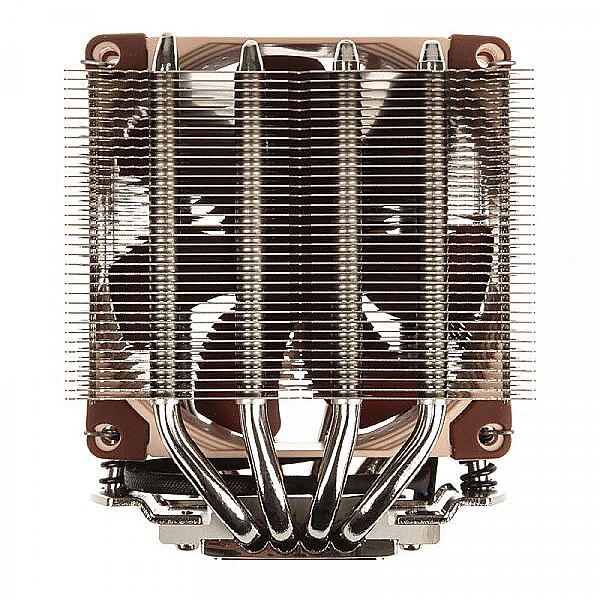

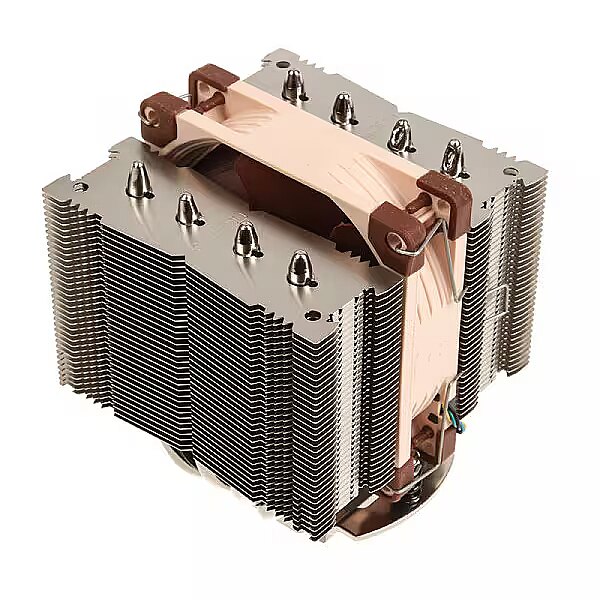

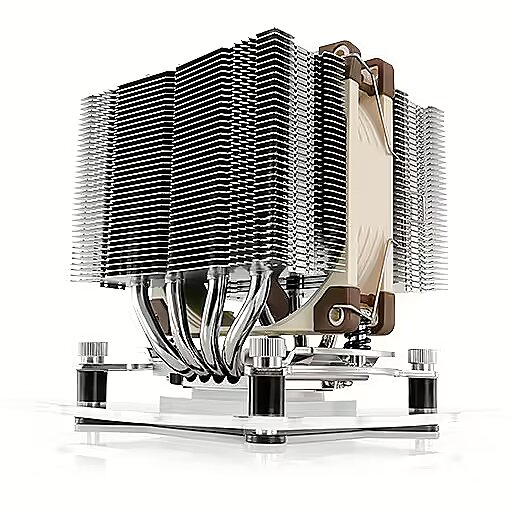

Noctua NH-D9L

Additional fan mounting - yes
Approved for - active air flow
category - Aircooling|Coolers|CPU Coolers|Tower Coolers
Category - Root/Electronics/PC parts/Cooling/Processor fans
Category_1 - Computer Cases and Cooling
Category_2 - Coolers for CPU
code - NH-D9L
CPU cooler depth - 90 to 99 mm
CPU cooler depth (accurate) - 95 mm
CPU cooler fan(s) included - 1x 92 mm
CPU cooler height - 110 to 119 mm
CPU cooler height (accurate) - 110 mm
CPU cooler type - Dual Tower
CPU cooler width - 90 to 99 mm
CPU cooler width (accurate) - 95 mm
CPU socket - 2066, 2011-V3, 2011, 1156, 1155, 1151, 1150, AM3+, AM3, AM2, FM2+, FM2, FM1
Design - Material - Aluminium
Design - Material - Copper
Design - Number of fans - 1 fan(s)
Design - Product colour - Metallic
dimensionalWeight - 1166
ean - 4716123315582
Eans - 4716123315582
EAN_code - 4716123315582
Fan colour - beige, brown
Fan connector - 4 Pin (PWM)
Heatpipe diameter - 6 mm
Heat sink colour - silver
Lighting - no
Manufacturer - Noctua
Manufacturer_code - NH-D9L
Material base plate - nickel-plated copper
Material heat sink - aluminium
max. Air volume - 75 - 99 m³/h
max. Air volume (exact) - 78,9 m³/h
max. Noise level - 20 - 24 dB(A)
max. Noise level (exact) - 22,8 dB(A)
max. RPM - 2,000 - 2,499 rpm
max. RPM (exact) - 2,000 rpm
Name - Noctua NH-D9L
name - Noctua NH-D9L CPU-Kühler - 92mm
No. of Heatpipes - 4
Other features - Heatsink dimensions (W x D x H) - 95 x 95 x 110 mm
Performance - Airflow - 78.9 m³/h
Performance - Fan diameter - 9.2 cm
Performance - Mean time between failures (MTBF) - 150000 h
Performance - Noise level (high speed) - 22.8 dB
Performance - Noise level (low speed) - 16.3 dB
Performance - Rotational speed (max) - 2000 RPM
Performance - Rotational speed (min) - 400 RPM
Performance - Suitable for - Processor
Performance - Supported processor sockets - Socket AM2
Performance - Supported processor sockets - Socket AM2+
Performance - Supported processor sockets - Socket AM3
Performance - Supported processor sockets - Socket AM3+
Performance - Supported processor sockets - Socket FM1
Performance - Supported processor sockets - Socket FM2
Performance - Type - Cooler
Power - Power supply - 1.2 W
Power - Voltage - 12 V
Producer - Noctua
producerCode - NH-D9L
ProducerCode - NH-D9L
productName - Noctua NH-D9L computer cooling component Processor Cooler 9.2 cm Metallic
productSize - Normal
ShortDescription - Chłodzenie CPU|92 PWM|
sizeX - 180
sizeY - 180
sizeZ - 180
TDP - keine Angabe
Technical_details - The NH-D9L is a premium grade dual tower CPU cooler that has been designed to provide excellent quiet cooling performance at a height of only 110mm. Its comparably low profile (15mm lower than classic 9cm tower coolers such as the NH-U9S) doesn’t only guarantee full 3U compliance but also makes the NH-D9L ideal for compact HTPC and Small Form Factor cases that have airflow paths parallel to the mainboard. Thanks to its 95x95mm footprint, the NH-D9L clears the RAM and PCIe slots on all Intel based and most AMD based ITX mainboards. The included NF-A9 premium fan supports automatic speed control via PWM for outstanding quietness of operation and a second, optional NF-A9 fan can be added for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2™ multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the NH-D9L forms a highly compact premium package for space-restricted applications. Low-profile tower design for better airflow efficiency
While most low-profile coolers blow air towards the motherboard, the NH-D9L is a tower style cooler that bows parallel to the mainboard, which allows for superior airflow efficiency in cases with front intake and rear exhaust fans that create an airflow path parallel to the mainboard. 3U compatibility
Whereas classic 9cm coolers with up to 125mm height fit 4U rack mount cases, the NH-D9L’s reduced height of 110mm allows it to also fit 3U chassis. This makes it ideal for noise-sensitive 3U applications in fields such as audio or video processing. 100% RAM compatibility
With its 95x95mm footprint, the NH-D9L does not overhang the RAM slots on current Intel and most AMD mainboards. This gives the user full access to the memory modules and guarantees 100% compatibility with tall heatspreaders or optional memory fans. 100% compatibility with PCIe cards on mini-ITX
Many Intel LGA115x based mini-ITX mainboards have the PCIe slot sitting right next to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95xmm sized NH-D9L provides full compatibility with PCIe cards, be it on ATX, microATX or ITX. NF-A9 premium fan
The highly optimised NF-A9 premium fan Featuress Noctua’s proprietary AAO frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, which allows it to further improve the renowned efficiency of Noctua’s previous 92mm models and contributes to the NH-D9L’ superior cooling performance. PWM support and Low-Noise Adaptor
The NF-A9 92mm fan supplied with the NH-D9L supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 2000 to 1550rpm using the supplied Low-Noise Adaptor for even quieter operation. Dual fan ready
The NH-D9L includes an extra set of fan mounting clips for users who want to achieve even better cooling performance by adding a second, optional NF-A9 to the front fin stack. Using the y-cable supplied with the NF-A9 PWM retail fan, both fans can be connected to one CPU fan header. SecuFirm2™ mounting system
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1155, LGA1156), LGA2011 (LGA2011-0 & LGA2011-3) and AMD (AM2+, AM3, AM3+, FM1, FM2, FM2+), the SecuFirm2™ mounting included with the NH-D9L guarantees perfect contact pressure and maximum convenience on all current sockets. Compatibility with past and future sockets
Complying with the open SecuFirm™ standard, the NH-D9L can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets. NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. 6 years warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9 Featuress an MTBF rating of more than 150.000 hours and the entire NH-D9L package comes with a full 6 years manufacturer’s warranty. Attachment screwed Socket suitable AM2, AM2+, 1156, AM3, 1155, AM3+, FM1, 2011, 1150, FM2, FM2+, 2011-3 Material Aluminum Yes Power Connection PWM fan connector Fan Bearing SSO Power Input 0 - 1.2 watt(s) Voltage Range 0 - 12 V Number of Revolutions 400 - 2000 rpm Volume 16.3 - 22.8 dB(A) Volumetric Flow 62.6 - 78.9 m3/h, 36.8 - 46.4 cfm Dimensions Fans Fan 1 92 x 92 x 25 mm Cooler 95 x 110 x 95 mm Total 95 x 110 x 95 mm Weight Cooler 531 grams Features including Thermal Paste/Pad Yes Cooling Performance 140 watt(s)
warrantyLength - 72
warrantyType - F
Weight - 1,19
weight - 1145
Weight & dimensions - Depth - 95 mm
Weight & dimensions - Fan dimensions (W x D x H) - 92 x 92 x 25 mm
Weight & dimensions - Fan thickness - 2.5 cm
Weight & dimensions - Fan weight - 103 g
Weight & dimensions - Heatsink weight - 428 g
Weight & dimensions - Height - 110 mm
Weight & dimensions - Weight - 531 g
Weight & dimensions - Width - 95 mm
Weight in g - 500 - 600 g
Weight in g (exact) - 531
