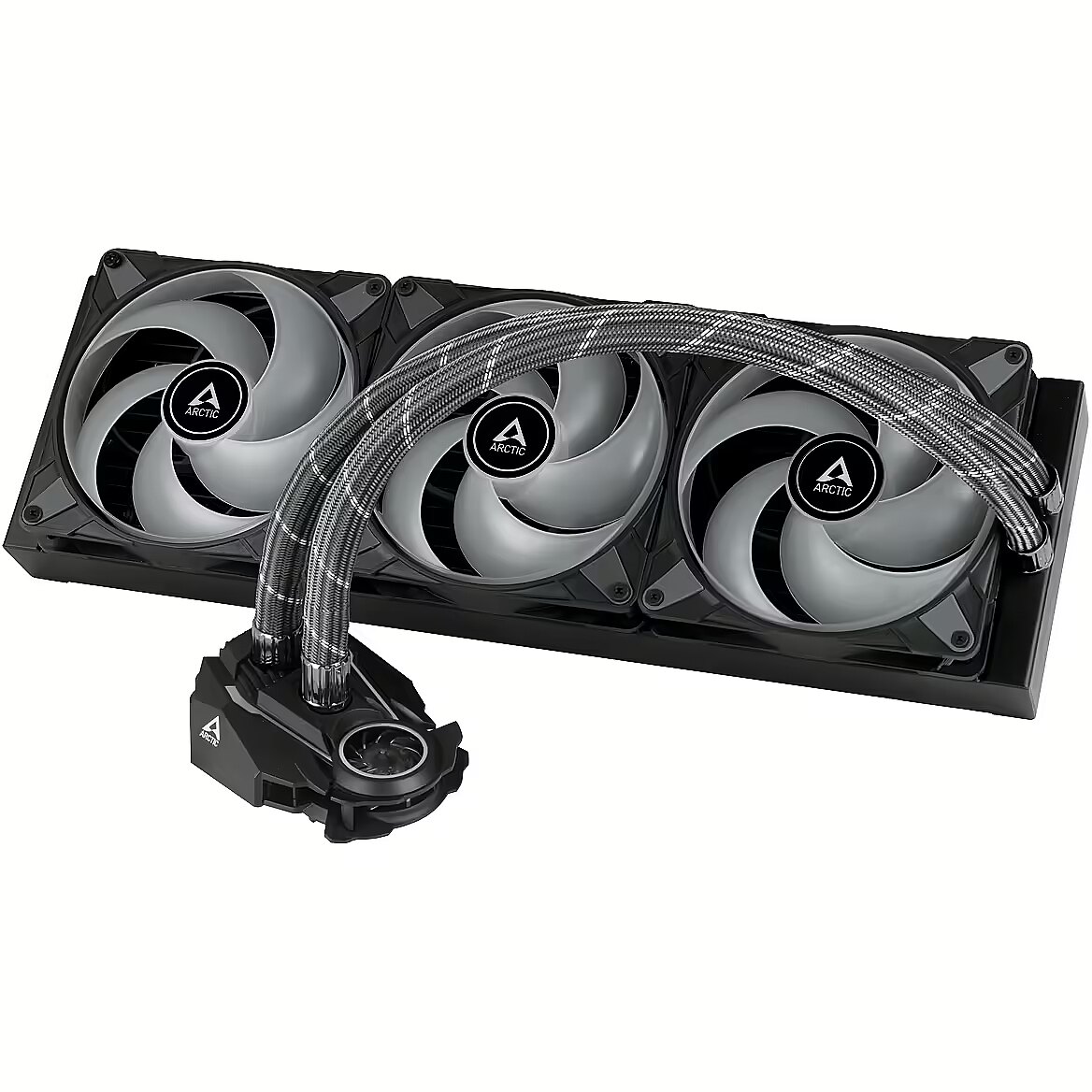

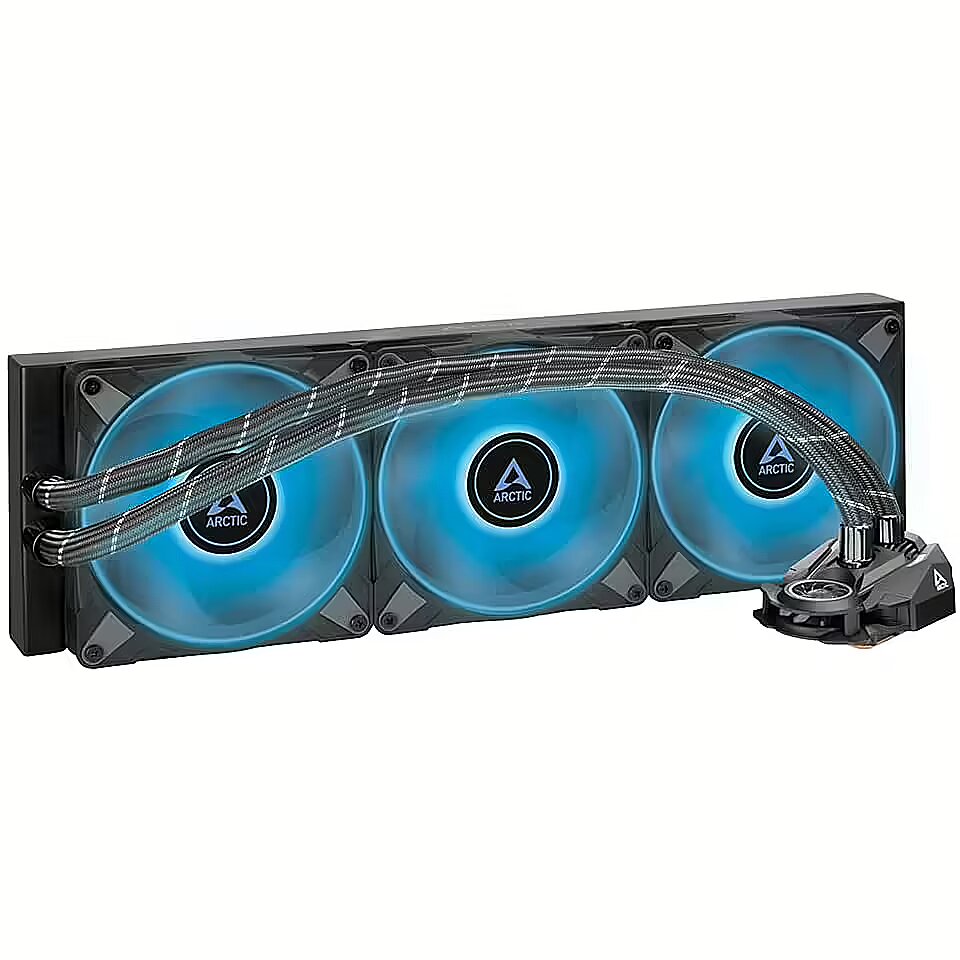

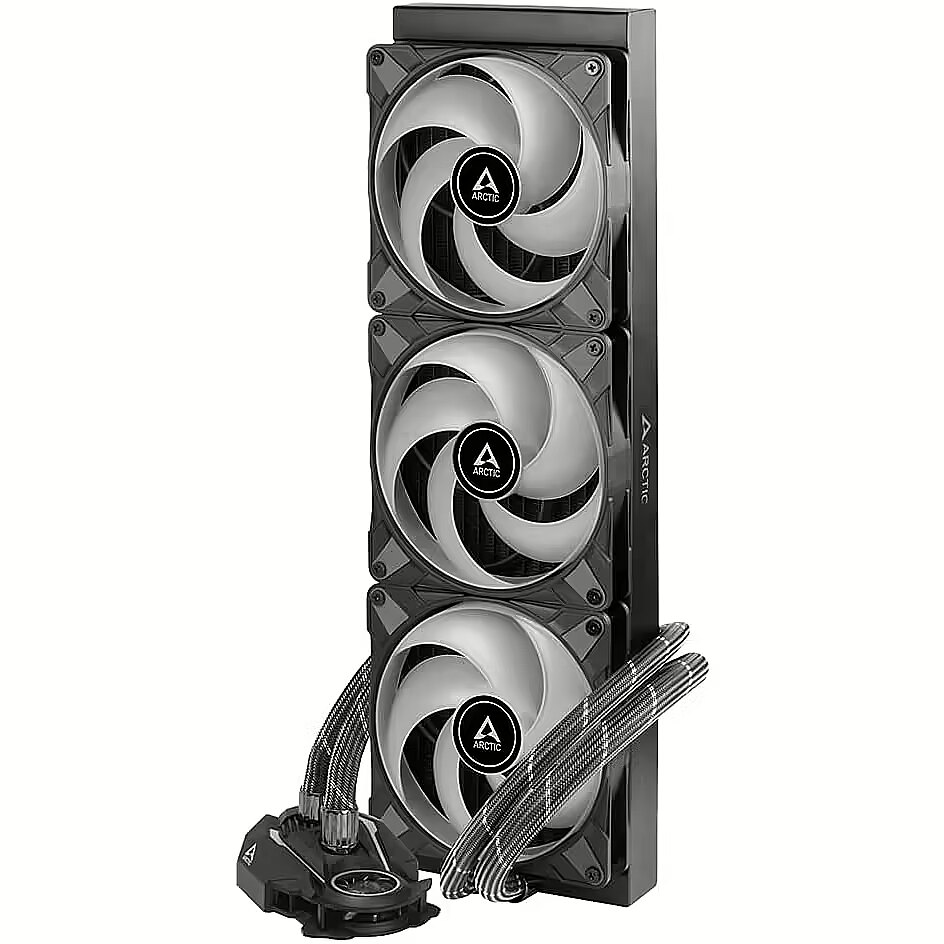

Arctic Liquid Freezer II 420 A-RGB

Brand - ARCTIC
BrandPartCode - ACFRE00109A
Category - Computer Cooling Systems
Category_1 - Computer Cases and Cooling
Category_2 - Watercooling
Design - Fan connector - 4-pin
Design - Illumination LED - Yes
Design - Number of fan blades - 5
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Radiator material - Aluminum
EAN_code - 4895213703406
GTIN - 0840033401210
GTIN - 840033401210
GTIN - 4895213703406
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - CPU Water CoolerOutstanding cooling performance through liquid cooling. ARCTIC's Premium Liquid Freezer range offers impressively high performance at moderate prices, without the complexity of conventional CPU water coolers. Completely maintenance-free, the all-in-one cooler with various models for smaller and larger cases covers all the most important current CPU sockets.COMPATIBILITY WITH LGA1700With the LGA 1700 mounting kit, the entire Liquid Freezer II Series is compatible with Intel's new Alder Lake processors. Even if the socket and heat-spreader are larger compared to the predecessor, the CPU surface has been reduced and remains centered. The Liquid Freezer II cooler completely covers this area. ARCTIC will provide the required mounting kit free of charge to customers who submit proof of purchase of a processor with an LGA 1700 socket.All Liquid Freezer II models ordered from the webshop already include the LGA1700 mounting kit.
LongProductName - Multi Compatible All-in-One CPU Water Cooler with A-RGB
LongSummaryDescription - ARCTIC Liquid Freezer II 420 A-RGB - Multi Compatible All-in-One CPU Water Cooler with A-RGB. Type: All-in-one liquid cooler, Fan diameter: 14 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1800 RPM, Noise level: 0.3 sone, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: Black
Manufacturer - Arctic
Manufacturer_code - ACFRE00109A
Name - Arctic Liquid Freezer II 420 A-RGB Black - ACFRE00109A
Other features - Country of origin - China

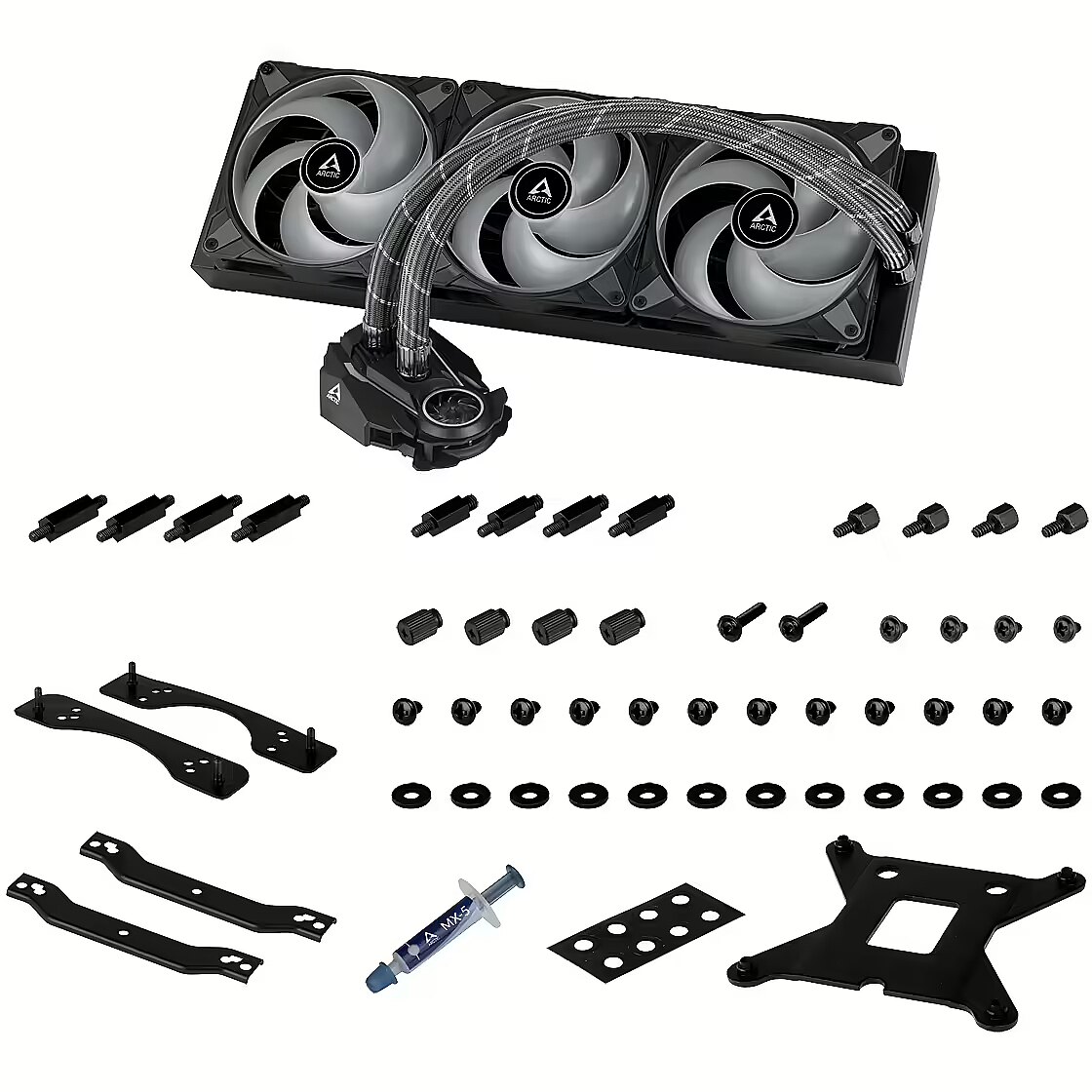

Packaging content - CPU bracket(s) - Yes
Packaging content - CPU socket spacer(s) - Yes
Packaging content - Mounting kit - Yes
Packaging content - Package type - Box
Packaging content - Thermal pad included - Yes
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Fan diameter - 14 cm
Performance - Fan static pressure - 2 mmH2O
Performance - Noise level - 0.3 sone
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump connector - 4-pin
Performance - Pump motor speed (max) - 2000 RPM
Performance - Pump motor speed (min) - 800 RPM
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 1800 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011-v3 (Socket R), LGA 2066, Socket AM3, Socket AM3+, Socket AM4, Socket AM5
Performance - Type - All-in-one liquid cooler
Performance - VRM fan speed (max) - 3000 RPM
Performance - VRM fan speed (min) - 1000 RPM
Power - Fan current - 0.17 A
Power - Fan voltage - 12 V
Power - LED voltage - 5 V
Power - Pump power consumption - 0.5 W
Power - VRM fan power consumption - 2.7 W
ProductName - Liquid Freezer II 420 A-RGB - Multi Compatible All-in-One CPU Water Cooler with A-RGB
ShortSummaryDescription - ARCTIC Liquid Freezer II 420 A-RGB - Multi Compatible All-in-One CPU Water Cooler with A-RGB, All-in-one liquid cooler, 14 cm, 200 RPM, 1800 RPM, 0.3 sone, Black
Technical_details - Liquid Freezer II 420 A-RGB 420mm, water cooling The Arctic Liquid Freezer II 420 A-RGB is a multi-compatible all-in-one water cooler with RGB lighting. The Liquid Freezer II combines the efficient PWM pump of the Liquid Freezer II with RGB fans optimized for static pressure. In this way you can achieve a completely different aesthetic with extremely low volume and equally low temperatures. The water pump has reduced hum and increased efficiency. Like the other components, it is also PWM controlled. This results in significantly lower noise levels at light and typical loads, but also much lower power consumption. Unlike most other all-in-one liquid cooling manufacturers, Arctic relies on 38 mm thick radiators with a high fin density. A larger amount of water can be used in the circuit and the cooling surface can be significantly increased. The fibre-reinforced, long EPDM tubing of the Liquid Freezer II enables installation even in large housings and effectively prevents the cooling liquid from evaporating, so that you don't have to worry about refilling the compact water cooling system. Type: Water Cooling Color: Black EAN code: 4895213703406 Manufacturer part number: ACFRE00109A Type: Water Cooling Kit Suitable sockets: 1150, 1151, 1155, 1156, AM4, 2066, 1200 Fastening: screwed Loudness: 0.3 sones Equipment: LED lighting LED lighting: Yes LED lighting: color | RGB Speed: 200 to 1,900 rpm Heat sink material: copper Fan Bearing: FDB - Fluid Dynamic Bearing Airflow: 68.9 cfm Air pressure: Up to 2.4 mm/H2O Radiator size: 3x 140 mm Pump: speeds | 800 rpm, 2,000 rpm System: closed system Power connector: 4-pin PWM Power consumption: 0.5 - 2.7 watts Feature: low power consumption, less vibration and rubber buffers, improved service life, high-quality plain bearings, PWM for synchronous pump/fan control Note: LED connector: 3-pin 5V-D-GND connector, LEDs: 12 A-RGB LEDs Dimensions: Fan1 | Quantity: 3 pieces, width: 140 mm, height: 140 mm, depth: 27 mm Dimensions: Heatsink | Width: 138mm x Height: 53mm x Depth: 458mm Dimensions: Overall | Width: 138mm x Height: 80mm x Depth: 438mm Weight: Total | 2kg
Title - ARCTIC Liquid Freezer II 420 A-RGB - Multi Compatible All-in-One CPU Water Cooler with A-RGB
URL - https://www.arctic.de/en/Liquid-Freezer-II-420-A-RGB/ACFRE00109A
WarrantyInfo - 6 years
Weight - 3,00
Weight & dimensions - Fan dimensions (W x D x H) - 140 x 140 x 27 mm
Weight & dimensions - Package depth - 447 mm
Weight & dimensions - Package height - 328 mm
Weight & dimensions - Package weight - 2.79 kg
Weight & dimensions - Package width - 158 mm
Weight & dimensions - Pump depth - 7.8 cm
Weight & dimensions - Pump height - 9.8 cm
Weight & dimensions - Pump width - 5.3 cm
Weight & dimensions - Radiator depth - 45.8 cm
Weight & dimensions - Radiator height - 13.8 cm
Weight & dimensions - Radiator width - 5.3 cm
Weight & dimensions - Tube diameter - 1.24 cm
Weight & dimensions - Tube inner diameter - 6 mm
Weight & dimensions - Tube length - 45 cm
Weight & dimensions - Weight - 2.02 kg
