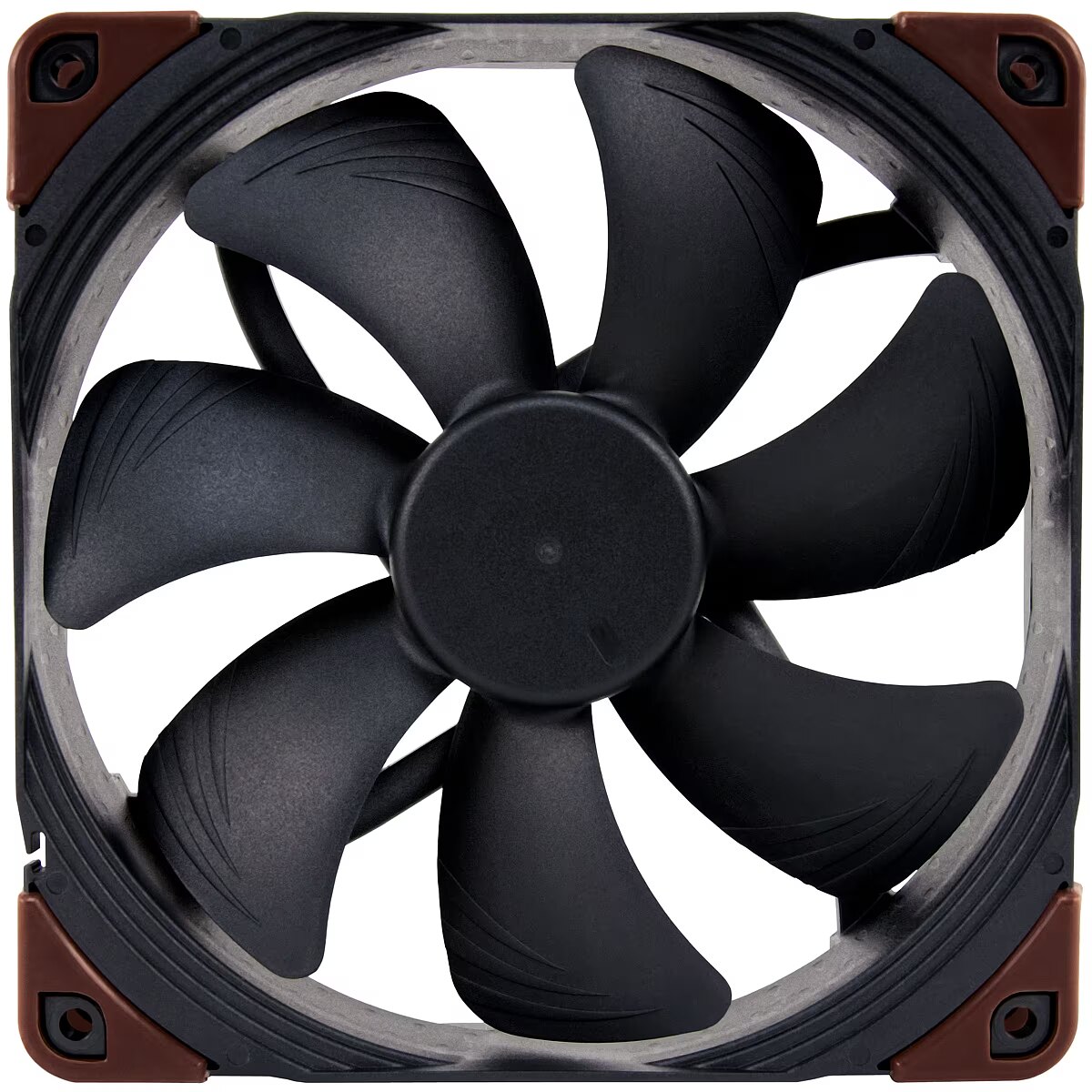

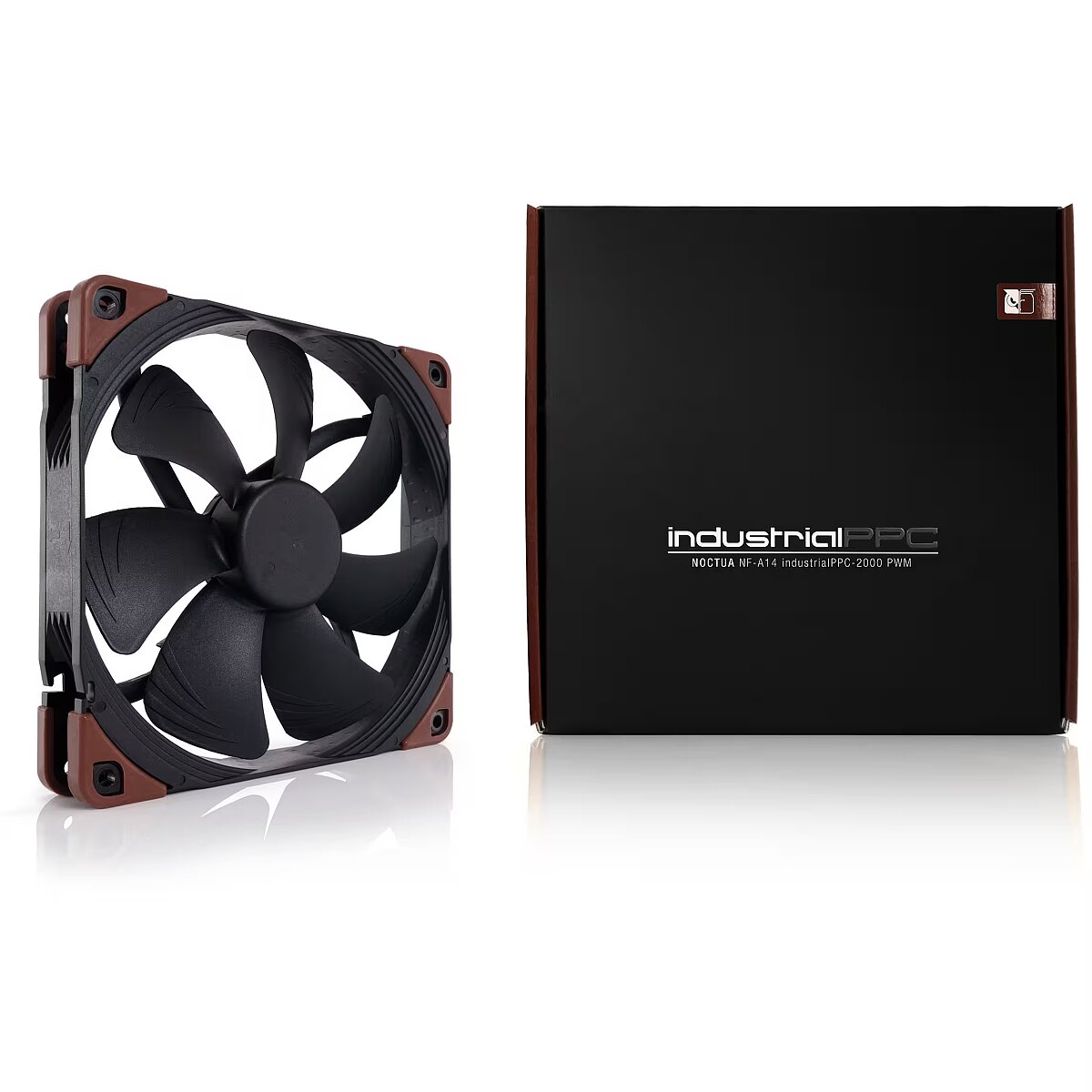

Noctua NF-A14 industrialPPC-2000 PWM

category - Aircooling|Fans|By Size|140mm PC Fans
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - NF-A14 INDUSTRIALPPC-2000 PWM
Design - Fan connector - 4-pin
Design - International Protection (IP) code - IP52
Design - Number of fan blades - 7
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Design - Product colour - Bronze
dimensionalWeight - 307
ean - 4716123315438
EAN_code - 4716123315438
Manufacturer - Noctua
Manufacturer_code - NF-A14 iPPC-2000 PWM
Name - Noctua NF-A14 Indu. 2000 PWM - 140mm - industrial PPC
name - Noctua NF-A14 industrialPPC-2000 PWM - 140mm
Packaging content - Number of screws - 4
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 182.5 m³/h
Performance - Bearing type - Self-Stabilising Oil-pressure Bearing (SSO)
Performance - Fan diameter - 14 cm
Performance - Maximum air pressure - 4.18 mmH2O
Performance - Mean time between failures (MTBF) - 150000 h
Performance - Noise level (high speed) - 31.5 dB
Performance - Number of speeds - 3
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 2000 RPM
Performance - Rotational speed (min) - 500 RPM
Performance - Suitable location - Computer case
Performance - Type - Fan
Power - Power consumption (typical) - 2.18 W
Power - Rated current - 0.18 A
Power - Voltage - 12 V
producerCode - NF-A14 IPPC-2000 PWM
productName - Noctua NF-A14-Industrial PPC-2000 PWM Computer case Fan 14 cm Black, Brown 1 pc(s)
productSize - Normal
sizeX - 203
sizeY - 194
sizeZ - 39
Technical_details - Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC Suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability. Attachment screwed Power Connection PWM fan connector Fan Bearing SSO Power Input 0 - 2.16 watt(s) Voltage Range 0 - 12 V Number of Revolutions 500 - 2000 rpm Volume 0 - 31.5 dB(A) Volumetric Flow 0 - 182.5 m3/h, 0 - 107.4 cfm Dimensions Fans Fan 1 140 x 140 x 25 mm
warrantyLength - 72
warrantyType - F
Weight - 0,41
weight - 315
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Width - 140 mm
