Accessories included - - IB-148SSK-B pocket
- Sata cable
- 2 keys
- 8 screws
- Quick guide
Brand - ICY BOX
BrandPartCode - 22059
Category - Drive Bay Panels
Category_1 - Hard Drives and Pendrives
Category_2 - Mobile HDD Racks
Color - Black
Connectors - SATA

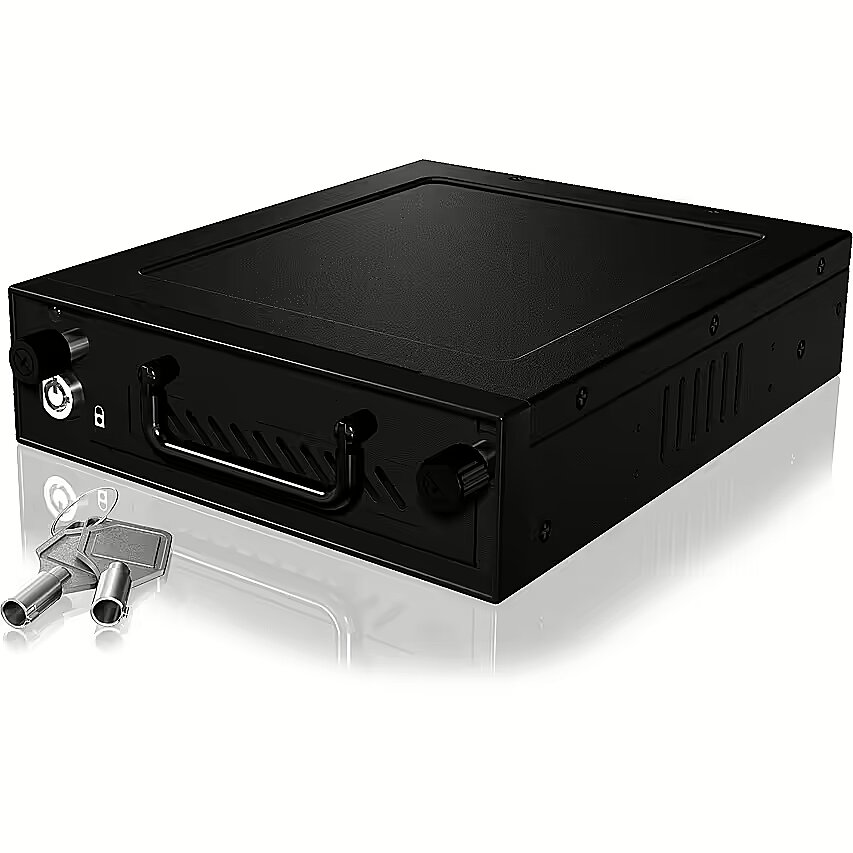

Description - IB-148SSK-B Pocket for 3.5" (8.89 cm) and 2.5" (6.35 cm) SATA/SAS hard disk
Functions:
- For 3.5" and 2.5" HDD/SSD SATA/SAS hard drives
- Solid workmanship
- Metal construction
- SATA III and SAS II up to 6 Gb/s
- A lock and two screws protect against unauthorized access
- Includes a SATA cable (490 mm) with a safety clip
- Plug & Play and Hot Swap
- Installation in the bay 5.25"
- Built-in fan 30x30x10 mm
Chill and safety
The pocket has an efficient cooling system. Thanks to the metal housing, the heat can be dissipated by the fan even at full load. The lock and screws we fix during installation give us protection during transport and operation.
Solid frame
Made of high quality metal, a solid frame for 2.5" or 3.5" SATA/SAS hard drives supports discs with a maximum height of 2.54cm. It fits the standard 5.25" bay, and the built-in 30mm fan ensures active air circulation and is ideal for the industry.
The two are safer
For this reason, our pocket has been equipped with a lock that protects the drive against unauthorized access. The front cover can also be secured by screwing two screws.
Very fast
The internal chipset supports SATA III and SATA II at 6Gb/s. Thanks to this, even large files are transferred very quickly. If you need to replace your hard disk quickly, Hot Swap and Plug & Play will make things easier. Thanks to them, you can do it without switching the device off and without the need for additional drivers!
dimension depth - 215 mm
dimension height - 50 mm
Dimensions - 180 x 146 x 43 mm
dimension weight - 1050 g
dimension width - 155 mm
ean - 4250078188544
EAN_code - 4250078188544
Features - Data transfer rate - 6 Gbit/s
Features - Fan diameter - 3 cm
Features - HDD interface - SATA, SATA II, SATA III, Serial Attached SCSI (SAS)
Features - HDD size - 2.5/3.5"
Features - Hot-swap - Yes
Features - Key lock - Yes
Features - LED indicators - Yes
Features - Material - Metal
Features - Number of fans - 1 fan(s)
Features - Product colour - Black
Features - Size (imperial) - 13.3 cm (5.25")
Features - Supported storage drive heights - 25.4 mm
Features - Type - Storage drive tray
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
GTIN - 4250078188544
GTIN - 4250078188568
guarantee - 24
guarantee_type - normal
HDD interface - SAS 6 Gb/s
HDD interface - SATA I - 1,5 Gb/s
HDD interface - SATA II - 3 Gb/s
HDD interface - SATA III - 6 Gb/s
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 84733080
Logistics data - Master (outer) case gross weight - 12.9 kg
Logistics data - Master (outer) case height - 180 mm
Logistics data - Master (outer) case length - 335 mm
Logistics data - Master (outer) case width - 425 mm
Logistics data - Products per master (outer) case - 12 pc(s)
LongDesc - That robust frameThis mounting frame for 2.5" and 3.5" SATA/SAS HDD in height of up to 2.54 cm is made out of the highest quality metal. It is to be mounted in a 5.25" bay. An integrated 30 mm fan makes sure the hot air from inside is transferred outside. This make this mobile rack to an ideal partner in the industry area.Two is betterThat is why our mobile rack has a lock to it. Additionally, two thumb screws can be added to the front of the rack for maximum security.Faster on the wayThe internal chipset support SATA III and SAS II with 6 Gbit/s. In this way the data is transmitted in a breeze. Thanks to the support of HotSwap and Plug & Play it is as easy as it can get to replace an HDD.
LongProductName - Mobile rack for 1x HDD/SSD for 1x 5.25" bay with lock and fan
LongSummaryDescription - ICY BOX IB-148SSK-B. Size (imperial): 13.3 cm (5.25"), Type: Storage drive tray, HDD size: 2.5/3.5". Width: 146 mm, Depth: 180 mm, Height: 43 mm. Package width: 155 mm, Package depth: 203 mm, Package height: 50 mm. Cables included: SATA. Products per master (outer) case: 12 pc(s), Master (outer) case width: 425 mm, Master (outer) case length: 335 mm
Manufacturer - Icy Box
Manufacturer_code - 22059
name - IB-148SSK-B 3,5"/2,5" HDD SATA/SAS
Name - ICY BOX IB-148SSK-B black 5.25 inch - for 3.5 inch & 2.5 inch SATA/SAS HDD/SSD
Other features -
Packaging content - Cables included - SATA
Packaging content - Manual - Yes
Packaging content - Screws included - Yes
Packaging data - Package depth - 203 mm
Packaging data - Package height - 50 mm
Packaging data - Package weight - 1.03 kg
Packaging data - Package width - 155 mm
Ports & interfaces - External SATA ports quantity - 2
producer - IcyBox
ProductName - IB-148SSK-B
ShortSummaryDescription - ICY BOX IB-148SSK-B, 13.3 cm (5.25"), Storage drive tray, 2.5/3.5", SATA, SATA II, SATA III, Serial Attached SCSI (SAS), Black, Metal
Stuff - Metal
System requirements - Linux operating systems supported - Yes
System requirements - Mac compatibility - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Title - ICY BOX IB-148SSK-B 13.3 cm (5.25") Storage drive tray Black
Type - Internal enclosure
URL - https://icybox.de/en/product.php?id=340
vendpn - IB-148SSK-B
WarrantyInfo -
Weight - 1,02
Weight - 970 g
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 43 mm
Weight & dimensions - Weight - 970 g
Weight & dimensions - Width - 146 mm
