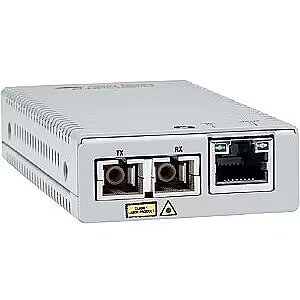

Allied Telesis TAA 10/100/1000T TO 1000LX/LC SM MINI MEDIA+ RATE CONVERTER 10

ARTIKEL1 - TAA 10/100/1000T TO 1000LX/LC
ARTIKEL2 - SM MINI MEDIA+ RATE CONVERTER 10
Brand - Allied Telesis
BrandPartCode - 990-006321-60
Category - Network Media Converters
Certificates - Certification - UL60950-1
EN60950-1
FCC Class A
EN55022 Class A
CISPR 22 Class A
C-TICK
VCCI
EANCode -
EANCode - 0767035216409
Features - Internal - No
Features - Product colour - Grey
GRUPPE1 - Network
GRUPPE2 - Media Converters
GTIN - 0767035216409
GTIN - 767035216409
GTIN - 0767035221649
GTIN - 767035221649
HERSTELLER - ALLIED TELESIS
HSTNUMMER - AT-MMC2000LX/LC-960
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - OverviewThe Allied Telesis MMC Series of mini media converters leverages its smaller size to not only help the environment with a small carbon footprint, but also to save space in its working environment. Despite its compact size, the MMC Series delivers all the power and functionality of standard size media converters.Extend NetworksThe MMC Series are available in 100Mbps or 1000Mbps models. Depending on the model chosen, the fiber-optic port has options for fixed SC, ST, LC or SFP connectors capable of multi-mode or single-mode fiber connectivity. The twisted-pair copper port has an RJ-45 connector supporting either 100Mbps or 1000Mbps, with a maximum operating distance of 100 meters (328 feet).VLAN SupportMany new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC Series are fully compatible with these long packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets, making them unsuitable for modern networks.Small and FlexibleThe smaller size and external power supply of the MMC Series allows them to be used almost anywhere.Smart MissingLink (SML)The Smart MissingLink™ (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.Smart Link RestorationSmart Link restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them.Power SavingThe MMC Series continues the Allied Telesis commitment to the environment with over 50% power savings. With just 1.7W of power usage, the MMC Series media converters are some of the most efficient in the market today.Link TestThe link test is a fast and easy way for you to test the connections between the media converter ports and the connected end nodes. If a network problem occurs, you can perform a link test to determine which port is experiencing a problem, and focus your troubleshooting efforts on the right cable or end node.
LongProductName - TAA, 10/100/1000T to 1000LX/SC Single Mode Mini Media & Rate Converter, 10km
LongSummaryDescription - Allied Telesis AT-MMC2000LX/LC-TAA-60. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Converter output interface: 1000Base-LX. Maximum transfer distance: 10000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Grey. Fiber optic connector: LC, Connectivity technology: Wired. Input voltage: 12 V, Input current: 0.14 A
Network - Converter input interface - 10Base-T, 100Base-T, 1000Base-T
Network - Converter output interface - 1000Base-LX
Network - Duplex system - Full
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Fiber ethernet cabling technology - 1000BASE‑LX
Network - Jumbo frames support - Yes
Network - Maximum data transfer rate - 1000 Mbit/s
Network - Networking standards - IEEE 802.1Q
Network - VLAN support - Yes
Operational conditions - Operating altitude - 0 - 3048 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -30 - 70 °C
Performance - Fiber mode structure - Single-mode
Performance - Maximum transfer distance - 10000 m
Performance - Wavelength - 1310 nm
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Fiber optic connector - LC
Ports & interfaces - Fiber ports quantity - 2
Power - Input current - 0.14 A
Power - Input voltage - 12 V
ProductName - AT-MMC2000LX/LC-TAA-60
ShortSummaryDescription - Allied Telesis AT-MMC2000LX/LC-TAA-60, 1000 Mbit/s, 10Base-T, 100Base-T, 1000Base-T, 1000Base-LX, IEEE 802.1Q, Gigabit Ethernet, 10,100,1000 Mbit/s
Stck_Kart - 14
Stck_Kart - 9998
Stck_Pal - 0
Stck_Pal - 30
Storno - Y
Title - Allied Telesis AT-MMC2000LX/LC-TAA-60 network media converter 1000 Mbit/s 1310 nm Single-mode Grey
URL - https://www.alliedtelesis.com/en/products/media-converters/mmc2000lxlc
WarrantyInfo - 2 years
Weight & dimensions - Depth - 101.6 mm
Weight & dimensions - Height - 21.8 mm
Weight & dimensions - Weight - 170 g
Weight & dimensions - Width - 56 mm
