ARTIKEL1 - 1-PORT GIGABIT POE+ SPLITTER
ARTIKEL2 - .
Brand - D-Link
BrandPartCode - DPE-301GS
Category - Network Splitters
Category_1 - Cables
Category_2 - Other Cables
Code - DPE-301GS
Design - Certification - CE, FCC, VCCI, RCM
Design - Product colour - White
Design > Colour of product - White
Design > Rack mounting - No
EAN - 790069416675
EANCode - 0790069416675
EAN_code - 0790069416675
Gross weight - 0.241 kg
GRUPPE1 - Network
GRUPPE2 - Communication / Network Accs
GTIN - 790069416675
GTIN - 0790069416675
HERSTELLER - D-LINK
Hoehe - 0.07
HSTNUMMER - DPE-301GS
Link - http://www.blobs.lt/products/0/1/1/9/5/1/ba13f3973989fefc55ac1c1236e6690f.pdf
Logistics data - Pallet gross length - 120 cm
Logistics data - Pallet gross width - 110 cm
Logistics data - Products per shipping (inner) case - 40 pc(s)
Logistics data - Shipping (inner) case height - 32.5 cm
Logistics data - Shipping (inner) case length - 44.5 cm
Logistics data - Shipping (inner) case width - 33.2 cm

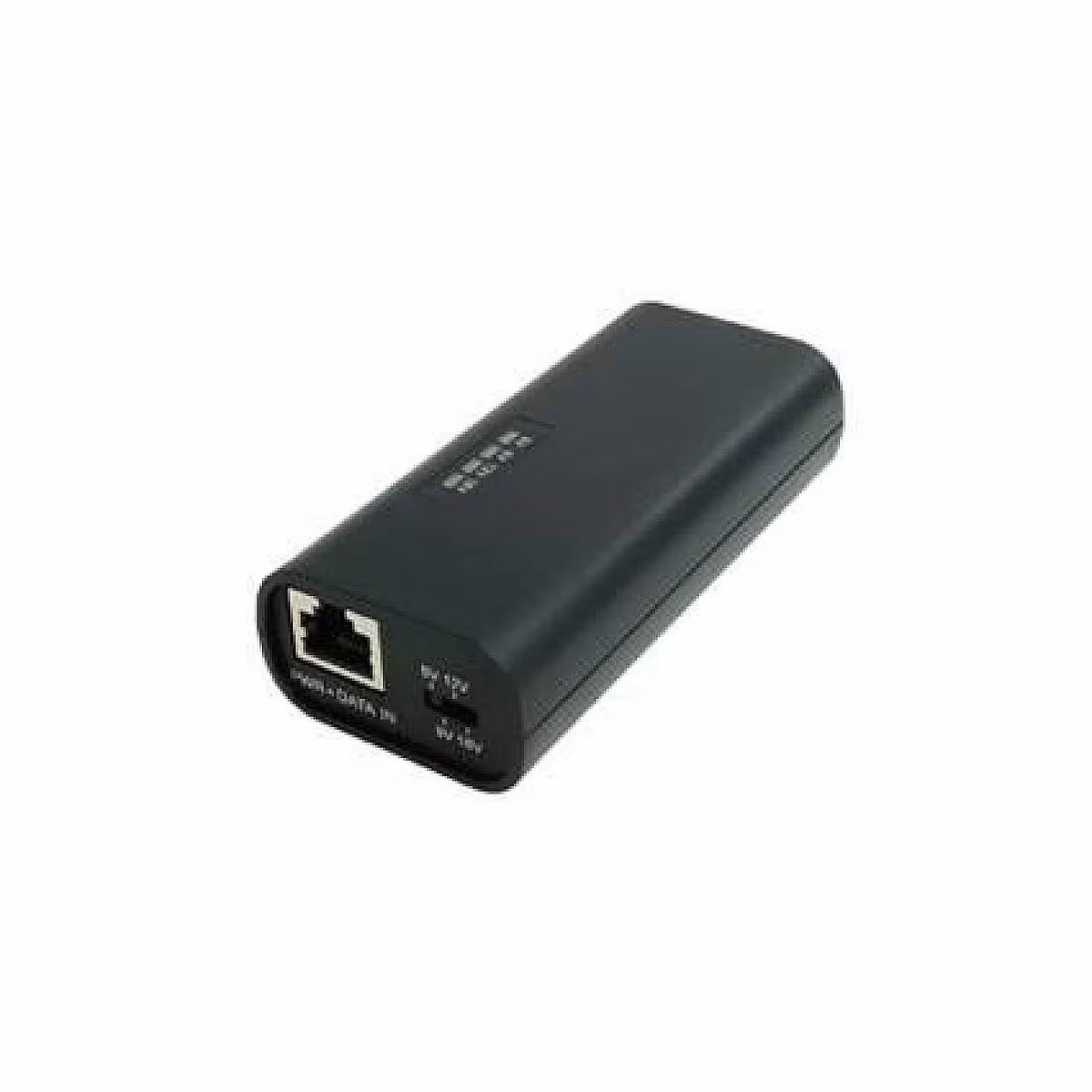

LongDesc - The DPE-301GS PoE splitter is used with end devices such as wireless access points, IP cameras and VoIP phones that don’t natively support PoE, but rather require DC power input of 5V, 9V or 12V. It receives PoE power on a network cable from a PoE switch or midspan injector, and splits the Ethernet and DC power into two separate cables. One cable provides the DC power, and the other cable provides the Ethernet signal. Users can select from 5VDC, 9VDC and 12VDC power for their device using a selectable DIP switch on the device.The DPE-301GS PoE splitter is typically located near the end device. It has two 10/100/1000 RJ-45 ports. One port is for PoE IN, which is the network connection and is usually connected to a remote PoE switch or injector. The other port is for LAN OUT, which is the connection that provides the Ethernet signal to the end device. The DPE-301GS also has a 5.5mm DC OUT port. Two adapter cables are supplied; either one may be connected to this port, depending on whether 5.5mm or 3.8mm interface is required for the end device.
LongProductName - 1-Port Gigabit PoE Splitter, White
LongSummaryDescription - D-Link DPE-301GS 1 Port Gigabit 30W PoE Splitter. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: White, Certification: CE, FCC, VCCI, RCM. Output power: 32.4 W. Weight: 98 g, Package width: 106 mm, Package depth: 156 mm. Products per shipping (inner) case: 40 pc(s), Shipping (inner) case length: 44.5 cm, Shipping (inner) case width: 33.2 cm
Manufacturer - D-Link
Manufacturer_code - DPE-301GS
Name - D-Link DPE-301GS PoE+ Splitter GE/30W
Name - D-Link | DPE-301GS Gigabit PoE Splitter Compliant with 802.3af/802.3at | 10,100,1000 Mbit/s | Ethernet LAN (RJ-45) ports 2
Networking > Ethernet interface type - Fast, Gigabit
Networking > Networking standards - IEEE 802.3, IEEE 802
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -30 - 70 °C
Operational conditions > Operating relative humidity (H-H) - 5 - 95 %
Operational conditions > Operating temperature (T-T) - 0 - 50 °C
Operational conditions > Storage relative humidity (H-H) - 5 - 95 %
Operational conditions > Storage temperature (T-T) - -30 - 70 °C
Other features > Operating temperature (T-T) - 32 - 122 °F
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 158.00 mm
Package features > Gross height (mm) - 61.00 mm
Package features > Gross width (mm) - 108.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 500 pc(s)
Package features > Paper/Pasteboard - 27 g
Package features > Tare weight (kg) - 0.027 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content > Number of products included - 1 pc(s)
Performance - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Performance > Certification - CE, FCC, VCCI, RCM
Performance > Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces > DC-in jack - Yes
Ports & interfaces > Ethernet LAN (RJ-45) ports - 2
Power - Output power - 32.4 W
Power - Power over Ethernet (PoE) - Yes
Power > AC adapter frequency - 50/60 Hz
Power > AC adapter input voltage - 100 - 240 V
Power > Output power - 32.4 W
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Producer product name - DPE-301GS Gigabit PoE Splitter Compliant with 802.3af/802.3at
ProductName - D-Link DPE-301GS 1 Port Gigabit 30W PoE Splitter
ShortSummaryDescription - D-Link DPE-301GS 1 Port Gigabit 30W PoE Splitter, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, White, CE, FCC, VCCI, RCM, 32.4 W, 0 - 50 °C, -30 - 70 °C
Stck_Kart - 9998
Stck_Pal - 0
Storno - N
Technical details > Net weight - 0.214 kg
Technical details > Producer - D-Link
Technical details > Warranty - 24 month(s)
Title - D-Link DPE-301GS 1 Port Gigabit 30W PoE Splitter
URL - https://eu.dlink.com/uk/en/products/dpe-301gs-gigabit-poe-plus-splitter
Warranty - 24
WarrantyInfo - 2 Years
Weight - 0,26
Weight & dimensions - Package depth - 156 mm
Weight & dimensions - Package height - 61 mm
Weight & dimensions - Package weight - 230 g
Weight & dimensions - Package width - 106 mm
Weight & dimensions - Weight - 98 g
Weight & dimensions > Dimensions (WxDxH) - 109.8 x 62.2 x 24.5 mm
Weight & dimensions > Weight - 98 g
