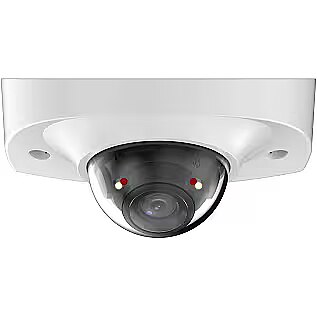

Dahua Dome, 1520p, 4MP, White

Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Dome
Category Code - FNC
Description - IPC-HDBW2449F-AS-IL 4MP Smart Dual Light Fixed-focal Dome WizSense Network Camera >4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image. >Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440@25/30 fps. >H.265 codec, high compression rate, ultra-low bit rate. >Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m. >ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. >Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. >Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human). >Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. >Supports max. 256 G Micro SD card; built in Mic. >12 VDC/PoE power supply, easy for installation. >IP67 and IK10 protection. >SMD Plus.
Dimensions - 55.0 mm × Φ108.9 mm
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Focal Length - 2.8 mm; 3.6 mm
Full Description Line - Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.8 mm; 3.6 mm|IR Illumination|Sensor size 1/2.9" CMOS|Microphone Built-in|Lens Mount M12|Min. Illumination 0.006 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Power options PoE/12V|Power supply requirements Basic: 2.3 W (12 VDC), 2.8 W (PoE); Max.: 7.1 W (12 VDC), 8.5 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)|Operating temperature range –40 °C to +60 °C|Dimensions 55.0 mm × Φ108.9 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.006 Lux
Model - IPC-HDBW2449F-AS-IL-0280B
Network Camera Type - Outdoor/Fixed
Operating temperature range - –40 °C to +60 °C
Pixel Resolution - 4 Mega Pixel
Power consumption - 2.3 Watts
Power options - 12V/PoE
Power supply requirements - Basic: 2.3 W (12 VDC), 2.8 W (PoE); Max.: 7.1 W (12 VDC), 8.5 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)
RJ45 Input/Output connectors - 1
Sensor size - 1/2.9" CMOS
Shipping Box Depth Shipping/Package Box Dimensions - 14 cm
Shipping Box Height Shipping/Package Box Dimensions - 8.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.54 kg
Shipping Box Width Shipping/Package Box Dimensions - 13.5 cm
Unit Box Height - 0.085
Unit Box Length - 0.14
Unit Box Width - 0.135
Unit Brutto Volume - 0.001607 cubm
Unit Gross Weight - 0.54 kg
Unit Net Weight - 0.41 kg
Vendor Homepage - www.dahuasecurity.com/es/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Illuminators/IPC-HDBW2449F-AS-IL
Warranty - 36 months
