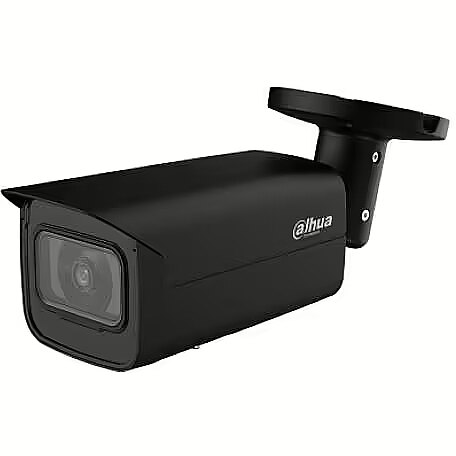

Dahua BULLET/HFW5541T-ASE-0280B-S3-B, 1668p, 5MP, Black

Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Bullet
Category Code - FNC
Colour - Black
Description - 1/2.7” 5Megapixel progressive scan CMOS, 2960 × 1668 @30FPS Minimum illumination: 0.0009 Lux @ F1.6 (Color,30IRE); 0.0005 Lux @ F1.6 (B/W,30IRE); 0 lux (Illuminator on) True Day/Night with ICR Filter, BLC / HLC / True WDR (120dB), 3D DNR, Defog 2.8 mm fixed lens (111°) Up to 80 meters Smart IR Illumination H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG, ONVIF (Profile S/Profile G/Profile T); CGI Micro SD: Max 512GB, 1/1 Audio I/O, 1/1 Alarm I/O With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc. Bullet design, metal shell, IP67, IK10, -40°C~+60°C Power ePoE / PoE / 12VDC power, 9.8W max Free IP monitoring software available
Dimensions - 244.1 × 79.0 × 75.9 mm
Effective pixels - 2960 (H) × 1668 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8 mm
Full Description Line - Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7”|Lens Mount M12|Min. Illumination 0.0005 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 512GB|Power options PoE/12V|Power supply requirements ePoE / PoE / 12VDC power, 9.8W max|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour Black|Dimensions 244.1 × 79.0 × 75.9 mm
IR Illumination - Yes
Lens Mount - M12
Min. Illumination - 0.0005 Lux
Model - IPC-HFW5541T-ASE-0280B-S3-B
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - -40°C~+60°C
Pixel Resolution - 5 Mega Pixel
Power consumption - 9.8 Watts
Power options - 12V/PoE
Power supply requirements - ePoE / PoE / 12VDC power, 9.8W max
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7”
Shipping Box Depth Shipping/Package Box Dimensions - 30 cm
Shipping Box Height Shipping/Package Box Dimensions - 11 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 12 cm
Supports card capacities up to - 512GB
Unit Box Height - 0.11
Unit Box Length - 0.3
Unit Box Width - 0.12
Unit Brutto Volume - 0.00396 cubm
Unit Gross Weight - 1.2 kg
Unit Net Weight - 0.82 kg
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HFW5541T-ASE-S3=S3
Warranty - 36 months
