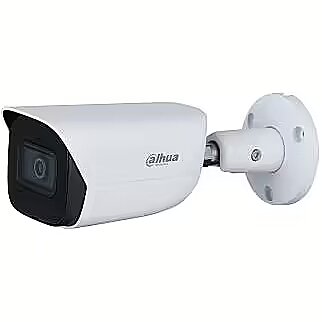

Dahua BULLET/HFW5541E-ASE-0360B-S3, 1668p, 5MP, White

Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Bullet
Category Code - FNC
Colour - White
Description - 1/2.7” 5Megapixel progressive CMOS, 2960 × 1668 @ 30FPS max Minimum illumination: 0.0009 lux @F1.6 (Color, 30 IRE); 0.0005 lux @F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) True Day/Night (ICR), BLC/HLC/True WDR 120 dB/3D DNR 3.6 mm fixed lens (92° HFOV) Up to 50 meters IR LED Illumination H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI Built-in MIC, 1/1 Audio I/O, 1/1 Alarm I/O Micro SD card up to 256GB supported Metal case, IP67, -40°C~+60°C, PoE / 12VDC power, 6.8W max With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, people counting, etc. Free IP monitoring software available
Dimensions - 192.7 mm × 70.5 mm × 66.4 mm
Effective pixels - 2960 (H) × 1668 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 3.6 mm
Full Description Line - Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 3.6 mm|IR Illumination|Sensor size 1/2.7”|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0009 Lux|Effective pixels 2960 (H) × 1668 (V)|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power, 6.8W max|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour White|Dimensions 192.7 mm × 70.5 mm × 66.4 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0009 Lux
Model - IPC-HFW5541E-ASE-0360B-S3
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - -40°C~+60°C
Pixel Resolution - 5 Mega Pixel
Power consumption - 6.8 Watts
Power options - 12V/PoE
Power supply requirements - PoE / 12VDC power, 6.8W max
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7”
Shipping Box Depth Shipping/Package Box Dimensions - 22 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.78 kg
Shipping Box Width Shipping/Package Box Dimensions - 11 cm
Supports card capacities up to - 256GB
Unit Box Height - 0.1
Unit Box Length - 0.22
Unit Box Width - 0.11
Unit Brutto Volume - 0.00242 cubm
Unit Gross Weight - 0.78 kg
Unit Net Weight - 0.59 kg
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HFW5541E-ASE=S3
Warranty - 36 months
