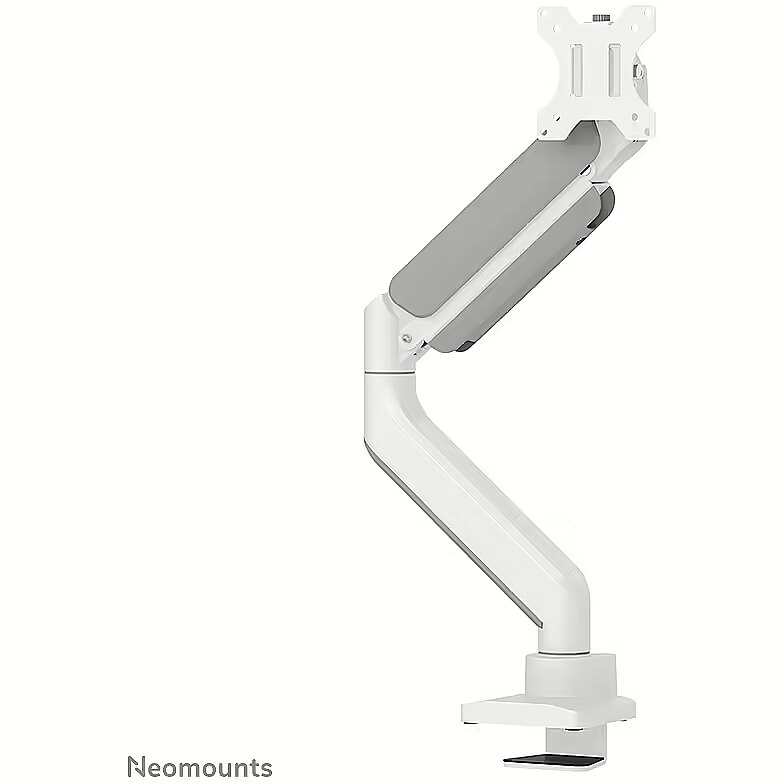

Newstar Full motion desk monitor arm, 17-42"

75 mm x 75 mm VESA mounting interface - Yes
100 mm x 100 mm VESA mounting interface - Yes
Brand - Neomounts
BrandPartCode - DS70-450WH1
Category - Monitor Mounts & Stands
Category Code - MAS
Colour - White
Colour of product - White
Description - NEOMOUNTS BY NEWSTAR DS70-450WH1 FULL MOTION MONITOR DESK MOUNT FOR 17-42" SCREENS - WHITE

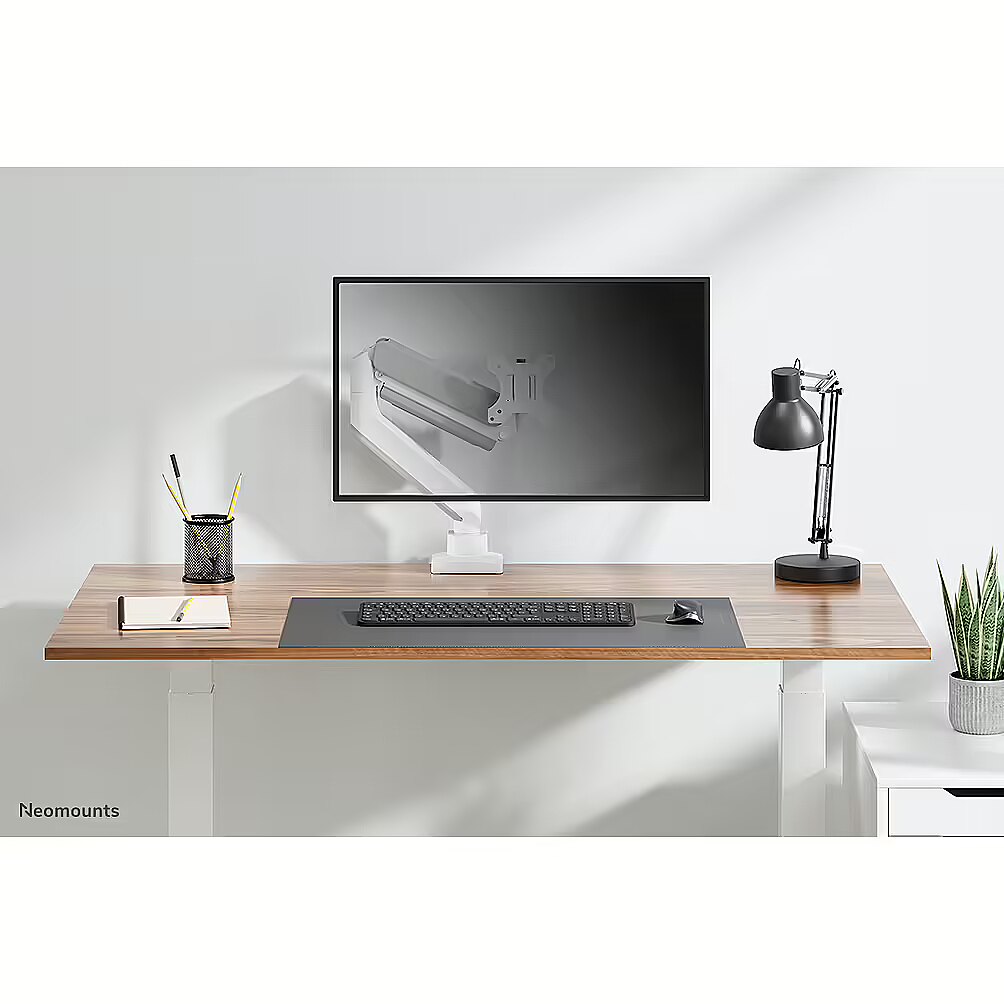

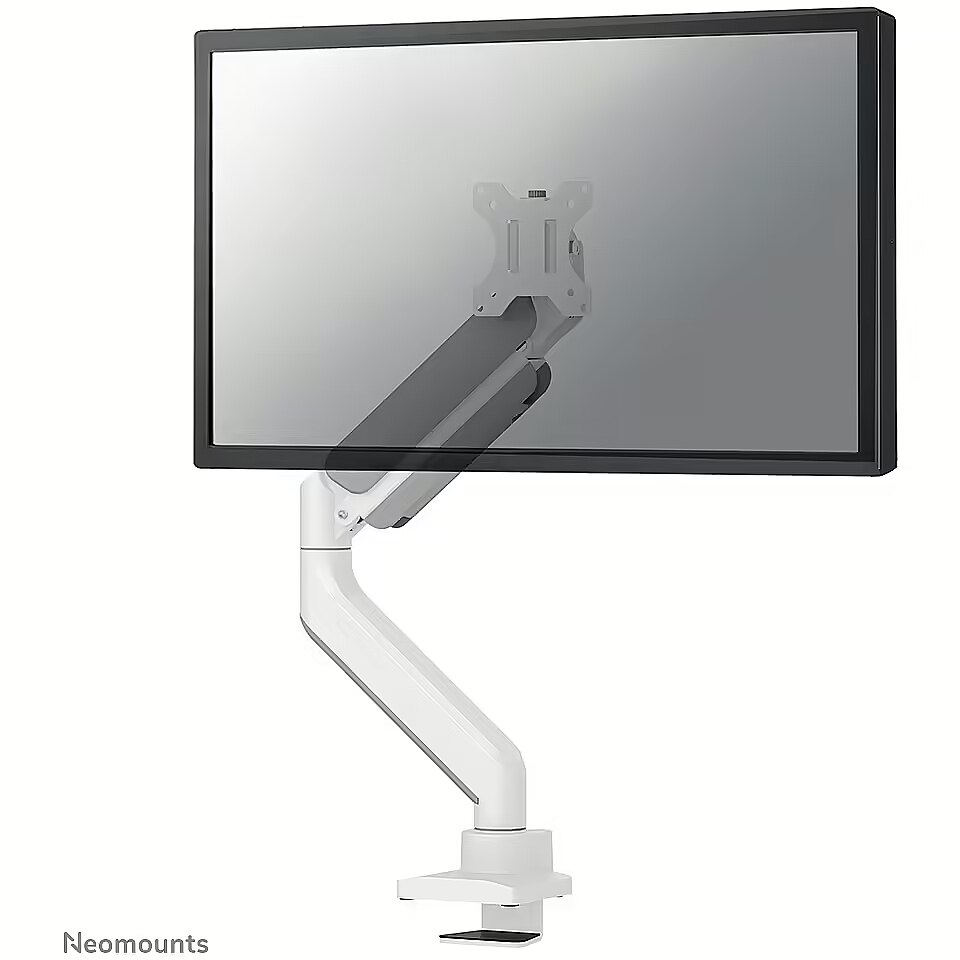

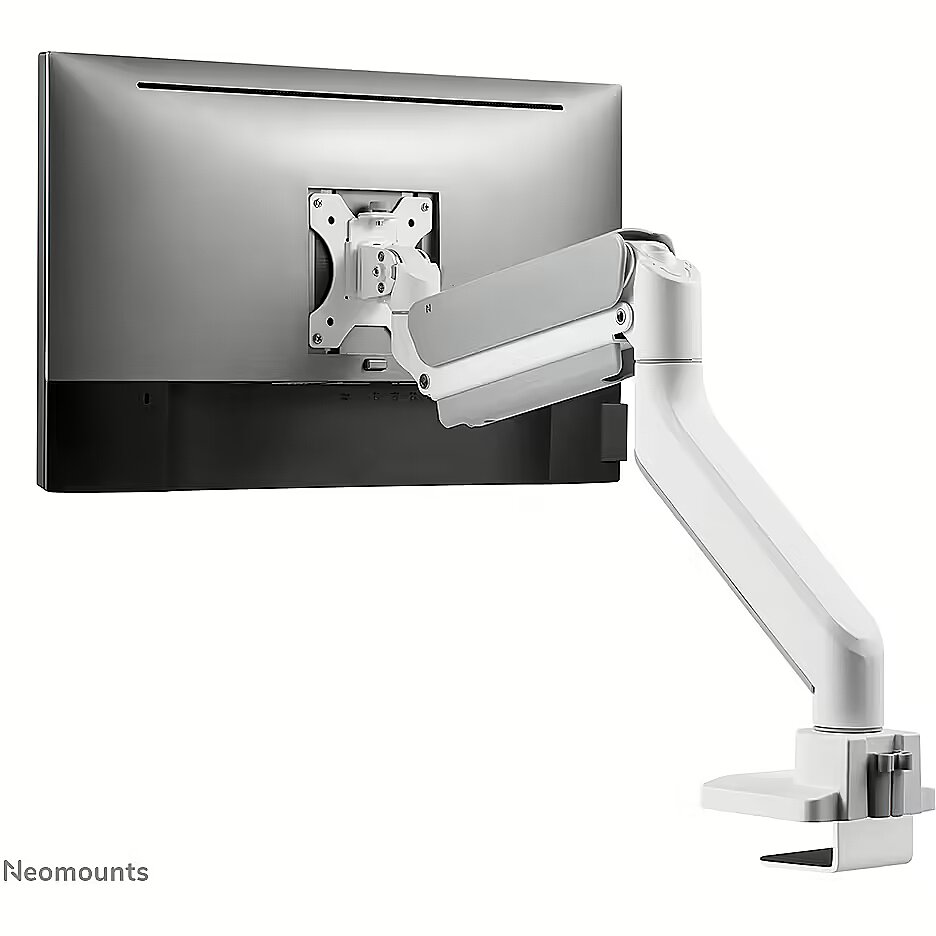

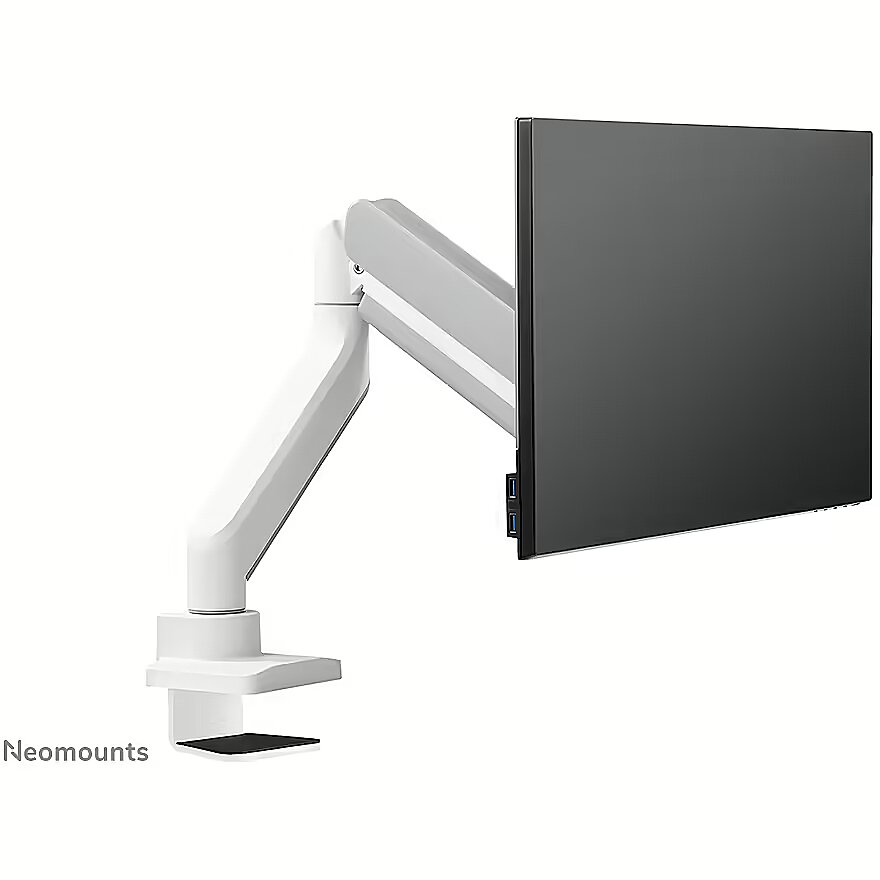

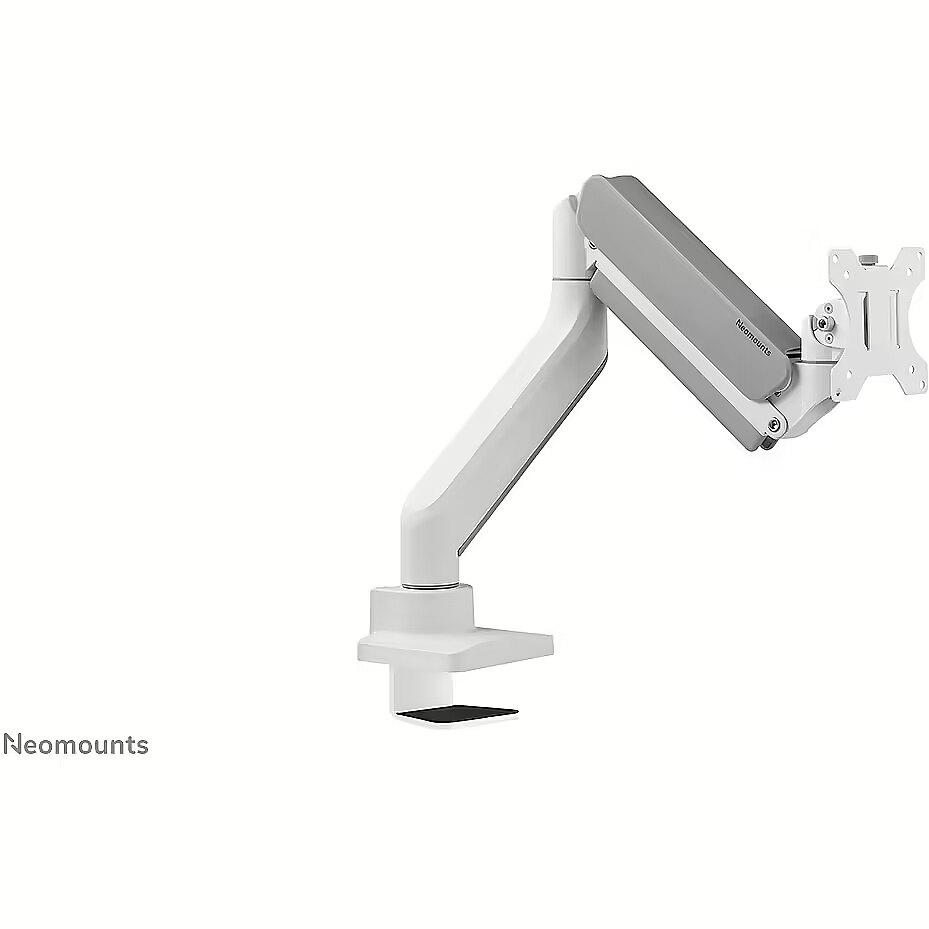

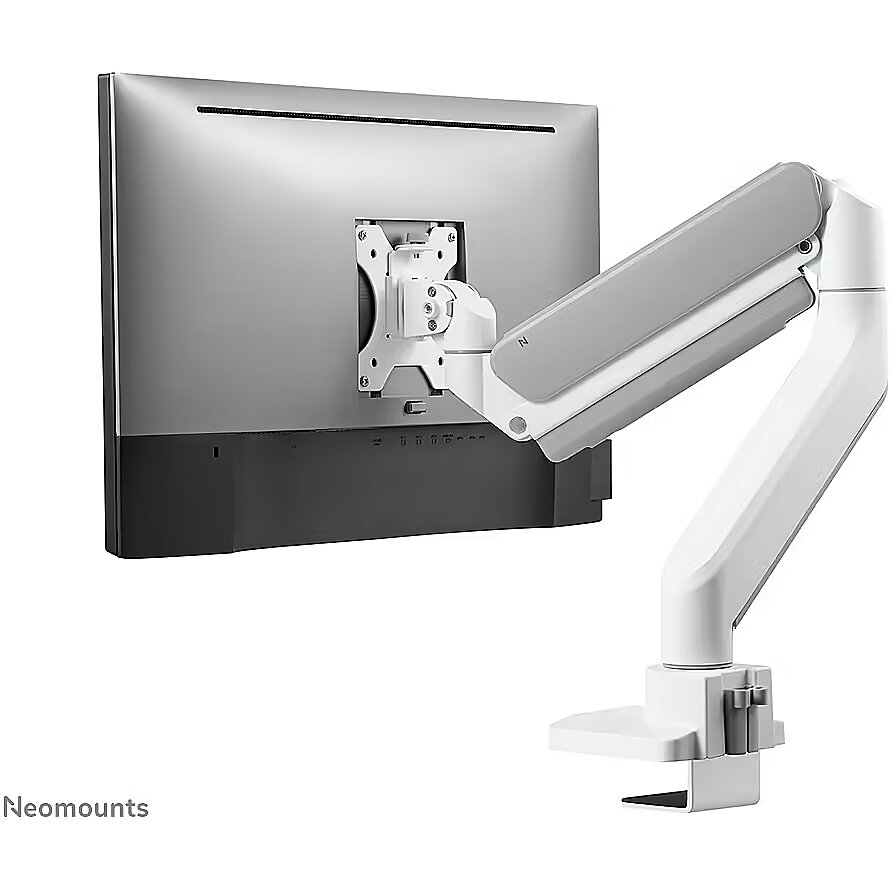

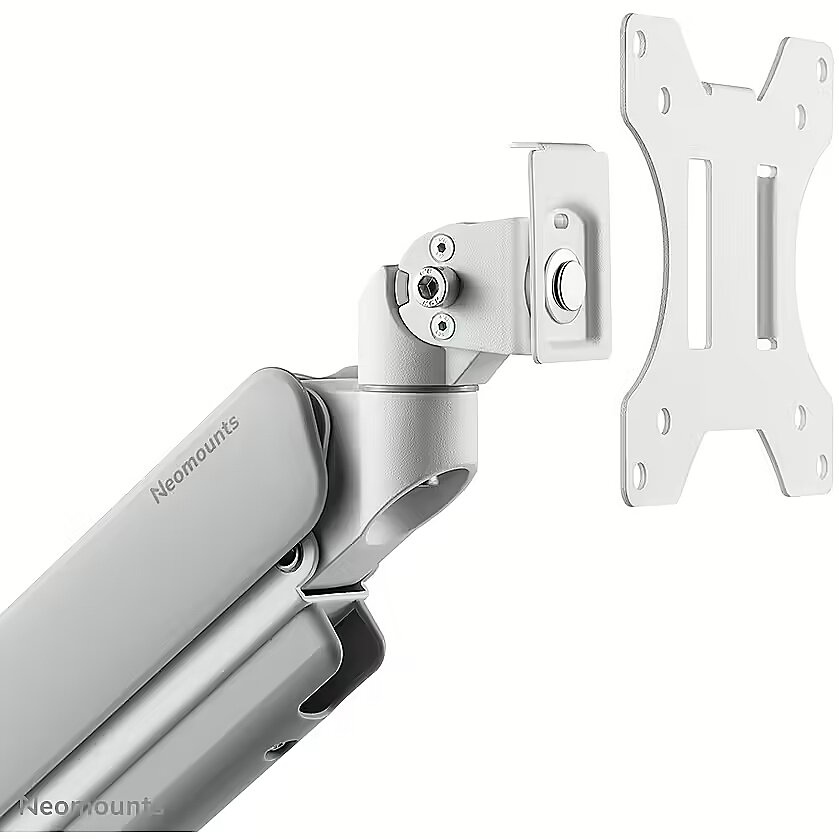

Description - The Neomounts by Newstar DS70-450WH1 is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position. The DS70-450WH1 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables. The DS70-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts by Newstar's VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
Design - Housing material - Steel
Design - Product colour - White
Dimensions W x D x H, mm - 115 x 574 x 643
Ergonomics - Adjustable depth - Yes
Ergonomics - Angle of rotation - 360°

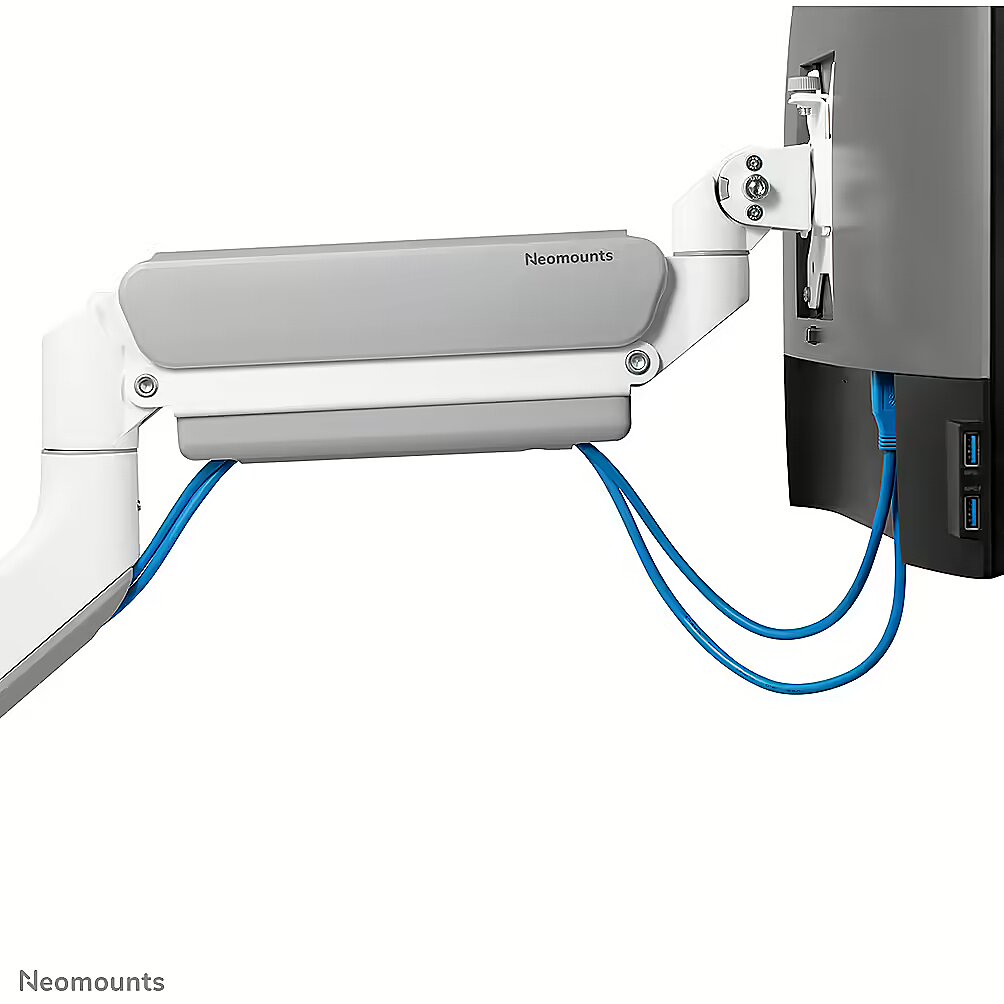

Ergonomics - Cable management - Yes
Ergonomics - Depth adjustment range - 54 - 511 mm
Ergonomics - Height adjustment - Yes

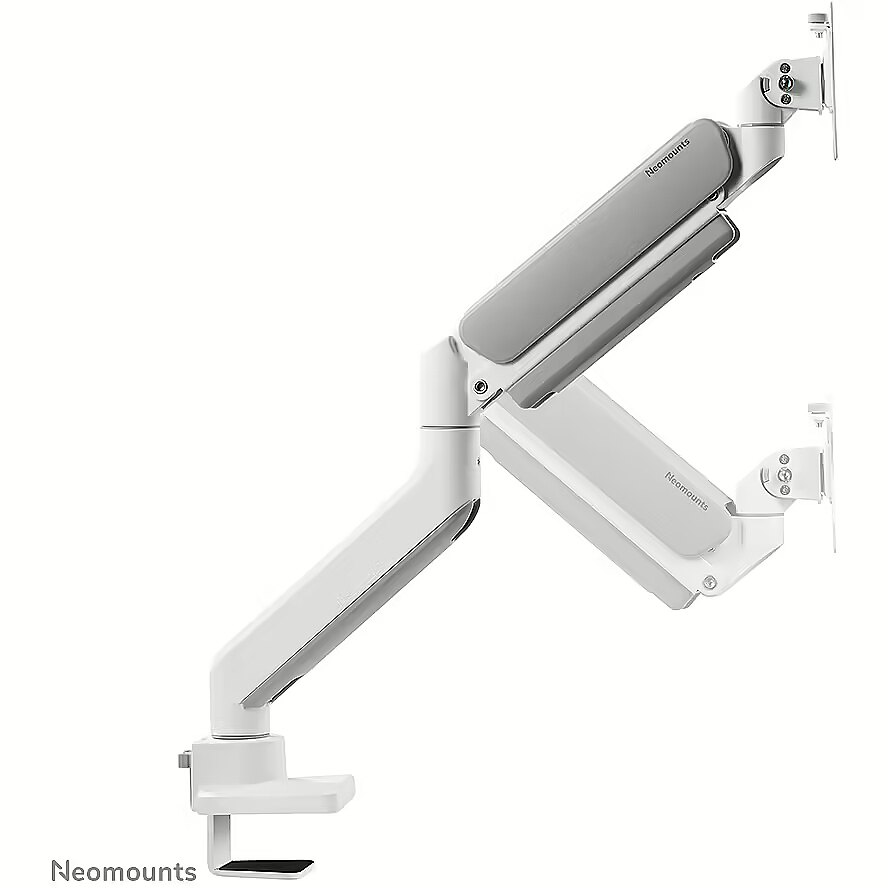

Ergonomics - Height adjustment range - 261 - 555 mm

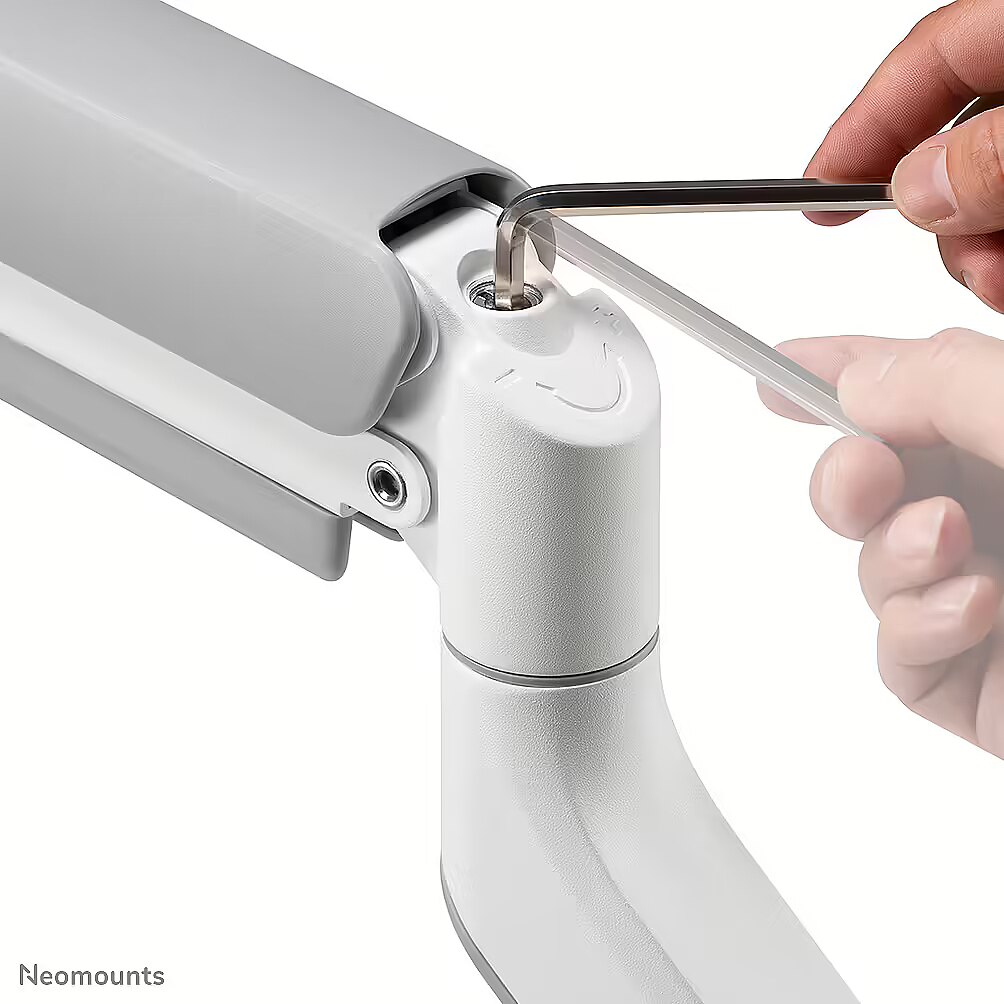

Ergonomics - Height adjustment type - Gas spring
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 180°
Ergonomics - Swivel angle range - -90 - 90°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes

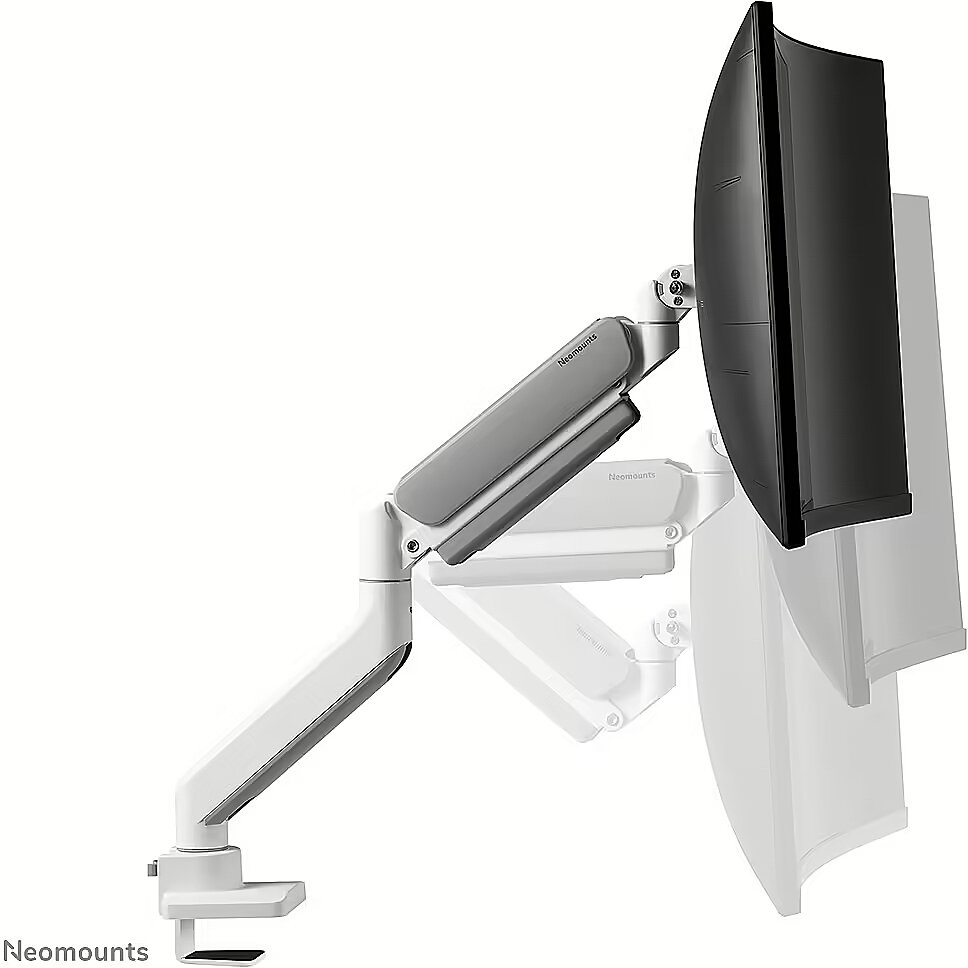

Ergonomics - Tilt angle range - -45 - 45°
Fits screens sized - 17-42"
Full Description Line - Max. weight 15 kg|Fits screens sized 17-42"|75 mm x 75 mm|100 mm x 100 mm|Colour White
GTIN - 8717371449483
Height - 285.000000
Height adjustment - Yes
Length - 130.000000
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 20.5 kg
Logistics data - Master (outer) case height - 580 mm
Logistics data - Master (outer) case length - 275 mm
Logistics data - Master (outer) case net weight - 18.4 kg
Logistics data - Master (outer) case width - 460 mm
Logistics data - Products per master (outer) case - 4 pc(s)
Logistics data - Products per pallet (EU) - 64 pc(s)
LongDesc - The Neomounts DS70-450WH1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position. The DS70-450WH1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.The DS70-450WH1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.For wall installation, the AWL75-450WH wall adapter is optionally available.
LongProductName - Neomounts DS70-450WH1 full motion desk monitor arm for 17-42" screens - White
LongSummaryDescription - Neomounts desk monitor arm. Mounting: Clamp/Grommet, Maximum weight capacity: 15 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 106.7 cm (42"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: White
Manufacturer - NEOMOUNTS
ManufacturerPartNumber - DS70-450WH1
Max. weight - 15 kg
Maximum weight (capacity), kg - 15
Model - DS70-450WH1
Motorized - No
Mounting - Desk thickness (max) - 4.5 cm
Mounting - Desk thickness (min) - 1 cm
Mounting - Distance to the wall (max) - 56.8 cm
Mounting - Distance to the wall (min) - 10.8 cm
Mounting - Maximum screen size - 106.7 cm (42")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 15 kg
Mounting - Maximum weight capacity (per curved/ultra-wide display) - 11 kg
Mounting - Minimum screen size - 43.2 cm (17")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting - Clamp/Grommet
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 75 x 75,100 x 100 mm
Number of screens - 1
Other features - Minimum weight - 1 kg
Other features - Warranty period - 5 year(s)
Other features - Width adjustment range - 0 - 920 mm
Packaging content - Mounting kit - Yes
Packaging data - Package depth - 127 mm
Packaging data - Package height - 445 mm
Packaging data - Package net weight - 5.1 kg
Packaging data - Package width - 280 mm
PeriodofWarranty - 5 Y
ProductName - Neomounts desk monitor arm
Screen size compatibility, " - 17-42
Shipping Box Depth Shipping/Package Box Dimensions - 45 cm
Shipping Box Height Shipping/Package Box Dimensions - 28.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 4.9 kg
Shipping Box Width Shipping/Package Box Dimensions - 12.5 cm
ShortSummaryDescription - Neomounts desk monitor arm, Clamp/Grommet, 15 kg, 43.2 cm (17"), 106.7 cm (42"), 100 x 100 mm, White
Stand/mount type - Table
Tilt - Yes
Title - Neomounts desk monitor arm
Turn - Yes
Unit Box Height - 0.285
Unit Box Length - 0.45
Unit Box Width - 0.125
Unit Brutto Volume - 0.01603 cubm
Unit Gross Weight - 4.9 kg
Unit Net Weight - 4.5 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-450WH1
Vendor Homepage - www.neomounts.com/desk/monitor-arms/ds70-450wh1-neomounts-by-newstar-monitor-desk-mount/
VESA-standard, mm - 75 x 75
VESA-standard, mm - 100 x 100
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 2.950000
Weight & dimensions - Depth - 568 mm
Weight & dimensions - Height - 653 mm
Weight & dimensions - Width - 120 mm
Wheels - No
Width - 445.000000
