Newstar Wall mount (fixed), 43-86"

100 mm x 100 mm VESA mounting interface - Yes
200 mm x 100 mm VESA mounting interface - Yes
200 mm x 200 mm VESA mounting interface - Yes
300 mm x 200 mm VESA mounting interface - Yes
300 mm x 300 mm VESA mounting interface - Yes
400 mm x 200 mm VESA mounting interface - Yes
400 mm x 300 mm VESA mounting interface - Yes
400 mm x 400 mm VESA mounting interface - Yes
600 mm x 300 mm VESA mounting interface - Yes
600 mm x 400 mm VESA mounting interface - Yes
600 mm x 600 mm VESA mounting interface - Yes
800 mm x 400 mm VESA mounting interface - Yes
Accessories included -
Brand - Neomounts
BrandPartCode - WL30-550BL18
Category - TV Mounts & Stands
Category 1 - Displays
Category 2 - Display Zubehör
Category Code - MAS
CnCode CnCode - 83021000
Color - Black
Colour - Black
Corner mount - No
Description - NEOMOUNTS BY NEWSTAR SCREEN WALL MOUNT (FIXED, ULTRA THIN, VESA 800X400)

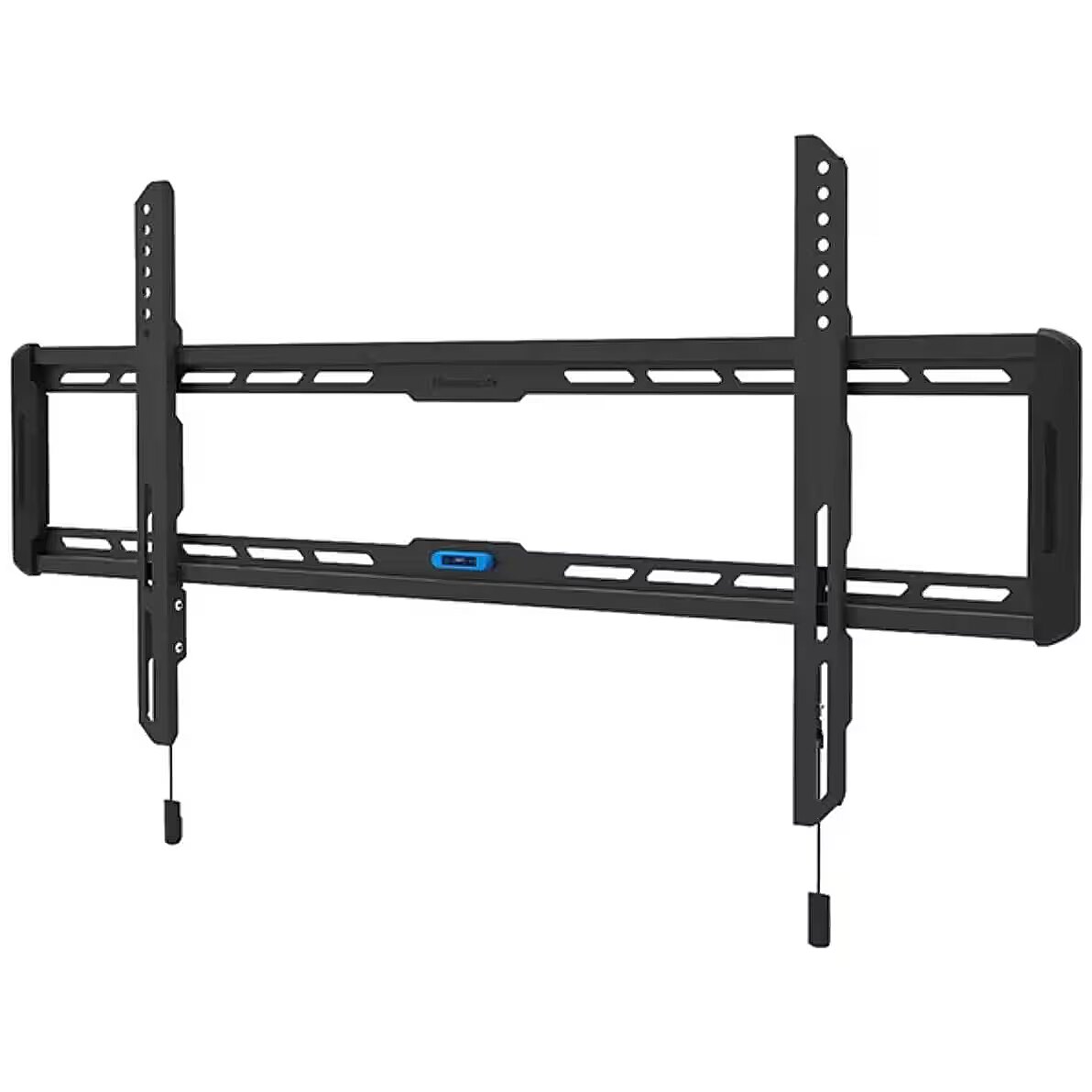

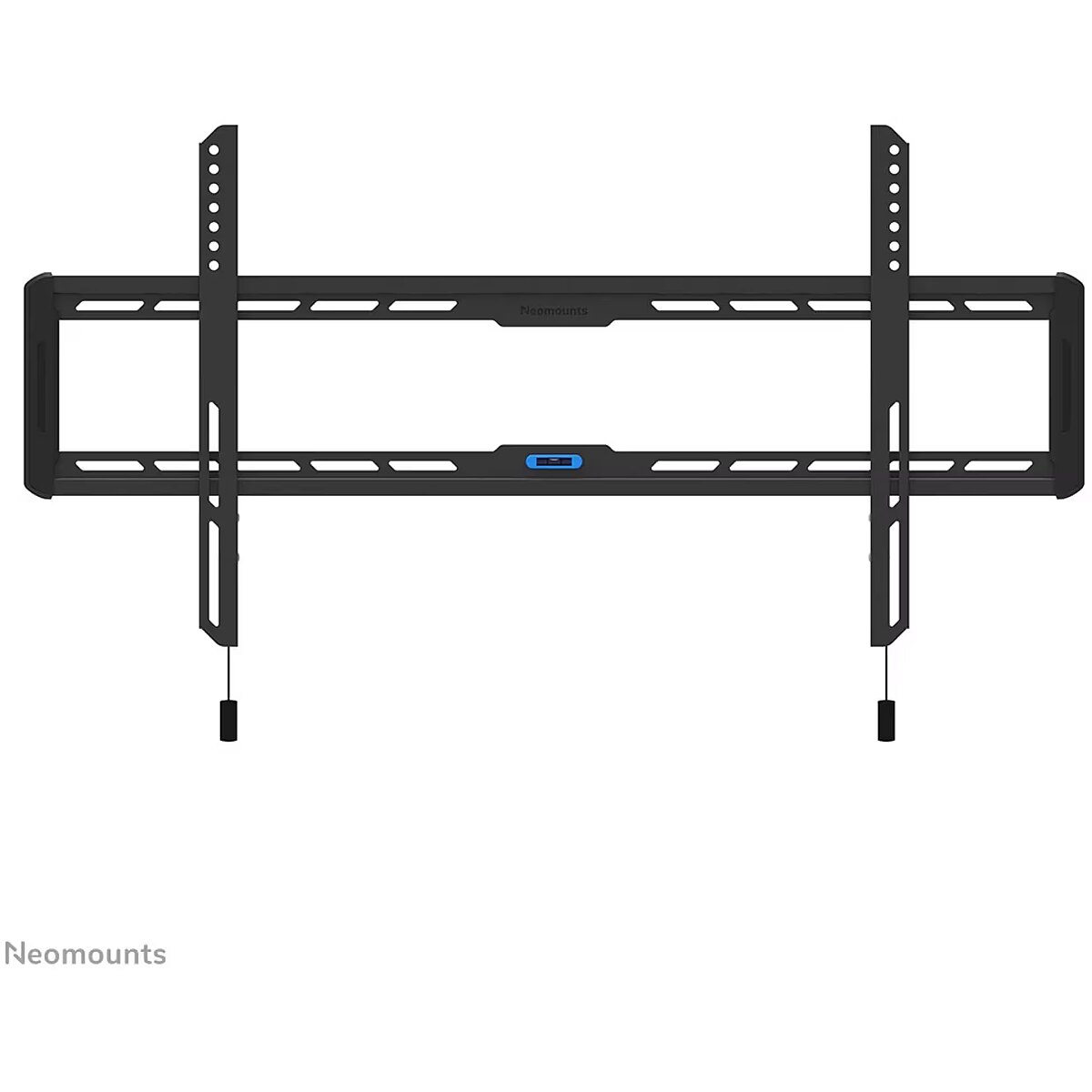

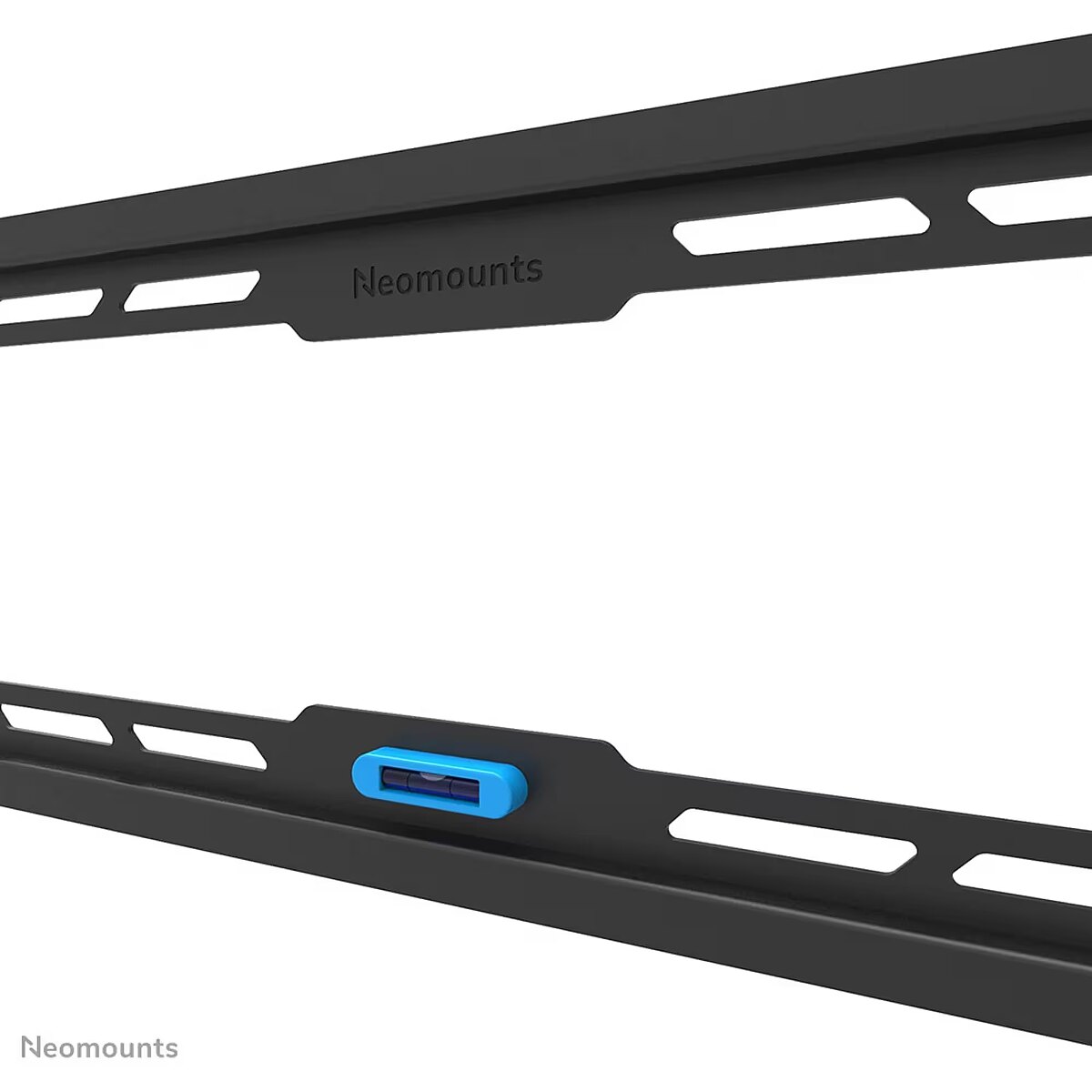

Description - Neomounts by Newstar tv wall mount Fixed wall mount for 43-86" screens - Black The Neomounts by Newstar WL30-550BL18 is a fixed wall mount for flat screens up to 86" with a maximum weight capacity of 70 kg. The WL30-550BL18 is ultra-flat with a depth of 2,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x400mm. The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The integrated spirit level assures easy installation of the mount.
Description - Newstar's Neomounts WL30-550BL18 is a fixed wall mount for flat screens up to 86" with a maximum load of 70kg. The WL30-550BL18 is ultra-slim with a depth of 2.3 cm and is suitable for screens compatible with VESA openings from 100x100 to 800x400mm. The mount features a clever magnetic pull & release system that allows you to attach your TV in no time and secure it securely and solidly. Then the pull-out and release straps can be easily hidden behind the screen by snapping the magnet onto the holder. An integrated spirit level ensures easy mounting of the handle.
Design - Housing material - Steel
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 30 mm
dimension height - 200 mm

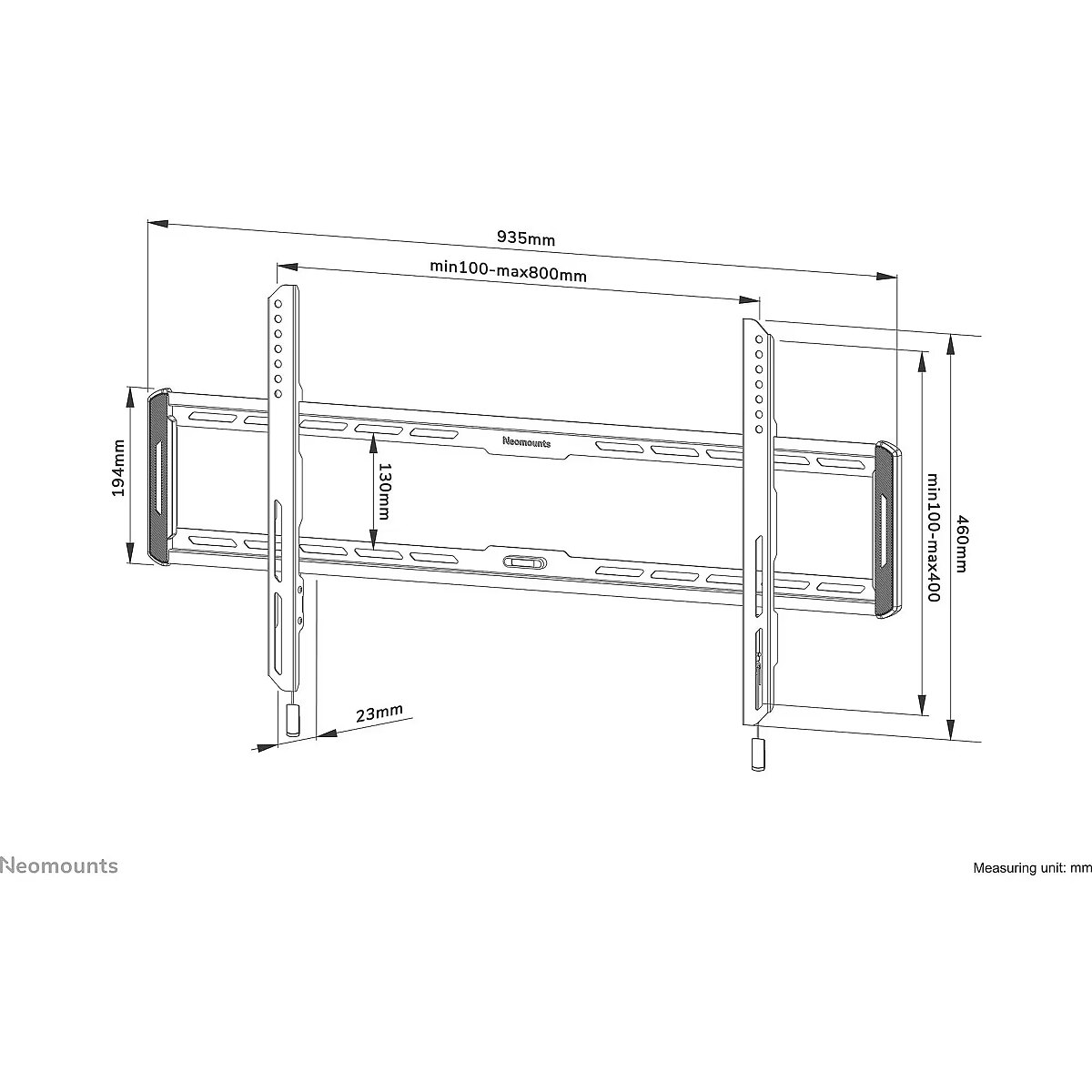

Dimensions - Height 46 x width 93.5 x depth 2.3 cm
dimension weight - 2843 g
dimension width - 960 mm
Distance to wall - 2.3 cm
ean - 8717371448660
EAN - 8717371448660
Ergonomics - Distance to the wall (max) - 2.3 cm
Ergonomics - Height adjustment - No
Ergonomics - Type - Fixed
Fits screens sized - 43-86"
Full Description Line - Max. weight 70 kg|Fits screens sized 43-86"|Distance to wall 2.3 cm|100 mm x 100 mm|200 mm x 100 mm|200 mm x 200 mm|300 mm x 200 mm|300 mm x 300 mm|400 mm x 200 mm|400 mm x 300 mm|400 mm x 400 mm|600 mm x 300 mm|600 mm x 400 mm|600 mm x 600 mm|800 mm x 400 mm|Colour Black
GTIN - 8717371448660
guarantee - 60
guarantee_type - normal
Height - 209.000000
Length - 33.000000
Load (max) - 70 kg
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 23.4 kg
Logistics data - Master (outer) case height - 230 mm
Logistics data - Master (outer) case length - 280 mm
Logistics data - Master (outer) case net weight - 16 kg
Logistics data - Master (outer) case width - 973 mm
Logistics data - Products per master (outer) case - 8 pc(s)
Logistics data - Products per pallet (EU) - 112 pc(s)
LongDesc - The Neomounts WL30-550BL18 LEVEL is a fixed wall mount for flat screens up to 86" with a maximum weight capacity of 60 kg. The LEVEL-550 wall mount is ultra-flat with a depth of 2,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x400mm. The WL30-550BL18 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The integrated spirit level assures easy installation of the mount.
LongProductName - Neomounts WL30-550BL18 fixed wall mount for 43-86" screens - Black
LongSummaryDescription - Neomounts tv wall mount. Maximum weight capacity: 60 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.18 m (86"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 400 mm. Distance to the wall (max): 2.3 cm. Product colour: Black
Manufacturer - NEOMOUNTS
Manufacturer - Newstar
ManufacturerPartNumber - WL30-550BL18
Max. weight - 70 kg
Mounting - Maximum screen size - 2.18 m (86")
Mounting - Maximum VESA mount - 800 x 400 mm
Mounting - Maximum weight capacity - 60 kg
Mounting - Minimum screen size - 109.2 cm (43")
Mounting - Minimum VESA mount - 100 x 100 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400
MPN - WL30-550BL18
Name - Neomounts WL30-550BL18 Wandhalterung für 43-86" Bildschirme 70KG
name - WL30-550BL18 40-86 70KG 100X100-800x400
Number of screens - 1
Other features -
Packaging data - Package depth - 208 mm
Packaging data - Package height - 32 mm
Packaging data - Package weight - 2.8 kg
Packaging data - Package width - 958 mm
PeriodofWarranty - 5 Y
producer - Neomounts
ProductName - Neomounts tv wall mount
Range adjustment - No
Screen size (max) - 86 ''
Screen size (min) - 43 ''
Shipping Box Depth Shipping/Package Box Dimensions - 96 cm
Shipping Box Height Shipping/Package Box Dimensions - 3 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.9 kg
Shipping Box Width Shipping/Package Box Dimensions - 21 cm
Short summary - Neomounts by Newstar WL30-550BL18 fixed wall mount for 43-86" screens - Black
ShortSummaryDescription - Neomounts tv wall mount, 109.2 cm (43"), 2.18 m (86"), 100 x 100 mm, 800 x 400 mm, Steel, Black
Stand/mount type - Wall
Stuff - Steel
Technical details - Country of origin - China
Technical details - Lockable - Not lockable
Technical details - Package net weight - 2.8 kg
Title - Neomounts tv wall mount
Type - Wall
Unit Brutto Volume - 0.006048 cubm
Unit Gross Weight - 2.9 kg
Unit Net Weight - 2.8 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=WL30-550BL18
Usage - TV
Vendor Homepage - www.neomounts.com/tv-lfd/wall-mounts/wl30-550bl18-neomounts-by-newstar-tv-wall-mount/
vendpn - WL30-550BL18
VESA - 100 x 100
VESA - 100 x 150
VESA - 100 x 200
VESA - 120 x 120
VESA - 200 x 100
VESA - 200 x 200
VESA - 200 x 300
VESA - 200 x 400
VESA - 300 x 100
VESA - 300 x 200
VESA - 300 x 300
VESA - 350 x 350
VESA - 400 x 200
VESA - 400 x 300
VESA - 400 x 400
VESA - 440 x 400
VESA - 500 x 400
VESA - 600 x 200
VESA - 600 x 300
VESA - 600 x 400
VESA - 680 x 300
VESA - 800 x 200
VESA - 800 x 400
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 2.870000
Weight - 3
Weight & dimensions - Depth - 23 mm
Weight & dimensions - Height - 460 mm
Weight & dimensions - Width - 935 mm
Wheels - No
Width - 962.000000
