Techly Telescopic Ceiling Long Support, 37-70"

Accessories included - - Ceiling mount
- Fitting elements
- User's Guide
Brand - Techly
BrandPartCode - ICA-CPLB 946L
Category - Root/Electronics/PC peripherals/Accessories/Grip holders/Ceiling
Category - Signage Display Mounts
Color - Black
Corner mount - No
Description - Ceiling mount LCD/LED 37-70cali 50kg
- Enables safe mounting of the LED / LCD display or TV
- Steel construction guarantees maximum safety
- Mounting the display in VESA standard
- Built-in cable management system
- Length adjustment
- Can be mounted on inclined ceilings (+/- 60 °)
- Adjustable tilt angle and rotation
- Ideal for home, office and commercial use
Design - Anti-theft function - No
Design - Housing material - Steel
Design - Product colour - Black
dimension depth - 160 mm
dimension height - 940 mm

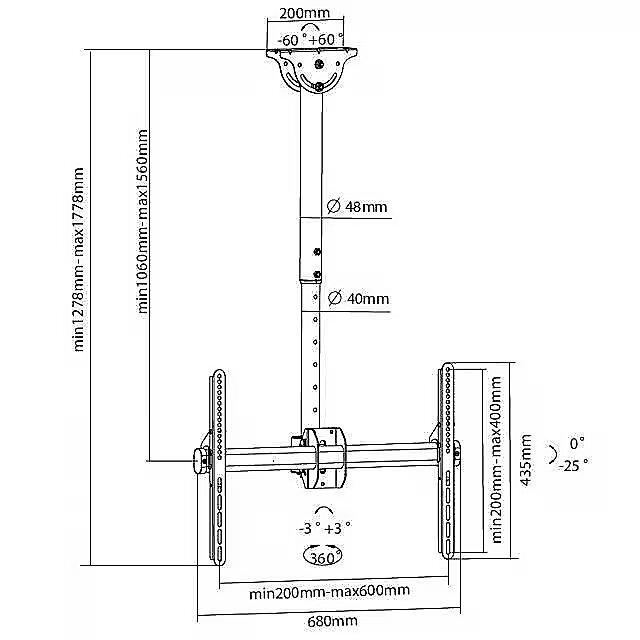

Dimensions - Length: 1278-1778 mm
dimension weight - 10200 g
dimension width - 320 mm
ean - 8057685309357
Eans - 8057685309357
Ergonomics - Adjustable - Yes
Ergonomics - Built-in spirit level - No
Ergonomics - Ceiling mounting tube length (max) - 1778 cm
Ergonomics - Distance to the wall (max) - 156 cm
Ergonomics - Distance to the wall (min) - 106 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 1060 - 1560 mm
Ergonomics - Pan range - -180 - 180°
Ergonomics - Pivot angle - -60 - 60°
Ergonomics - Swivel angle - 180°
Ergonomics - Tilt angle range - -25 - 0°
GTIN - 8057685309357
guarantee - 36
guarantee_type - external
Horizontal adjustment - 360 °
Load (max) - 50 kg
Logistics data - Harmonized System (HS) code - 85299097
LongDesc - - ICA CPLB-946L is a telescopic bracket ceiling full-motion designed to offer the ultimate in versatility and universal compatibility- Tilting plate for ceiling applications and sloping floor- It allows screens to be tilted down or rotated without tools- Includes VESA plate for any LCD TV 37 "- 70" or monitors up to 50 kg- Adjustable height for perfect TV placement- A flume cable management keeps cables concealed and organized- Maximum length of the arm: 1778 mm
LongProductName - 37-70" Telescopic Ceiling Long Support LED TV LCD
LongSummaryDescription - Techly 37-70 Telescopic Ceiling Long Support LED TV LCD" ICA-CPLB 946L. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 1060 - 1560 mm, Tilt angle range: -25 - 0°, Swivel angle: 180°. Product colour: Black
Mounting - Maximum screen size - 177.8 cm (70")
Mounting - Maximum VESA mount - 600 x 400 mm
Mounting - Maximum weight capacity - 50 kg
Mounting - Minimum screen size - 94 cm (37")
Mounting - Minimum VESA mount - 200 x 200 mm
Mounting - Mounting type - Ceiling
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
name - Ceiling mount LCD/LED 37-70cali black 50kg
Name - Techly Ramię sufitowe LCD (309357) 70"
Other features - Adjustment of the tilt angle with respect to the ceiling: + 60° to -60°
Packaging content - Manual - Yes
Packaging content - Mounting kit - Yes
producer - Techly
Producer - Techly
ProducerCode - 309357
ProductName - 37-70 Telescopic Ceiling Long Support LED TV LCD" ICA-CPLB 946L
Range adjustment - No
Screen size (max) - 70 ''
Screen size (min) - 37 ''
ShortDescription - Praktyczne rozwiązanie do domu, sklepu, sali konferncyjnej
ShortSummaryDescription - Techly 37-70 Telescopic Ceiling Long Support LED TV LCD" ICA-CPLB 946L, 50 kg, 94 cm (37"), 177.8 cm (70"), 200 x 200 mm, 600 x 400 mm, 1060 - 1560 mm
Stuff - Steel
Technical details - Warranty period - 10 year(s)
Title - Techly 37-70 Telescopic Ceiling Long Support LED TV LCD" ICA-CPLB 946L
Type - Ceiling
URL - https://www.techly.com/37-70-telescopic-ceiling-long-support-led-tv-lcd.html
Usage - Monitors
Usage - TV
vendpn - 309357
Vertical adjustment - 25 °
VESA - 200 x 200
VESA - 200 x 300
VESA - 300 x 300
VESA - 400 x 200
VESA - 400 x 300
VESA - 400 x 400
VESA - 600 x 200
VESA - 600 x 400
WarrantyInfo -
Weight - 7.902 kg
Weight & dimensions - Depth - 435 mm
Weight & dimensions - Height - 1778 mm
Weight & dimensions - Weight - 8.67 kg
Weight & dimensions - Width - 680 mm
