Maclean MC-482, TV Wall mount, 60-120"

Accessories included - Maclean MC-482 TV mount A set of mounting screws for the wall and for screwing the TV Installation instructions Original packaging
Color - Black
Corner mount - No
Description - Universal design The universal wall mount is designed for mounting LCD, LED and OLED TVs of various brands with a weight of up to 60 kg and a screen size of 60 to 120". Compatible with LED and LCD TVs: Sony, LG, Samsung, Philips, Sharp, Panasonic, Toshiba, Grundig, Pioneer, JVC, Benq, Sanyo, NEC, Hyundai, Hitachi, TCL, Xiaomi. TV can be levelled after mounting +5/-5°. VESA compatibility The stated screen size is only a suggestion. Larger televisions may be mounted on the bracket if they do not exceed the maximum weight and fit within the specified VESA standard. A screen in the VESA standard can be attached to the mount without any problems: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400, 800x400, 800x600, 900x600 mm Complete set Complete set of screws for mounting the bracket to the wall and the TV to the bracket. Polish instructions should dispel any doubts during installation.
Design - Product colour - Black
dimensionalWeight - 7115
dimension depth - 180 mm
dimension height - 1065 mm
Dimensions -
dimension weight - 18000 g
dimension width - 360 mm
ean - 5902211130055
guarantee - 24
guarantee_type - external
Load (max) - 120 kg
Mounting - Maximum screen size - 139.7 cm (55")
Mounting - Maximum VESA mount - 900 x 600 mm
Mounting - Maximum weight capacity - 35 kg
Mounting - Minimum screen size - 83.8 cm (33")
Mounting - Mounting type - Wall
Mounting - Panel mounting interface - 200 x 200 mm
Mounting - Panel mounting interface - 300 x 200
Mounting - Panel mounting interface - 300 x 300 mm
Mounting - Panel mounting interface - 400 x 200
Mounting - Panel mounting interface - 400 x 300 mm
Mounting - Panel mounting interface - 400 x 400
Mounting - Panel mounting interface - 600 x 400
Mounting - Panel mounting interface - 800 x 400
Mounting - Panel mounting interface - 800 x 600 mm
Mounting - Panel mounting interface - 900 x 600
name - Pivoting TV handle up to 120" Maclean MC-482

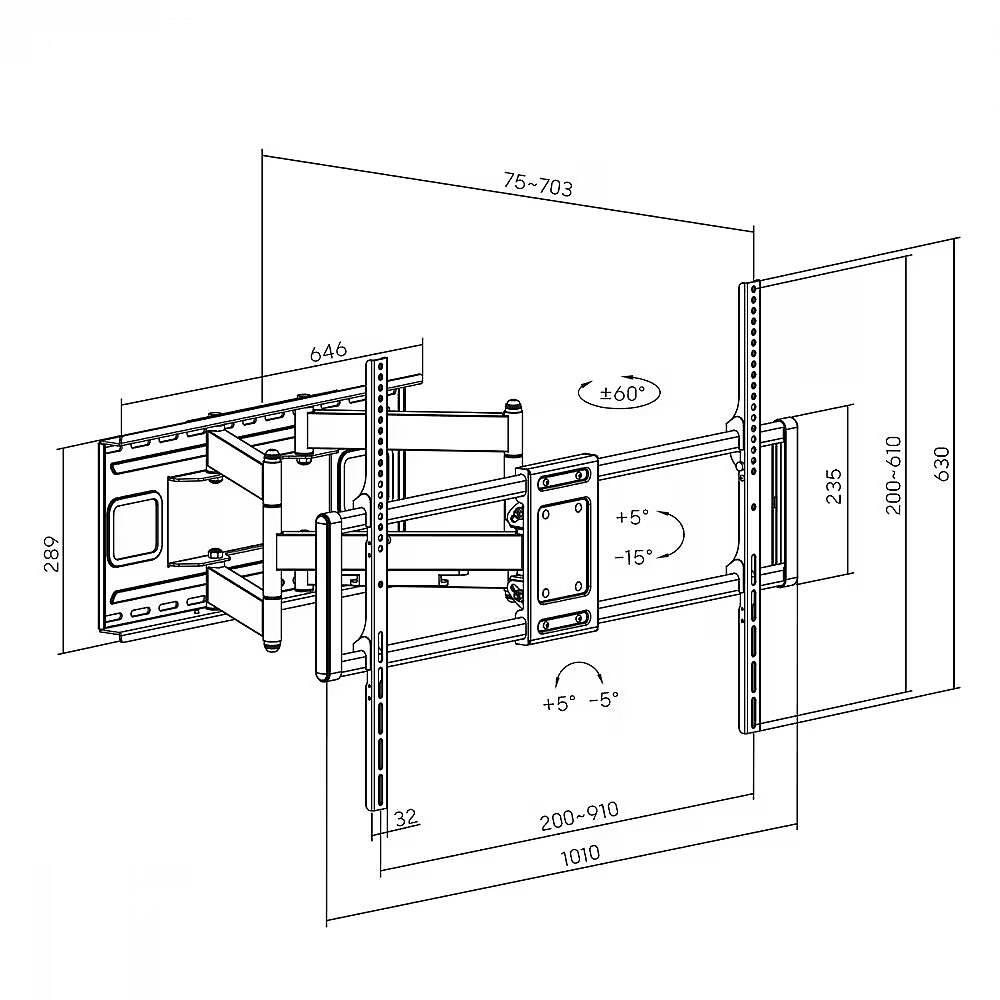

Other features - Universal wall mount for TVs with a screen diagonal of 60-120" Maximum load: up to 120 kg Possibility of leveling the TV after mounting +5/-5° Possibility of adjusting the degree of inclination from +5 to -15 degrees Minimum/Maximum horizontal spacing: 200/900 mm Minimum/Maximum vertical spacing: 200/600 mm Adjustable distance from the wall: from 75 mm to 703 mm Solid metal construction Powder coating (black color) High quality double arm Very easy assembly VESA: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400, 800x400, 800x600, 900x600 mm
producer - Maclean
producerCode - MC-482
productName - Maclean MC-482 TV Wall Mount Bracket for 60-120" Flat & Curved TVs up to 120kg Max. VESA 900x600 Swivel, Tilt and Rotate, Universal TV Mount TV Bracket
productSize - Normal
Range (max) - 703 mm
Range (min) - 75 mm
Range adjustment - Yes
rotation - 60 °
Safety warning - Warnings - Do not exceed the maximum user weight recommended by the manufacturer.
Screen size (max) - 120 ''
Screen size (min) - 60 ''
sizeX - 1055
sizeY - 355
sizeZ - 95
Type - Wall
Usage - TV
vendpn - MC-482
VESA - 200 x 200
VESA - 300 x 200
VESA - 300 x 300
VESA - 400 x 200
VESA - 400 x 300
VESA - 600 x 400
VESA - 800 x 400
VESA - 800 x 600
VESA - 900 x 600
warrantyLength - 24
warrantyType - F
weight - 17800
