10/100/1000M LAN Ports - 5
Accessories included -
Antenna - Antenna type - Not supported
Antenna > Antenna type - No antenna
brand - MikroTik
category - MikroTik > Ethernet rūteri > hEX
Category - Root/Electronics/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Router
Category Code - ROU
Certificates > Certification - CE, EAC, ROHS
Code - RB760iGS
Color - Black

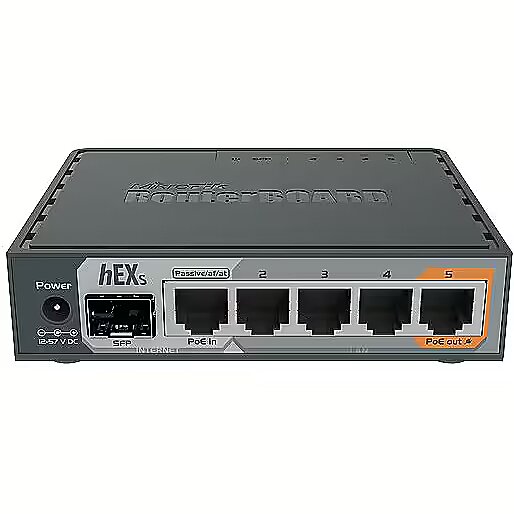

Description - 5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port. It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Description - hEX S to pięcioportowy router Gigabit Ethernet przeznaczony do lokalizacji, w których łączność bezprzewodowa nie jest wymagana. W porównaniu do hEX, hEX S posiada również port SFP i wyjście PoE na ostatnim porcie.
Jest niedrogi, mały i łatwy w użyciu, ale jednocześnie jest wyposażony w bardzo mocny dwurdzeniowy procesor 880 MHz i 256 MB pamięci RAM, zdolny do wszystkich zaawansowanych konfiguracji obsługiwanych przez RouterOS. Urządzenie posiada wyjście USB 2.0, PoE dla portu Ethernet nr 5 oraz klatkę 1,25Gbit/s SFP. Port nr 5 może zasilać inne pasywne urządzenia obsługujące PoE tym samym napięciem, co urządzenie.
Szyfrowanie sprzętowe IPsec (~470 Mb/s) i pakiet serwerowy The Dude są obsługiwane, gniazdo microSD zapewnia lepszą prędkość r/w do przechowywania plików i Dude.
Design - Product colour - Black
dimensionalWeight - 216
dimension depth - 45 mm
dimension height - 170 mm
Dimensions - 113 x 89 x 28 mm
dimension weight - 200 g
dimension width - 120 mm
EAN - 4752224002785
ean - 4752224002785
Eans - 5903148913131
Features - Internal memory - 256 MB
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Full Description Line - Network Device Type Router|5x10/100/1000M|1xSFP|1xUSB 2.0|Memory (RAM) 256MB|Dimensions 113 x 89 x 28 mm
Gross weight - 0.431 kg
guarantee - 12
guarantee_type - normal
Hard drive > Storage capacity - 16 MB
height - 0.07 m
I/O ports - 1 x USB 2.0 Type A
I/O ports - 5 x 10/100/1000 Mbit/s
length - 0.18 m
Link - https://mikrotik.com/product/hex_s#fndtn-specifications
Link - https://wiki.mikrotik.com/wiki/MikroTik_SFP_module_compatibility_table
Logistics data - Harmonized System (HS) code - 85176990
Management, monitoring, configuration -
Manufacturer - MikroTik
Memory (RAM) - 256MB
Model - RB760iGS
mpn - RB760iGS
MPN - RB760iGS
Name - MikroTik RB760iGS
Name - Mikrotik RB760iGS
name - MikroTik Router xDSL 1xWAN 4xLAN SFP RB760iG
Name - Mikrotik Wired Ethernet Router RB760iGS, hEX S, Dual Core 880MHz CPU, 256MB RAM, 16 MB (MicroSD), 5xGigabit LAN, 1xSFP, USB, IPsec hardware encryption support and The Dude server package, PCB temperature and Voltage Monitor, Beeper, RouterOS L4 | Enthernet Router hEX S | RB760iGS | No Wi-Fi | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 5 | Mesh Support No | MU-MiMO No | No mobile broadband | Antenna type No antenna | 1 | 12 month(s)
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network architecture - GigabitEthernet
Network Device Type - Router
Networking > PoE in - 802.3af/at
Operational conditions > Operating temperature (T-T) - -40°C to 70°C °C
Other features - Architektura: MMIPS Procesor: MT7621A Liczba rdzeni procesora: 2 Częstotliwość nominalna procesora: 880 MHz Liczba wątków procesora: 4 Licencja RouterOS: 4 System operacyjny: RouterOS Rozmiar pamięci RAM: 256 MB Rozmiar pamięci: 16 MB Typ pamięci: FLASH MTBF: około 100 000 godzin w 25C
Other features > Ethernet LAN (RJ-45) ports - 5
Other features > USB ports quantity - 1
Other features > Wi-Fi - No
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 170.00 mm
Package features > Gross height (mm) - 45.00 mm
Package features > Gross width (mm) - 120.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 941 pc(s)
Package features > Paper/Pasteboard - 208 g
Package features > Plastic (No PET) - 23 g
Package features > Tare weight (kg) - 0.231 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content > AC adapter included - Yes (24V 1.2A power adapter)
Packaging content > Memory card included - Yes (microSD)
PDF - http://www.blobs.lt/products/5/4/2/8/2/2/4776d4a7930ca181063fbc0e819be0eb/original.pdf
PDF - http://www.blobs.lt/products/5/4/2/8/2/2/60396f74599ef836714b28aacad4299a/original.pdf
PDF - http://www.blobs.lt/products/5/4/2/8/2/2/bf1de351c5d382d002c26bc815029915/original.pdf
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Internal memory - 256 MB
Performance > Memory type - Flash
Performance > Processor cores - 2
Performance > Processor frequency - 880 MHz
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 5
Ports & interfaces - Installed SFP modules quantity - 1
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 1
Ports & interfaces - USB ports quantity - 1
Power - Power consumption (typical) - 11 W
Power - Power source type - DC
Power > Power consumption (max) - 24 W
Power > Voltage - (PoE in input Voltage) 12-57 V
Power supply - Liczba wejść DC: 2 (gniazdo DC, PoE-IN) Napięcie wejściowe gniazda DC: 12-57 V Maksymalny pobór mocy: 24 W Maksymalny pobór mocy bez załączników: 6 W FAN count: Passive Wejście PoE: 802.3af/at Napięcie wejściowe PoE: 12-57 V
Processor > Processor model - MT7621A
producer - Mikrotik
Producer - MikroTik
producerCode - RB760iGS
ProducerCode - RB760iGS
Producer product family - Enthernet Router hEX S
Producer product name - RB760iGS
productName - Mikrotik hEX S wired router Gigabit Ethernet Black
productSize - Normal
Security -
SFP Ports - 1
Shipping Box Depth Shipping/Package Box Dimensions - 52 cm
Shipping Box Height Shipping/Package Box Dimensions - 42 cm
Shipping box quantity - 40
Shipping Box Weight Shipping/Package Box Dimensions - 14 kg
Shipping Box Width Shipping/Package Box Dimensions - 28 cm
ShortDescription -
sizeX - 180
sizeY - 50
sizeZ - 120
Software -
Special functions -
Standards - 802.3af
Standards - 802.3at
System Requirements -
Technical details > Net weight - 0.20 kg
Technical details > Other features - hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port. It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. The port #5 can power other passive PoE capable devices with the same voltage as applied to the unit IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS L4
Technical details > Warranty - 12 month(s)
title - MikroTik hEX S
Type - xDSL
Unit Box Height - 0.12
Unit Box Length - 0.18
Unit Box Width - 0.05
Unit Brutto Volume - 0.001529 cubm
Unit Gross Weight - 0.35 kg
Unit Net Weight - 0.32 kg
USB 2.0 Ports - 1
Vendor Homepage - mikrotik.com/product/hex_s#fndtn-specifications
vendpn - RB760iGS
WAN connection - Ethernet WAN - Yes
Warranty - 12
Warranty - 12 months
warrantyLength - 12
warrantyType - G
Weight - 0.34
weight - 0.41 kg
weight - 350
Weight & dimensions - Depth - 89 mm
Weight & dimensions - Height - 28 mm
Weight & dimensions - Width - 113 mm
width - 0.12 m
Wireless LAN features > Wi-Fi band - No Wi-Fi
