Logic J23, Black

Category - Root/Electronics/PC parts/Computer casings
Chassis type - Midi Tower
Color - Black
Cooling - Front fans diameters supported - 120
Cooling - Number of front fans supported (max) - 1
Cooling - Number of rear fans supported (max) - 1
Cooling - Rear fans diameters supported - 90 mm
Description - Computer Case J23 A computer for work and study should be characterised by components, which are tailored to the tasks at hand. Working with MS Office or CRM systems does not require extensive configurations. The Logic J 23 computer case was developed for this purpose. This airy design is ideal for most energy-efficient computers with integrated graphics. Convenient access to the USB ports (including 2 x USB 3 0 audio/microphone ports and space for a CD/DVD drive or an extension card reader in the 5.25" bay are also provided here. The front and the side panels of the case are partly ventilated, so that the air circulation for the cooling of the PC components is facilitated. The mounting of the PSU on top of the case allows the PSU fan to support the heat dissipation to the outside. For more demanding configurations, additional fans can be installed (not included). The case allows the installation of two 120 mm fans at the front and one 120 or 80 mm fan at the back. A POWER button and a decorative element to make the computer design more attractive in a vivid orange colour complete the package. Optimal solution for building a PC for studying and working. Partially ventilated front and side panel for an easier airflow to cool PC components Convenient arrangement of USB and audio ports
Design - Anti-dust filter - No
Design - Backlight - No
Design - Cable management - Yes
Design - Form factor - Midi Tower
Design - Maximum CPU cooler height - 15 cm
Design - Maximum graphics card length - 32 cm
Design - Number of 2.5" bays - 3
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - On/off button - Yes
Design - Product colour - Black
Design - Side window - No
Design - Supported motherboard form factors - ATX
Design - Tempered glass panel(s) - No
Design - Type - PC
Designation - CE+WEEE
dimensionalWeight - 8632
dimension depth - 480 mm
dimension height - 400 mm
Dimensions - Height 412 x depth 363 x width 207mm Dimensions without front panel: height 410 x depth 300 x width 180 mm
dimension weight - 5000 g
dimension width - 250 mm
Drive bays 2.5'' intern. - 1
Drive bays 3.5'' intern. - 1
Drive bays 5.25'' extern. - 1
ean - 5903560980674
Eans - 5903560980674
Fan - 8 cm
Fan - 12 cm
Form-factor - ATX

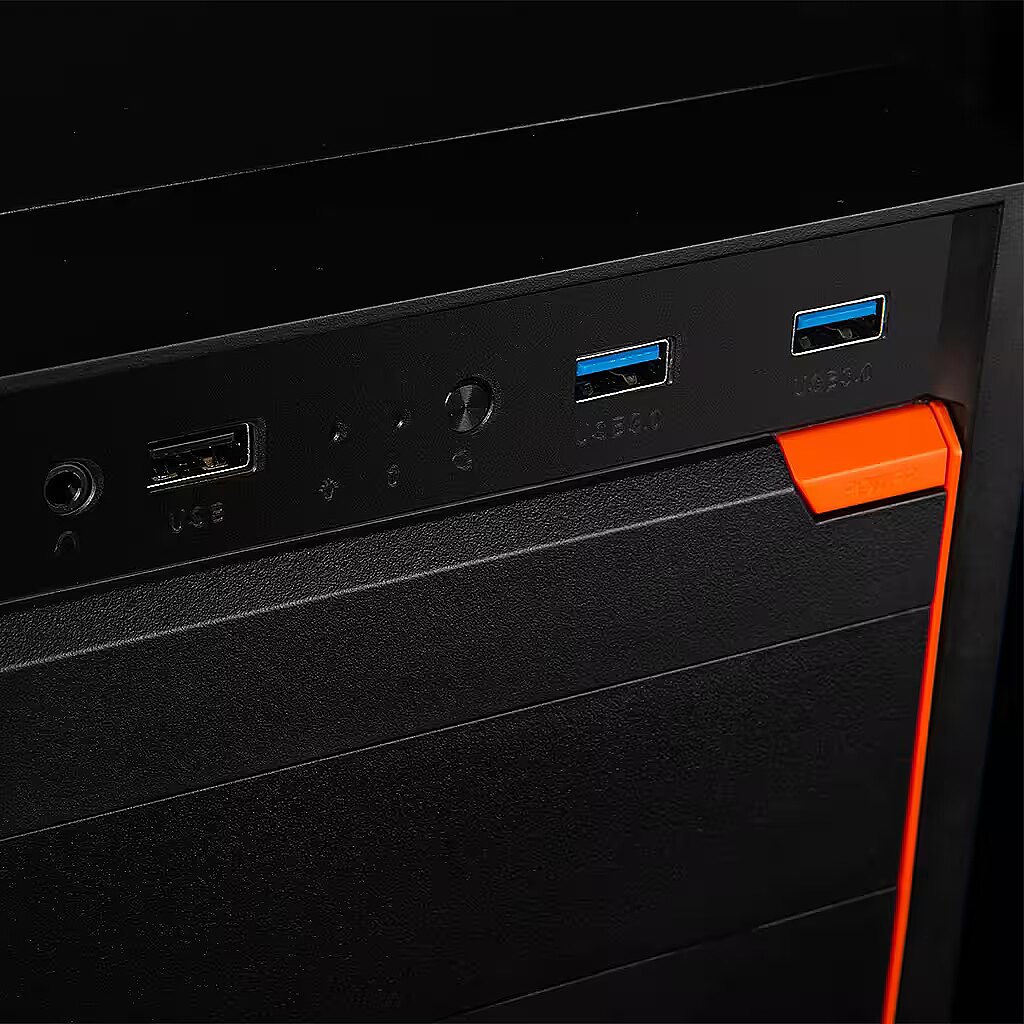

Front panel connectors - 1 x headphones
Front panel connectors - 1x microphone
Front panel connectors - 2 x USB 2.0
Front panel connectors - 2 x USB 3.0
guarantee - 24
guarantee_type - statutory
name - Computer case J23 midi tower ATX USB 3.0 x 2 Black
Name - Logic J23
No. of drive bays - 3
Other features - ATX power supply installation: on top max. length 200 mm Possibility of mounting graphics cards: up to 290 mm The maximum height of the CPU cooler: 165 mm
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes
Ports & interfaces - Reset button - Yes
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Power supply - Failure
Power supply - Power supply included - No
Producer - Logic
producer - Logic Concept
producerCode - AT-J023-10-0000000-0002
ProducerCode - AT-J023-10-0000000-0002
productName - LOGIC CASE J23 USB 3.0 X 2 BLACK
productSize - Normal
ShortDescription - Middle Tower| czarna| bez zasilacza| 2 x USB 3.0 i 2 x USB 2.0| 412 x 363 x 180|
sizeX - 465
sizeY - 395
sizeZ - 235
Storage - Supported HDD sizes - 2.5
Storage - Supported HDD sizes - 3.5"
vendpn - AT-J023-10-0000000-0002
warrantyLength - 24
warrantyType - G
Weight - 2 kg
weight - 2920
Weight & dimensions - Depth - 375 mm
Weight & dimensions - Height - 411 mm
Weight & dimensions - Width - 190 mm
