Accessories included -
Brand - GIGABYTE
BrandPartCode - GV-R78XTGAMING OC-16GD
Card's length - > 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|AMD
Category 1 - Grafikkarten
Category 2 - AMD PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - AMD
Chipset - AMD Radeon RX 7800 XT
Chipset - Radeon RX 7800 XT
Chipset manufacturer - AMD
code - GV-R78XTGAMING OC-16GD
Cooling - Active
Description - - Powered by Radeon™ RX 7800 XT - Integrated with 16GB GDDR6 256-bit memory interface - WINDFORCE Cooling System - RGB Fusion - Dual BIOS - Protection metal back plate
Description - Radeon RX 7800 XT Gaming OC 16G graphics card
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Fan diameter - 9 cm
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
dimensionalWeight - 1749
dimension depth - 91 mm
dimension height - 406 mm
Dimensions - 302 x 130 x 56 mm
Dimensions - L=302 W=130 H=56 mm
dimension weight - 1771 g
dimension width - 236 mm
DisplayPort Input/Output connectors - 2
ean - 4719331314514
EAN - 4719331314514
EAN_code - 4719331314514
Full Description Line - AMD Radeon RX 7800 XT|Graphics memory size 16 GB|GDDR6|256 bit|PCIE 4.0 16x|Memory CLK 19.5 Gbps|7680x4320|2xHDMI|2xDisplayPort|Included Accessories Quick guide
Graphic card features - Gaming/Overclock Edition
Graphics card connector - PCI-E ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 16 GB
Graphics memory type - GDDR6
Gross Weight Kg - 2
GTIN - 0889523039489
GTIN - 889523039489
GTIN - 4719331314514
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 2
Included Accessories - Quick guide
LongDesc - WINDFORCE COOLING SYSTEMThe WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.LARGE COPPER PLATE & HEAT-PIPEThe large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.SCREEN COOLINGExtended heatsink allows air to pass through, providing better heat dissipation.RGB FUSIONWith 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.PROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.DUAL BIOSThe factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.POWER INDICATORWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.BUILT STRONGULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.AMD Radeon™ Anti-LagMinimizes input lag so you can game like a champion.AMD Radeon™ BoostDelivers extra performance and responsiveness when you need it most.AMD Radeon™ Image SharpeningImproves in-game visuals with virtually no impact to performance.AMD Radeon™ Super ResolutionIn-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.AMD Noise SuppressionReduces background audio noise from your surrounding environment for clearer communication.AMD LinkConnect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
LongProductName - 16 GB, GDDR6, 256-bit, PCI Express 4.0, 2565 MHz boost clock, 2x HDMI, 2x DisplayPort, 2x 8-pin, RGB
LongSummaryDescription - GIGABYTE GAMING Radeon RX 7800 XT OC. Graphics processor family: AMD, Graphics processor: Radeon RX 7800 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - GV-R78XTGAMING OC-16GD
Manufacturer Name - Gigabyte
Manufacturer_code - GV-R78XTGAMING OC-16GD
Max resolution - 7680x4320
Memory - Data transfer rate - 19.5 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 256 bit
Memory - Number of pipelines - 7
Memory bus - 256 bit
Memory bus - 256-bit
Memory CLK - 19.5 Gbps
Memory frequency - 19.5 Gbps
Memory type - DDR6
Model - GV-R78XTGAMING OC-16GD
Model - Radeon RX 7800 XT GAMING OC 16G
MPN - GV-R78XTGAMING OC-16GD
name - GIGABYTE Radeon RX 7800 XT Gaming OC, 16384 MB GDDR6
Name - GIGABYTE Radeon RX 7800 XT GAMING OC 16G, graphics card (RDNA 3, GDDR6, 2x DisplayPort, 2x HDMI 2.1)
name - Graphics card Radeon RX 7800 XT GAMING OC 16 G GDDR6 256bit 2DP/2HDMI
Name - RX 7800 XT 16GB Gigabyte Gaming OC GDDR6
Other features -
Other information -
Packaging content - User guide - Yes
Packaging data - Package type - Box
Packaging data - User guide - Yes
Performance - AMD FreeSync - Yes
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

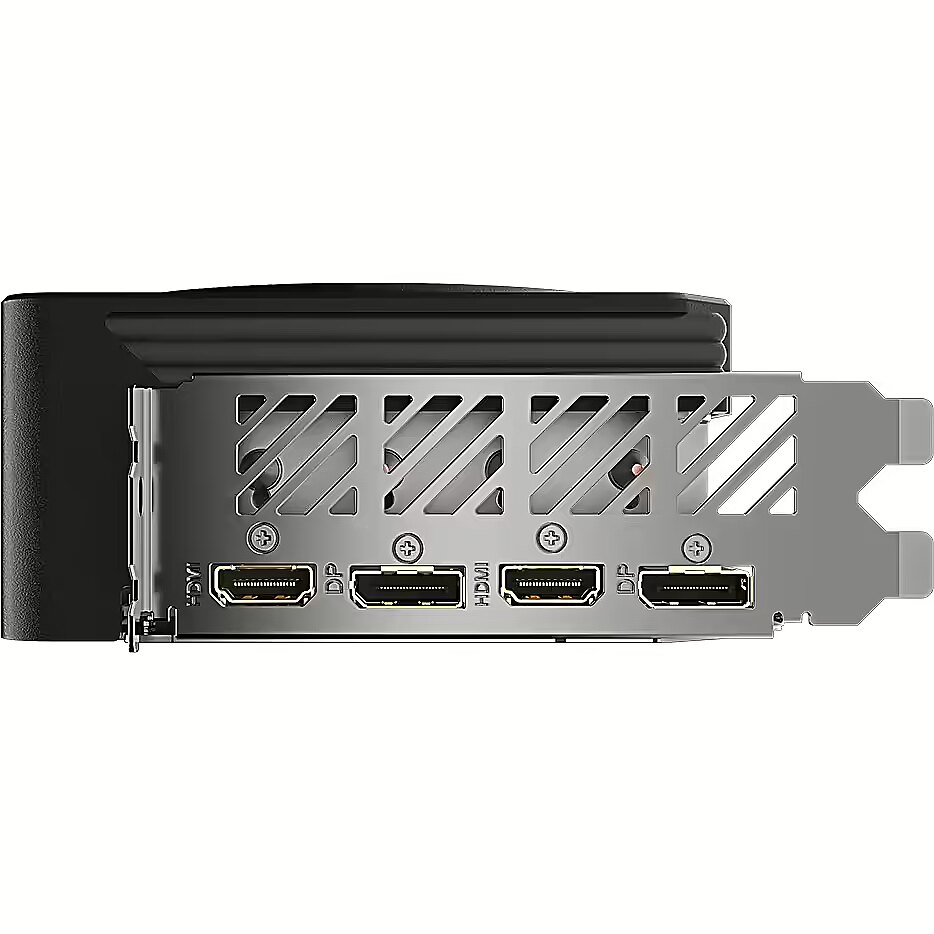

Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 2.1
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 700 W
Power - Supplementary power connectors - 2x 8-pin
Power connectors - 8+8 pin
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 7800 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2565 MHz
Processor - Processor boost clock speed (Gaming mode) - 2254 MHz
Processor - Stream processors - 3840
producer - Gigabyte
producerCode - GV-R78XTGAMING OC-16GD
productName - Gigabyte Radeon RX 7800 XT GAMING OC 16GB graphics card
ProductName - Radeon RX 7800 XT GAMING OC
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 41 cm
Shipping Box Height Shipping/Package Box Dimensions - 9 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.77 kg
Shipping Box Width Shipping/Package Box Dimensions - 23.5 cm
Short description - GIGA VGA 16GB Radeon RX7800XT GAMING OC-16GD 2xDP/2xHDMI Radeon RX 7800 XT GAMING OC 16G
ShortSummaryDescription - GIGABYTE GAMING Radeon RX 7800 XT OC, Radeon RX 7800 XT, 16 GB, GDDR6, 256 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 90
sizeY - 240
sizeZ - 405
Stream processors - 3840
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
System requirements - Windows operating systems supported - Windows 10 x64
System requirements - Windows operating systems supported - Windows 10 x64, Windows 11 x64
System requirements - Windows operating systems supported - Windows 11 x64
Title - GIGABYTE GAMING Radeon RX 7800 XT OC AMD 16 GB GDDR6
Unit Box Height - 0.09
Unit Box Length - 0.41
Unit Box Width - 0.235
Unit Brutto Volume - 0.008672 cubm
Unit Gross Weight - 1.77 kg
Unit Net Weight - 0.8 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-R78XTGAMING-OC-16GD
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-R78XTGAMING-OC-16GD#kf
vendpn - GV-R78XTGAMING OC-16GD
Version - Box
Video ports - 2 x DisplayPort
Video ports - 2 x HDMI
VRAM memory size - 16 GB
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,76
Weight - 1.8
weight - 1770
Weight & dimensions - Depth - 56 mm
Weight & dimensions - Depth - 302 mm
Weight & dimensions - Height - 56 mm
Weight & dimensions - Height - 130 mm
Weight & dimensions - Length - 302 mm
Weight & dimensions - Width - 130 mm
