Brand - MSI
BrandPartCode - GEFORCE RTX 4060 TI GAMING X 16G
BrandPartCode - GEFORCE RTX 4060 Ti GAMING X SLIM 16G
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA|GeForce RTX 4060 Ti 16GB
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Code - GeForce RTX 4060 Ti GAMING X 16G
code - V517-002R
Design - Cooling technology - MSI TORX FAN 5.0
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Number of fans - 2 fan(s)
Design - Number of fans - 3 fan(s)
Design - Product colour - Black, Grey
ean - 4711377122092
EAN - 4711377122092
EAN - 4711377122108
EAN_code - 4711377122108
GTIN - 4711377122092
GTIN - 4711377122108
Link - https://www.msi.com/Graphics-Card/GeForce-RTX-4060-Ti-GAMING-X-16G
LongDesc - GAMING IN STYLEPlay with style! GAMING is upgraded with TWIN FROZR 9 to sustain intense performance during gaming and content creation.A high-speed style matches high-performance capabilities for gamers who want to go all out.STRENGTH AND ARTISTRYMSI envisioned the GAMING series as the favored graphic cards solution for all sorts of gamers, including adventure seekers, esport competitors, livestream broadcasters, and more. GAMING reflects both the spirit of gamers and the intense performance within the cards with a styled exterior that erupts with colorful lights between bold lines and edges.TWIN FROZR 9 THERMAL DESIGNStay cool and quiet. MSI’s TWIN FROZR 9 thermal design enhances heat dissipation all around the graphics card.TORX FAN 5.0TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.COPPER BASEPLATEFACING THE HEAT HEAD-ONHeat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.KEEPING THE CORE COOLCore Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors for optimizing the balance between cooling and quieter acoustics.DrMosDrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.Effective Thermal PaddingAn abundance of clay-based thermal pads provide additional heat dissipation for board components.Hardened DefensesAdditional fuses built into the custom PCB provide additional safeguards against electrical damage.BRINGING IT ALL TOGETHERMSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
LongDesc - Gaming UnboundGAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.TRI FROZR 3 THERMAL DESIGNStay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.TORX FAN 5.0TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.AIRFLOW CONTROLAirflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.ELEVATED DETAILSTake a closer look at the other thermal solution features that help to control temperatures and the noise level.UNRESTRICTED COOLINGA large airflow vent on the backplate allows exhaust air to pass through directly.ZERO FROZRThe fans completely stop when temperatures are relatively low, eliminating all noise.
LongProductName - NVIDIA GeForce RTX 4060 Ti, 2655MHz, 16GB GDDR6, 128 bit, PCI Express 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 165W
LongProductName - NVIDIA GeForce RTX 4060 Ti, 2685MHz, 16GB GDDR6, 128 bit, PCI Express 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 165W
LongSummaryDescription - MSI GAMING GEFORCE RTX 4060 TI X 16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060 Ti, Processor frequency: 2655 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 2 fan(s)
LongSummaryDescription - MSI GAMING GEFORCE RTX 4060 Ti X SLIM 16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060 Ti, Processor frequency: 2685 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - MSI
Manufacturer_code - V517-003R
Memory - Data transfer rate - 18 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory > Discrete graphics adapter memory - 16 GB
Memory > Graphics adapter memory type - GDDR6
MPN - V517-002R
Name - MSI GeForce RTX 4060 Ti GAMING X 16G, graphics card (DLSS 3, 3x DisplayPort, 1x HDMI)
name - MSI GeForce RTX 4060 Ti Gaming X Slim 16G, 16384 MB GDDR6
Name - MSI | GeForce RTX 4060 Ti GAMING X 16G | NVIDIA | 16 GB | GeForce RTX 4060 Ti | GDDR6 | HDMI ports quantity 1 | PCI Express Gen 4
Name - RTX 4060 Ti 16GB MSI Gaming X Slim GDDR6 3Fan
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 247.00 mm
Package features > Gross height (mm) - 42.00 mm
Package features > Gross width (mm) - 130.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 918 pc(s)
Package features > Paper/Pasteboard - 350.00 g
Package features > Plastic (No PET) - 67.00 g
Package features > Tare weight (kg) - 0.42 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package type - Box
Packaging data - Package weight - 1.09 kg
Packaging data - Package weight - 1.64 kg
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

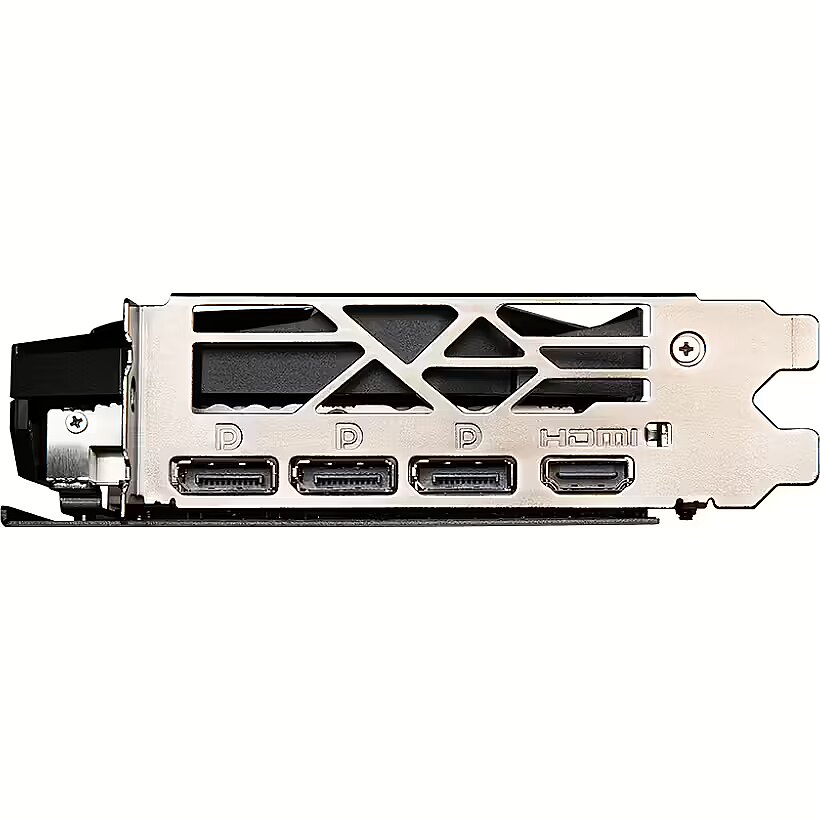

Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express x8 4.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > Interface type - PCI Express Gen 4
Power - Minimum system power supply - 550 W
Power - Power consumption (typical) - 165 W
Power - Supplementary power connectors - 1x 8-pin
Processor - CUDA - Yes
Processor - CUDA cores - 4352
Processor - Graphics processor - GeForce RTX 4060 Ti
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor boost clock speed - 2640 MHz
Processor - Processor boost clock speed - 2670 MHz
Processor - Processor frequency - 2655 MHz
Processor - Processor frequency - 2685 MHz
Processor > Graphics processor - GeForce RTX 4060 Ti
Processor > Graphics processor family - NVIDIA
Producer product name - GeForce RTX 4060 Ti GAMING X 16G
ProductName - GEFORCE RTX 4060 TI GAMING X 16G
ProductName - GEFORCE RTX 4060 Ti GAMING X SLIM 16G
ShortSummaryDescription - MSI GAMING GEFORCE RTX 4060 TI X 16G, GeForce RTX 4060 Ti, 16 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express x8 4.0
ShortSummaryDescription - MSI GAMING GEFORCE RTX 4060 Ti X SLIM 16G, GeForce RTX 4060 Ti, 16 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express x8 4.0
Technical details > Gross weight - 1.09 kg
Technical details > Net weight - 0.67 kg
Technical details > Producer - MSI
Title - MSI GAMING GEFORCE RTX 4060 TI X 16G graphics card NVIDIA 16 GB GDDR6
Title - MSI GAMING GEFORCE RTX 4060 Ti X SLIM 16G graphics card NVIDIA 16 GB GDDR6
URL - https://www.msi.com/Graphics-Card/GeForce-RTX-4060-Ti-GAMING-X-16G
URL - https://www.msi.com/Graphics-Card/GeForce-RTX-4060-Ti-GAMING-X-SLIM-16G
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Weight - 1,05
Weight - 1.46
Weight & dimensions - Depth - 42 mm
Weight & dimensions - Depth - 46 mm
Weight & dimensions - Height - 125 mm
Weight & dimensions - Height - 130 mm
Weight & dimensions - Length - 247 mm
Weight & dimensions - Length - 307 mm
Weight & dimensions - Weight - 672 g
Weight & dimensions - Weight - 919 g
Эмблема GeForce указывает на то, что эта видеокарта достаточно мощная, чтобы быть совместимой с новейшими устройствами виртуальной реальности (VR), такими как Oculus Rift, HTC Vive (SteamVR) и т.д.
