Accessories included - 1 x Quick Installation Guide
category - PC Components|Graphics Cards|AMD|Radeon RX 7900 XT
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - AMD PCI-Express Grafikkarten
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - AMD
Chipset - Radeon RX 7900 XT
Chipset manufacturer - AMD
code - 90-GA3XZZ-00UANF
Cooling - Active
Core Boost frequency - 2450 MHz
Core frequency - 2075 MHz
Description - Phantom Gaming 3X cooling system. For cool and quiet Created for the best balance between thermal performance and silence thanks to all the details. Striped ring fan Designed for Improved Airflow ASRock's all-new Striped Ring Fan has a larger air intake on the side and allows better airflow through the cooling system. Air reflective fin Direct the airflow to be more regular and fast to increase cooling efficiency with V-shaped cutting fins and V-shaped vents. Ultra fit heat pipe. Consolidated to maximize contact. The heatpipes are consolidated to maximize contact with each other as well as the GPU baseplate to optimize heat dissipation. Memory heat pipe Designed to improve and balance temperature and heat dissipation for video memory. Nickel-plated copper base. Maximize GPU contact area. With the high-quality design of the copper-based heatsink, the direct contact area with the GPU would be maximized to effectively improve the heat transfer. High-density metal welding. Improve heat dissipation. They effectively insulate the entire gap cover between the pipe and the stacked fins, thus effectively improving heat dissipation. Nano thermal paste. Excellent thermal teamwork. Eliminate gaps in the contact area to maximize heat transfer and thermal efficiency. Top quality thermal pad. Better heat transfer. A high-quality thermal pad helps transfer component heat to the heatsink, improving heat dissipation. Precise screw tightening torque. Optimized assembly pressure. ASRock uses precise screw torque when assembling its graphics cards to optimize cooler mounting pressure to improve thermal performance while avoiding damage to the GPU die. 0dB silent cooling. Spin to cool, pause to calm down. The fan spins when the temperature rises for optimal cooling, and stops when the temperature drops for complete silence. Polychrome synchronization. Create your own unique colorful lighting effects. Thanks to the integrated ARGB LEDs, you can create your own unique colorful lighting effects, which can also be switched on and off. It can also be synchronized with ASRock motherboards that support Polychrome SYNC. LED on/off switch. Enabled or disabled? Switch as you like. You can simultaneously switch not only the built-in ARGB LEDs, but also ARGB LEDs equipped with connected strips/devices. Reinforced metal frame. Reinforced metal frame Reinforces the structure to prevent PCB bending. Stylish metal backplate. Solid, fancy, cool. Designed to avoid PCB bending. The fancy look makes the graphics card more visually legendary. It also helps to improve cooling with high quality thermal pads fitted on the back. ASRock Tweak 2.0. Professional and easy to use tuning program. Provides intelligent fan speed control and instant performance tuning. 8K resolution support It not only supports 4K graphics, but also supports next-generation 8K video output for the best viewing experience. PCI Express 4.0 support This graphics card supports PCI Express 4.0 with a bandwidth of 16 GT/s and provides twice the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.
Design - Illumination - Yes
Design - Number of fans - 3 fan(s)
Design - Number of slots - 2.8
Design - Product colour - Black
dimensionalWeight - 1782
dimension depth - 410 mm
dimension height - 220 mm
Dimensions - 330 x 140 x 57,6 mm
dimension weight - 1600 g
dimension width - 100 mm
ean - 4710483941740
EAN - 4710483941740
Eans - 4710483941740
EAN_code - 4710483941740
Graphics card connector - PCI-E 16x ver. 4.0
guarantee - 36
guarantee_type - normal
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-GA3XZZ-00UANF
Memory - Discrete graphics card memory - 20 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 320 bit
Memory bus - 320-bit
Memory type - DDR6
Model - RX 7900 XT PHANTOM GAMING 20GB
MPN - 90-GA3XZZ-00UANF

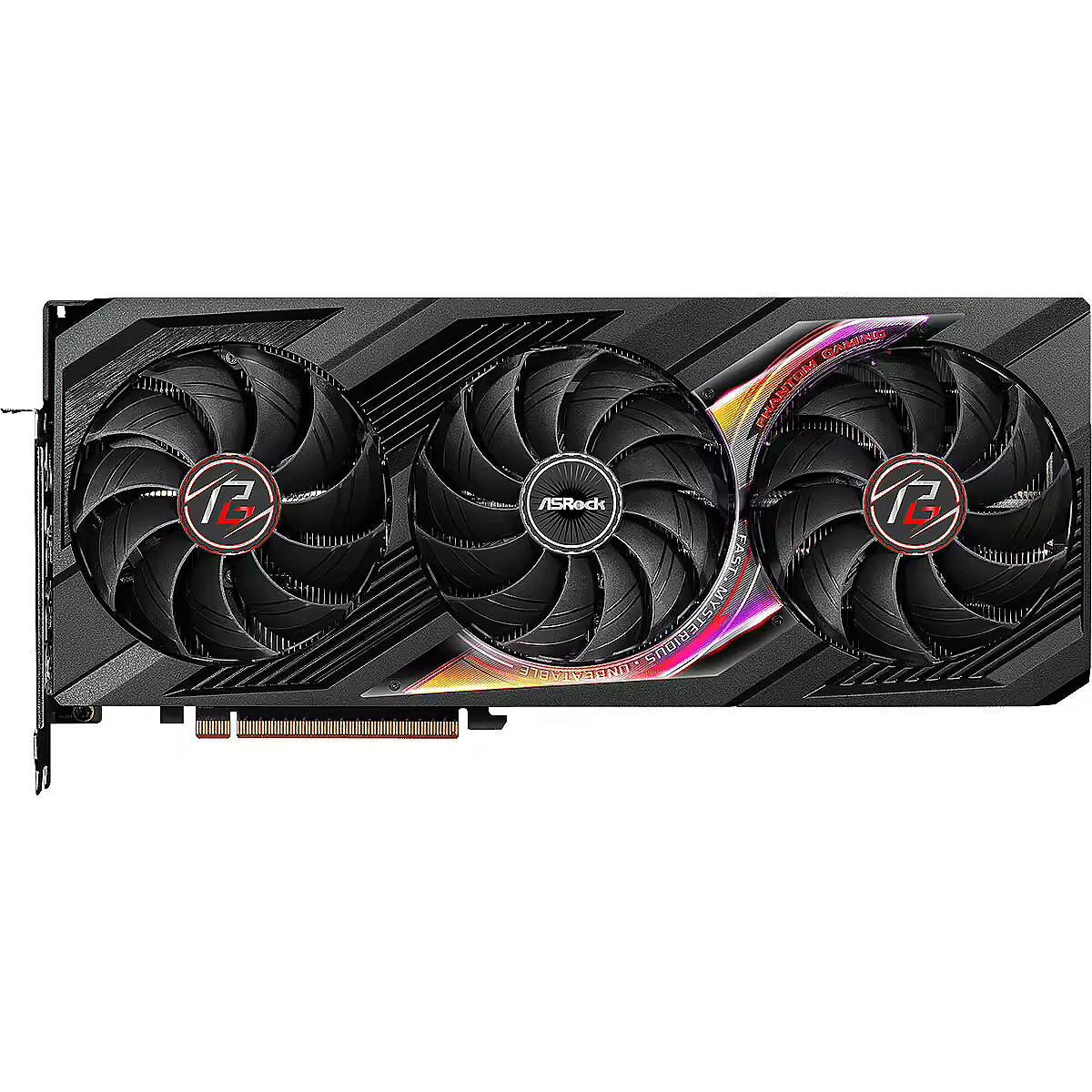

Name - ASRock Radeon RX 7900 XT Phantom Gaming 20GB OC, graphics card (RDNA 3, GDDR6, 3x DisplayPort, 1x HDMI 2.1)
name - ASRock Radeon RX 7900 XT Phantom Gaming OC, 20480 MB GDDR6
Name - ASRock Radeon RX 7900 XT Phantom Gaming OC 20GB GDDR6
name - Graphics card Radeon RX 7900 XT PHANTOM GAMING 20GB OC GDDR6 320bit
Name - RX 7900XT 20GB ASRock Phantom Gaming OC GDDR6 3Fan
Other features -
Other information -
Packaging content - Quick installation guide - Yes
Performance - DirectX version - 12.0
Performance - HDCP - Yes
Performance - OpenGL version - 4.6
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express x16 4.0
Power - Minimum system power supply - 750 W
Power - Supplementary power connectors - 2x 8-pin
Processor - Graphics processor - Radeon RX 7900 XT
Processor - Graphics processor family - AMD
Processor - Infinity cache - 80 MB
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor boost clock speed - 2450 MHz
Processor - Processor frequency - 2075 MHz
Processor - Stream processors - 5376
producer - ASRock
Producer - ASRock
producerCode - RX7900XT PG 20GO
ProducerCode - RX7900XT PG 20GO
productName - Asrock RX7900XT PG 20GO graphics card AMD Radeon RX 7900 XT 20 GB GDDR6
productSize - Normal
ShortDescription - Chipset AMD Radeon RX 7900 XT | 20GB
sizeX - 405
sizeY - 220
sizeZ - 100
Supported standards - DirectX 12
Supported standards - OpenGL 4.6
Technical_details - The ASRock Radeon RX 7900 XT Phantom Gaming 20GB OC's GPU is based on RDNA 3 architecture and is designed for 4K and 1440p performance, power efficiency and demanding gaming. With 20 GB of GDDR6 video memory, support for the PCIe 4.0 standard and features such as Infinity Cache, the AMD Radeon RX 7900 XT GPUs use RDNA3 technology to ensure a smooth gaming experience with great looks. With functions such as Radeon image sharpening, FidelityFX, TressFX, TrueAudio Next and VR technologies, the Radeon RX 7900 XT chip of the ASRock Radeon RX 7900 XT Phantom Gaming 20GB OC ensures high IPC values. Improved graphic effects of the ASRock Radeon RX 7900 XT Phantom Gaming 20GB OC such as volumetric lighting, blurring and depth of field as well as shorter latencies make gamers' hearts beat faster. Item no.: 100016574 Graphics card type EAN 4710483941740 Manufacturer no. 90-GA3XZZ-00UANF Slot PCIe x16 version 4.0 occupied slots 3 GPU name AMD Radeon RX 7900 XT Required power supply power at least 800 W Memory capacity 20 GB (GDDR6) Connections 1x HDMI version 2.1, 3x Displayport version 2.1 Power supply Average consumption 300 W Cooling Cooling with fan RGB standard RGB LED Operating systems Supports Windows 11, Windows 10 Feature Hardware Raytracing, AMD FreeSync Technology, Video Streaming up to 8K, Radeon VR Ready Premium, AMD FidelityFX, Radeon Image Sharpening, Radeon Anti-Lag, Radeon Software, Game Driver Optimizations Dimensions Width: 140mm x Height: 61mm x Depth/Length: 345mm
vendpn - RX7900XT PG 20GO
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 20 GB
Warranty - 24 months
warrantyLength - 36
warrantyType - G
Weight - 2,00
Weight - 2.04
weight - 2000
Weight & dimensions - Depth - 57.6 mm
Weight & dimensions - Height - 140 mm
Weight & dimensions - Length - 330 mm
Weight & dimensions - Weight - 1.45 kg
