Accessories included - Instrukcja konfiguracji
Brand - ASUS
BrandPartCode - 90YV0J47-M0NB00
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Chipset - GeForce RTX 4060 Ti
Chipset manufacturer - NVIDIA
Cooling - Active
Core Boost frequency - 2565 MHz
Core frequency - 2595 MHz
CUDA Core - 4352
Description - Karta graficzna ASUS Dual GeForce RTX 4060 Ti V2 OC Edition 8 GB GDDR6 z dwoma wydajnymi wentylatorami Axial-tech i konstrukcją z 2 gniazdami zapewniającą szeroką kompatybilność Obsługiwany przez NVIDIA DLSS3, ultrawydajny łuk Ada Lovelace i pełny ray tracing Rdzenie Tensor czwartej generacji: do 4x większa wydajność dzięki renderowaniu DLSS 3 w porównaniu z renderowaniem metodą brute-force Rdzenie RT trzeciej generacji: do 2x większa wydajność śledzenia promieni Wersja OC: Boost Clock 2595 MHz (tryb OC)/ 2565 MHz (tryb domyślny) Konstrukcja wentylatora Axial-tech obejmuje mniejszą piastę wentylatora, aby zwiększyć przepływ powietrza przez układ chłodzenia Konstrukcja z 2 gniazdami maksymalizuje kompatybilność i wydajność chłodzenia, zapewniając doskonałą wydajność w małej obudowie. Podwójne łożyska wentylatorów kulkowych mogą wytrzymać nawet dwukrotnie dłużej niż konstrukcje łożysk ślizgowych Technologia 0dB pozwala cieszyć się lekkimi grami we względnej ciszy
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Number of fans - 2 fan(s)
Design - Number of slots - 2
Design - Product colour - Black
dimension depth - 50 mm
dimension height - 230 mm
Dimensions - 202 x 120 x 40.1 mm
dimension weight - 550 g
dimension width - 150 mm
ean - 4711387389812
Eans - 4711387389812
Graphics card connector - PCI-E ver. 4.0
GTIN - 4711387389812
guarantee - 36
guarantee_type - normal
LongDesc - 2x Fans. 2x Fun.ASUS Dual GeForce RTX™ 4060 Ti V2 fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 20.2 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.Axial-tech Fan DesignBetter, faster, strongerTwo tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.0dB TechnologyQuiet intelligenceTo eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 55 degrees and power consumption is low.Dual Ball Fan Bearings2X longer lifespanDifferent bearing types have unique pros and cons. Ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.2-slot DesignSink your heat into thisA carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size.Auto-Extreme TechnologyPrecision automated manufacturingAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.Protective BackplateThat's so metal!The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.Stainless Steel BracketSteel yourselfThe mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.GPU TWEAK IIIMonitor, tweak, and tuneThe ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.QuantumCloudProfit from GPU powerQuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!144-hour Validation Program"Extensive" may be an understatementA 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.nvidia DLSS 3Max FPS. Max Quality. Powered by AI.DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.
LongProductName - 8 GB, GDDR6, 128-bit, PCI Express 4.0, 2595 MHz OC mode, HDMI, 3x DisplayPort, 1x 8-pin, 2 slot
LongSummaryDescription - ASUS Dual -RTX4060TI-O8G-V2. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060 Ti. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Memory - Data transfer rate - 18 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory bus - 128-bit
Memory frequency - 18 Gbps
Memory type - DDR6
Model - DUAL-RTX4060TI-O8G-V2
Name - ASUS GeForce RTX 4060 Ti DUAL 8GB OC V2 BULK DLSS 3
name - Graphic card RTX 4060 Ti DUAL OC V2 8GB GDDR6 128bit 3DP
Other features -
Other information - Zalecany zasilacz 650 W Złącza zasilania 1 x 8-pinowe 2 x Slot
Packaging content - Manual - Yes
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NVIDIA Ansel - Yes
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Performance - Virtual Reality (VR) ready - Yes

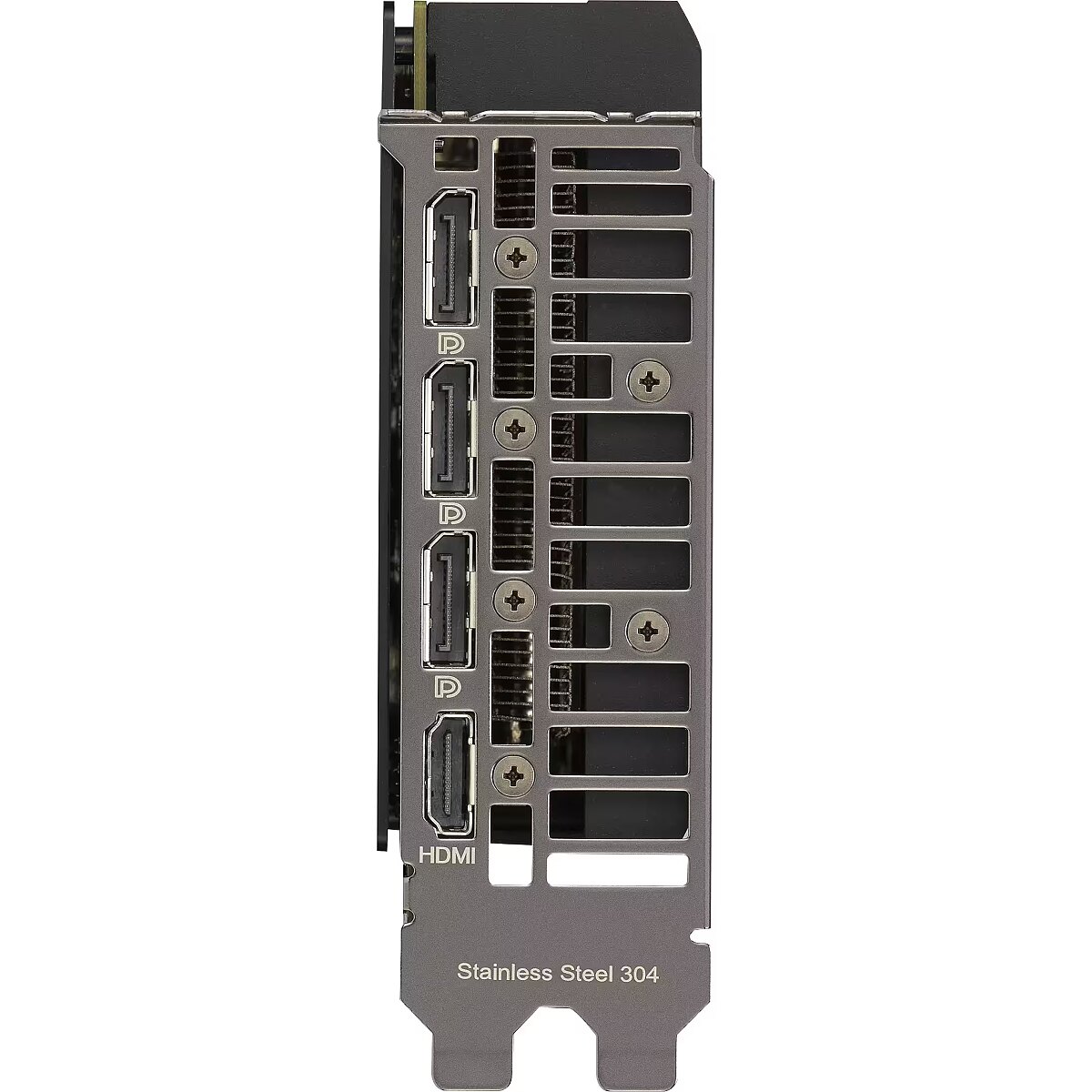

Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 650 W
Power - Supplementary power connectors - 1x 8-pin
Processor - CUDA - Yes
Processor - CUDA cores - 4352
Processor - Graphics processor - GeForce RTX 4060 Ti
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2565 MHz
Processor - Processor frequency (OC mode) - 2595 MHz
producer - Asus
Producer - Asus
ProducerCode - DUAL-RTX4060TI-O8G-V2
ProductName - DUAL-RTX4060TI-O8G-V2
ShortDescription - Chipset NVIDIA RTX 4060 Ti | 8GB |
ShortSummaryDescription - ASUS Dual -RTX4060TI-O8G-V2, GeForce RTX 4060 Ti, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
Supported standards - OpenGL 4.6
System requirements - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Title - ASUS Dual -RTX4060TI-O8G-V2 NVIDIA GeForce RTX 4060 Ti 8 GB GDDR6
URL - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rtx4060ti-o8g-v2/
vendpn - DUAL-RTX4060TI-O8G-V2
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 8 GB
WarrantyInfo -
Weight & dimensions - Depth - 40.1 mm
Weight & dimensions - Height - 120 mm
Weight & dimensions - Length - 202 mm
