Brand - GIGABYTE
BrandPartCode - GV-N3060WF2OC-12GD
BrandPartCode - GV-N3060WF2OC-12GD 2.0
Category - Datortehnika :: Datoru komponentes :: Videokartes (VGA)
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA|GeForce RTX 3060
Category - Root/Electronics/PC parts/Graphic cards
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
category_en - Computers & Components > Computer components > nVidia grafīskas kartes
category_lv - Datortehnika > Datoru komponentes > nVidia grafīskas kartes
category_ru - Datortehnika > Datoru komponentes > nVidia grafīskas kartes
Code - GV-N3060WF2OC-12GD
code - GV-N3060WF2OC-12GD 2.0
Desc - Mikroshēmu tips: GeForce RTX 3060, Takts frekvence: 1792 MHz, Atmiņas apjoms: 12 GB, Atmiņas veids: GDDR6, Biti: 192 Bit, Takts frekvence atmiņai: 15000 MHz, Interfeisa tips: PCI-Express 4.0, DVI: Nav, VGA (D-Sub): Nav, Display Port: 2, HDMI: 2, Garantija: 2 gadi
description_en - Manufacturer: Gigabyte
Product group: Gigabyte Graphics Cards
Connector Type: PCI-Express x16
Graphics Card Series: RTX 30 Series
Chipset Manufacturer: NVIDIA
Chipset Model: GeForce RTX 3060
Memory Size: 12 GB
Max Core Clock: 1792 MHz
Memory Type Used: GDDR6
Memory Clock: 15000 MHz
Memory Data Width: 192 bit
Memory Bandwidth: 360 GB/s
Types of Outputs/Inputs:
2 x Display Port
2 x HDMI output
HDCP Support: Yes
CUDA Support: Yes
VR Technology: Yes
Supported Standards:
DirectX 12
OpenGL 4.6
Vulkan
Cooling Type: Fan
Recommended Power: 550 W
Power Connector: 8 PIN
Length: 19.8 cm
Width: 12.1 cm
Height: 3.9 cm
description_lv - Ražotājs: Gigabyte
Produktu grupa: Gigabaitu grafiskās kartes
Savienotāja tips: PCI-Express x16
Grafikas karšu sērija: RTX 30 sērija
Mikroshēmas ražotājs: NVIDIA
Mikroshēmas modelis: GeForce RTX 3060
Atmiņas apjoms: 12 GB
Maksimālais kodola pulkstenis: 1792 MHz
Izmantotais atmiņas veids: GDDR6
Atmiņas pulkstenis: 15000 MHz
Atmiņas datu platums: 192 biti
Atmiņas joslas platums: 360 GB/s
Izvadu/ieeju veidi:
2 x displeja ports
2x HDMI izeja
HDCP atbalsts: Jā
CUDA atbalsts: Jā
VR tehnoloģija: Jā
Atbalstītie standarti:
DirectX 12
OpenGL 4.6
Vulkāns
Dzesēšanas veids: ventilators
Ieteicamā jauda: 550 W
Barošanas savienotājs: 8 PIN
Garums: 19,8 cm
Platums: 12,1 cm
Augstums: 3,9 cm
description_ru - Производитель: Gigabyte
Группа продуктов: Видеокарты Gigabyte
Тип разъема: PCI-Express x16
Серия видеокарт: серия RTX 30
Производитель чипсета: NVIDIA
Модель чипсета: GeForce RTX 3060.
Размер памяти: 12 ГБ
Максимальная тактовая частота ядра: 1792 МГц
Тип используемой памяти: GDDR6
Частота памяти: 15000 МГц
Ширина данных памяти: 192 бит
Пропускная способность памяти: 360 ГБ/с
Типы выходов/входов:
2 порта дисплея
2 выхода HDMI
Поддержка HDCP: Да
Поддержка CUDA: Да
Технология VR: Да
Поддерживаемые стандарты:
ДиректХ 12
OpenGL 4.6
Вулкан
Тип охлаждения: Вентилятор
Рекомендуемая мощность: 550 Вт
Разъем питания: 8-контактный
Длина: 19,8 см
Ширина: 12,1 см
Высота: 3,9 см

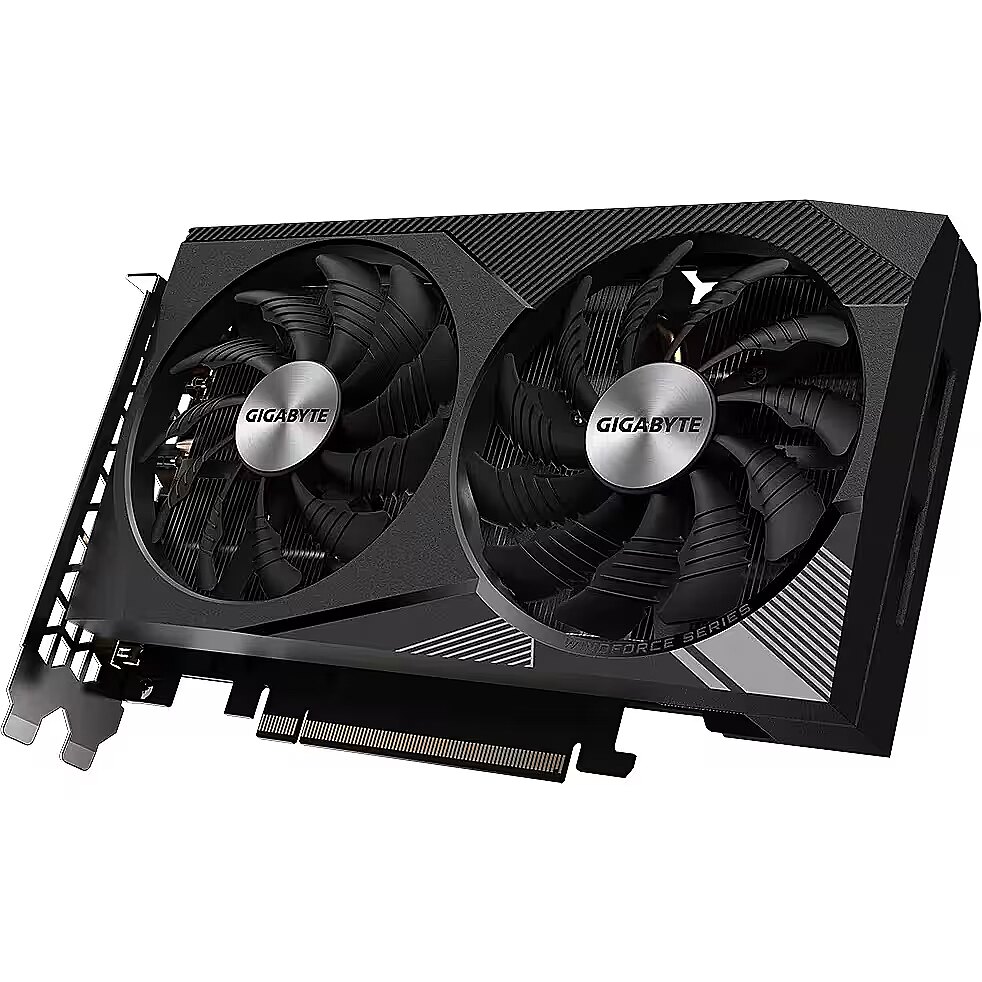

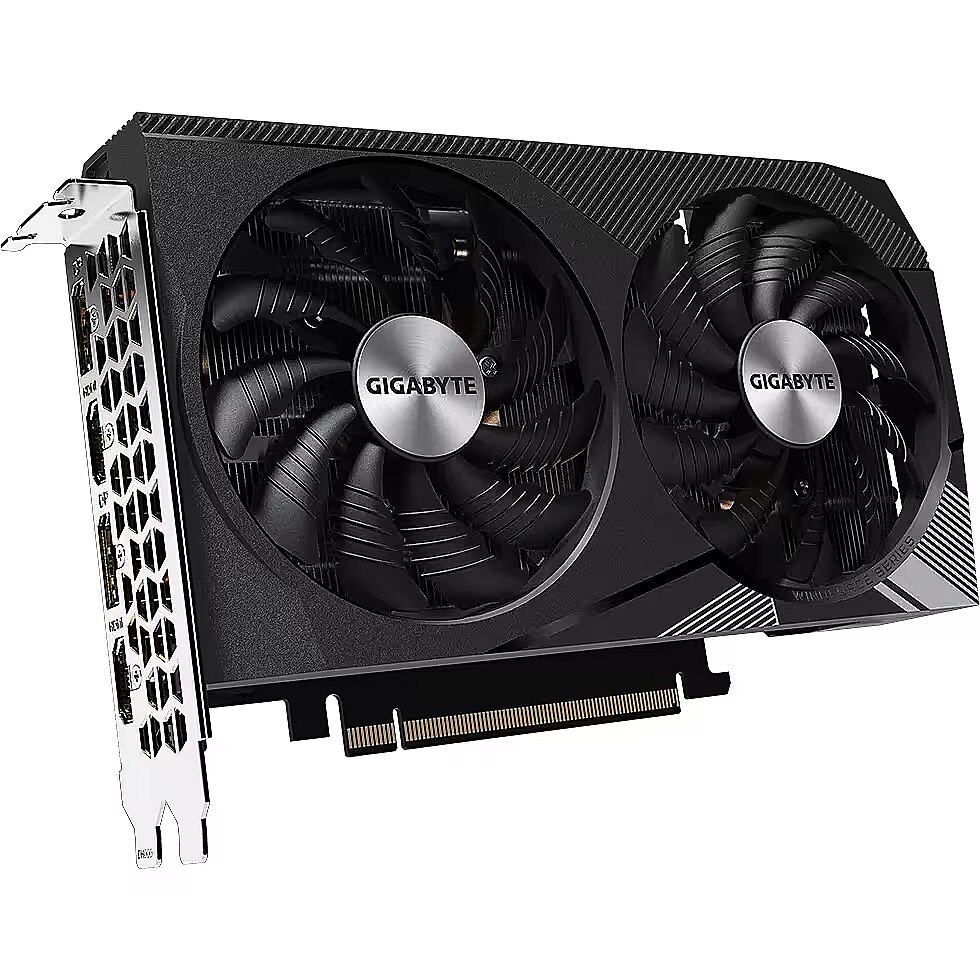

Design - Cooling technology - GIGABYTE WINDFORCE 2X
Design - Cooling type - Active
Design - Fan diameter - 9 cm
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
EAN -
ean - 4719331312862
EAN - 4719331312862
Eans - 4719331312862
EAN_code - 4719331312862
gross_weight - 0.24 kg
GTIN - 4719331311193
GTIN - 4719331312862
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_96408_1.jpg
LargeDescHTML -
LongDesc - NVIDIA AMPERE ARCHITECTUREThe all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.RTX. IT’S ON.Experience today’s biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS.DLSS AI ACCELERATIONNVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming.VICTORY MEASURED IN MILLISECONDSNVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies to measure and optimize system latency for competitive games.UP YOUR CREATIVE GAMETake your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.STREAM LIKE A BOSSSteal the show with incredible graphics and smooth, stutter-free live streaming. Next-generation hardware encoding and decoding combine to show off all your best moments in exquisite detail. And the all-new NVIDIA Broadcast app gives you powerful AI capabilities to improve audio and video quality with effects like virtual background, webcam auto frame, and microphone noise removal. So you can give your audience your best—every time.DIRECTX 12 ULTIMATEDevelopers can now add even more amazing graphics effects to Microsoft Windows-based PC games. GeForce RTX graphics cards deliver advanced DX12 features like ray tracing and variable rate shading, bringing games to life with ultra-realistic visual effects and faster frame rates.WINDFORCE 2X COOLING SYSTEMThe WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGThe GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.HEAT PIPES DIRECT TOUCHThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink design allows air flow to pass through, providing better heat dissipation.BUILT STRONGTINY SIZE WITH MIGHTY PERFORMANCE.For gamers who prefer a small build with powerful performance, GIGABYTE delivers a compact graphics card with less than 200mm in length. The card provides mighty performance and is easy to install in any small chassis as well.PROTECTION BACK PLATEThe back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.ULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongDesc - WINDFORCE 2X COOLING SYSTEMThe WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGThe GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.HEAT PIPES DIRECT TOUCHThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink design allows air flow to pass through, providing better heat dissipation.TINY SIZE WITH MIGHTY PERFORMANCE.For gamers who prefer a small build with powerful performance, GIGABYTE delivers a compact graphics card with less than 200mm in length. The card provides mighty performance and is easy to install in any small chassis as well.PROTECTION BACK PLATEThe back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.EXTREME DURABILITY & OVERCLOCKINGThe graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
LongProductName - 12 GB, GDDR6, 192-bit, PCI-E 4.0 x16, 1792 MHz core clock, 2x DisplayPort, 2x HDMI, 1x 8-pin
LongProductName - GeForce RTX 3060, 1792 MHz, 12 GB, 192 bit, 360 GB/s, PCI-E 4.0 x 16, 550W, 8 pin x 1, DisplayPort 1.4a x 2, HDMI 2.1 x 2, 198 x 121 x 39 mm
LongSummaryDescription - GIGABYTE GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0). Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3060, Processor frequency: 1792 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit, Memory clock speed: 15000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 4.0. Cooling type: Active, Number of fans: 2 fan(s)
LongSummaryDescription - GIGABYTE RTX 3060 Windforce OC 12G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3060, Processor frequency: 1792 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit, Memory clock speed: 15000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Manufacturer - GigaByte
Manufacturer_code - GV-N3060WF2OC-12GD
Memory - Discrete graphics card memory - 12 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bandwidth (max) - 360 GB/s
Memory - Memory bus - 192 bit
Memory - Memory clock speed - 15000 MHz
Memory - Number of pipelines - 3
Model - GV-N3060WF2OC-12GD
Name - GIGABYTE GeForce RTX 3060 3060 WINDFORCE OC - 12GB - 2x DisplayPort, 2x HDMI
Name - Gigabyte GeForce RTX 3060 WindForce 12GB OC
name - GIGABYTE GeForce RTX 3060 Windforce OC 12G, 12288 MB GDDR6
Name - Videokarte Gigabyte GeForce RTX 3060 12GB WindForce OC
Packaging content - Manual - Yes
Packaging content - User guide - Yes
Packaging data - Package type - Box
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - Low Hash Rate (LHR) - Yes
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

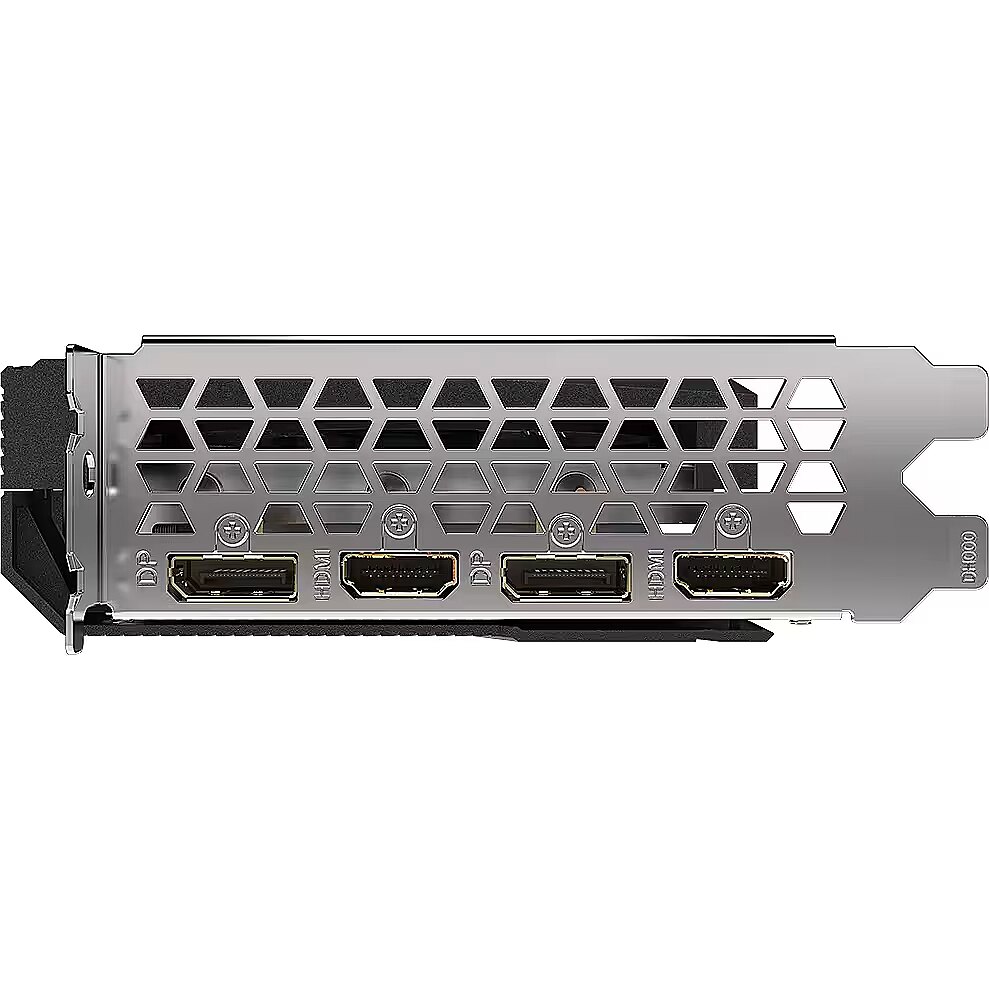

Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express x16 4.0
Power - Minimum system power supply - 550 W
Power - Supplementary power connectors - 1x 8-pin
Processor - CUDA - Yes
Processor - CUDA cores - 3584
Processor - Graphics processor - GeForce RTX 3060
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 1792 MHz
Producer - Gigabyte
ProducerCode - GV-N3060WF2OC-12GD
ProductName - GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0)
ProductName - RTX 3060 Windforce OC 12G
ShortDescription - Chipset NVIDIA RTX 3060 | 12GB |
ShortSummaryDescription - GIGABYTE GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0), GeForce RTX 3060, 12 GB, GDDR6, 192 bit, 7680 x 4320 pixels, PCI Express x16 4.0
ShortSummaryDescription - GIGABYTE RTX 3060 Windforce OC 12G, GeForce RTX 3060, 12 GB, GDDR6, 192 bit, 7680 x 4320 pixels, PCI Express x16 4.0
System requirements - Windows operating systems supported - Windows 10 x64, Windows 11 x64, Windows 7 x64
Title - GIGABYTE GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0) NVIDIA 12 GB GDDR6
Title - GIGABYTE RTX 3060 Windforce OC 12G NVIDIA GeForce RTX 3060 12 GB GDDR6
title_en - Gigabyte GeForce RTX 3060 WindForce 12GB OC Graphic card
title_lv - Gigabyte GeForce RTX 3060 WindForce 12GB OC Grafiskā karte
title_ru - Gigabyte GeForce RTX 3060 WindForce 12GB OC Видеокарта
URL - https://www.gigabyte.com/Graphics-Card/GV-N3060WF2OC-12GD#kf
URL - https://www.gigabyte.com/Graphics-Card/GV-N3060WF2OC-12GD-rev-20
WarrantyInfo -
Weight - 0,87
weight - 0.2 kg
Weight & dimensions - Depth - 39 mm
Weight & dimensions - Height - 121 mm
Эмблема GeForce указывает на то, что эта видеокарта достаточно мощная, чтобы быть совместимой с новейшими устройствами виртуальной реальности (VR), такими как Oculus Rift, HTC Vive (SteamVR) и т.д.
