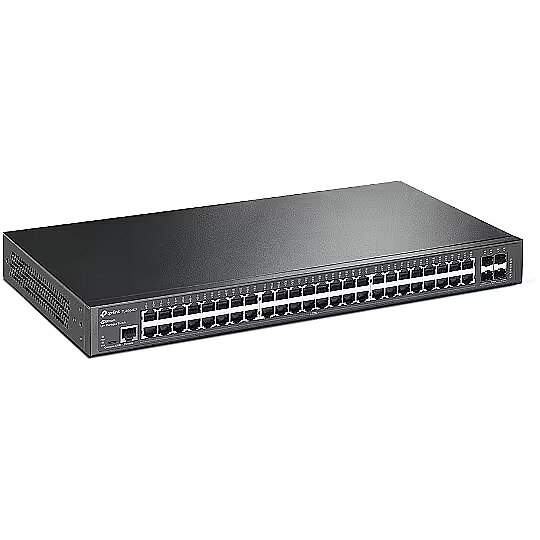

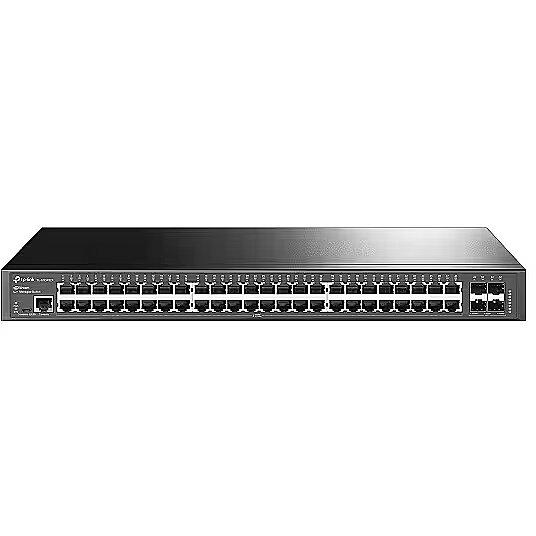

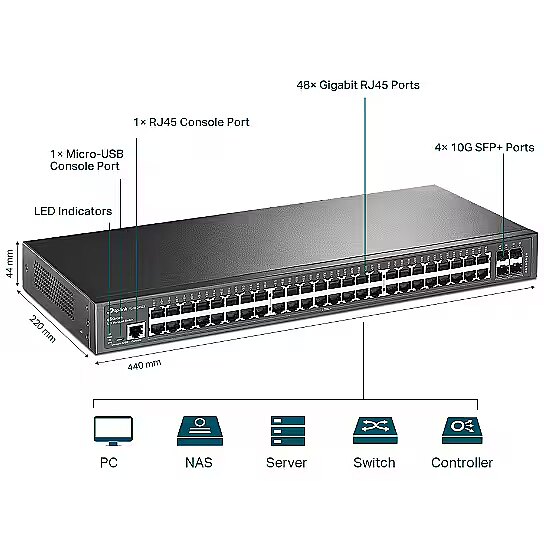

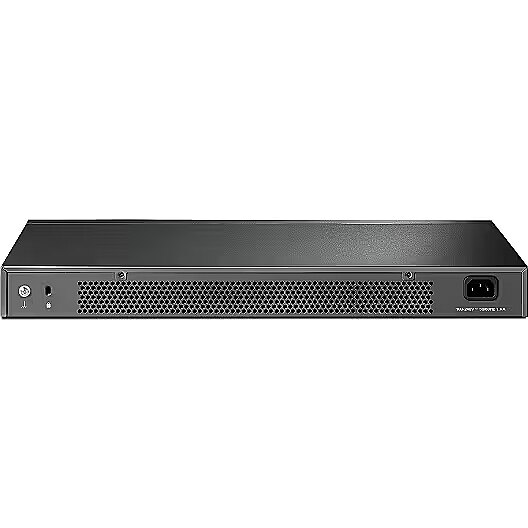

TP-LINK TL-SG3452X, 48xGBit/4xSFP+

10Base-T / 100Base-TX / 1000Base-T Ports - 48
Accessories included - Przełącznik TL-SG3452X Przewód zasilający Instrukcja instalacji Zestaw montażowy Gumowe nóżki
Application - Medium and large companies
ARTIKEL1 - 48-PORT GIGABIT L2+ MGD SWITCH
ARTIKEL2 - WITH 4 10GE SFP+ SLOTS
Brand - TP-Link
BrandPartCode - SG3452X
Breite - 0
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Certificates - Certification - CE, FCC, RoHS
Chassis type - Rack
Console port - Yes
Console Ports - 1
Data transmission - Forwarding rate - 130.9 Mpps
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 16000 entries
Data transmission - Number of static routes - 48
Data transmission - Packet buffer memory - 12 MB
Data transmission - Static route - Yes
Data transmission - Switching capacity - 176 Gbit/s
Description - Błyskawiczna łączność 10G: 4× 10-cio Gigabitowe sloty SFP+ zapewniają wysoką przepustowość i możliwości przełączania. Gigabitowe porty: 48 gigabitowych portów RJ45 przekładają się na stabilne połączenia o dużych prędkościach. Działanie zintegrowane z platformą Omada SDN: Bezobsługowa konfiguracja ZTP*, centralne zarządzanie w chmurze i inteligentne monitorowanie. Scentralizowane zarządzanie: Zarządzanie jest niezwykle wygodne dzięki dostępowi z chmury oraz łatwej w użytkowaniu aplikacji Omada. Statyczny Routing: Umożliwia kierowanie ruchem sieciowych dla efektywnego wykorzystania zasobów sieciowych. Silne strategie zabezpieczeń: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication i wiele innych. Optymalizacja aplikacji Głosowych i Wideo: L2/L3/L4 QoS i IGMP Snooping. Zarządzanie: Web, CLI (Port konsolowy, Telnet, SSH), SNMP, RMON i Dual Image dają duże możliwości zarządzania
Description - JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots - 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity. - Gigabit Speeds: 48× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices. - Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring. - Centralized Management: Cloud access and Omada app for ultra convenience and easy management. - Static Routing: Helps route internal traffic for more efficient use of network resources. - Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more. - Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. - Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Design - Certification - CE, FCC, RoHS
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Number of fans - 0 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
Designation - CE+WEEE
dimensionalWeight - 3604
dimension depth - 335 mm
dimension height - 100 mm
Dimensions - 440 × 220 × 44 mm
dimension weight - 4150 g
dimension width - 530 mm
ean - 6935364006471
EAN - 6935364006471
EANCode - 6935364006471
Eans - 6935364006471
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 130.9 Mpps
Forwarding rate - 130.9 Mpps
Full Description Line - Series Omada|Type L2+|Rack|48x10Base-T / 100Base-TX / 1000Base-T|4xSFP+|1xConsole|1xMicro-USB|Switching capacity 176 Gbps|Forwarding rate 130.9 Mpps|Included Accessories • Power Cord;• Quick Installation Guide;• Rackmount Kit;• Rubber Feet|Dimensions 440 × 220 × 44 mm|Unit Net Weight 4.1 kg
Gewicht - 4.1
Gross Weight Kg - 3,1
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 6935364006471
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - SG3452X
Included Accessories - • Power Cord;
• Quick Installation Guide;
• Rackmount Kit;
• Rubber Feet
Jumbo frame size - 9 KB
L2 features - Link Aggregation
- statyczna agregacja linków
- 802.3ad LACP
- Do 8 grup agregacji, zawierających 8 portów na grupę Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, Root Protect Wykrywanie Pętli
- Bazujące na Porcie
- Bazujące na VLAN Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
L3 features - 16 IPv4/IPv6 Interfejsy Statyczny routing
- 48 statyczne trasy Statyczny ARP
- 128 Statycznych wpisów Proxy ARP Gratuitous ARP DHCP Serwer Przekaźnik DHCP
- DHCP Przekaźnik interfejsu
- DHCP Przekaźnik VLAN DHCP L2 Przekaźnik
Laenge - 0
LongDesc - TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
LongProductName - 48x 10/100/1000 Mbps RJ45, 4x 10G SFP+, RJ45 Console Port, Micro-USB Console Port, 176 Gbps, 130.94 Mpps, 16 K Mac, 9 KB Jumbo Frame, 440 × 220 × 44 mm
LongSummaryDescription - TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad. Power connector: AC-in jack. Rack mounting, Form factor: 1U
MAC address table size - 16000
Management, monitoring, configuration - Aplikacja Omada
Zarządzanie centralne Kontroler sprzętowy Omada (OC300) Kontroler sprzętowy Omada (OC200) Kontroler programowy Omada Kontroler Omada oparty na Chmurze Dostęp do chmury
Bezobsługowa konfiguracja ZTP
Funkcje panelu zarządzania Interfejs graficzny GUI Interfejs linii poleceń CLI SNMP v1/v2c/v3
Trap/Inform
RMON (grupy 1,2,3,9) Szablon SDM Klient DHCP/BOOTP LLDP/LLDP-MED 802.1ab Automatyczna instalacja DHCP Dual Image, Dual Configuration Monitorowanie zużycia procesora Diagnostyka kabli EEE Odzyskiwanie haseł SNTP Logi systemu
Management features - ARP inspection - Yes
Management features - Cloud-managed - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - Huawei-proprietary MIB - Y
Management features - MIB support - RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
Management features - Public MIB - Y
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2+
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Manufacturer - TP-Link
Manufacturer Code - SG3452X
Manufacturer Name - TP-LINK
Micro-USB Input/Output connectors - 1
Model name - TL-SG3452X
MPN - SG3452X
Multicast features - Multicast Listener Discovery (MLD) snooping - Y
Multicast features - Multicast support - Yes
Name - 48P+4 TP-LINK Omada SG3452X M RM
name - TP-Link SG3452X Switch 48xGE 4xSFP+
Name - TP-Link TL-SG3452X
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Flow control support - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - IPv4 routes - 48
Network - IPv6 routes - 48
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1D
Network - Networking standards - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.1s
Network - Networking standards - IEEE 802.1w
Network - Networking standards - IEEE 802.3ad
Network - Number of VLANs - 4000
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Private VLAN
Network - Virtual LAN features - Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Network - Virtual LAN features - Tagged VLAN
Network - Virtual LAN features - VLAN mapping
Network - Virtual LAN features - Voice VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100/1000 Mbps ports - 48
Number of SFP+ ports - 4
Operational conditions - Heat dissipation - 111.65 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interfejs Statyczny routing IPv6 IPv6 neighbor discovery (ND) Wykrywanie ścieżki maximum transmission unit (MTU) Internet Control Message Protocol (ICMP) wersja 6 TCPv6/UDPv6 IPv6 aplikacje (DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP) Funkcje zaawansowane: Automatyczne wykrywanie urządzeń Konfiguracja Batch Aktualizacja oprogramowania Batch Inteligentne monitorowanie sieci Ostrzeżenia o nietypowych zdarzeniach Ujednolicona konfiguracja Harmonogram restartów
Other functions - MIB II (RFC1213) Interfejs MIB (RFC2233) Interfejs Ethernet MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Zdalny Ping, Traceroute MIB (RFC2925) Wsparcie dla prywatnego TP-Link MIB
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Cables included - AC
Packaging data - Package type - Box
Packaging data - Quick start guide - Yes
Packaging data - Rack mount kit - Yes
Packaging data - Rack rails - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 48
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Console port - RJ-45/Micro-USB
Ports & interfaces - Power connector - AC-in jack
Ports & interfaces - SFP+ module slots quantity - 4
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 32.72 W
Power - Power source - AC
Power - Power supply included - Yes
Power consumption - 32.72 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - 100-240V AC~50/60Hz
producer - TP-LINK
Producer - TP-Link
producerCode - TL-SG3452X
ProducerCode - TL-SG3452X
ProductName - Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
productName - TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
productSize - Normal
Protocols - GARP VLAN Registration Protocol (GVRP) - Yes
Protocols - IPv4 & IPv6 features - IPv4/IPv6 access-control list (ACL)
Protocols - IPv4 & IPv6 features - IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Protocols - IPv4 & IPv6 features - IPv6 ping
Protocols - IPv4 & IPv6 features - IPv6 Telnet
Protocols - IPv4 & IPv6 features - IPv6 tracert
Protocols - Management protocols - SNMPv1/v2c/v3, SNTP
QoS - 8 kolejek priorytetowania Obsługa priorytetowania 802.1p CoS/DSCP Tryb harmonogramu priorytetowania:
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR Kontrola przepustowości
- Ograniczanie prędkości transferu w oparciu o port/przepływ danych Płynniejsze działanie Działania dla przepływów
- Mirror (do obsługiwanego interfejsu)
- Redirect (do obsługiwanego interfejsu)
- Limit prędkości
- QoS Remark
Rack Mounting Type - Yes
Security - Wiązanie adresów IP, MAC i portów
- 512 wpisów
- DHCP Snooping
- Inspekcja ARP
- Ochrona źródłowego adresu IPv4: 100 wpisów Wiązanie adresów IPv6, MAC i portów
- 512 wpisów
- DHCPv6 Snooping
- Wykrywanie ND
- Ochrona źródłowego adresu IPv6: 100 wpisów Ochrona przed atakami DoS Ochrona portów poprzez ich statyczną/dynamiczną/stałą konfigurację
- Do 64 adresów MAC na port Storm Control Broadcast/Multicast/Unicast
- tryb kontroli (kb/s/wskaźnik) Uwierzytelnianie 802.1X
- Uwierzytelnianie w oparciu o port
- Uwierzytelnianie w oparciu o adres MAC
- Przydzielanie VLAN
- MAB
- Sieć VLAN dla gości
- Uwierzytelnianie i autoryzowanie poprzez Radius AAA (w tym TACACS+) Izolacja portów Bezpieczne zarządzanie webowe poprzez HTTPS z szyfrowaniem SSLv3/TLS 1.2 Bezpieczne zarządzanie CLI z szyfrowaniem SSHv1/SSHv2 Kontrola dostępu w oparciu o IP/port/MAC
Security - Access Control List (ACL) - Yes
Security - Authentication - Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Security - Authentication type - AAA, RADIUS, TACACS+
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP client
Security - DHCP features - DHCP client, DHCP relay, DHCP server
Security - DHCP features - DHCP relay
Security - DHCP features - DHCP server
Security - IGMP proxy - Yes
Security - IGMP snooping - Yes
Security - IP-MAC-Port binding - Yes
Security - Loop protection - Yes
Security - MAC address filtering - Yes
Security - Password protection - Yes
Security - Queue scheduling algorithms - SP
Security - Queue scheduling algorithms - SP, WRR+SP, Weighted Round Robin (WRR)
Security - Queue scheduling algorithms - Weighted Round Robin (WRR)
Security - Queue scheduling algorithms - WRR+SP
Security - SSH/SSL support - Yes
Security - Static port security - Yes
Series - Omada
SFP+ Ports - 4
Shipping Box Depth Shipping/Package Box Dimensions - 53 cm
Shipping Box Height Shipping/Package Box Dimensions - 10.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 4.14 kg
Shipping Box Width Shipping/Package Box Dimensions - 33.7 cm
ShortDescription -
Short description - TP-LINK Switch SG3452X 48xGBit/4xSFP+ Managed
ShortSummaryDescription - TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots, Managed, L2+, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
sizeX - 340
sizeY - 100
sizeZ - 530
Stck_Kart - 1
Stck_Pal - 16
Storno - Y
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Managed
Switching capacity - 176 Gbps
Switch layer - L2
Switch layer - L2+
Switch type - L2+
Throughput - 176 Gb/s
Title - TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
Unit Box Height - 0.105
Unit Box Length - 0.53
Unit Box Width - 0.337
Unit Brutto Volume - 0.01875 cubm
Unit Gross Weight - 4.14 kg
Unit Net Weight - 4.1 kg
URL - https://www.tp-link.com/uk/business-networking/omada-sdn-switch/tl-sg3452x/
Vendor Homepage - www.tp-link.com/in/business-networking/omada-sdn-switch/tl-sg3452x/
vendpn - SG3452X
VLAN - Grupy VLAN
- Maks. 4K grup VLAN Tagowanie 802.1Q VLAN Adres MAC VLAN: 30 wpisów Protokół VLAN: Szablon Protokołu 16, Protokół VLAN 16 Prywatny VLAN GVRP VLAN VPN (QinQ)
- QinQ oparty na portach
- Selective QinQ Głosowa sieć VLAN
Warranty - 60 months
WarrantyInfo -
warrantyLength - 60
warrantyType - G
Weight - 4.06
weight - 4200
Weight & dimensions - Depth - 220 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
