Brand - LevelOne
BrandPartCode - GEU-0522
Category - Network Switches
Certificates - Certification - CE, FCC
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 1000 entries
Data transmission - Packet forwarding rate (1 Gbps) - 1488100 pps
Data transmission - Packet forwarding rate (10 Mbps) - 14880 pps
Data transmission - Packet forwarding rate (100 Mbps) - 148810 pps
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 10 Gbit/s
Design - LED indicators - Activity, Link, Power
Design - Product colour - Black
Design - Stackable - No
EAN - 4015867202500
Gross Weight Kg - 0,08
GTIN - 0846359048078
GTIN - 846359048078
GTIN - 4015867202500
GTIN - 4015867229958
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 85176990
Logistics data - Master (outer) case gross weight - 10.2 kg
Logistics data - Master (outer) case height - 516 mm
Logistics data - Master (outer) case length - 191 mm
Logistics data - Master (outer) case width - 495 mm
Logistics data - Products per master (outer) case - 50 pc(s)

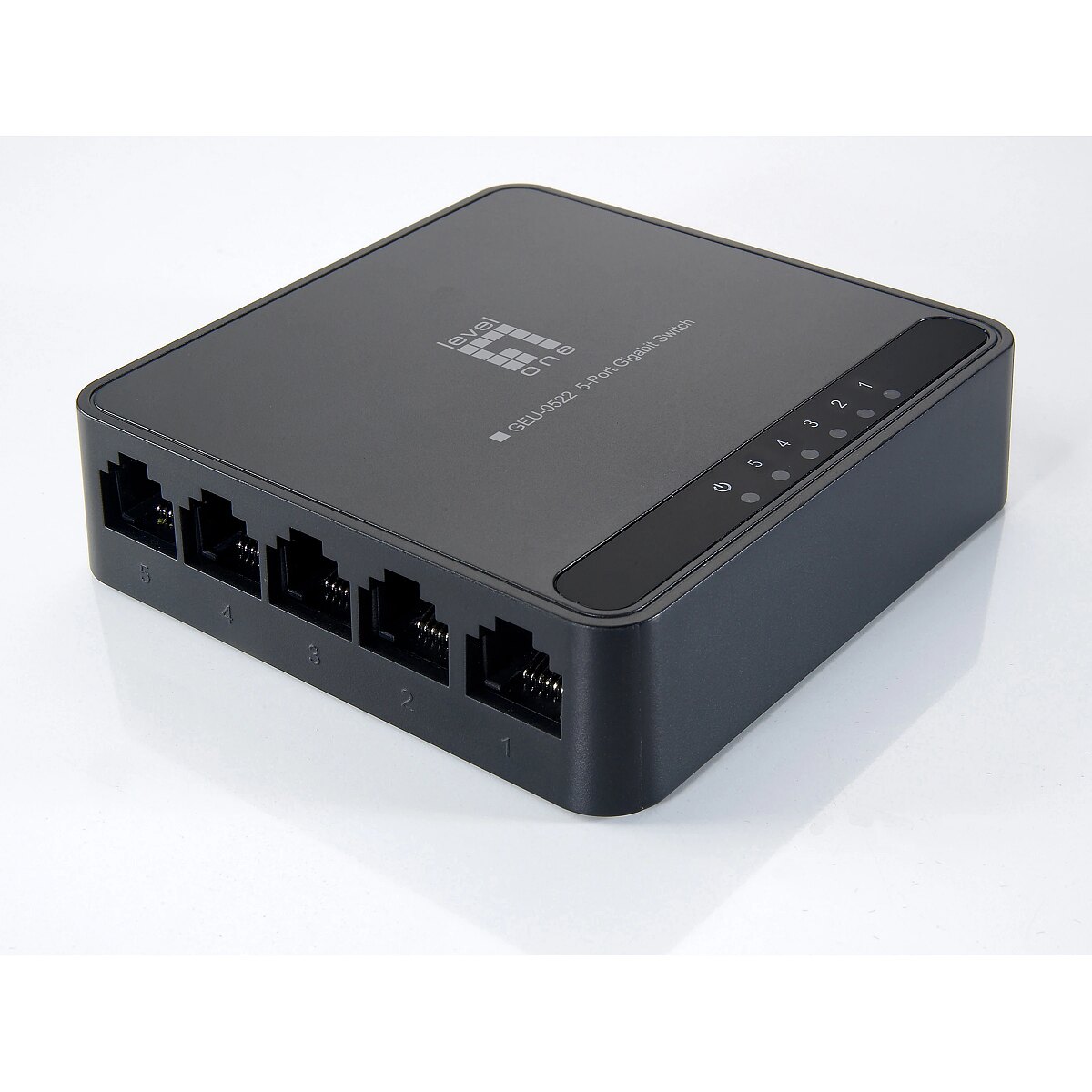

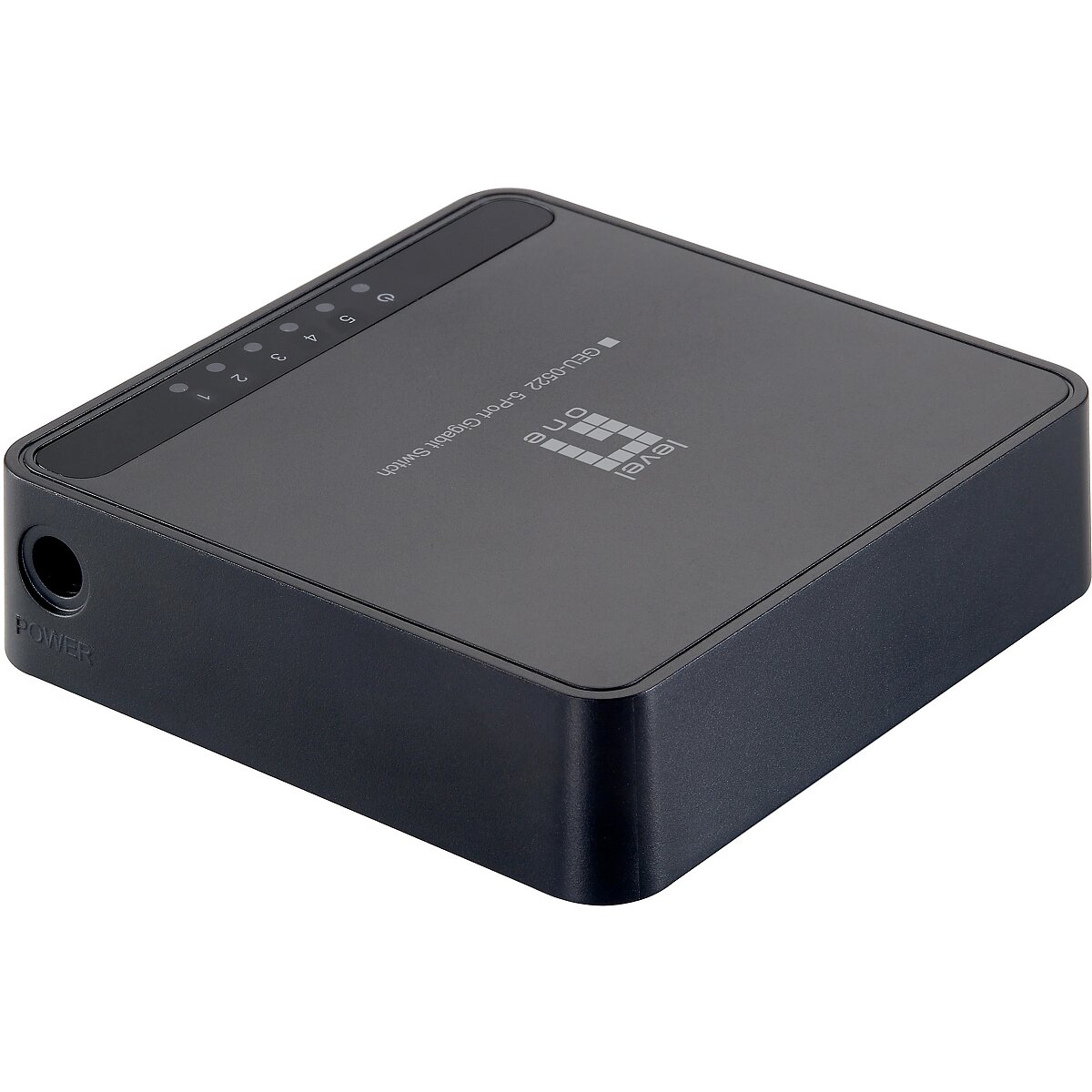

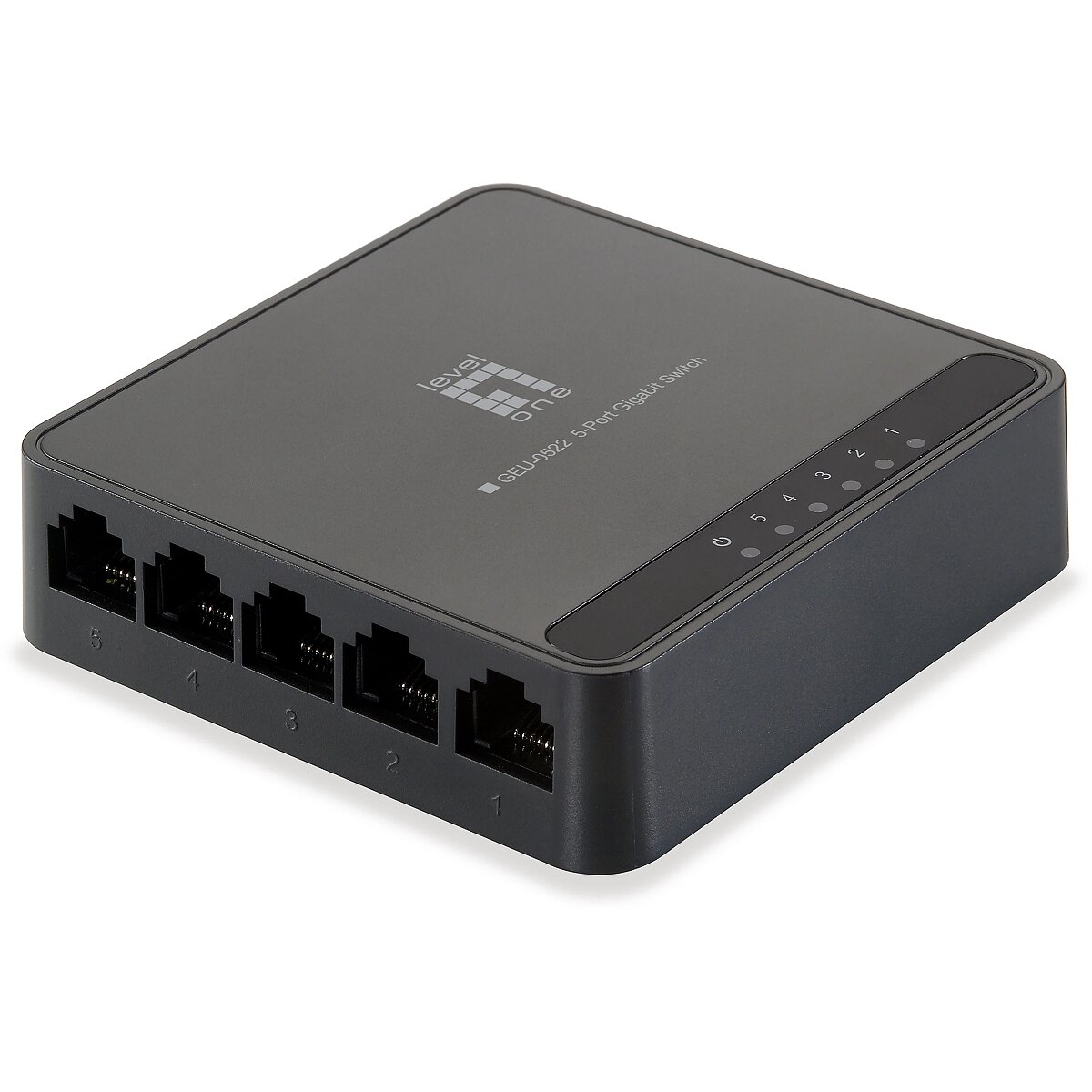

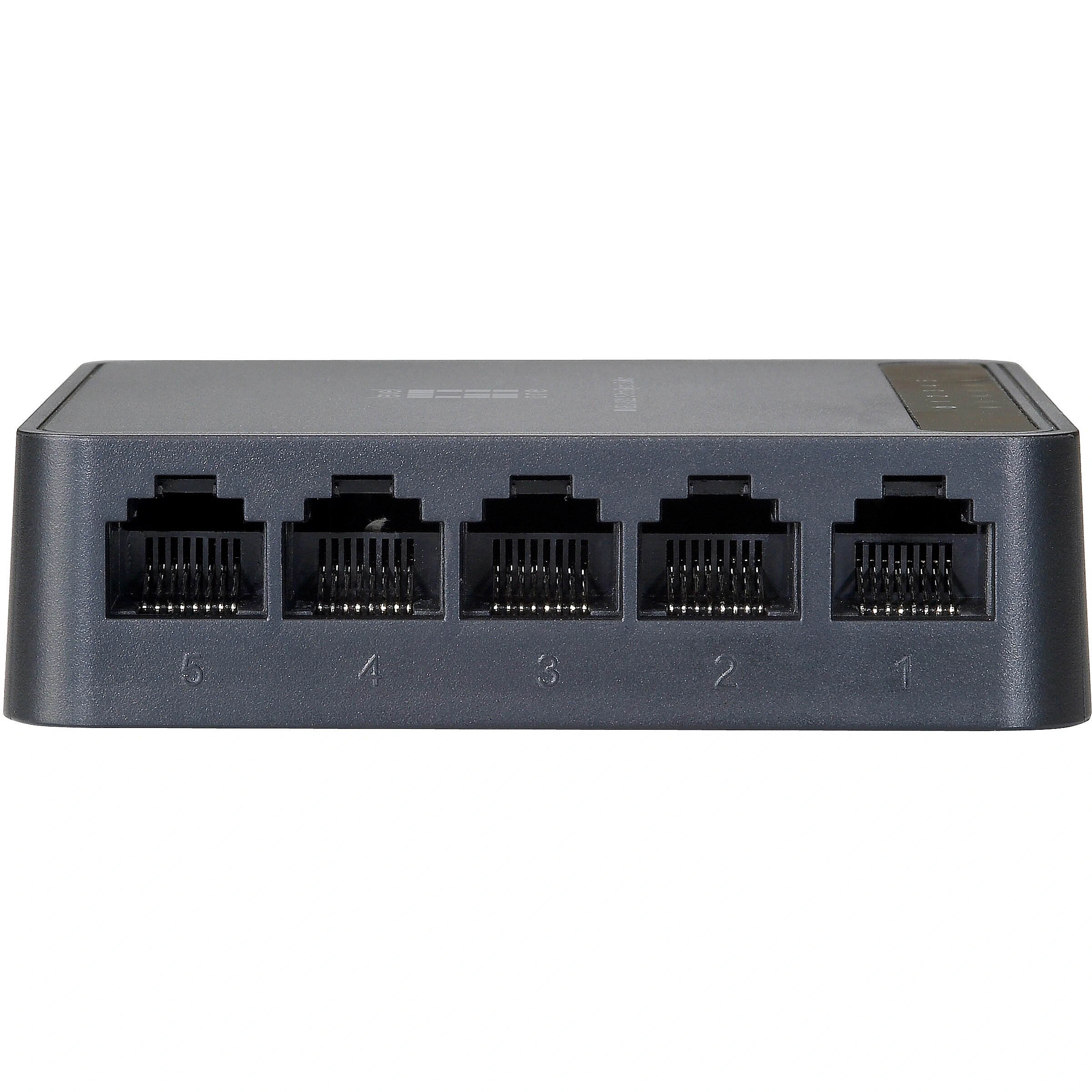

LongDesc - The LevelOne GEU-0522 is a wire-speed, non-blocking networking device that provides 5 ports 10/100/1000Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.
LongProductName - 5 x 10/100/1000 RJ-45, 10 Gbps, 1K, 71.4g
LongSummaryDescription - LevelOne 5-Port Gigabit Switch. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Manufacturer Code - GEU-0522
Manufacturer Name - Level One
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-T, 1000BASE-T
Network - Full duplex - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - Quick start guide - Yes
Packaging data - AC adapter included - Yes
Packaging data - Package depth - 82 mm
Packaging data - Package height - 98 mm
Packaging data - Package type - Box
Packaging data - Package weight - 184 g
Packaging data - Package width - 95 mm
Performance - Buffer size - 64 KB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Power - Input current - 0.6 A
Power - Input voltage - 5 V
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
ProductName - 5-Port Gigabit Switch
Short description - LevelOne Switch 5x GBit Unmanaged
ShortSummaryDescription - LevelOne 5-Port Gigabit Switch, Gigabit Ethernet (10/100/1000), Full duplex
Title - LevelOne 5-Port Gigabit Switch
URL - https://global.level1.com/Switch/GEU-0522/p-4001.htm
WarrantyInfo -
Weight & dimensions - Depth - 23 mm
Weight & dimensions - Height - 89 mm
Weight & dimensions - Weight - 71.4 g
Weight & dimensions - Width - 86 mm
