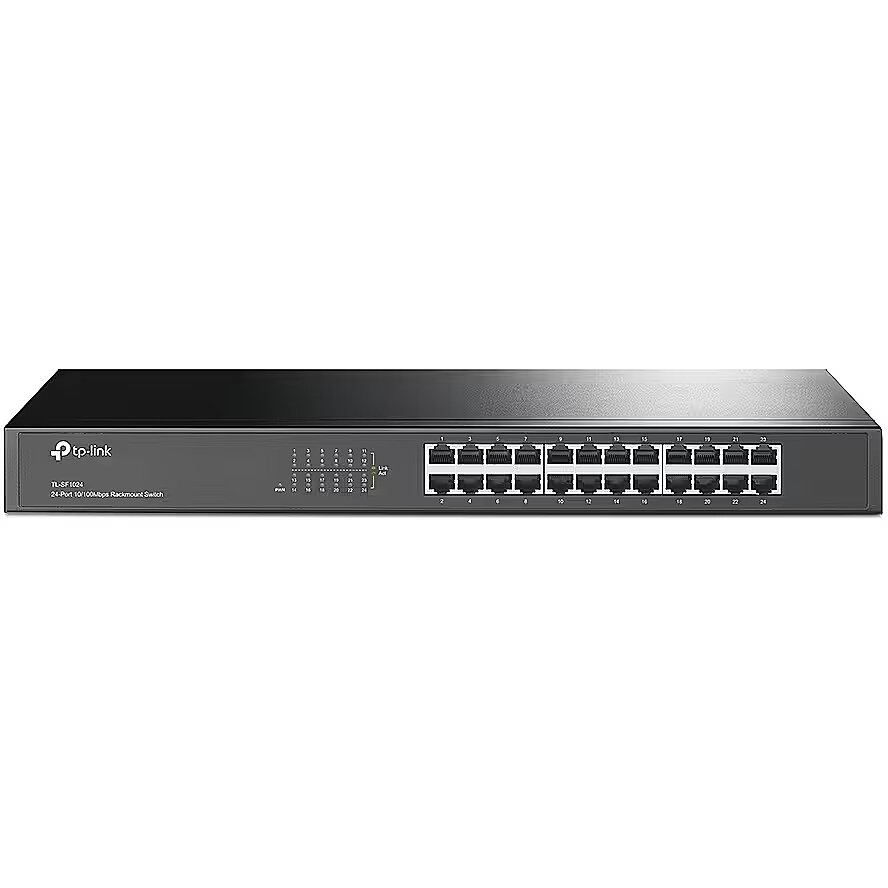

TP-LINK TL-SF1024 24-Port 10/100Mbps Rackmount Switch

10Base-T / 100Base-TX Ports - 24
ARTIKEL1 - 24-PORT-10/100MBIT/S-SWITCH
ARTIKEL2 - 24 10/100MBIT/S-RJ45-PORTS
Brand - TP-Link
BrandPartCode - TL-SF1024 V9
Breite - 0.25
Cable distance Networking features - 100m at Cat.5
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category Code - SWI
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Code - TL-SF1024
Data transmission - Forwarding rate - 3.57 Mpps
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 2 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 4.8 Gbit/s
Description - TP-LINK TL-SF1024 + Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode + Supports MAC address auto-learning and auto-aging + LED indicators for monitoring power, link, activity, 100Mbps + Standard 19-inch rack-mountable steel case + Internal universal power supply
Design - Form factor - 1U
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Product colour - Grey
Design - Rack mounting - Yes
Design - Stackable - No
Design > Case design - Steel case
Design > Form factor - Rackmountable
dimensionalWeight - 2120
EAN - 6935364021474
EANCode - 6935364021474
Eans - 6935364021474
EAN_code - 6935364021474
Full-duplex Networking features - Yes
Full Description Line - Rack|24x10Base-T / 100Base-TX|IEEE 802.3|IEEE 802.3u|IEEE 802.3x|Cable distance 100m at Cat.5|Full-duplex|Unit Net Weight 1.8 kg
Gewicht - 2.42
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 0696726102403
GTIN - 696726102403
GTIN - 0845973020057
GTIN - 845973020057
GTIN - 6935364020057
GTIN - 6935364021474
HERSTELLER - TP-LINK
Hoehe - 0.08
HSTNUMMER - TL-SF1024
IEEE 802.3 Network standard - Yes
IEEE 802.3u Network standard - Yes
IEEE 802.3x Network standard - Yes
Laenge - 0.53
Link - https://www.tp-link.com/us/business-networking/unmanaged-switch/tl-sf1024/
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - WHAT THIS PRODUCT DOESThe TL-SF1024 with TP-LINK Green Technology is an Environmentally-friendly and competitive choice for small business. It provides 8 10/100Mps Auto-Negotiation RJ45 ports and 2 10/100/1000Mbps Auto-Negotiation RJ45 ports, all RJ45 ports Support Auto-MDI/MDIX function. TL-SF1024 Gigabit Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into Gigabit solutions. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing the greater flexibility, installation convenience. Moreover, with the innovative energy-efficient technology, the TL-SF1024 can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.GO GREEN WITH YOUR ETHERNETYou now have the choice to go green when upgrading to a gigabit network! This new product TL-SF1024 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.Power down Idle PortsWhen a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SF1024 can automatically detect the link status of each port and reduce the power consumption of ports that are idle.Power Budget According to Cable LengthIdeally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SF1024analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.Gigabit UplinkThe TL-SF1024 has 8 fast Ethernet ports and 2 Gigabit uplink port. The Gigabit uplink port provides bandwidth access of up to 1000Mbps. Due to the fact that network upgrades tend to be progressive over time, your network will tend to become mixed with both Fast 100Mbps Ethernet and Gigabit.TL-SF1024 is ideal for situations such as these to mitigate throughput issues and coordinate work efficiently; Allowing your organization retain most of your network investments, while enhancing network performance quickly.More EfficientUtilizing non-blocking switching architecture, TL-SF1024 can forward and filter packets at full wire-speed for maximum throughput. Moreover, 100% data filtering rate eliminates all error packets and make your network work more efficiently.Easy to UseWhen powered on, it can work automatically without any pre-set. All ports support Auto-Negotiation and Auto-MDI/MDIX function. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
LongProductName - 24-port Unmanaged 10/100M, IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP, 10BASE-T: 14880pps/Port 100BASE-TX
LongSummaryDescription - TP-Link 24-Port 10/100Mbps Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Manufacturer - TP-Link
Manufacturer_code - TL-SF1024
Name - TP-Link TL-SF1024
Name - TP-Link TL-SF1024 V8.0, Switch
Name - TP-LINK | Switch | TL-SF1024 | Unmanaged | Rackmountable | 10/100 Mbps (RJ-45) ports quantity 24 | Power supply type External
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Ethernet LAN data rates - 10,100 Mbit/s
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Networking standards - IEEE 802.3i
Network - Networking standards - IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Heat dissipation - 10.88 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Size (imperial) - 48.3 cm (19")
Other features > Power supply type - External
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 528 mm
Package features > Gross depth master carton - 550 mm
Package features > Gross height (mm) - 80 mm
Package features > Gross height master carton - 275 mm
Package features > Gross width (mm) - 250 mm
Package features > Gross width master carton - 520 mm
Package features > Net weight master carton - 13.8 kg
Package features > Packing quantity - 6 pc(s)
Package features > Palette Qty - 132 pc(s)
Package features > Paper/Pasteboard - 569 g
Package features > PET - 4 g
Package features > Plastic (No PET) - 48.00 g
Package features > Tare weight (kg) - 0.617 kg
Package features > Tare weight master carton - 1.337 kg
Package features > Volume (m3) - 0.01056 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging content - Rack mount kit - Yes
Packaging content - User guide - Yes
Packaging data - Cables included - AC
Packaging data - Package depth - 528 mm
Packaging data - Package height - 80 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.34 kg
Packaging data - Package width - 250 mm
Packaging data - Rack mount kit - Yes
Packaging data - User guide - Yes
Performance - Compatible operating systems - Microsoft Windows 8, 7,Vista, XP, MAC OS, NetWare, UNIX, Linux
Performance - Fanless - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Fast Ethernet (copper) ports quantity - 24
Ports & interfaces - Power connector - AC-in jack
Ports & interfaces > 10/100 Mbps (RJ-45) ports quantity - 24
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 10/100 Mbps (RJ-45)
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 3.53 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Producer - TP-Link
producerCode - TL-SF1024
ProducerCode - TL-SF1024
Producer product family - Switch
Producer product name - TL-SF1024
ProductName - 24-Port 10/100Mbps Rackmount Network Switch
productName - TP-Link 24-Port 10/100Mbps Rackmount Network Switch
productSize - Normal
Protocols - Supported network protocols - CSMA/CD, TCP/IP
Rack Mounting Type - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 55 cm
Shipping Box Height Shipping/Package Box Dimensions - 28 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 16 kg
Shipping Box Width Shipping/Package Box Dimensions - 52.5 cm
ShortDescription -
ShortSummaryDescription - TP-Link 24-Port 10/100Mbps Rackmount Network Switch, Unmanaged, Fast Ethernet (10/100), Full duplex, Rack mounting, 1U
sizeX - 530
sizeY - 250
sizeZ - 80
Stck_Kart - 9998
Stck_Pal - 0
Storno - N
Sustainability - Sustainability certificates - CE
Sustainability - Sustainability certificates - Federal Communications Commission (FCC)
Sustainability - Sustainability certificates - RoHS
Sustainability - Sustainability compliance - Yes
Technical details > Gross weight - 2.3 kg
Technical details > Net weight - 1.683 kg
Technical details > Other features - Supports MAC address self-learning and auto MDI/MDIX
Technical details > Producer - TP-LINK
Technical details > Software type - Supports MAC address self-learning and auto MDI/MDIX
Title - TP-Link 24-Port 10/100Mbps Rackmount Network Switch
Unit Box Height - 0.28
Unit Box Length - 0.55
Unit Box Width - 0.525
Unit Brutto Volume - 0.01348 cubm
Unit Gross Weight - 2.67 kg
Unit Net Weight - 1.8 kg
URL - https://www.tp-link.com/products/product_des.asp?id=83
Vendor Homepage - http://www.tp-link.com/en/products/details/?model=TL-SF1024
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2,50
weight - 2330
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
