2.5GbE WAN ports - 1
10/100/1000M LAN Ports - 4
Accessories included -
brand - Ubiquiti
Category - Root/Electronics/Networks and communication/Firewalls
category - Ubiquiti > UniFi Cloud Gateways > Kompakts
Category 1 - Netzwerk
Category 2 - Router
Category Code - ROU
Certificates - Certification - CE, FCC, IC
Code - UCG-Ultra
CPU - Quad-core ARM® Cortex®-A53 at 1.5 GHz
Data filtering -
Description - Powerful and compact Cloud Gateway Ultra UCG-Ultra UniFi Multi-WAN router with a full set of advanced routing and security features.

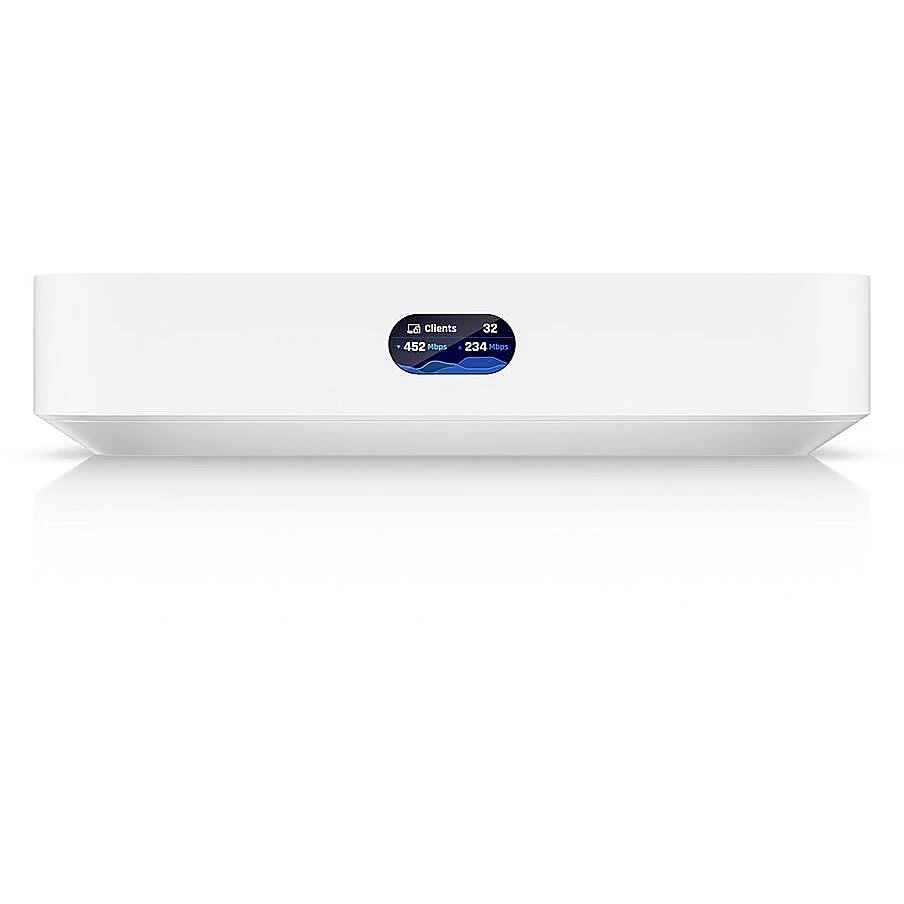

Description - UBIQUITI UCG-ULTRA Compact Cloud Gateway with 30+ UniFi device / 300+ client support, 1 Gbps IPS routing, and multi-WAN load balancing. + Runs UniFi Network for full-stack network management + Manages 30+ UniFi Network devices and 300+ clients + 1 Gbps routing with IDS/IPS + Multi-WAN load balancing + 0.96" LCM status display + USB-C powered (adapter included)
Design - Enclosure material - Polycarbonate (PC)
Design - LED indicators - LAN
Design - Product colour - White
Design > Form factor - Rackmountable
Designation - CE+WEEE
dimensionalWeight - 448
dimension depth - 80 mm
dimension height - 150 mm
Dimensions - 141.8 x 127.6 x 30 mm
dimension weight - 300 g
dimension width - 150 mm
EAN - 810084695203
ean - 810084695203
EAN - 0810084695203
Eans - 810084695203
Firewall functions -
Flash memory capacity - 16GB
Full Description Line - UCG-Ultra|Network Device Type Gateway|4x10/100/1000M|1x2.5GbE|Memory (RAM) 3GB|Flash memory capacity 16GB|Power supply requirements USB type C (5V DC/3A)|Power consumption 6.2 Watts|Operating temperature range -10 to 40° C|Dimensions 141.8 x 127.6 x 30 mm
Functions - Firewall
Functions - Router
Functions - VPN
Gross Weight Kg - 0,84
guarantee - 12
guarantee_type - normal
height - 0.13 m

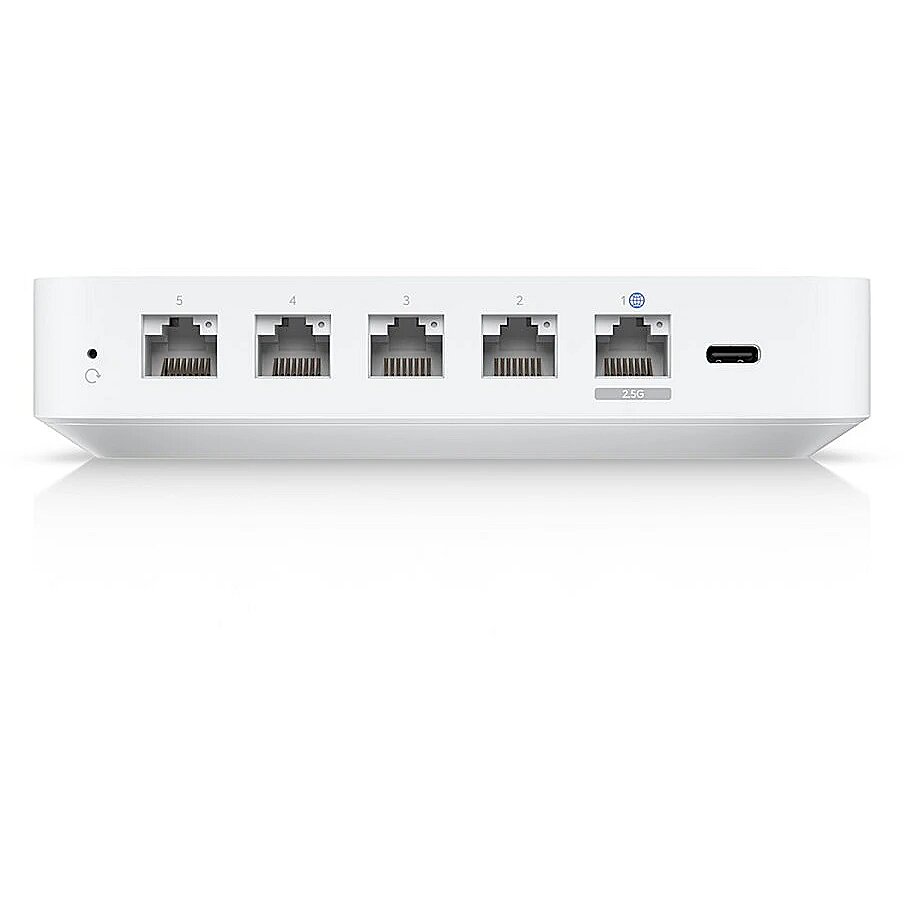

I/O ports - 1 x 10/100/1000/2500 RJ-45 port (WAN)
I/O ports - 1 x USB 3.0 Type C
I/O ports - 4 x 10/100/1000 Mbit/s
length - 0.18 m
Link - https://store.ui.com/us/en/collections/cloud-gateway-ultra/products/ucg-ultra
Management, monitoring, configuration -
Management features - Quality of Service (QoS) support - Yes
Management features - Reset button - Yes
Management features > Switch type - Web managed
Manufacturer - Ubiquiti
Manufacturer Code - UCG-ULTRA
Manufacturer Name - Ubiquiti Networks
Memory (RAM) - 3GB
Memory type - DDR4
Model - Cloud Gateway Ultra
mpn - UCG-Ultra
MPN - UCG-ULTRA
name - Router Cloud Gateway Ultra UCG-Ultra
Name - Router Ubiquiti UniFi Cloud Gateway Ultra - UCG-Ultra
Name - Ubiquiti Switch | UCG-Ultra | Web managed | Rackmountable | SFP ports quantity 5
Name - Ubiquiti UCG-Ultra
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Ethernet LAN data rates - 1000
Network architecture - GigabitEthernet
Network Device Type - Gateway
Operating temperature range - -10 to 40° C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 40 °C
Other features - License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client Site-to-site VPN with OpenVPN and IPsec DHCP relay Configurable DHCP server IGMP proxy IPv6 ISP support
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 142 mm
Package features > Gross height (mm) - 30 mm
Package features > Gross width (mm) - 128 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 1250 pc(s)
Package features > Paper/Pasteboard - 200 g
Package features > Plastic (No PET) - 80 g
Package features > Tare weight (kg) - 0.28 kg
Package features > Volume (m3) - 0.00054528 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Manual - Yes
Performance - Built-in processor - Yes
Performance - Control display unit - Yes
Performance - Flash memory - 16384 MB
Performance - Internal memory - 3072 MB
Performance - Internal memory type - DDR4
Performance - Number of processors installed - 1
Performance - Processor family - ARM Cortex
Performance - Processor frequency - 1500 MHz
Performance - Processor manufacturer - ARM
Performance - Processor model - Cortex-A53
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - WAN connection - Ethernet (RJ-45)
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 1 Gbps (RJ-45)
Ports & interfaces > SFP ports quantity - 5
Power - Input voltage - 100 - 240 V
Power - Output current - 3 A
Power - Output voltage - 5 V
Power - Power consumption (max) - 6.2 W
Power consumption - 6.2 Watts
Power supply - Supported voltage range: 100-240 V AC Max. power consumption: 6.2 W
Power supply requirements - USB type C (5V DC/3A)
Processor - Quad-core ARM Cortex-A53 1.5 GHz
producer - UBIQUITI
Producer - Ubiquiti
producerCode - UCG-Ultra
ProducerCode - UCG-Ultra
Product model code - UCG-Ultra
productName - Ubiquiti ULTRA gateway/controller 1000 Mbit/s
productSize - Normal
Protocols - DHCP server - Yes
RAM - 3 GB
Safety warning - Warnings - Do not open the appliance - risk of electric shock.
Safety warning - Warnings - Do not use in damp conditions.
Security - Firewall security - Yes
Security - VLAN support - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 45 cm
Shipping Box Height Shipping/Package Box Dimensions - 23 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 9.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 38 cm
ShortDescription -
Short description - Ubiquiti UniFi Cloud Gateway Ultra (1xWAN/4xLAN) UCG-ULTRA Powerful and compact multi-WAN UniFi Cloud Gateway
sizeX - 175
sizeY - 160
sizeZ - 80
Technical details > Gross weight - 0.8 kg
Technical details > Net weight - 0.52 kg
Technical details > Producer - Ubiquiti
Technical details > Producer product family - Switch
Technical details > Producer product name - UCG-Ultra
title - Ubiquiti UniFi Cloud Gateway Ultra
Unit Box Height - 0.16
Unit Box Length - 0.175
Unit Box Width - 0.08
Unit Brutto Volume - 0.003933 cubm
Unit Gross Weight - 0.95 kg
Unit Net Weight - 0.52 kg
Vendor Homepage - techspecs.ui.com/unifi/unifi-cloud-gateways/ucg-ultra
vendpn - UCG-Ultra
VPN functions -
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
warrantyLength - 24
warrantyType - G
Weight - 0.84
weight - 1 kg
Weight - 520 g
weight - 830
Weight & dimensions - Depth - 127.6 mm
Weight & dimensions - Height - 30 mm
Weight & dimensions - Weight - 520 g
Weight & dimensions - Width - 141.8 mm
width - 0.16 m
WiFi - No
