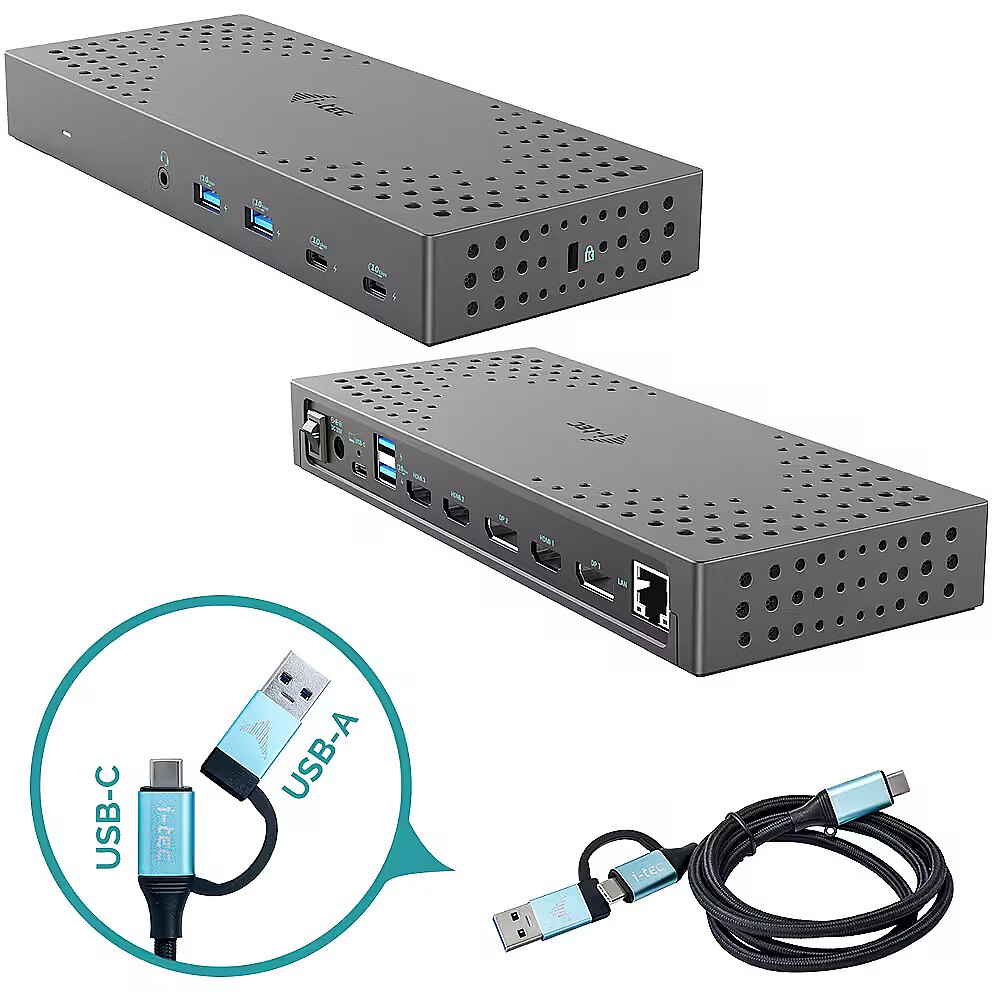

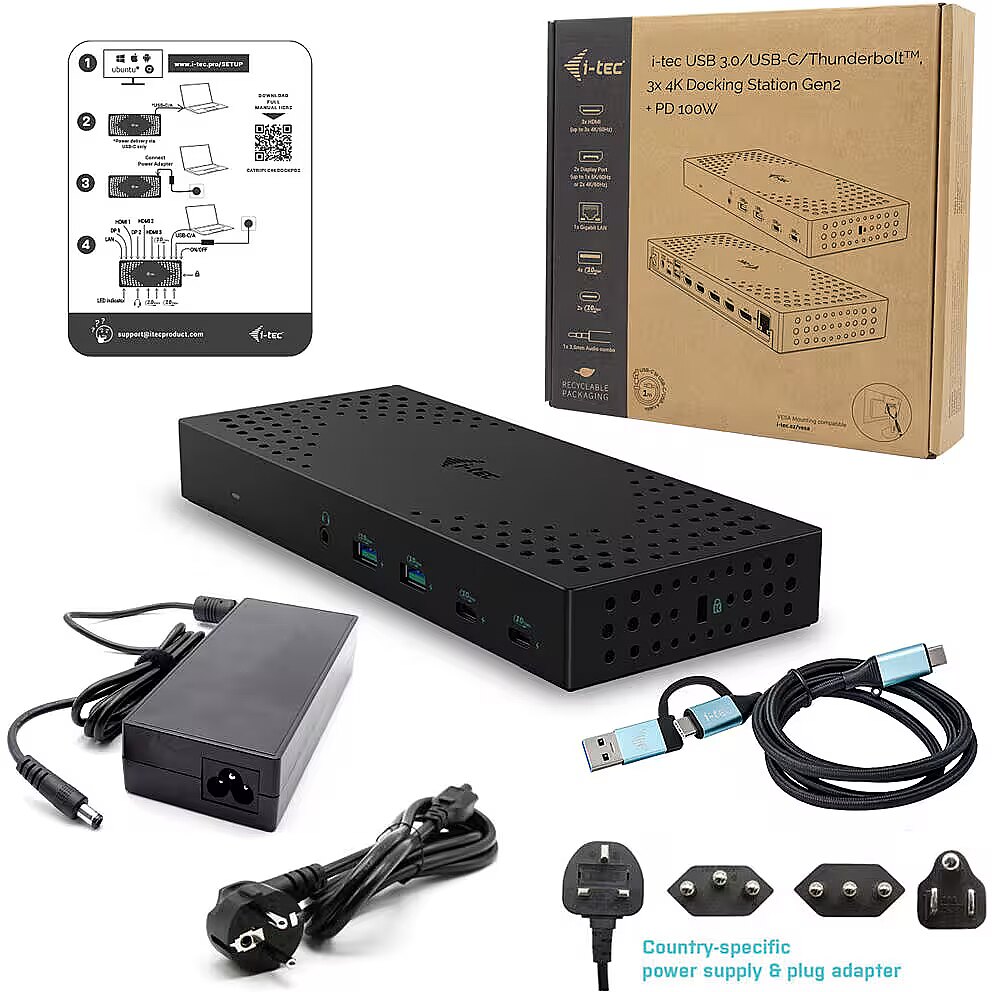

Accessories included - Docking Station 160W AC adapter USB-C to USB-C/USB-A cable (100cm) User manual
ARTIKEL1 - I-TEC USB 3.0 3X 4K DOCK GEN 2
ARTIKEL2 - USB 3.0/ C/ TB 3/4 PD100W
Brand - i-tec
BrandPartCode - CATRIPLE4KDOCKPD2
Breite - 0
Category - Laptop Docks & Port Replicators
Category - Root/Accessories | Exploitation/Cables and adapters/Docking stations and port replicators
Color - Black
Compatible with -

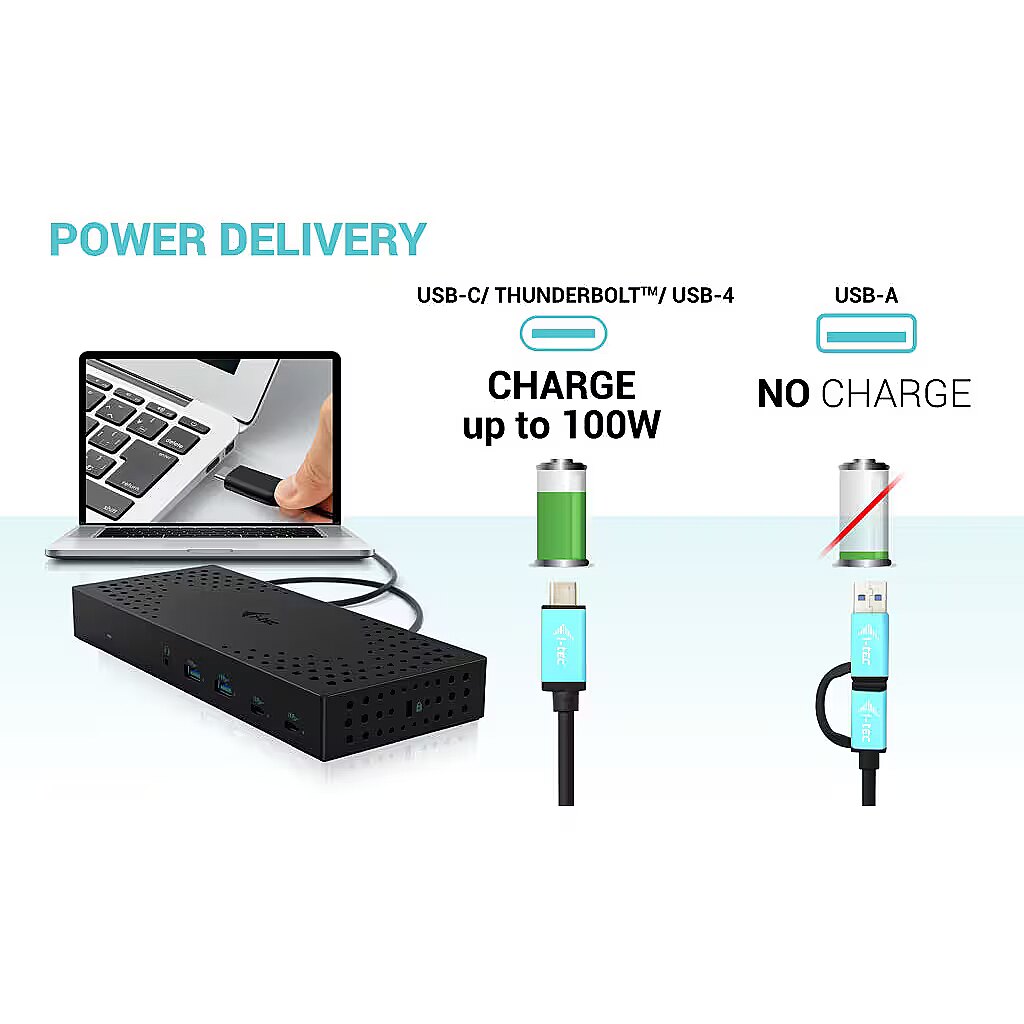

Description - Maximum performance docking station for up to three monitors simultaneously It has 6 USB ports with a transfer speed of 10Gbps each The docking station is compatible with all modern notebooks (connects via USB 3.0, USB-C or Thunderbolt 3/4 ports) It supports high resolution 4K with a refresh rate of up to 60Hz The docking station supports up to 100W of power to power a connected notebook or tablet (when connected via USB-C or ThunderboltTM port. Laptop cannot be charged when connected via USB 3.0 port). 4x USB 3.2 Gen 2 (10 Gbps) and 2x USB-C Gen (10 Gbps) for easy connection of USB devices and peripherals GLAN Ethernet supports speeds of 10/100/1000 Mbps for a solid and fast internet connection. The combined 3.5mm audio/mic port can connect e.g. integrated headphones with microphone The dock is a VESA compatible dock mount for mounting behind a VESA compatible monitor Optional MAC address cloning and automatic data backup of connected PC (enabled by free i-tec Docker Pro software).i-tec Docker Pro software). i-tec Docker Pro software). Powerful Gen 2 professional dock that supports up to three external monitors in high resolution up to 4K. The docking station can be used with virtually all notebooks, as it supports connection to all popular ports: USB 3.0, USB-C and Thunderbolt 3/4, while supporting all popular current operating systems. However, connecting up to three monitors will only be possible if the laptop has a Thunderbolt 3/4 port or a USB-C port that supports image transfer (USB-C DP Alt mode). When connected to a notebook with a USB 3.0 port, only two monitors will be supported. Plenty of USB ports (all supporting Gen 2 speeds up to 10 Gbps), reliable and fast connection to the corporate network thanks to the integrated LAN port, and the ability to install behind a monitor all make this docking station the perfect companion for true professionals. Of course, it supports charging a laptop or tablet, up to 100W. Connect up to 3 external monitors with up to 4K resolution* Power Delivery: up to 100W 2 DisplayPorts and 3 HDMI ports available* 4x USB 3.2 Gen 2 (10 Gbps) and 2x USB-C Gen 2 (10 Gbps) for easy connection of USB devices and peripherals Gigabit Ethernet RJ-45 provides reliable, robust and fast Internet connectivity with support for 10/100/1000Mbps speeds Combo jack for audio and microphone The Kensington lock provides protection against theft, especially in shared offices or public places The power switch of the docking station enables maximum energy saving The docking station allows for intelligent vertical installation behind a VESA-compatible monitor Supports Windows 10/11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu *The HDMI 3 port will only work when connected to a laptop with a Thunderbolt 3/4 port or a USB-C port that supports video transfer (so-called USB-C DP Alt Mode) If the dock is connected via USB 3.0, charging is not supported.
dimension depth - 50 mm
dimension height - 260 mm
Dimensions - 223 x 92 x 30 mm
dimension weight - 1300 g
dimension width - 250 mm
ean - 8595611706073
EANCode - 8595611706073
Eans - 8595611706073
Gewicht - 1.24
GRUPPE1 - Accessories
GRUPPE2 - Port
GTIN - 8595611706073
guarantee - 24
guarantee_type - normal
HERSTELLER - I-TEC
Hoehe - 0
HSTNUMMER - CATRIPLE4KDOCKPD2

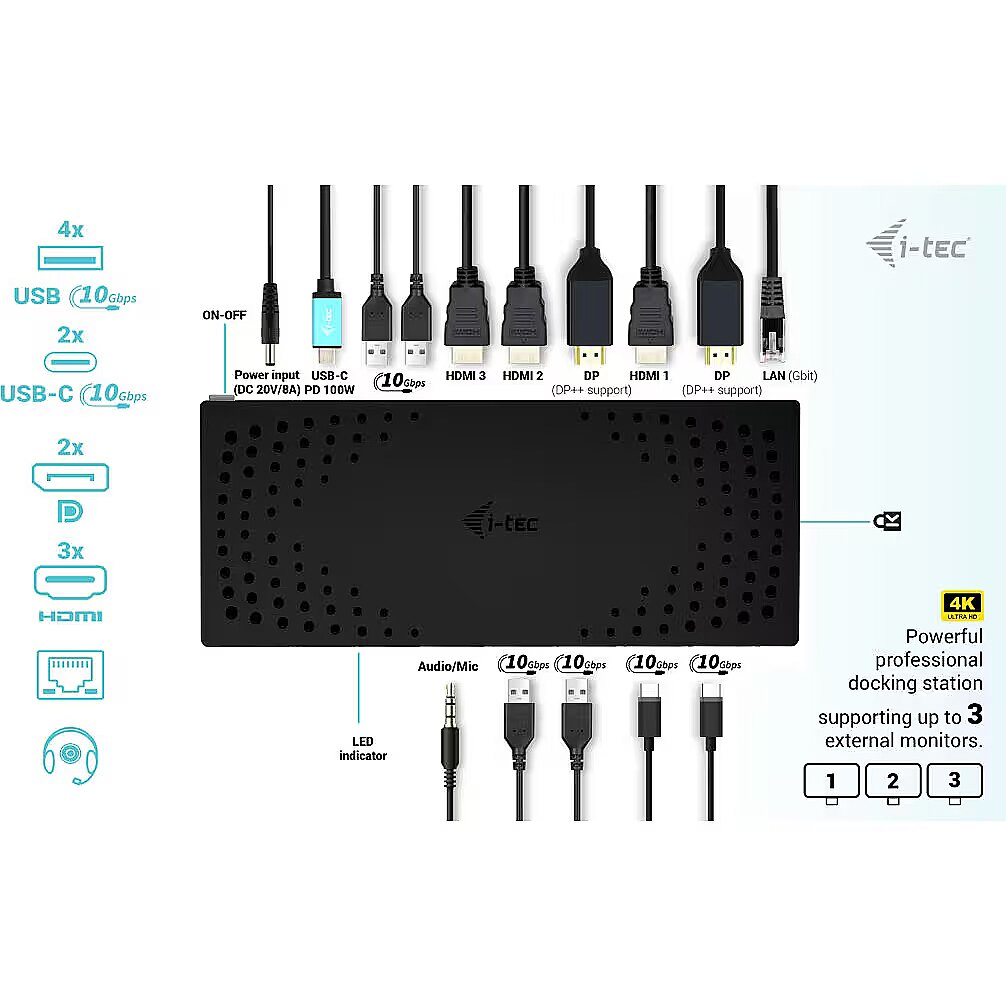

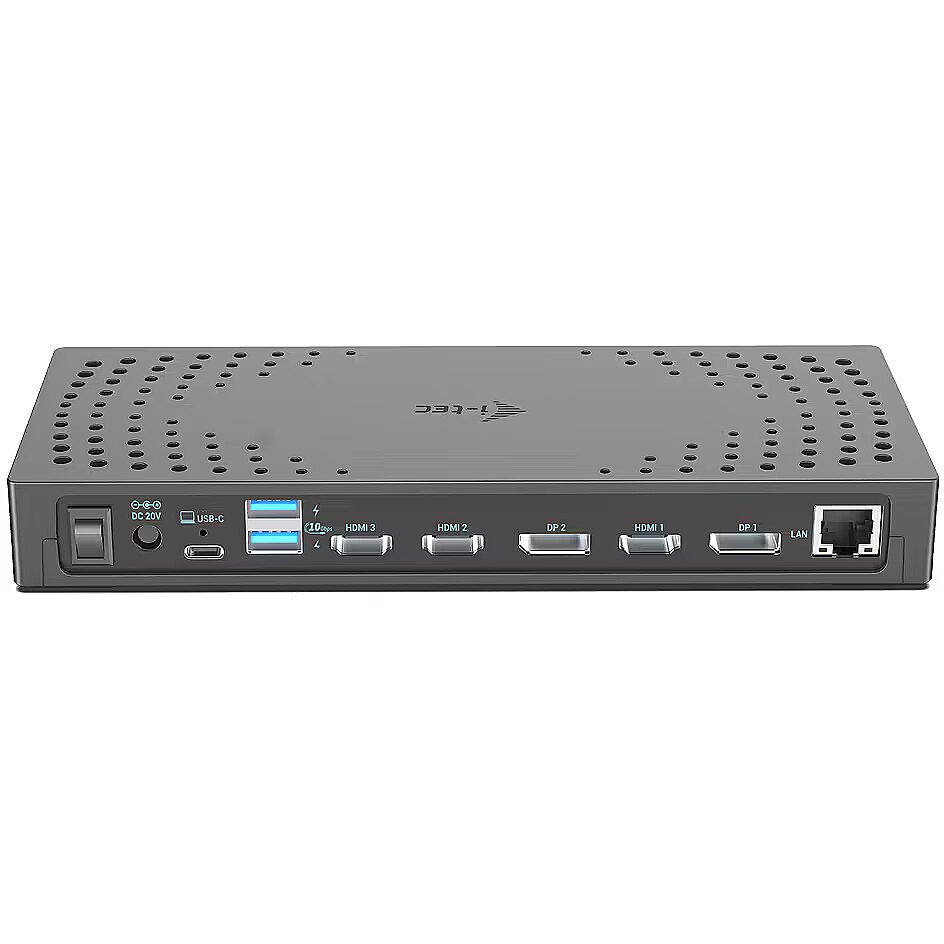

I/O ports - 1 x 3,5 mm minijack (Combo)
I/O ports - 1 x RJ-45 (LAN)
I/O ports - 1 x Thunderbolt
I/O ports - 2 x DisplayPort
I/O ports - 2 x USB 3.1 Type C
I/O ports - 3 x HDMI Type A
I/O ports - 4 x USB 3.1 Type A
Laenge - 0

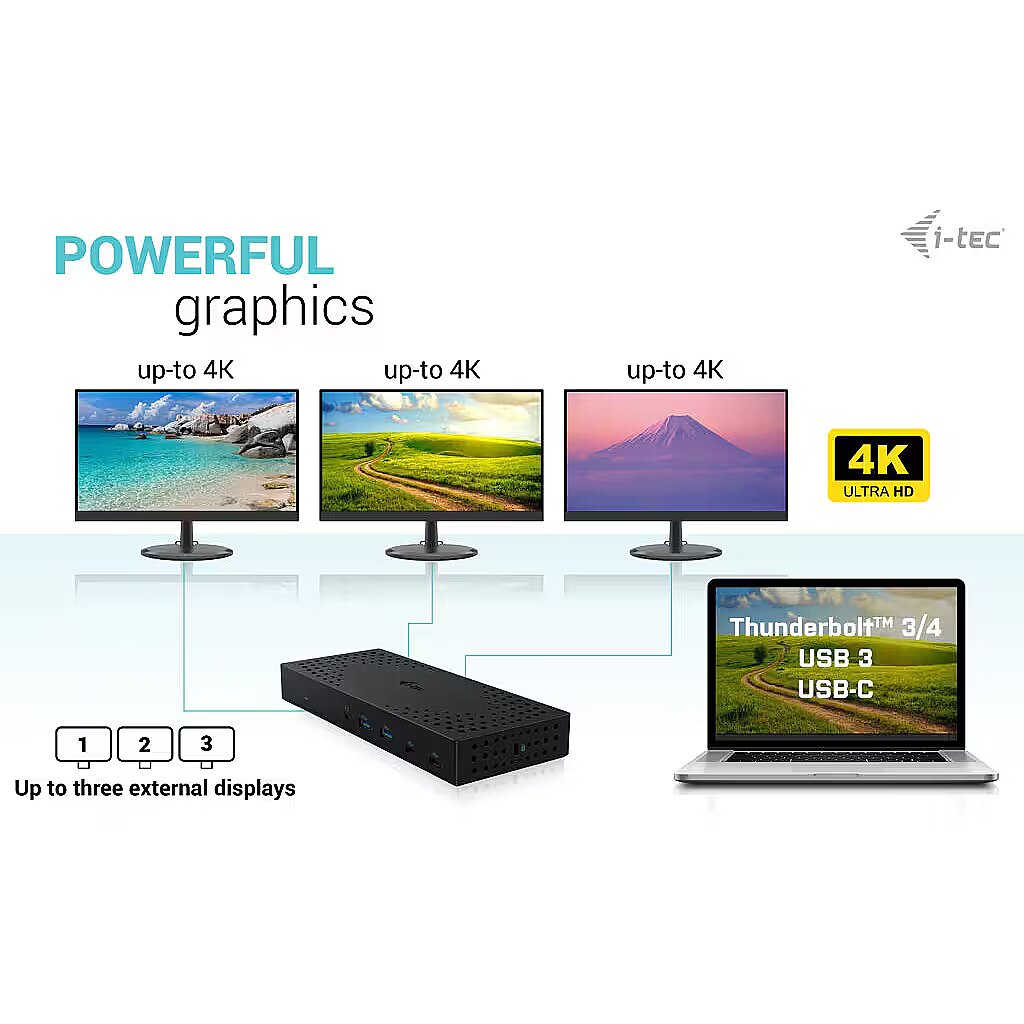

LongDesc - A powerful professional docking station Gen 2 that supports output to up to three external monitors in up to 4K high resolution. The dock can be used with virtually all notebooks as it supports connection to all common ports: USB 3.0, USB-C and Thunderbolt” 3/4, while supporting all common current operating systems. However, connection to three monitors will only be possible if the laptop has a Thunderbolt” 3/4 port or a USB-C port that supports video transfer (USB-C DP Alt mode). If connected to notebook with USB 3.0 port, only two monitors will be supported.Plenty of USB ports (all support Gen 2 speeds of up to 10 Gbps), reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100 W.- Connect to 3 external monitors in resolutions up to 4K*- Power delivery: up to 100 W- 2 DisplayPort and 3 HDMI ports available*- 4x USB 3.2 Gen 2 (10 Gbps) and 2x USB-C Gen 2 (10 Gbps) allow you to easily connect your USB devices and peripherals- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds- Combo jack for audio and microphone- Kensington lock provides anti-theft protection, especially in shared office environments or public areas- Docking station power switch allows for maximum power savings- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor- Supports Windows 10 / 11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu*HDMI 3 port will only work when connected to a laptop with Thunderbolt” 3/4 port or USB-C port supporting video transfer (called USB-C DP Alt mode)If the docking station is connected via USB 3.0 port, charging is not supported

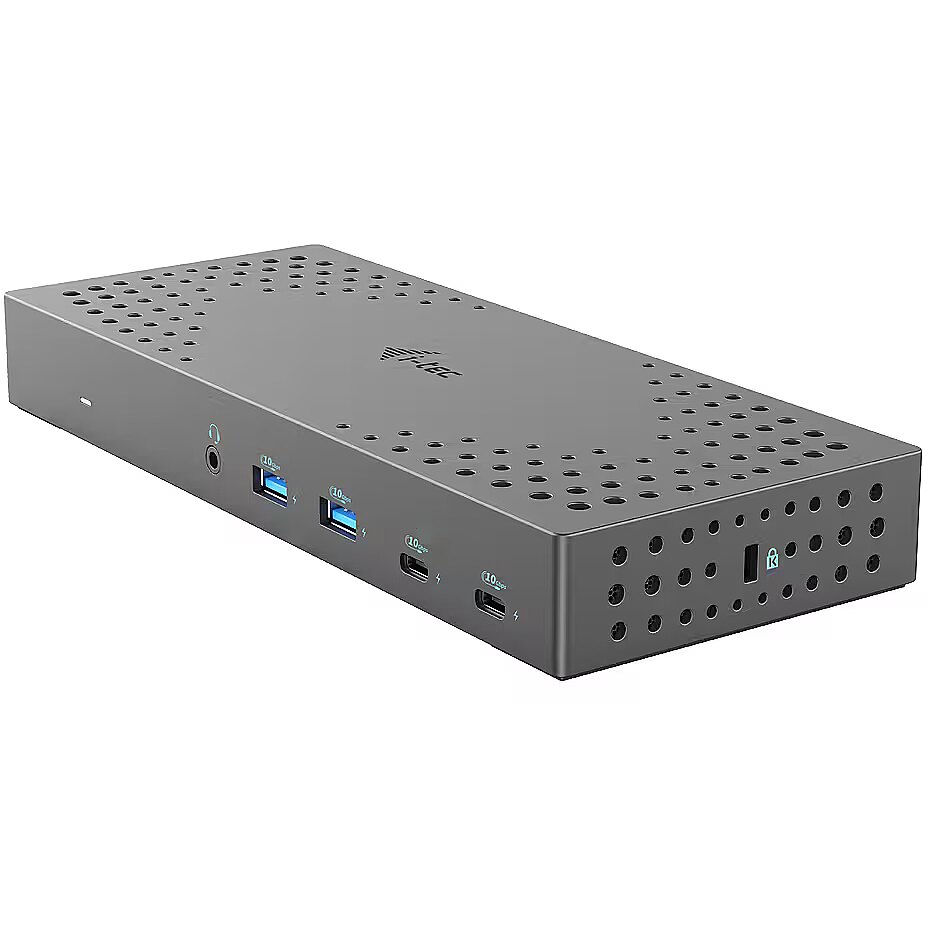

LongProductName - USB 3.0 / USB-C / Thunderbolt, 3x 4K Docking Station Gen 2 + Power Delivery 100W
LongSummaryDescription - i-tec USB 3.0 / USB-C / Thunderbolt, 3x 4K Docking Station Gen 2 + Power Delivery 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Data transfer rate: 10 Gbit/s, Maximum refresh rate: 60 Hz. Output voltage: 20 V, Output current: 8 A, Compatible power plug types: EU. Other operating systems supported: Android, ChromeOS
Name - i-tec USB 3.0 Dual Docking Station 1x HDMI 1x DVI LAN Audio 6x USB
name - USB 3.0 / USB-C / Thunderbolt, 3x 4K Docking Station Gen 2 + Power Delivery 100W
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s

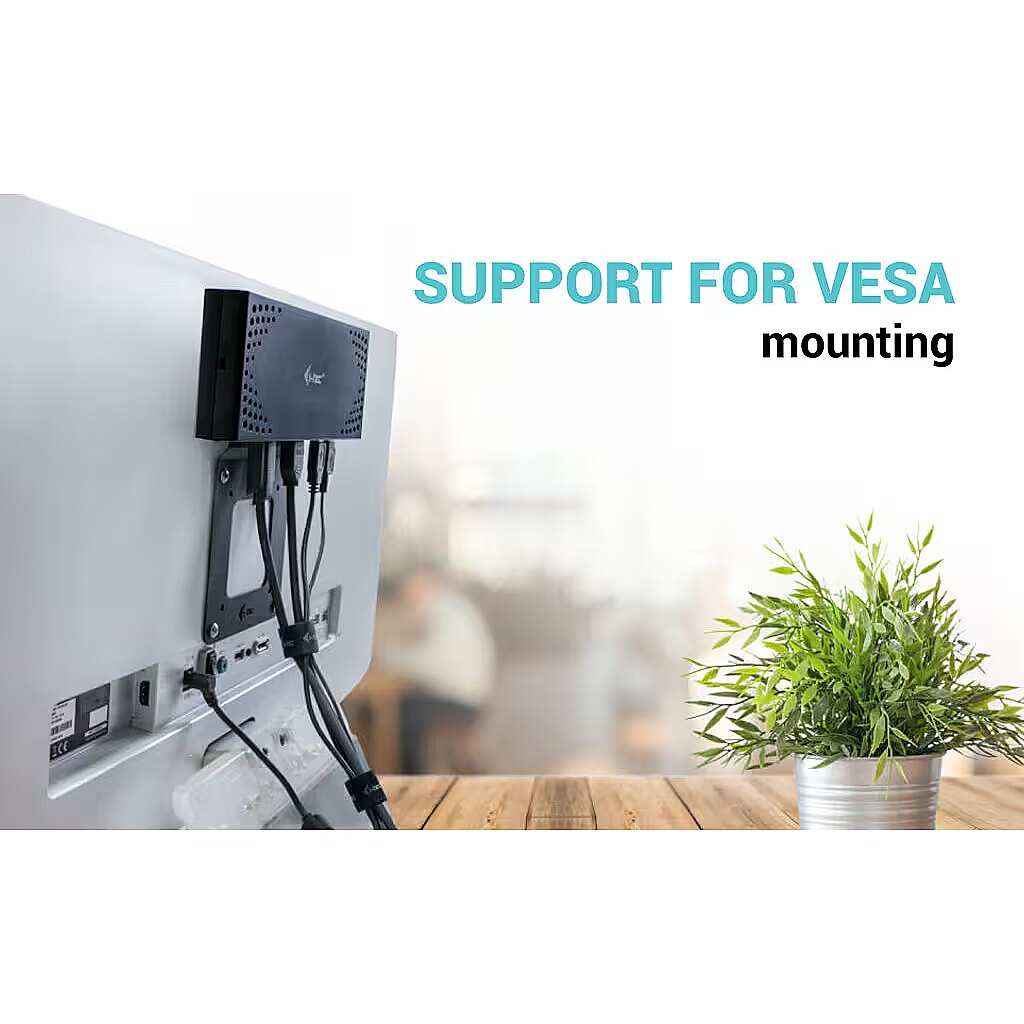

Other features - Packaging dimensions: 260 x 250 x 50 mm Power Delivery: 100W Kensington lock support VESA mount support MAC Clone: Yes (using i-tec Docker Pro) SOL: S1, S2, S3 1x power input (DC 20V/8A) LED indicator
Packaging content - AC adapter included - Yes
Packaging content - Cables included - USB
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 250 mm
Packaging data - Package height - 50 mm
Packaging data - Package width - 260 mm
Performance - Cable lock slot - Yes
Performance - Cable lock slot type - Kensington
Performance - Card reader integrated - No
Performance - Data transfer rate - 10 Gbit/s
Performance - LED indicators - Yes
Performance - Maximum refresh rate - 60 Hz
Performance - Number of displays supported - 3
Performance - On/off switch - Yes
Performance - Product colour - Grey
Performance - VESA mounting - Yes
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Host interface - USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 4
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
Ports & interfaces - USB Power Delivery - Yes
Ports & interfaces - USB Power Delivery up to - 100 W
Power - Compatible power plug types - EU
Power - Output current - 8 A
Power - Output voltage - 20 V
Power - USB cable length - 1 m
producer - i-tec
Producer - i-tec
ProducerCode - CATRIPLE4KDOCKPD2
ProductName - USB 3.0 / USB-C / Thunderbolt, 3x 4K Docking Station Gen 2 + Power Delivery 100W
ShortDescription -
ShortSummaryDescription - i-tec USB 3.0 / USB-C / Thunderbolt, 3x 4K Docking Station Gen 2 + Power Delivery 100W, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 100 W, 3.5 mm, 10,100,1000 Mbit/s, Grey
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Yes
Software - Other operating systems supported - Android, ChromeOS
Software - Windows operating systems supported - Yes
Stck_Kart - 10
Stck_Pal - 50
Storno - Y
System Requirements - Devices with an available USB-A, USB-C or Thunderbolt 3/4 port.
Title - i-tec USB 3.0 / USB-C / Thunderbolt, 3x 4K Docking Station Gen 2 + Power Delivery 100W
URL - https://i-tec.pro/en/produkt/catriple4kdockpd2-2/
vendpn - CATRIPLE4KDOCKPD2
WarrantyInfo -
Weight - 365 g
Weight & dimensions - Depth - 92 mm
Weight & dimensions - Height - 30 mm
Weight & dimensions - Weight - 365 g
Weight & dimensions - Width - 223 mm
