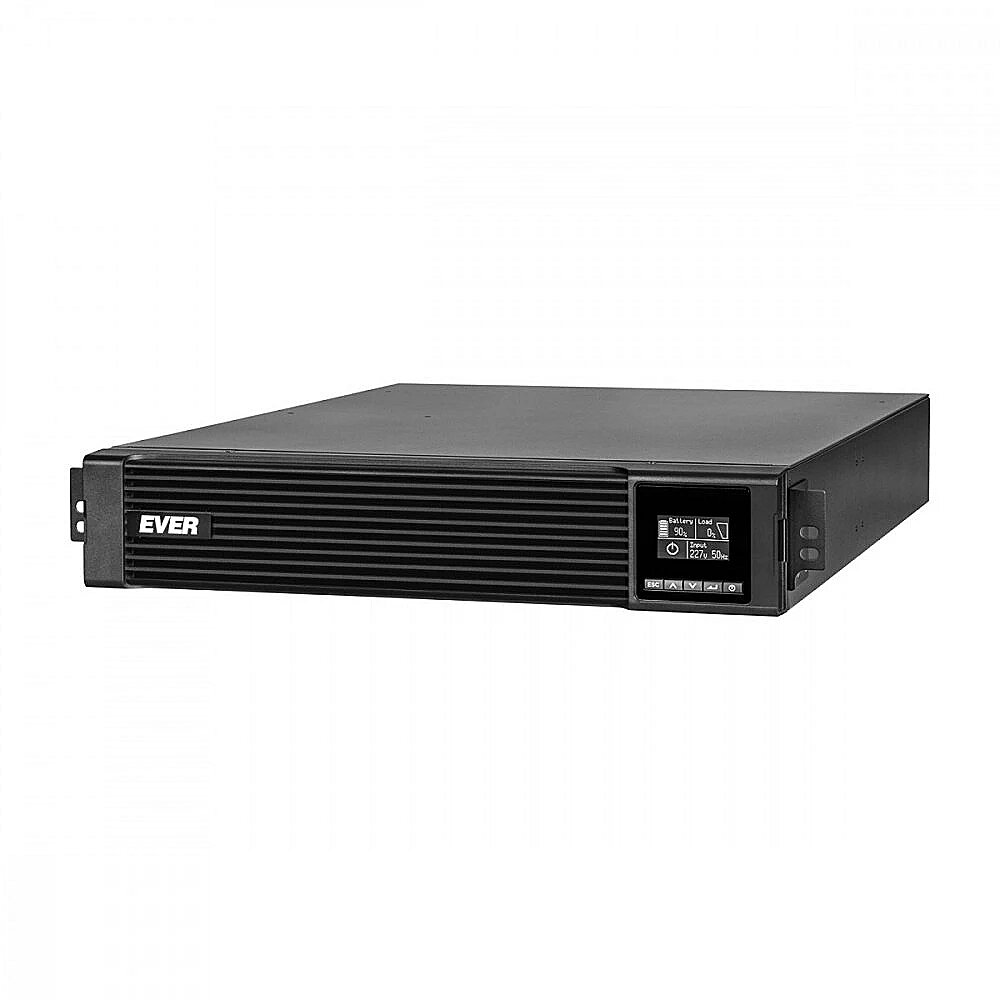

Ever POWERLINE RT PRO, 3000VA 3000W, IEC 2U

Accessories included -
Active power - 3000 W
Apparent power - 3000 VA
Backup time (100% load) - 3.5 min
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery capacity - 9 Ah
Charging time - 3 h
Chassis type - Rack
Chassis type - Tower
Color - Black
Description - A series of technologically advanced on-line uninterruptible power system (UPS) systems (VFI), constructed in a double conversion topology, in which the output active power reaches the apparent power value. POWERLINE RT PRO series power supplies protect sensitive devices and systems against basic problems occurring in the power supply network, such as interruptions in electricity supply, voltage increases and dips, overvoltages and harmonic distortions. The main purpose of EVER POWERLINE RT PRO series power supplies is: network devices, servers, workstations, as well as other electrical, electronic and IT devices. Online operation with true double conversion, with sinusoidal output voltage (with the highest quality parameters VFI SS-111) Output active power equal to apparent power (PF=1) ECO mode reducing losses Rack/Tower case Backup time prediction - determination of the UPS autonomy time in real time - via PowerSoft software and on the display Wide window (range) of input voltage Ability to manage output sockets (1 section) Cold start Remote Emergency Power Off (EPO) ROO (Remote ON/OFF) function - ability to remotely turn on/off the power supply Possibility to extend the backup time by connecting external battery modules (up to 4 pieces) Automatic detection of the number of connected battery modules Free PowerSoft monitoring and management software (download)
Design - Built-in fan - Yes
Design - Cooling type - Active
Design - Display type - LCD

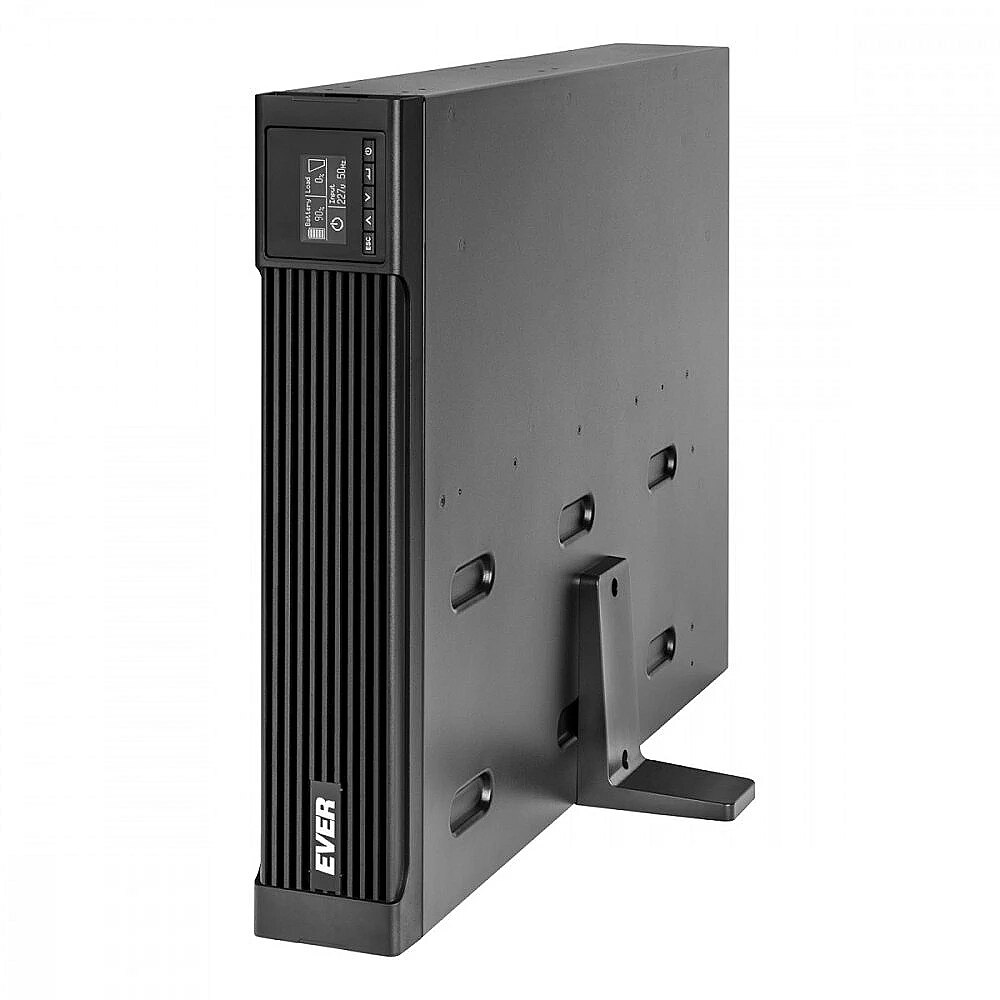

Design - Form factor - Rackmount/Tower
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 22620
dimension depth - 780 mm
dimension height - 225 mm
Dimensions - 86(2U) x 438 x 600 mm
dimension weight - 26200 g
dimension width - 570 mm
ean - 5907683607968
Environment requirements - Operating temperature: 0 - 40°C Storage temperature: 0 - 40°C Relative humidity during operation: 95% non-condensing Relative storage humidity: 95% non-condensing Height above sea level: up to 3000m
Features - Audible alarm(s) - Yes
Features - Crest factor - 3:1
Features - ECO mode - Yes
Features - Efficiency (ECO mode) - 97%
Features - Input frequency - 45/66 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 110 V
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 3000 W
Features - Output power capacity - 3 kVA
Features - Power protection features - Overload
Features - Power protection features - Short circuit
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Filters / protection - Circuit
Filters / protection - Overload
Filters / protection - Surge
guarantee - 24
guarantee_type - external
Hold-up time (maks) - 0 ms
I/O connectors - 1 x EPO
I/O connectors - 1 x HDMI
I/O connectors - 1 x RJ-45 (management)
I/O connectors - 1 x RJ-45 LAN
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
Input power ports - IEC-C20
name - UPS POWERLINE RT PRO 3kVA/3kW R2T
No. of batteries - 6
Number of phases input - 1 (230V)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - 0 - 40 °C
Other features - Degree of protection: IP20 Heat released for nominal operating conditions: 780 BTU/h

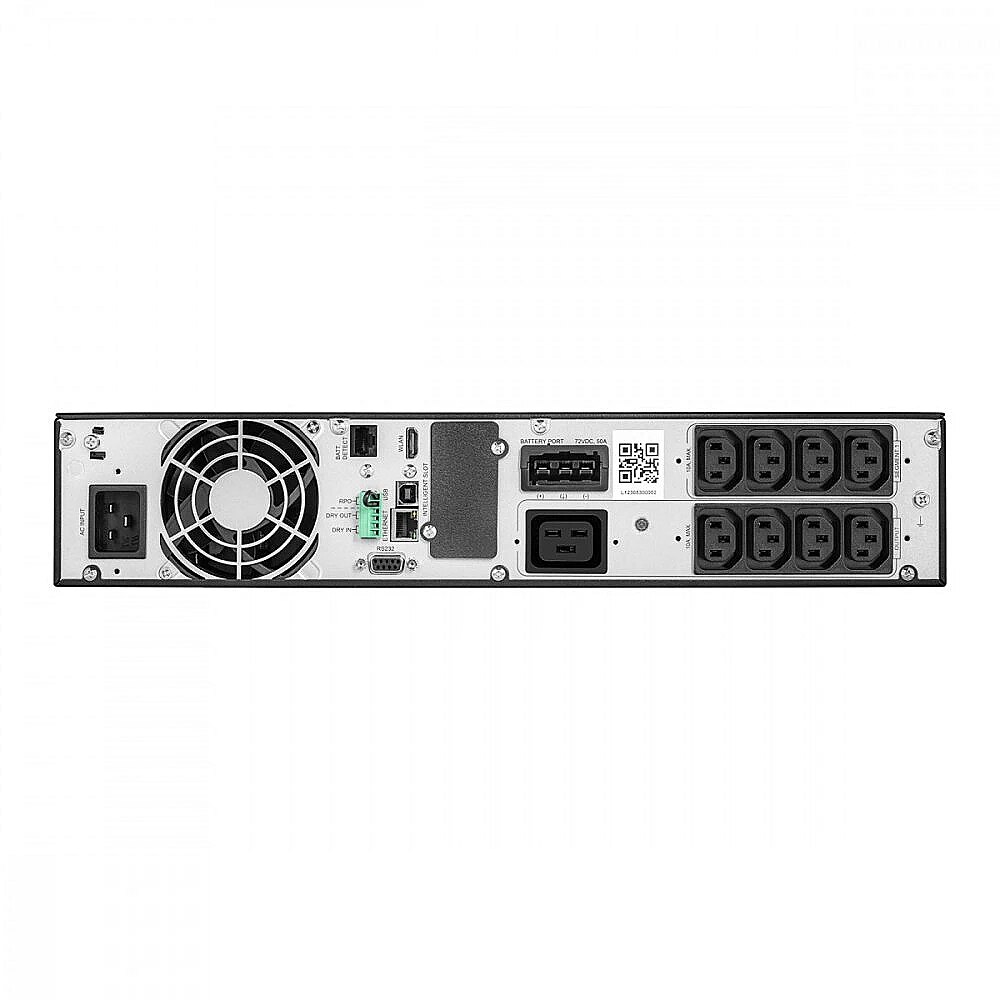

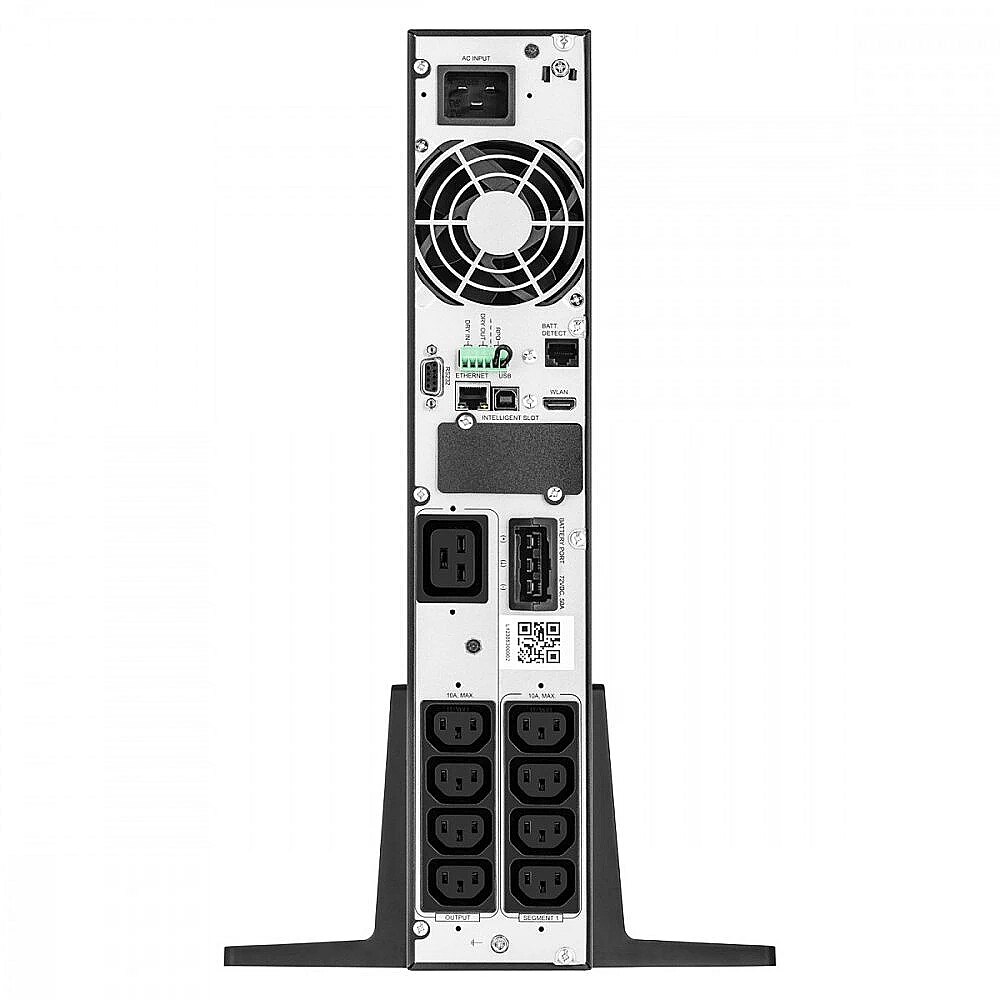

Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Serial interface - Yes
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
producer - EVER
producerCode - T/PWPRRT-113K00/00
productName - Ever UPS POWERLINE RT PRO 3000 Double-conversion (Online) 3 kVA/3kW
productSize - Normal
sizeX - 780
sizeY - 250
sizeZ - 580
Software -
Special functions -
The shape of the output voltage - Full sine wave
UPS Architecture - on-line
vendpn - T/PWPRRT-113K00/00
Voltage - 230 V
warrantyLength - 24
warrantyType - F
Weight - 26.2 kg
weight - 30400
Weight & dimensions - Depth - 600 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Package height - 240 mm
Weight & dimensions - Package width - 580 mm
Weight & dimensions - Weight - 26.8 kg
Weight & dimensions - Width - 483 mm
