Accessories included - 1 x UPS User Manual 1 x license with software installation instructions 1 x USB connection cable, 1.2 m 1 x 1.8m power cord 1 x RS232 cable
Active power - 1000 W
Apparent power - 1000 VA
ARTIKEL1 - ONLINE UPS MODULE 1000VA/1000W
ARTIKEL2 -
Battery capacity - 9 Ah
Breite - 0
Charging time - 4 h

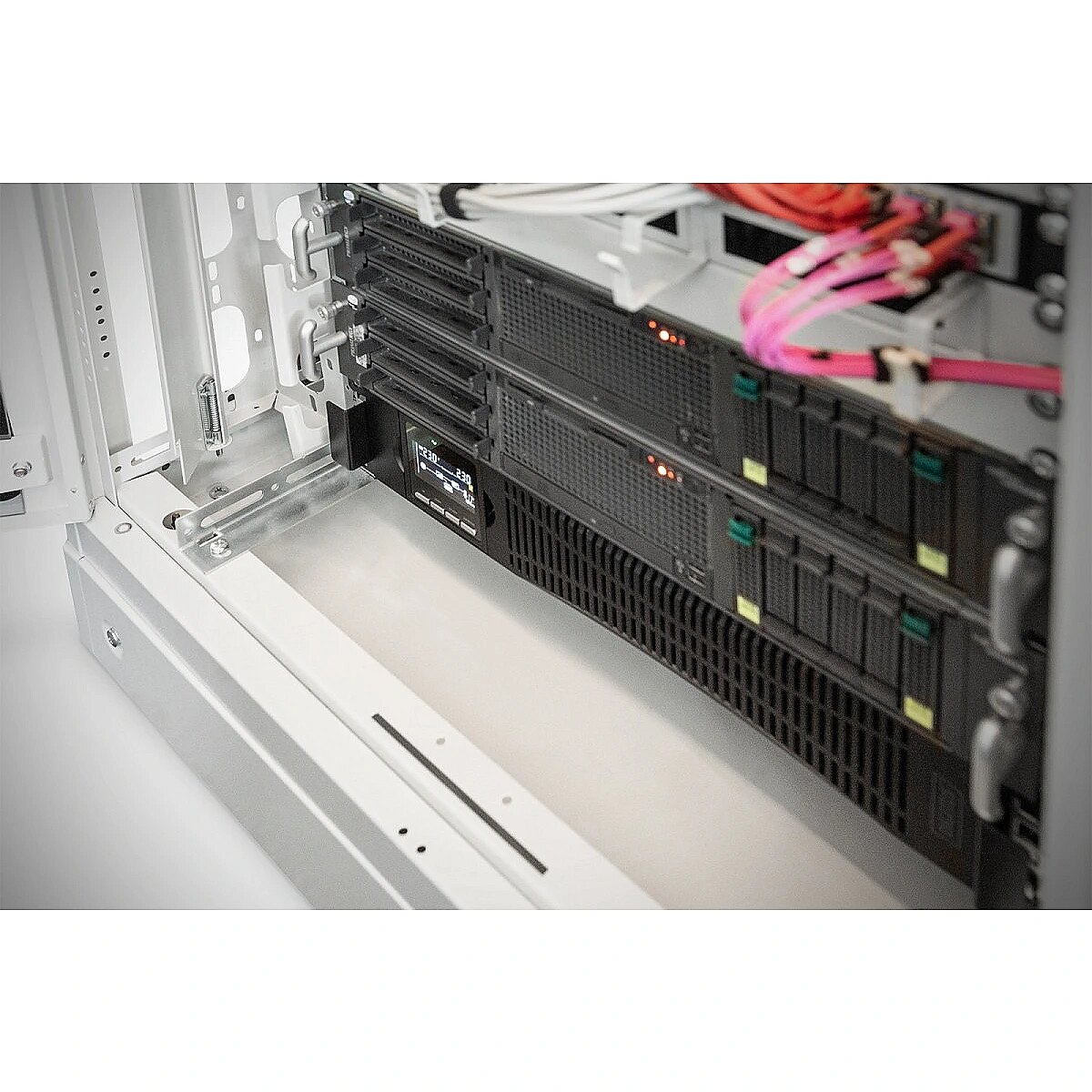

Chassis type - Rack
Chassis type - Tower
Color - Black

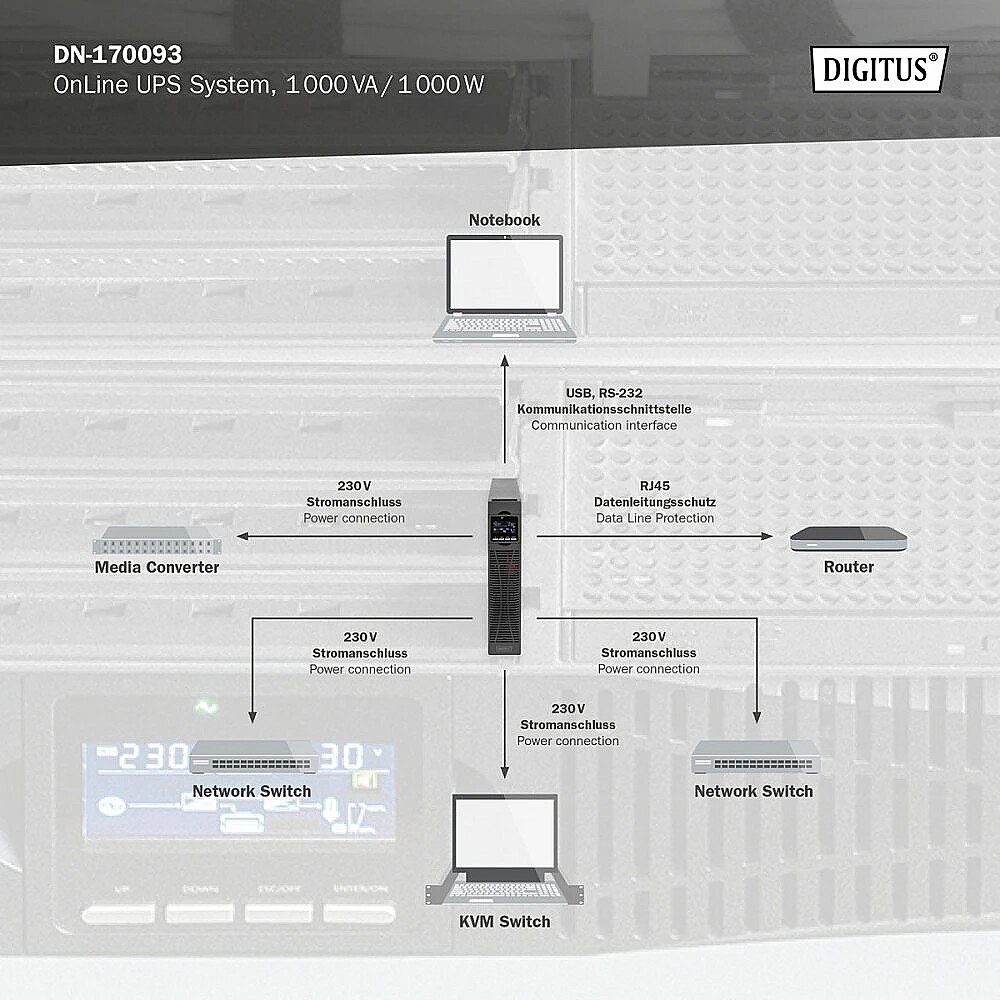

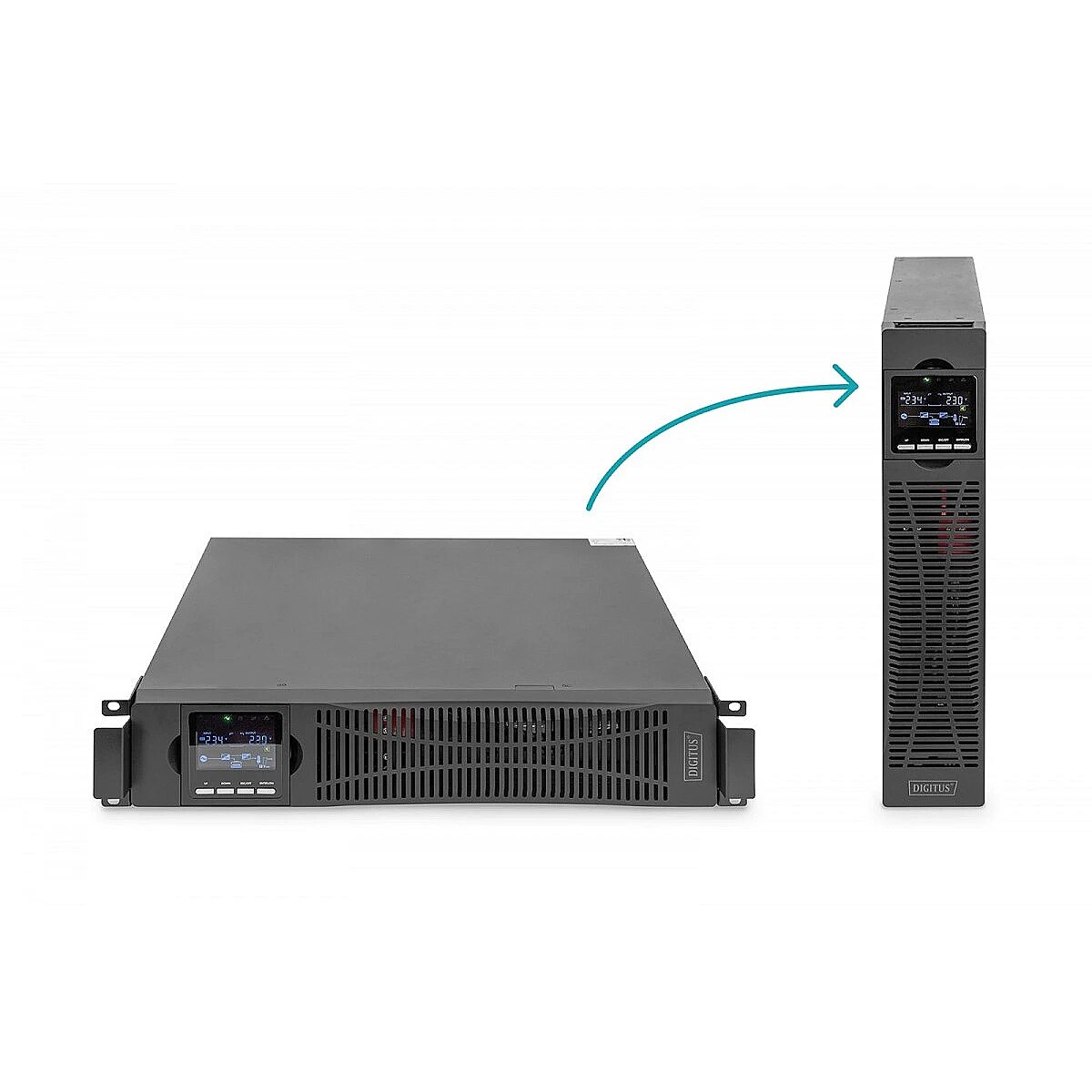

Description - DIGITUS OnLine UPS systems are extremely reliable solutions that are designed to protect sensitive equipment from power interruptions. They are equipped with control microprocessors to guarantee the highest performance and security of the user's business and office systems, as well as protection against data loss and possible damage. With its high power factor, wide voltage range and powerful charger, the system is also suitable for demanding applications. Intelligent charging modes and fan speed control extend the life and increase the reliability of the UPS. Using the LCD display, all parameter settings of this UPS can be configured for uninterrupted power supply. An SNMP adapter for remote access to the UPS system is available as an option. Online double conversion (microprocessor control) Convertible to rack/tower design Intelligent charging mode Rotating LCD screen with multifunctional parameter adjustment and function chart LCD display (charging status, battery status, AC mode, battery mode, bypass mode, error indicator) Excellent overload capacity Cold start supported Various built-in interfaces for communication (RS232/USB, serial interface, SNMP card slot) Optional SNMP card available for remote control via LAN Compatibility: Smart RS-232/USB supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, FreeBSD and Mac
Designation - CE+WEEE
dimension depth - 470 mm
dimension height - 200 mm
Dimensions - (H x W x D): 86.5 (2U) x 440 x 325mm RACK pitch (IEC 60297): 482.6 mm (19")
dimension weight - 14300 g
dimension width - 560 mm
ean - 4016032474647
EANCode - 4016032474647
Environment requirements -
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0
Hold-up time (maks) - 0 s
HSTNUMMER - DN-170093

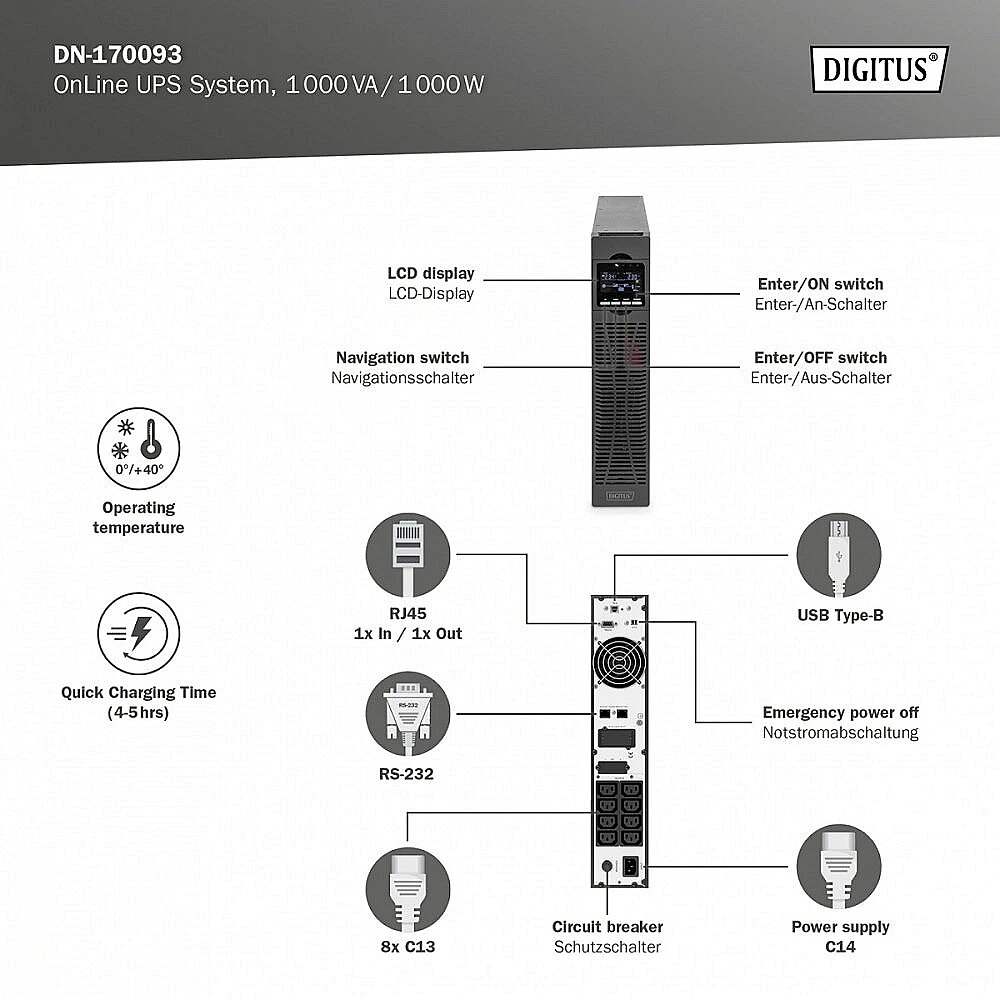

I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-45 LAN
Input power ports - IEC-C14
Laenge - 0

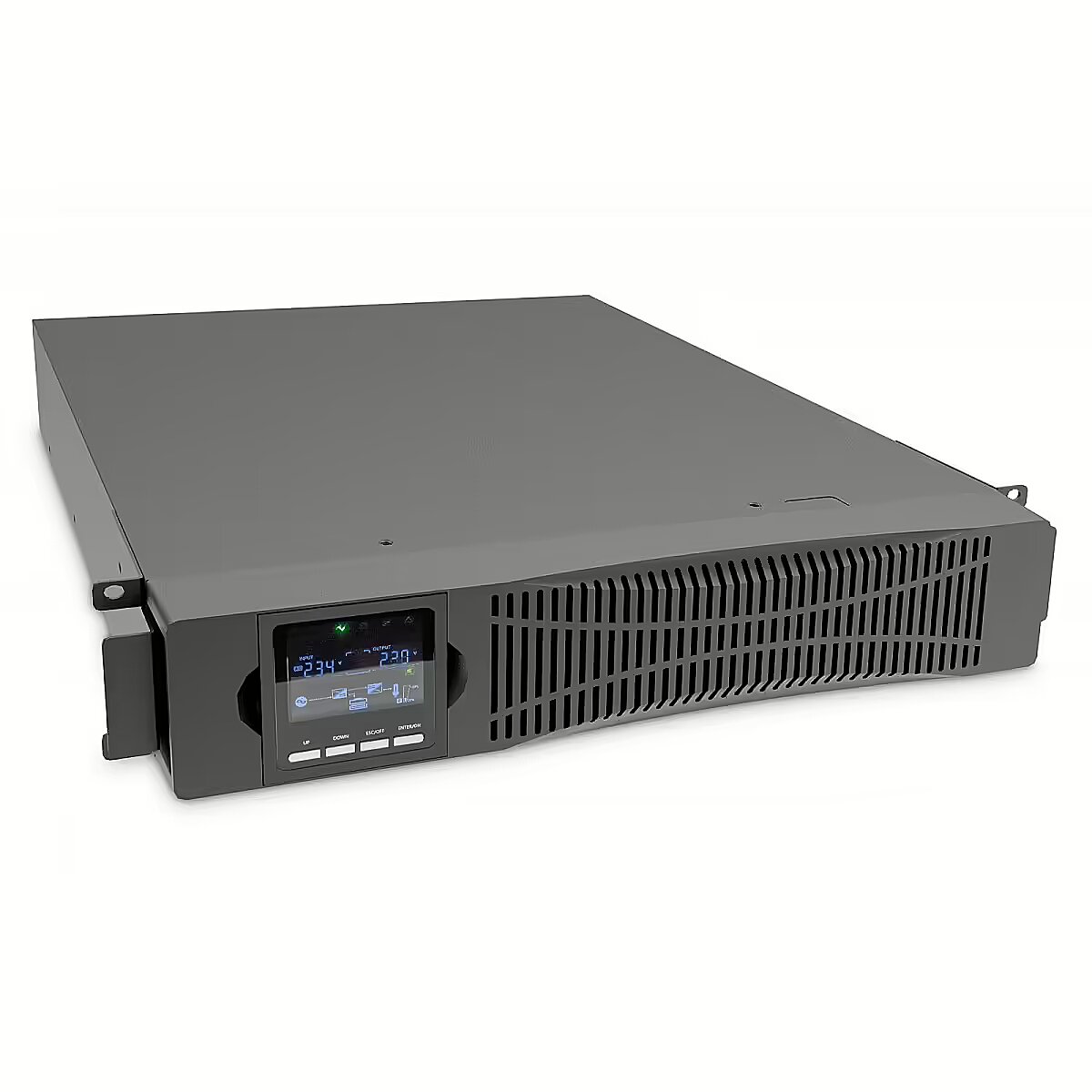

name - UPS Online Rack DN-170093
No. of batteries - 2
Number of phases input - 1 (230V)
Other features - Higher output power factor at 1.0 PF (efficiency up to 94.0%) True double conversion technology Microprocessor control optimizes reliability in the event of a power outage Power factor 1.0 EPO (emergency power off) switch The UPS device can be mounted in a cabinet or placed in a tower version using a stand Input/output voltage: 200/208/220/230/240 VAC Voltage Range: 110-290VAC +-5% Capacity: 1000VA / 1000W Frequency range: 45Hz-70Hz Power factor: 1.0 at output voltage; 0.99 at input voltage Voltage Regulation: +-1% Frequency range (synchronized range): 50 Hz or 60 Hz Frequency range (in battery mode): 50/60 Hz 0.1 Hz Power Step Step Ratio: 3:1 (Max.) Harmonic distortion (mains mode): 3% THD (linear charge); 6% THD (non-linear charge) Transition time (from mains mode to battery mode): zero Transition time (inverter to bypass): 4ms (typical) Waveform (in battery mode): Perfectly sine wave Efficiency: 90% (AC mode); 85% (battery mode); 97% (ECO mode) Typical charge time: 4 hours to restore 90% capacity Battery: 12V/9Ah x 2 Charging current: 2A Air humidity: 0-90% RH at 0°C to +40°C (non-condensing) Power cord: 1.8 m, type F (CEE 7/4) earthed plug to female type C14 earthed socket Outputs: 8 x IEC C13, including 4 x programmable USB connection cable: USB A to USB B / 1.2 m Power: 1500VA 3000VA Power Plug: Socket on IEC 60320 C14 cable
Output power ports - 8 x IEC-C13
producer - Digitus
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
The shape of the output voltage - Full sine wave
UPS Architecture - on-line double conversion
vendpn - DN-170093
Voltage - 12 V
Weight - 11.3 kg
