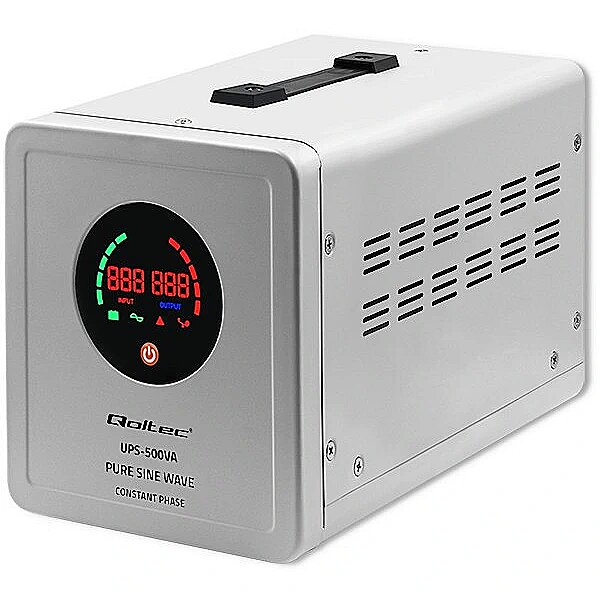

Qoltec Pure Sine Wave UPS, 500VA 350W

Accessories included -
Active power - 350 W
Apparent power - 500 VA
Color - Gray
Description - Discover the stability of working with Qoltec's 500VA Pure Sine Wave UPS
The Pure Sine Wave UPS boasts the highest class and is made of high-quality materials. It is reliable in the event of a mains power outage, automatically switching to battery mode to prevent power loss to connected devices, allowing them to continue operating.
The Qoltec UPS combines many functions to ensure continuous power supply to devices such as:
- power tools,
- fans,
- monitoring systems,
- LED lighting,
- gate drives,
- CO heaters,
- pumps.

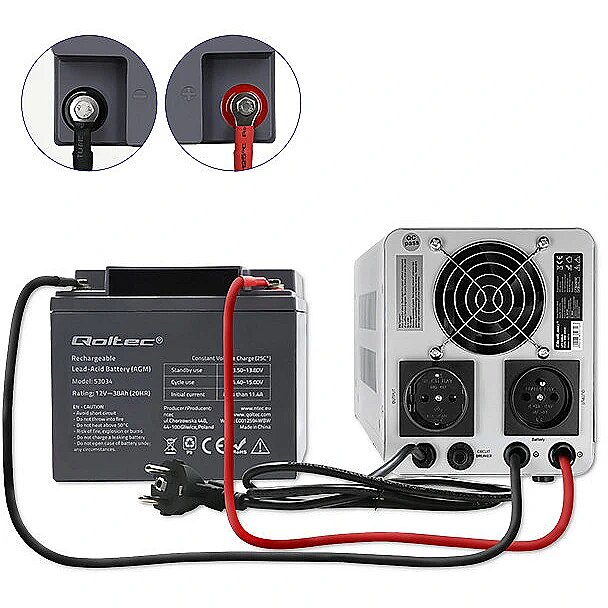

It will also find application in working with many other low-power devices requiring continuous power for extended periods. You may already envision the UPS Qoltec Pure Sine Wave 500VA 350W with a steady phase, perhaps in your basement, workshop, or garage, fulfilling its duty with a connected battery.
Pure Sine Wave - highest quality and device safety
Qoltec's online UPS units provide stable, interference-free clean energy with a sinusoidal waveform. This ensures full protection for your devices, thanks to dual conversion, which first converts AC mains power to DC, then back to AC, ensuring the highest level of power quality and protection against potential network disturbances such as voltage drops, power outages, surges, and failures.
How line interactive UPS works
The Line Interactive UPS relies on a built-in AVR (Automatic Voltage Regulation) system. This means that the input voltage is automatically regulated. If there is a drop or increase in voltage, the AVR system adjusts it to a level close to the nominal value. The presence of such a solution in an uninterruptible power supply has a positive impact on the durability of the connected battery and provides a constant voltage to the connected device.
Compatibility with any type of power supply
Qoltec's 500VA UPS offers:
- long backup time,
- line-interactive - switches to battery mode during power outages,
- high charging current,
- pure sine wave ensuring safety and compatibility with any type of power supply,
- CPU-controlled modular design,
- AVR function (Automatic Voltage Regulator),
- protection against overload, short circuit, voltage drop, overload, battery discharge, overheating, and reverse battery connection,
- powerful transformer with high capacity and specially designed circuit with high load capacity,
- dual conversion delivering stable power.
- 3-step charging current selection,
- effective heat dissipation,

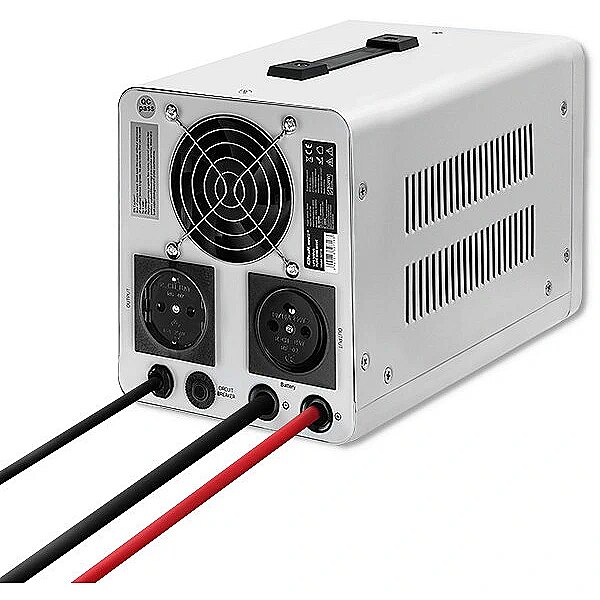

- two output sockets.
Constant phase in one place
A significant advantage of the Pure Sine Wave UPS is the constant phase, meaning that regardless of the power source, whether it's battery power or a socket, the phase remains in one place.
Straight forward and readable - for your convenience
The built-in LED display ensures easy device management. You receive real-time information about the status and parameters, making working with the device easy, fast, and reliable.
The LED display and audible alarm inform about:
- low battery voltage,
- battery discharge,
- overload 120%.
Full protection of connected devies
The UPS is designed in accordance with all required standards and quality control system. Equipped with a range of protections, it ensures full protection of connected devices. By following the instructions in our manual, you can enjoy uninterrupted device operation for many years.
Design - Product colour - Gray
Designation - CE+WEEE
dimensionalWeight - 2874
dimension depth - 185 mm
dimension height - 215 mm
Dimensions - (D/L x W x H): 310 x 140 x 175 mm
dimension weight - 5300 g
dimension width - 370 mm
ean - 5901878507163
Environment requirements - Working temperature: -10C ~ +40C Storage temperatures: -20C ~ +40C Storage humidity: 10 ~ 90% without condensation
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Audible alarm to indicate low battery level, Audible signaling of a fault
Features - Input frequency - 45/65 Hz
Features - Input operation voltage (max) - 275 V
Features - Input operation voltage (min) - 147 V
Features - Output operation voltage (max) - 230 V
Features - Output power - 350 W
Features - Output power capacity - 500 VA
Filters / protection - Circuit
Filters / protection - Overheating
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Voltage drop
guarantee - 24
guarantee_type - external
name - Uninterruptible power supply Pure Sine Wave
Other features -
Packaging data - Bundled software - Yes
Ports & interfaces - AC outlet types - Type E
Ports & interfaces - AC outlet types - Type F
producer - Qoltec
producerCode - 50716
productName - Qoltec 50716 Uninterruptible power supply Pure Sine Wave UPS | 500VA | 350W | constant phase | Grey
productSize - Normal
Protection features - Overheat protection - Yes
Protection features - Overload protection - Yes
Protection features - Overvoltage protection - Y
Protection features - Over voltage protection - Yes
Protection features - Protection against low voltage - Yes
Protection features - Short circuit protection - Yes
sizeX - 370
sizeY - 185
sizeZ - 210
Software -
Special functions - Signalling: Failure mode, low battery voltage, overload, overheating, other errors
vendpn - 50716
warrantyLength - 24
warrantyType - G
weight - 5270
Weight & dimensions - Depth - 310 mm
Weight & dimensions - Height - 180 mm
Weight & dimensions - Weight - 6.5 kg
Weight & dimensions - Width - 160 mm
